2510MCG3 - Square D 27 Amp 3 Pole 600 Volt Manual Motor Starter

Schneider Electric Accessories SKU: 2510MCG3
2510MCG3 - Square D 27 Amp 3 Pole 600 Volt Manual Motor Starter

2510MCG3 - Square D 27 Amp 3 Pole 600 Volt Manual Motor Starter

Schneider Electric Accessories SKU: 2510MCG3
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • FREE Shipping on orders over $49
  •  RUSH Shipping available
  • CSA approved with 1 year warranty
  • 30 day returns
  • Secure transaction

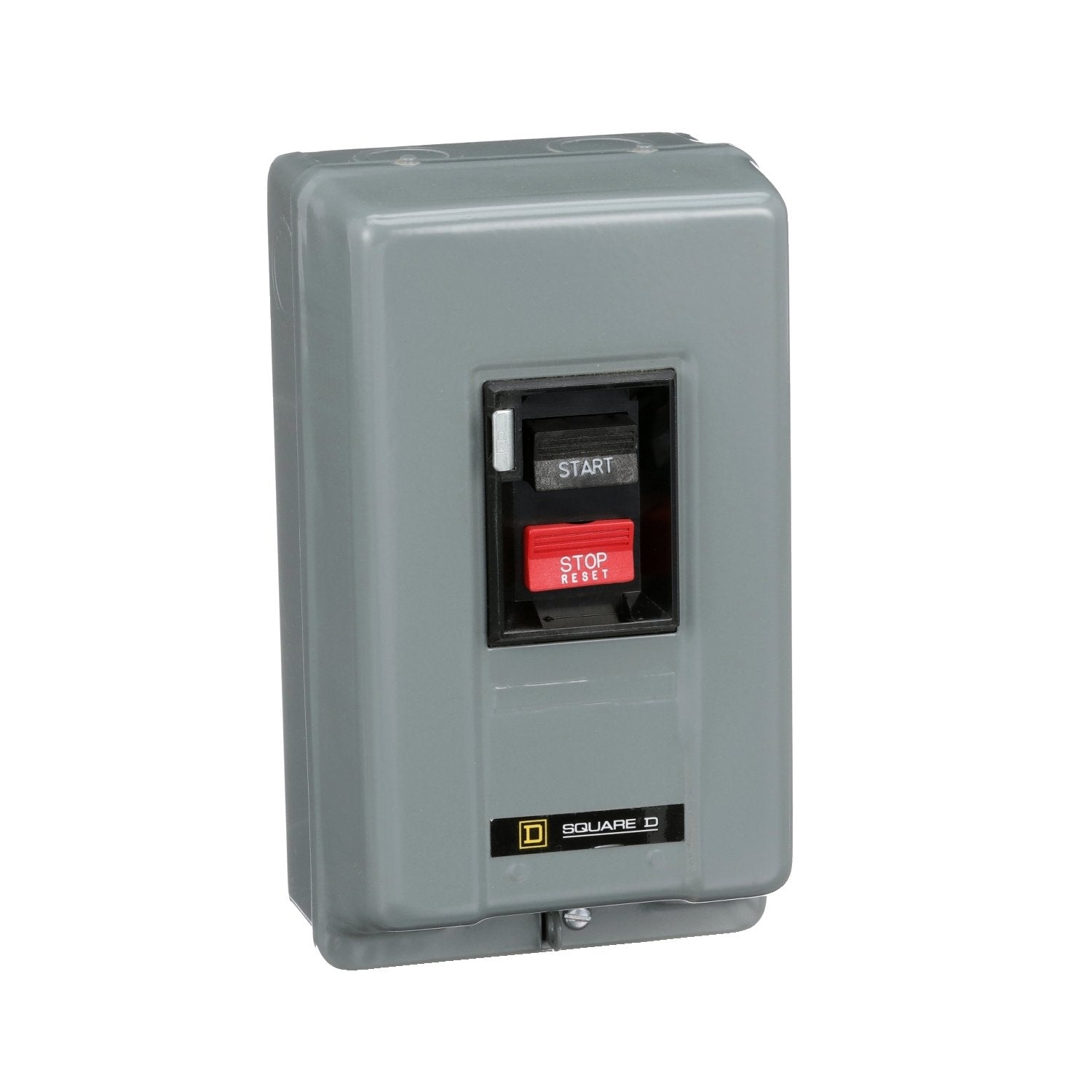

2510MCG3 - Square D Manual Motor Starter

Square D Manual Motor Starter features 2510 series three poles 27 ampere with nema full voltage non reversing manual motor starter pushbutton operator pressure wire clamp and reset type melting alloy with a maximum voltage rating of 600 Vac/250 Vdc starter is Ul/csa/ce listed.

Specifications:

  • Product: Manual Starter
  • Type: M
  • NEMA Size: M-1
  • Control Unit: Push-button
  • Pilot Light: No indicator
  • Horsepower Rating: 7.5 hp 200...230 V AC, 3 phases, 10 hp 380...575 V AC, 3 phases
  • Voltage Rating: 600 V AC
  • Number of Poles: 3P
  • Starter Type: Non reversing
  • Electrical Connection: Pressure wire clamp
  • Overload Relay Type: Melting alloy
  • Number of Thermal Units Required: 3
  • Wire Gauge: AWG 14...AWG 8 copper
  • Auxiliary Contacts: Without
  • Height: 219.20 mm (8.63 in)
  • Width: 127.00 mm (5 in)
  • Depth: 104.90 mm (4.13 in)
  • Authentic Square D Product
  • Dimensions (H x W x L): 8.63" x 5" x 4.13"
