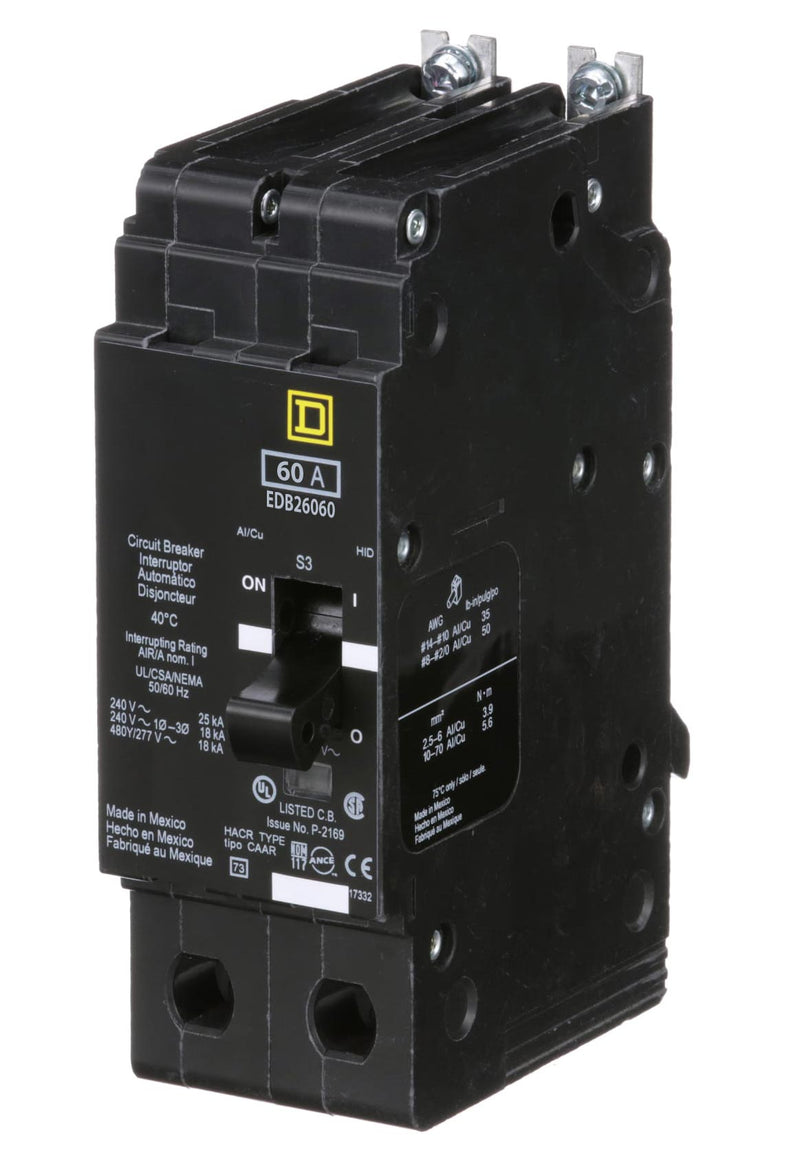

EDB26060 - Square D - Molded Case Circuit Breaker

Bolt-On - 60 Amp - 2 Pole - 600 Volt

Schneider Electric SKU: EDB26060
EDB26060 - Square D 60 Amp 2 Pole 600 Volt Bolt-On Molded Case Circuit Breaker
EDB26060 - Square D - Molded Case Circuit Breaker
EDB26060 - Square D - Molded Case Circuit Breaker
EDB26060 - Square D - Molded Case Circuit Breaker

EDB26060 - Square D - Molded Case Circuit Breaker

Bolt-On - 60 Amp - 2 Pole - 600 Volt

Schneider Electric SKU: EDB26060
Regular price $490.00
/
  • New, in stock and ready to ship
  • Inventory on the way
  • FREE Shipping on orders over $49
  •  RUSH Shipping available
  • CSA approved with 1 year warranty
Condition
Shipping calculated at checkout.
  • Secure transaction

Overview

Product Specifications - EDB26060 - Square D Bolt-On Circuit Breaker

  • Category:

  • Connection:

    Bolt-On
  • Type:

    EDB
  • Functions:

    LI - Long-Time and Instantaneous
  • Protection:

    Thermal Magnetic
  • AIC Ratings:

    14 kA 600Y/347 V AC

Dimensions

  • Dimensions (HxWxD):

    5.66" x 1.96" x 4.05"
  • Weight:

    3lbs

Standards

CSA Approved logo

Additional Details

  • Protection Type:

    Short-Circuit / Overload
  • Module Type:

    E-Frame
  • Trip Unit Rating:

    875 Amp
  • Line Rated Current:

    60 Amp
  • Maximum Operating Voltage:

    600Y/347 V AC
  • Mounting Mode:

    Bolt-On
  • Product Destination:

    Square D NF Panelboard
  • Electrical Connection:

    Aluminum Lugs
  • Holding Current:

    270 Amp
  • Local Signaling:

    Trip Indicator
  • Circuit Breaker Application:

    HID-Rated / HACR-Rated
  • AWG Gauge:

    AWG 12...AWG 6 Aluminum | AWG 14...AWG 6 Copper

Product Description - EDB26060 - Square D Bolt-On Circuit Breaker

Schneider Electric / Square D's EDB26060 bolt-on molded case circuit breaker is a reliable and easy-to-install device designed for use in Square D NF Panelboards. This circuit breaker is CSA-rated, HID-rated and HACR-rated, and UL Listed as High-Intensity Discharge.

The EDB26060 is a 2-pole bolt-on circuit breaker, rated at 60A at a system voltage of 600Y/347 V AC. The circuit breaker has a thermal-magnetic trip unit and a signal indicator to indicate when a trip occurred. The device has a hold current of 270A (the maximum current the breaker can be held at to ensure a trip will occur) and a trip current of 875A (the current value when the breaker is guaranteed to trip).

Square D's EDB26060 circuit breaker is calibrated for 40 degrees C and has aluminum lugs with a terminal lug rating of AWG 12...AWG 6 (aluminum) and AWG 14...AWG 6 (copper).
