Product Specifications - EGB24025 - Square D Bolt-On Circuit Breaker
Dimensions (HxWxD):5.66" x 1.96" x 4.05"
Protection Type:Short-Circuit / Overload
Trip Unit Rating:875 Amp
Line Rated Current:25 Amp
Maximum Operating Voltage:480Y/277 V AC
Product Destination:Square D NF Panelboard
Electrical Connection:Aluminum Lugs
Holding Current:270 Amp
Local Signaling:Trip Indicator
Circuit Breaker Application:HID-Rated / HACR-Rated
AWG Gauge:AWG 12...AWG 6 Aluminum | AWG 14...AWG 6 Copper

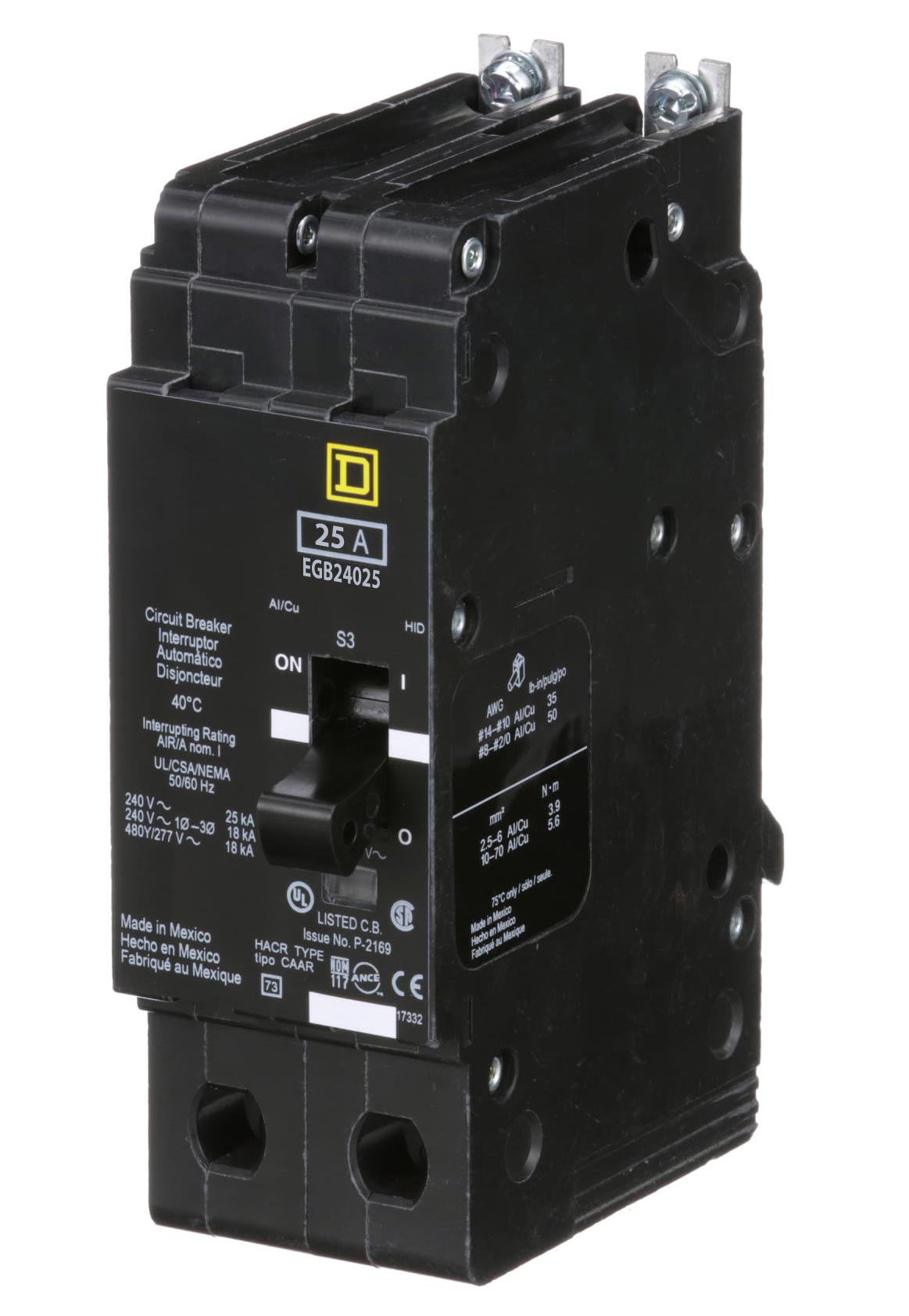

Product Description - EGB24025 - Square D Bolt-On Circuit Breaker
Schneider Electric / Square D's EGB24025 bolt-on molded case circuit breaker is a reliable and easy-to-install device designed for use in Square D NF Panelboards. This circuit breaker is CSA-rated, HID-rated and HACR-rated, and UL Listed as High-Intensity Discharge.
The EGB24025 is a 2-pole bolt-on circuit breaker, rated at 25A at a system voltage of 480Y/277V AC. The circuit breaker has a thermal-magnetic trip unit and a signal indicator to indicate when a trip occurred. The device has a hold current of 270A (the maximum current the breaker can be held at to ensure a trip will occur) and a trip current of 875A (the current value when the breaker is guaranteed to trip).

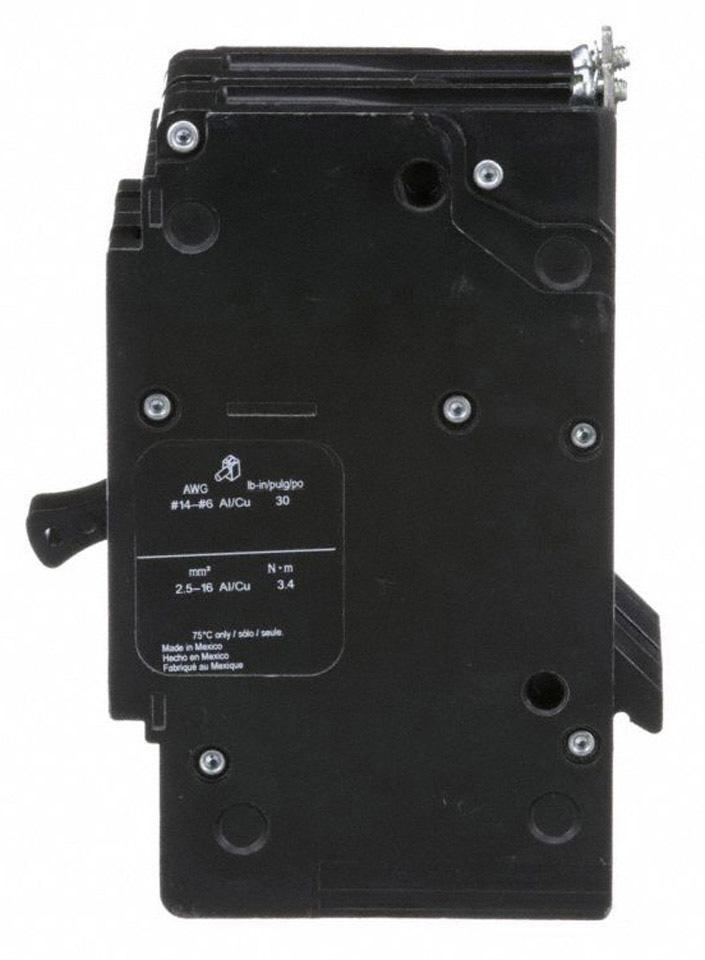

Square D's EGB24025 circuit breaker is calibrated for 40 degrees C and has aluminum lugs with a terminal lug rating of AWG 12...AWG 6 (aluminum) and AWG 14...AWG 6 (copper).
Returns are easy
You may return items within 30 days of delivery for a full refund.
FREE Shipping on orders over $49.
Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Product Warranty - EGB24025 - Square D - Molded Case Circuit Breaker
All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.
