Product Specifications - EJB16015 - Square D Bolt-On Circuit Breaker
Dimensions (HxWxD):5.66" x 0.98" x 4.05"
Protection Type:Short-Circuit / Overload
Trip Unit Rating:875 Amp
Line Rated Current:15 Amp
Maximum Operating Voltage:347 V AC
Product Destination:Square D NF Panelboard
Electrical Connection:Aluminum Lugs
Holding Current:270 Amp
Local Signaling:Trip Indicator
Circuit Breaker Application:HID-Rated / HACR-Rated
AWG Gauge:AWG 12...AWG 6 Aluminum | AWG 14...AWG 6 Copper
Product Description - EJB16015 - Square D Bolt-On Circuit Breaker
Schneider Electric / Square D's EJB16015 bolt-on molded case circuit breaker is a reliable and easy-to-install device designed for use in Square D NF Panelboards. This circuit breaker is CSA-rated, HID-rated and HACR-rated, and UL Listed as High-Intensity Discharge.
The EJB16015 is a 1-pole bolt-on circuit breaker, rated at 15A at a system voltage of 347V AC. The circuit breaker has a thermal-magnetic trip unit and a signal indicator to indicate when a trip occurred. The device has a hold current of 270A (the maximum current the breaker can be held at to ensure a trip will occur) and a trip current of 875A (the current value when the breaker is guaranteed to trip).

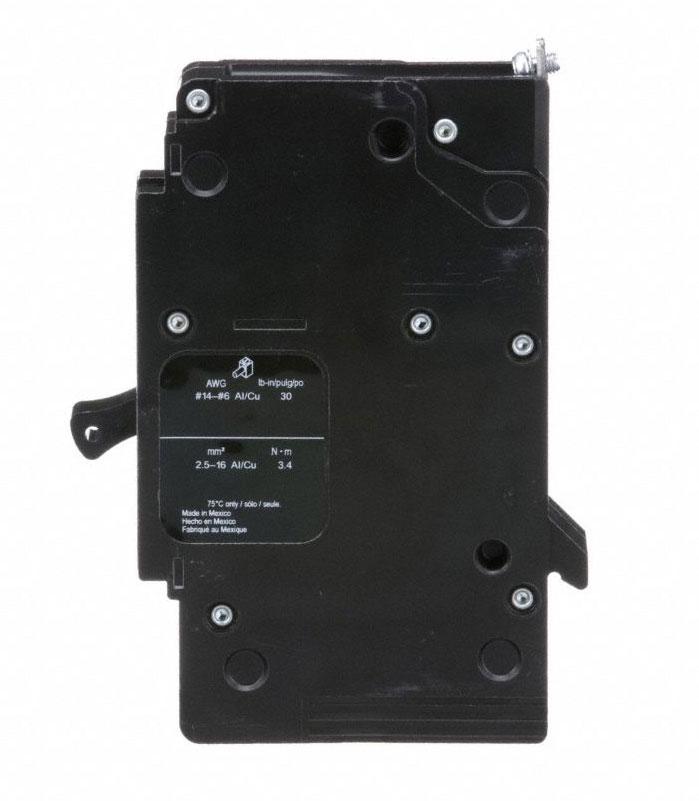

Square D's EJB16015 circuit breaker is calibrated for 40 degrees C and has aluminum lugs with a terminal lug rating of AWG 12...AWG 6 (aluminum) and AWG 14...AWG 6 (copper).
