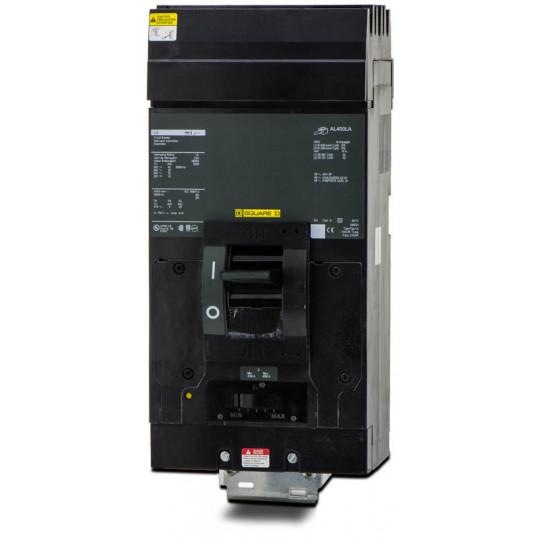

LA36125 - Square D 125 Amp 3 Pole 600 Volt Plug-In Molded Case Circuit Breaker
FREE Shipping on orders over $49
LA36125 - Square D Plug-In Molded Case Circuit Breaker
- Product or component type: Circuit breaker
- Range of product: I-Line
- Trip Unit Type: Thermal-magnetic
- Rating Code: A
- Line Rated Current: 125 A
- Number of Poles: 3P
- Interrupt Rating: 42 kA at 240 V AC
- System Voltage: 600 V AC
- Mounting mode: I-Line
- Electrical connection: Lugs load
- Wire Gauge: AWG 1...600 kcmil (aluminium/copper) 1 cable(s)
- Terminal Type: AL400LA
- Magnetic hold current: 625 A
- Magnetic tripping current: 1250 A
- Wiring configuration: 3-wire
- Height: 11 in
- Width: 6 in
- Depth: 5.84 in
- Product certifications: CSA, UL listed
- Dimensions (H x W x L): 11" x 6" x 5.84"
- 3 phase
