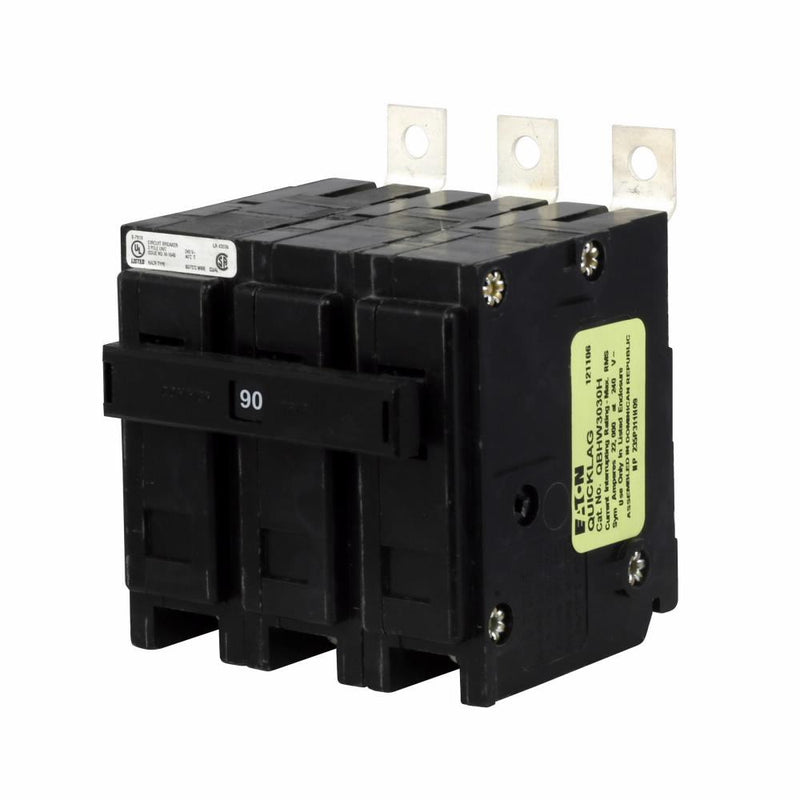

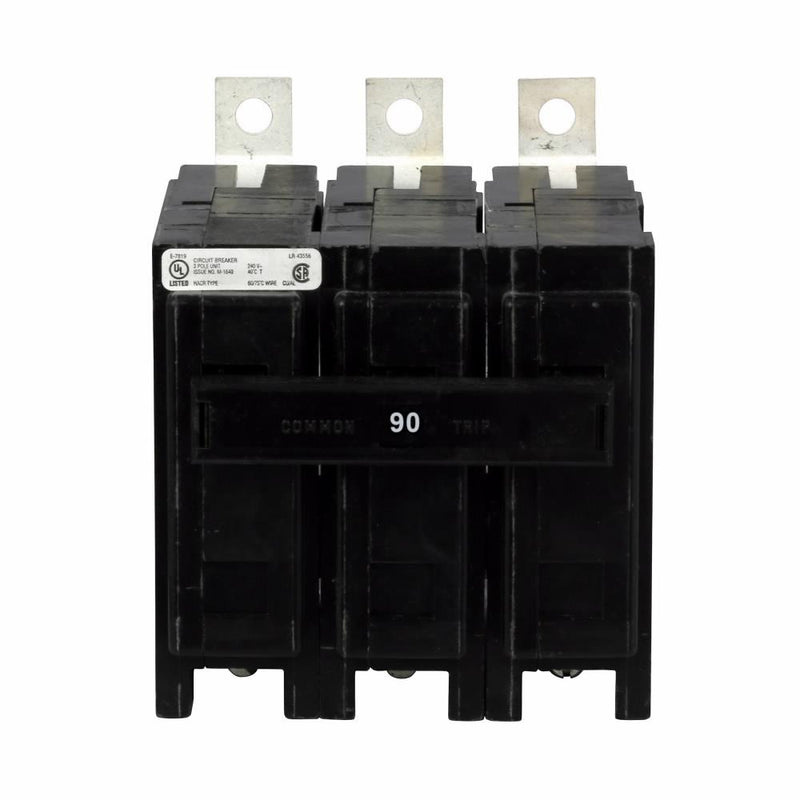

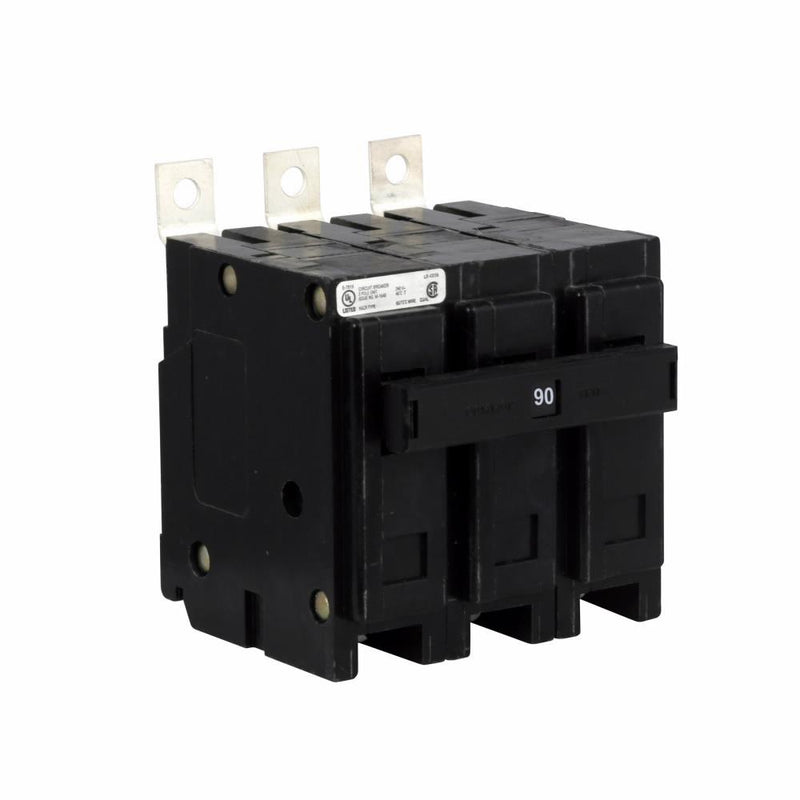

QBHW3090H - Eaton Cutler-Hammer Molded Case Circuit Breaker
This product is a cutler-hammer circuit breaker 3-pole type qbhw termal-magnetic miniature circuit breaker has a current rating of 90 amps at 40 deg c and voltage rating of 240 vac it has bolt-on type connection.
- Product Name: Quicklag Industrial Thermal-Magnetic Circuit Breaker
- Product Length: 3.9 IN
- Product Height: 4.8 IN
- Product Width: 3.2 IN
- Product Weight: 1.15 LB
- Certifications: CSA Certified, UL Listed
- Catalog Notes: HACR rated
- Mounting: Bolt-on
- Interrupt Rating: 22 kAIC
- Type: Quicklag
- Circuit Breaker Type: QBHW
- Quantity: Q32
- Voltage Rating: 240V
- Amperage Rating: 90A
- Trip Type: Non-Interchangeable
- Number Of Poles: Three-pole
- Authentic Eaton/Cutler-Hammer Product
- Dimensions (H x W x L): 4.8" x 3.2" x 3.9"
- 3 phase
