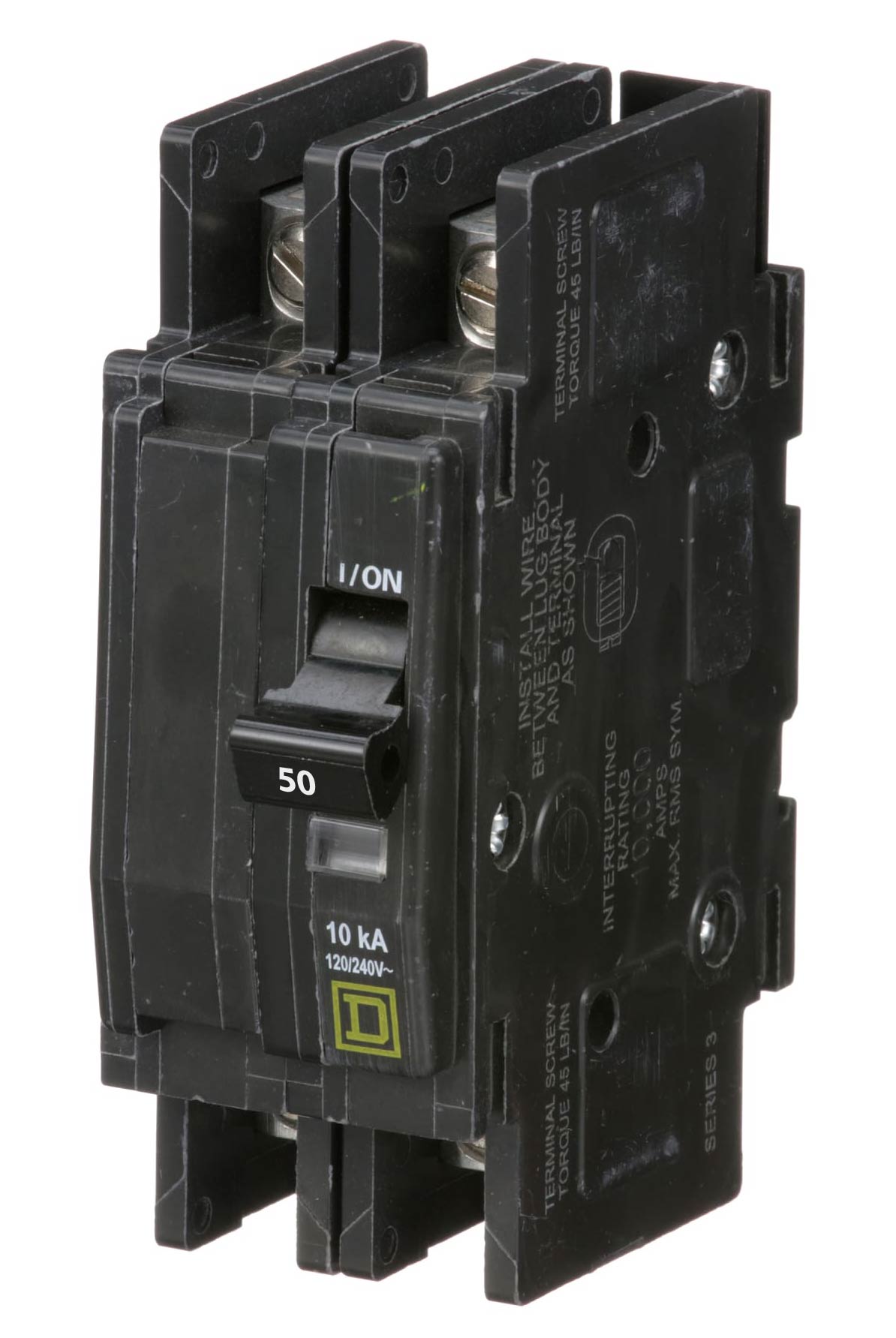

QOU250 - Square D Miniature Circuit Breaker
This product is a Miniature circuit breaker has a voltage rating of 120/240 Volts current rating of 50 Amps and interrupting rating of 10 kilo-Amps. The 2-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 14 - 2 AWG. It has DIN rail/flush/surface mounting and provides protection against over current.
- Product or component type: Miniature circuit-breaker
- Range of product: QOU
- Circuit breaker type: Standard
- Circuit breaker application: HACR and Switching Duty rated
- Line Rated Current: 50 A
- Number of Poles: 2P
- Interrupt Rating: 10 kA at: 120/240 V AC, 5 kA at: 48 V DC, 10 kA at: 120 V AC
- Electrical connection: Slotted box lugs, line side,Slotted box lugs, load side
- System Voltage: 120 V AC, 120/240 V AC, 48 V DC
- Mounting mode: Unit mount
- AWG gauge: AWG 14...AWG 2 (aluminium/copper)
- Height: 4.05 in
- Depth: 2.95 in
- Width: 1.5 in
- Product certifications: CSA, IEC, UL Listed
- Authentic Square D Product
- Dimensions (H x W x L): 4.05" x 1.5" x 2.95"
Alt model: q0u250
