2510FW1 - Square D Accessories - Starter

600 Volt

2510FW1 - Square D 16 Amp 1 Pole 600 Volt Fractional Manual Motor Starter

Images are for reference only

2510FW1 - Square D Accessories - Starter

600 Volt

Regular price $299.99 CAD
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - 2510FW1 - Square D Accessories - Starter

All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

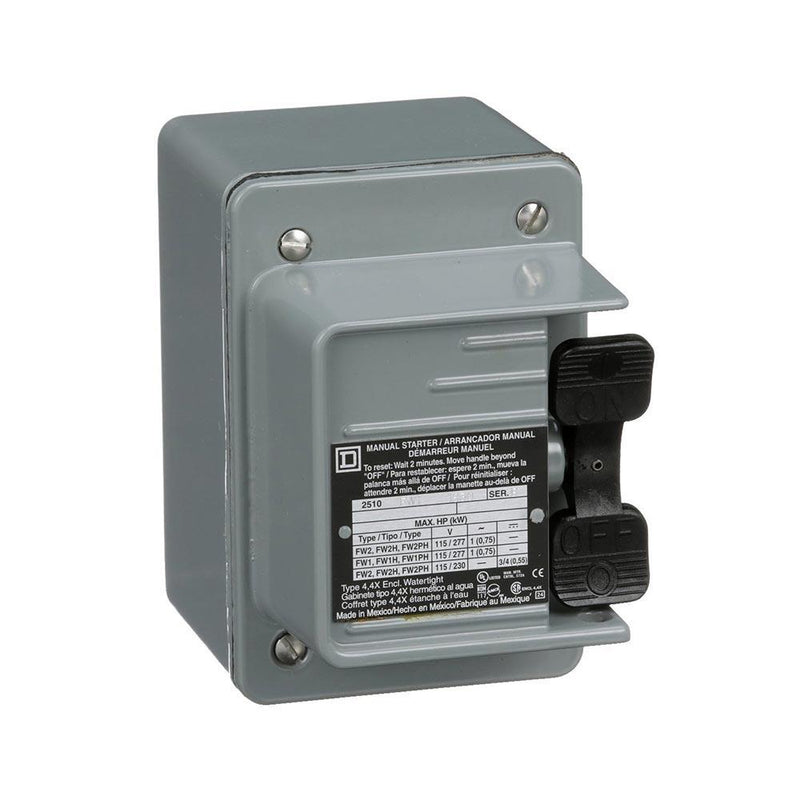

2510FW1 - Square D Fractional Manual Motor Starter

The New Square D 2510FW1 277Vac Fractional Manual Motor Starter is a 16A, noneversing, single unit manual starter with melting alloy thermal overload relay. This fractional horsepower starter provides control/short-circuit current and overload protection as well as manual On-Off control for small motors in a variety of industrial and commercial installations. This noneversing motor starter has a NEMA 4 die cast zinc alloy enclosure and screw clamp terminals. This type-F manual motor starter has 1 phase and 1 pole with toggle switch. The Square D 2510FW1 includes 3/4-inch bottom pipe tap and an oil tight and dust tight single unit metal box.

Specifications:

  • Product: Single Unit Manual Starter
  • Type: F
  • Overload Relay Type: Melting alloy
  • Current Rating: 16 A
  • Cable entry: 0.75 NPT (bottom)
  • Horsepower Rating: 1 hp 115 V AC, 1 hp 230 V AC, 1 hp 277 V AC
  • Voltage Rating: 277 V AC
  • Number of Poles: 1P
  • Control Unit: Toggle switch (with lock-off)
  • Number of Phases: 1 phase
  • Pilot Light: No indicator
  • Reset: Manual
  • Motor starter type: Non reversing
  • Electrical connection: Screw clamp terminals
  • Wire Gauge: AWG 14...AWG 12 copper
  • Height: 111.25 mm (4.38 in)
  • Width: 76.20 mm (3 in)
  • Depth: 107.95 mm (4.25 in)
  • Authentic Square D Product
  • Dimensions (H x W x L): 4.38" x 3" x 4.25"
