APR3455 - Crouse-Hinds - Connector

4 Wire - 4 Pole - 30 Amp - 600 Volt

Crouse-Hinds SKU: Apr-55

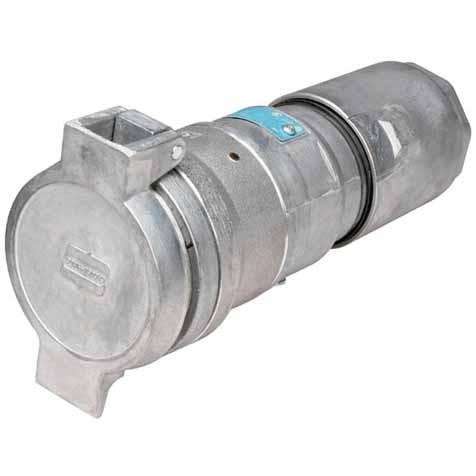

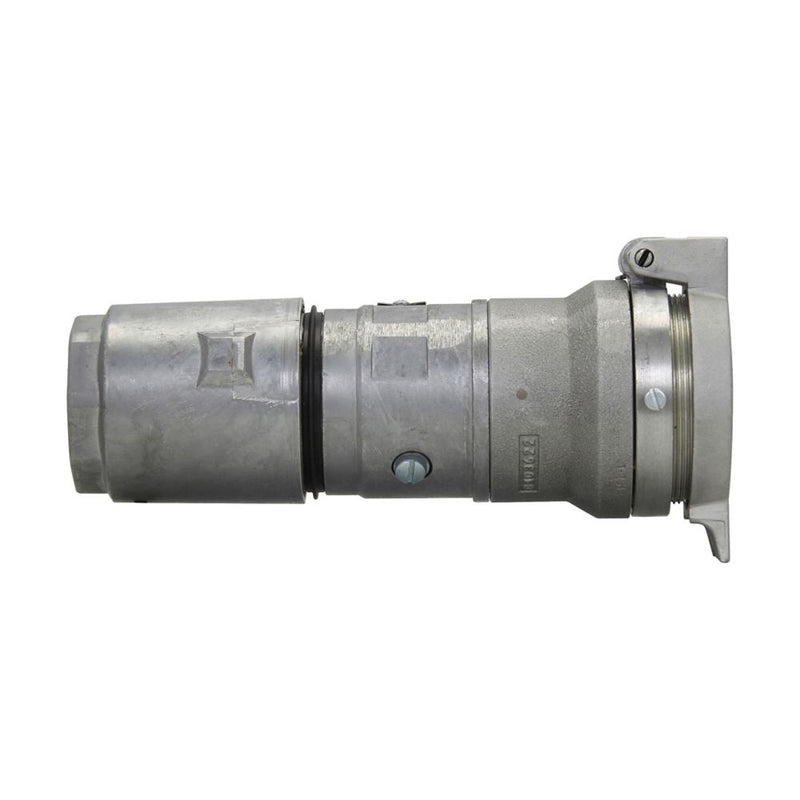

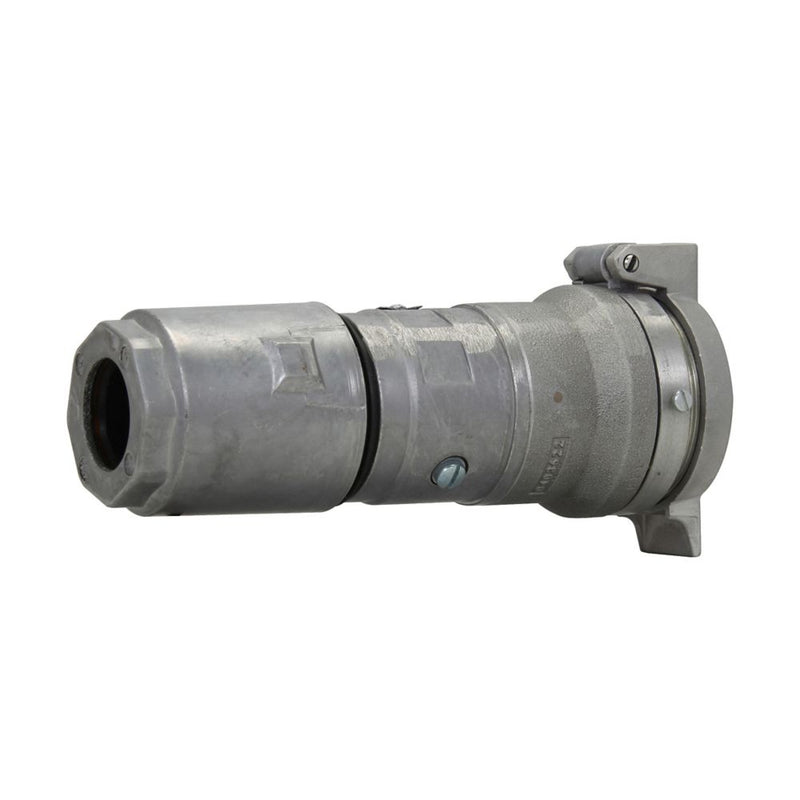

APR3455 - Crouse-Hinds 30 Amp 4 Pole 600 Volt Grounding Style Connector
APR3455 - Crouse-Hinds - Connector
APR3455 - Crouse-Hinds - Connector

Images are for reference only

APR3455 - Crouse-Hinds - Connector

4 Wire - 4 Pole - 30 Amp - 600 Volt

Crouse-Hinds SKU: Apr-55
Regular price $380.00
/
  • In stock and ready to ship
  • Inventory on the way
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Overview

Product Specifications - APR3455 - Crouse-Hinds - Connector

  • Part Number:

    APR3455
  • Manufacturer:

  • Family:

    Arktite
  • Pole:

    4
  • Wire:

    4
  • Amp

    30
  • Volt:

    600
  • Category:

    Pin and Sleeve
  • Type:

    APR
  • Cable Diameter:

    0.87" - 1.20"
  • Material:

    Copper-free aluminum
  • Style:

    1
  • Frequency

    50-400 Hz
  • Nema Rating

    4 Watertight

Dimensions

  • Dimensions (HxWxD):

    2.56" x 2.56" x 8.25"
  • Weight:

    2.3 lbs

Standards

CSA Approved logo

Product Description - APR3455 - Crouse-Hinds - Connector

Crouse-Hinds Grounding Style Connector

Circuit breaking: plugs through 100 ampere rating may be disconnected under load; 150-400 ampere units are for service disconnect use only. Receptacles accept only plugs of the same amperage rating, style and number of poles, making it impossible to mismate, and provides for positive polarization. Extra wide electrical spacing allows for maximum safety. Insulator materials are the result of intensive testing. Selection has been made based on highest dielectric strength, maximum mechanical and impact resistance, lowest moisture absorption and highest arc tracking resistance.

A variety of installations is possible due to the availability of several types of back boxes. Designed to withstand rough usage and the effects of adverse environments. Reversible interiors, 30, 60 and 100 ampere (except 30 and 60 ampere, 5-pole) Arktite plug and receptacle interiors are interchangeable using a screwdriver. This makes it possible to feed a normally de-energized receptacle from an energized plug with usual Arktite safety; no energized contacts are exposed.


Documentation

PDF Icon Catalogue

PDF Icon Installation Instructions
