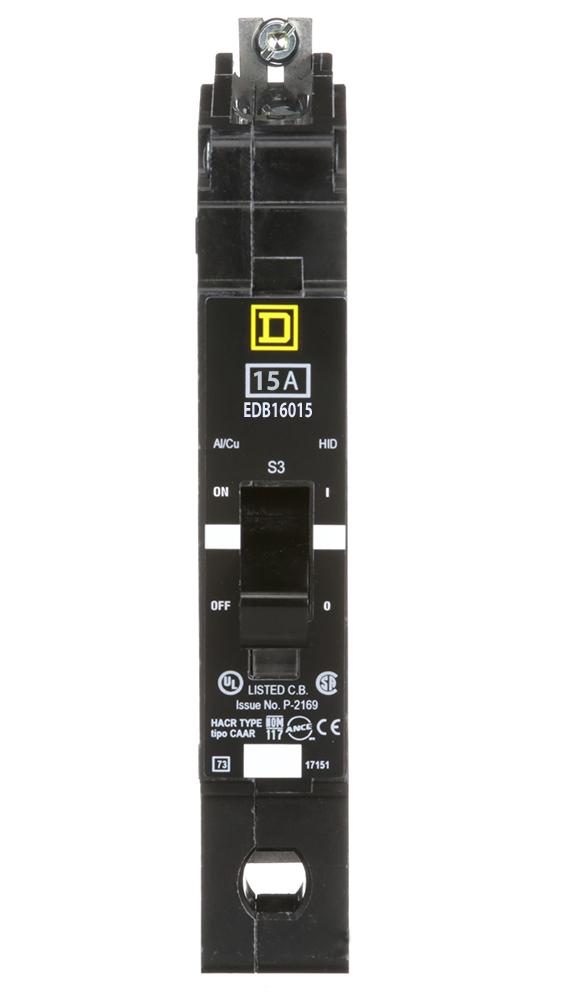

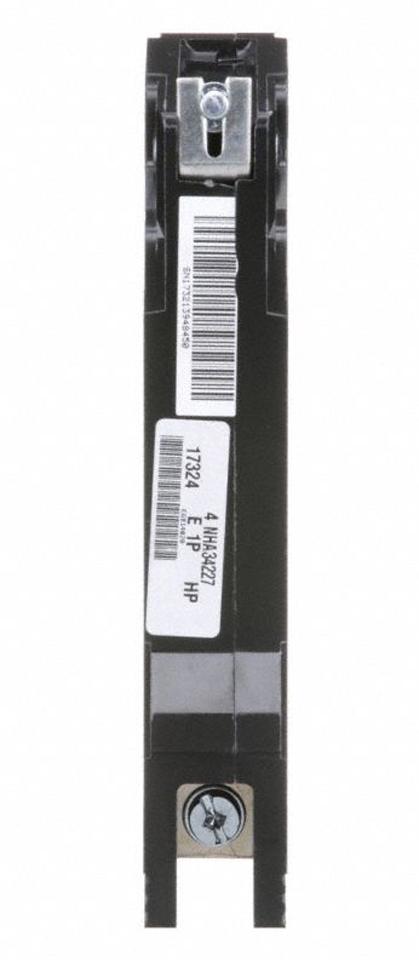

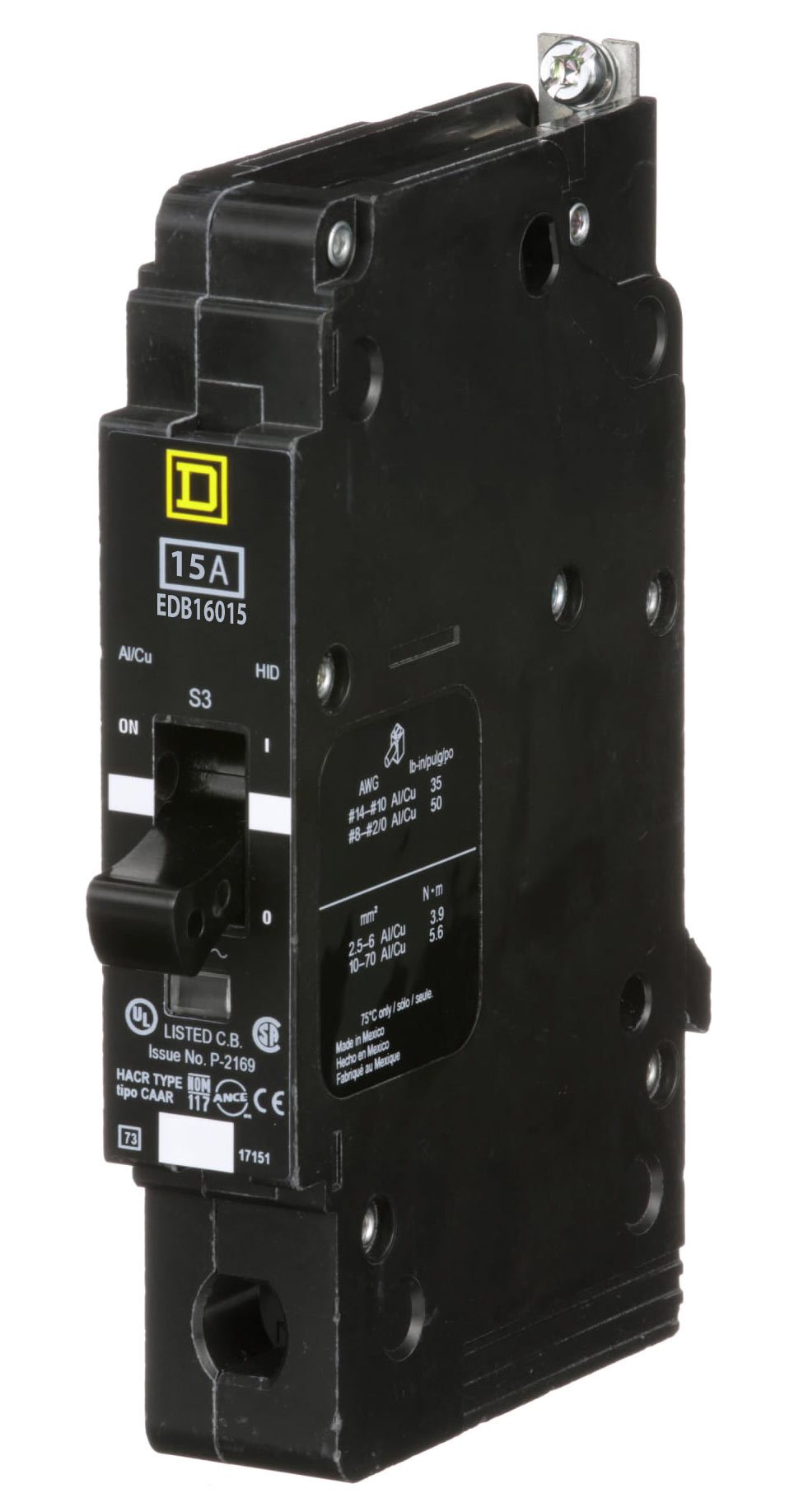

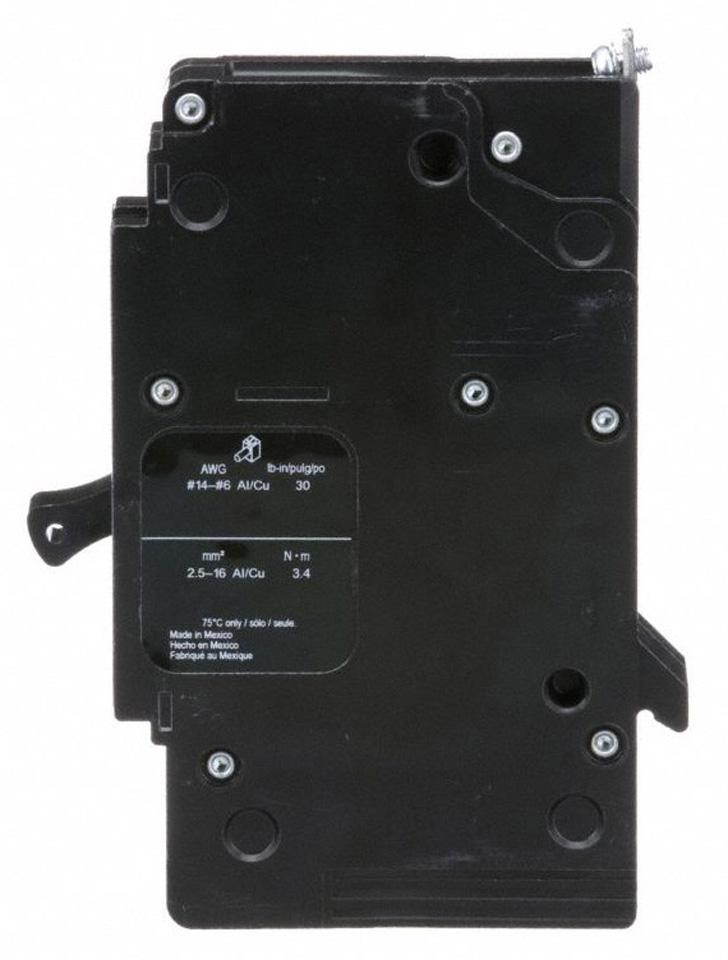

EDB16015 - Square D Bolt-On Molded Case Circuit Breaker
Square D molded case circuit breaker Its Compact and Easy to Install One Pole One Phase E Frame Long Time and Instantaneous Functions Circuit Breaker. Circuit Breaker Voltage Rating of 600 V and 15 ampere With Built in Bolt On Connection Thermal Magnetic Protection Molded Case Circuit Breakers.
- range of product: 125 A Frame EDB-EGB-EJB
- product or component type: Circuit-breaker
- device short name: EDB
- module type: E-Frame
- trip unit rating: 875 A
- Line Rated Current: 15 A
- System Voltage: 600Y/347 V AC
- AWG gauge: AWG 14...AWG 6 copper, AWG 12...AWG 6 aluminium
- breaking capacity: 14 kA 600Y/347 V AC
- circuit breaker application: HACR rated
- depth: 4.05 in
- electrical connection: Lugs aluminium
- height: 5.66 in
- holding current: 270 A
- local signalling: Trip indicator
- mounting mode: Bolt-on
- number of poles: 1
- number of spaces: 1
- number of spaces required: 1
- product destination: Panelboard NF
- product weight: 2 lb(US)
- protection type: Short-circuit, Overload
- width: 0.98 in
- trip unit technology: Thermal-magnetic
- breaking capacity code: D
- product certifications: cULus, IEC
- ambient air temperature for operation: 104 Degree F (40 Degree C)
- Dimensions (H x W x L): 5.66" x 0.98" x 4.05"
