Product Specifications - HGL36080 - Square D Powerpact Circuit Breaker

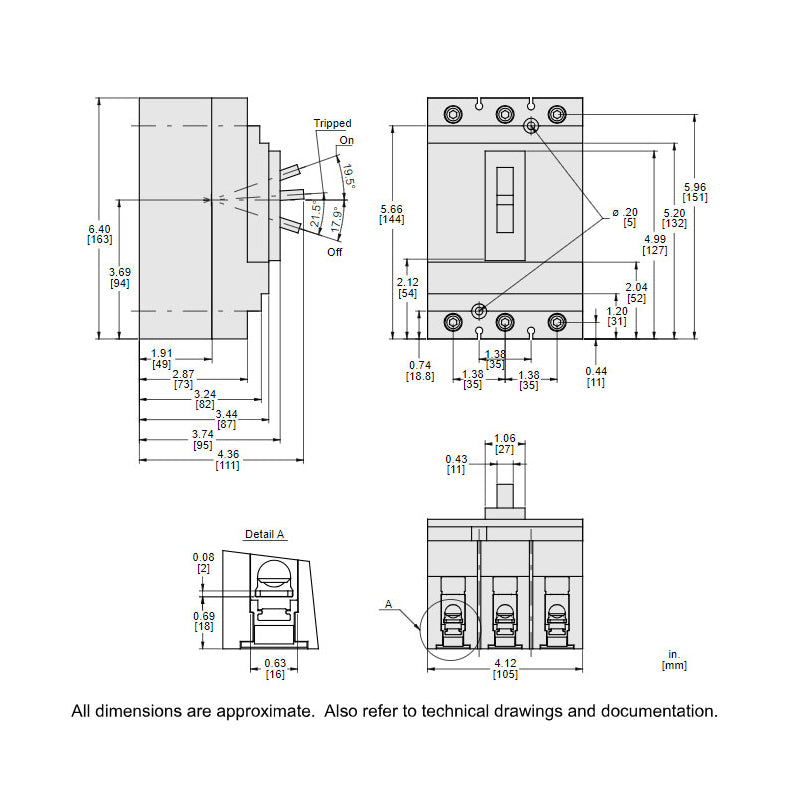

Dimensions (HxWxD):6.4" x 4.12" x 4.36"
Trip Unit Technology:Thermal-magnetic
Line Rated Current:80 A
Mounting Mode:Unit Mount Lug
Breaking Capacity CodeG
Electrical Connection:Lugs line / Lugs load
Magnetic Hold Current:800 A
Continuous Current Rating:80%
AWG Gauge:AWG 14...AWG 3/0 aluminium/copper terminal
Product Description - HGL36080 - Square D Powerpact Circuit Breaker

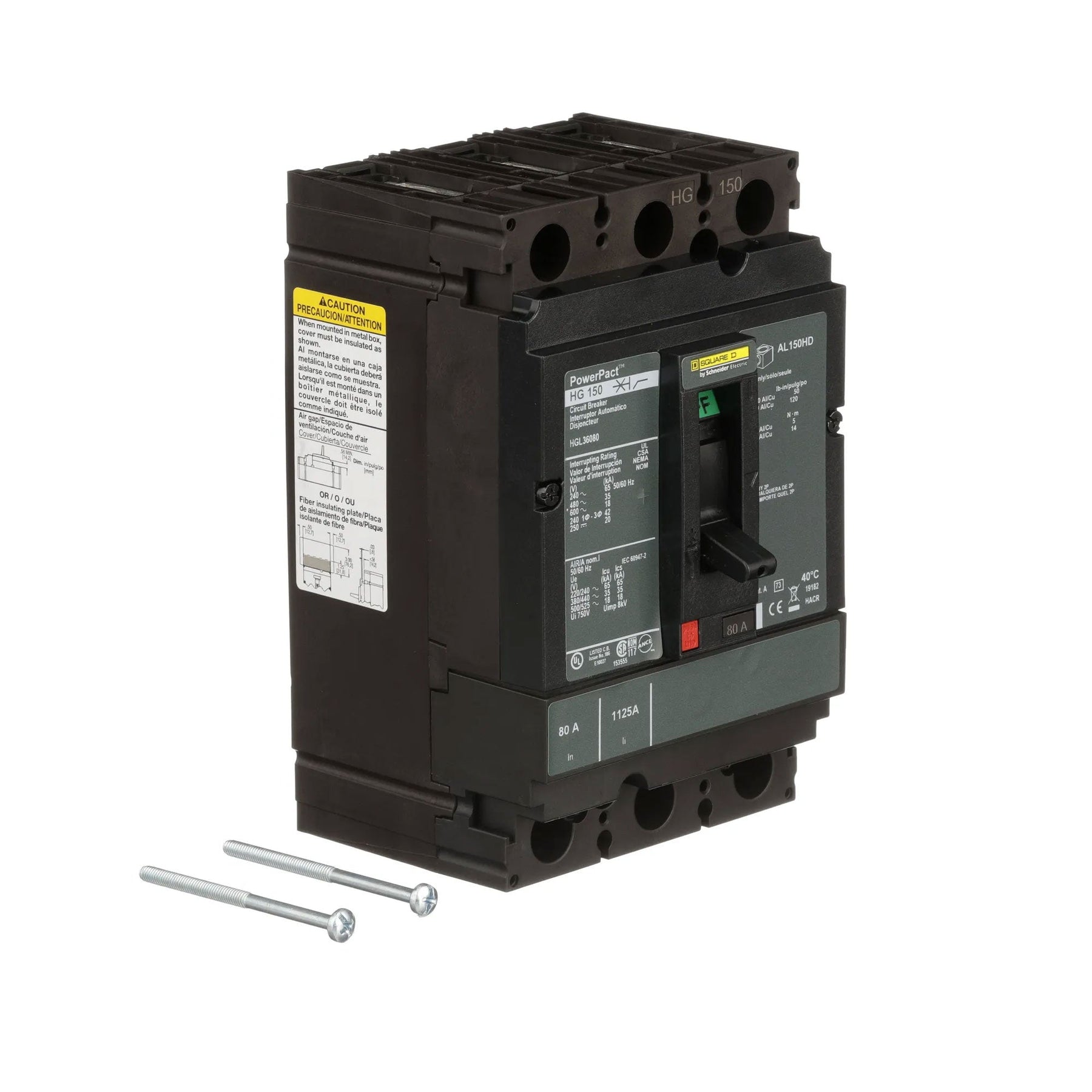

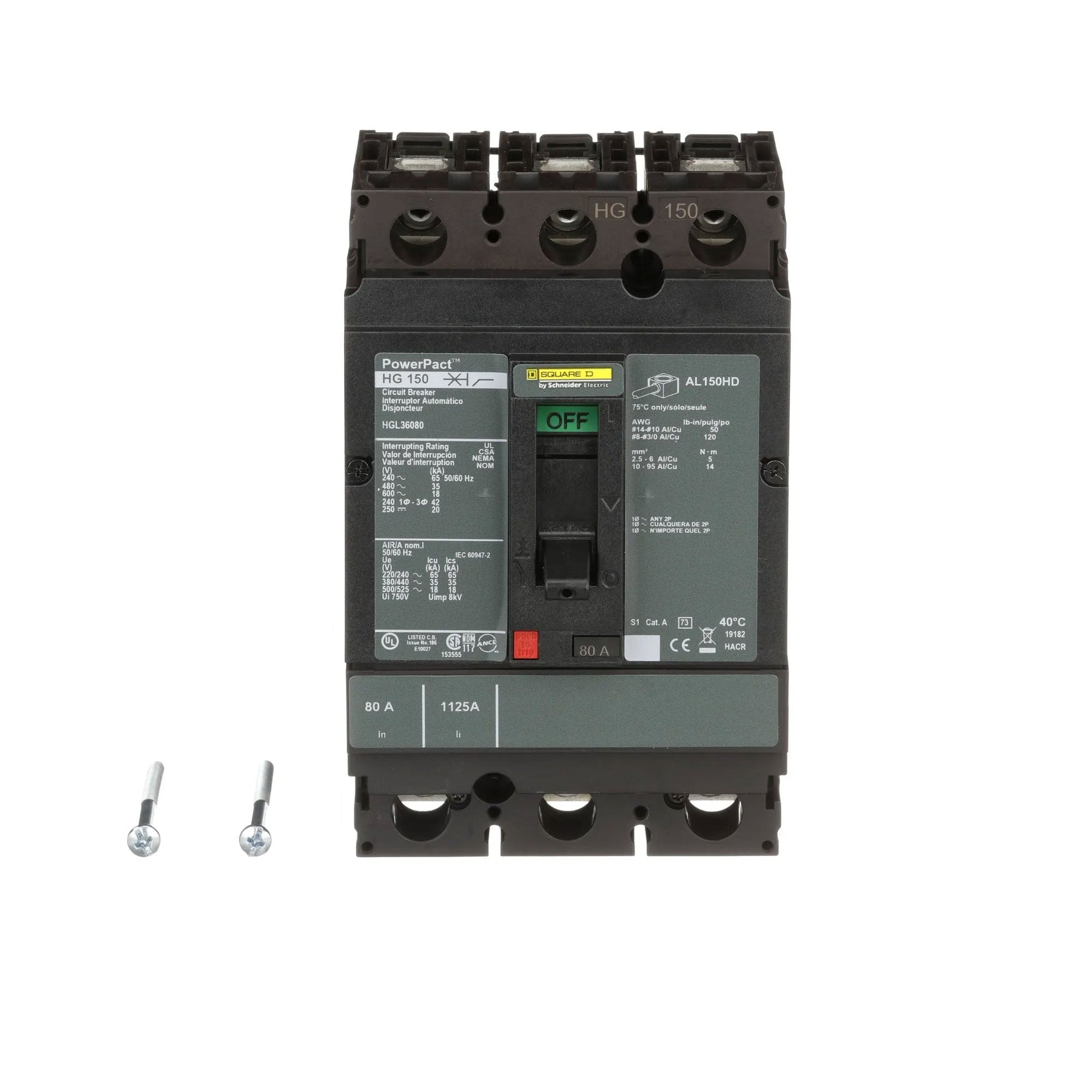

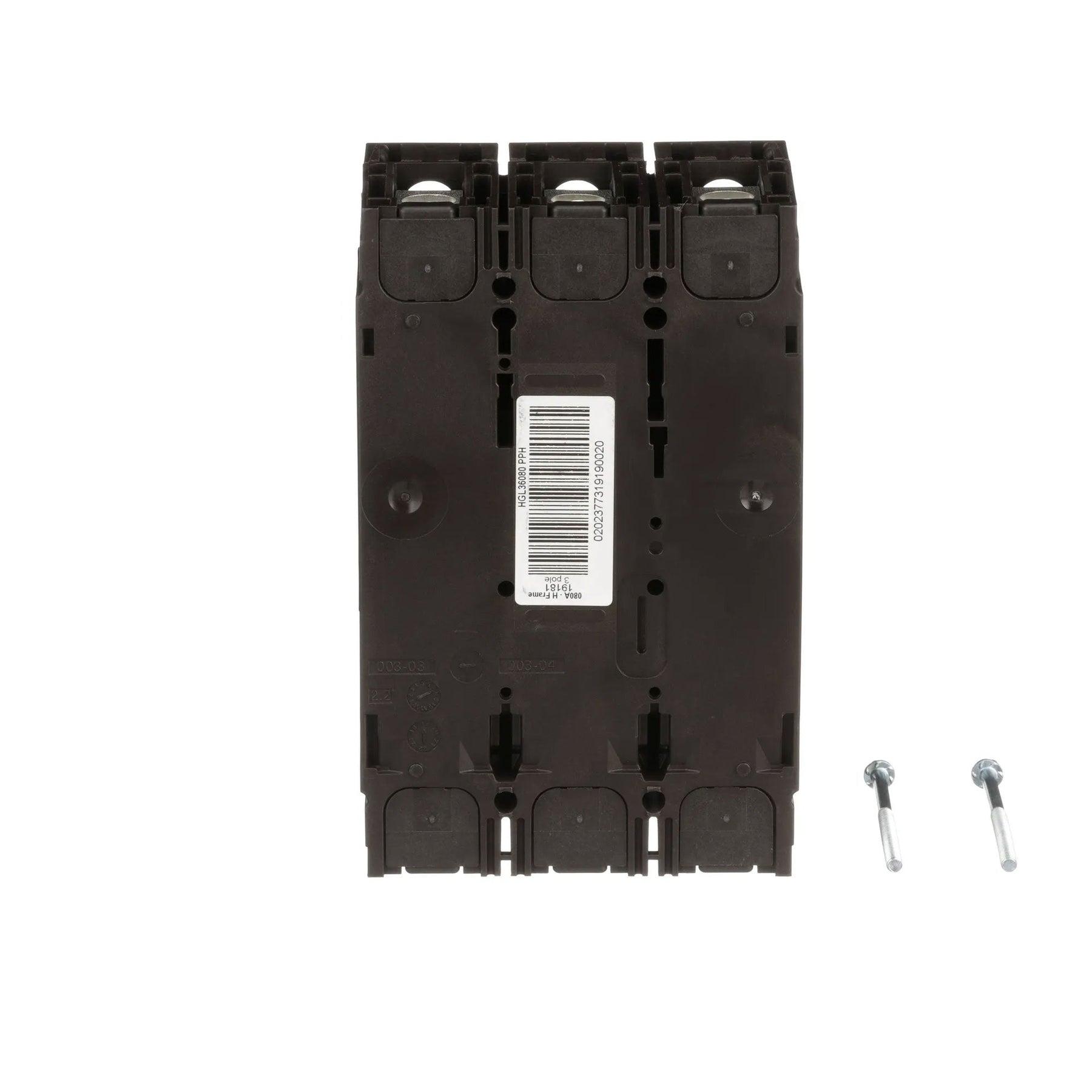

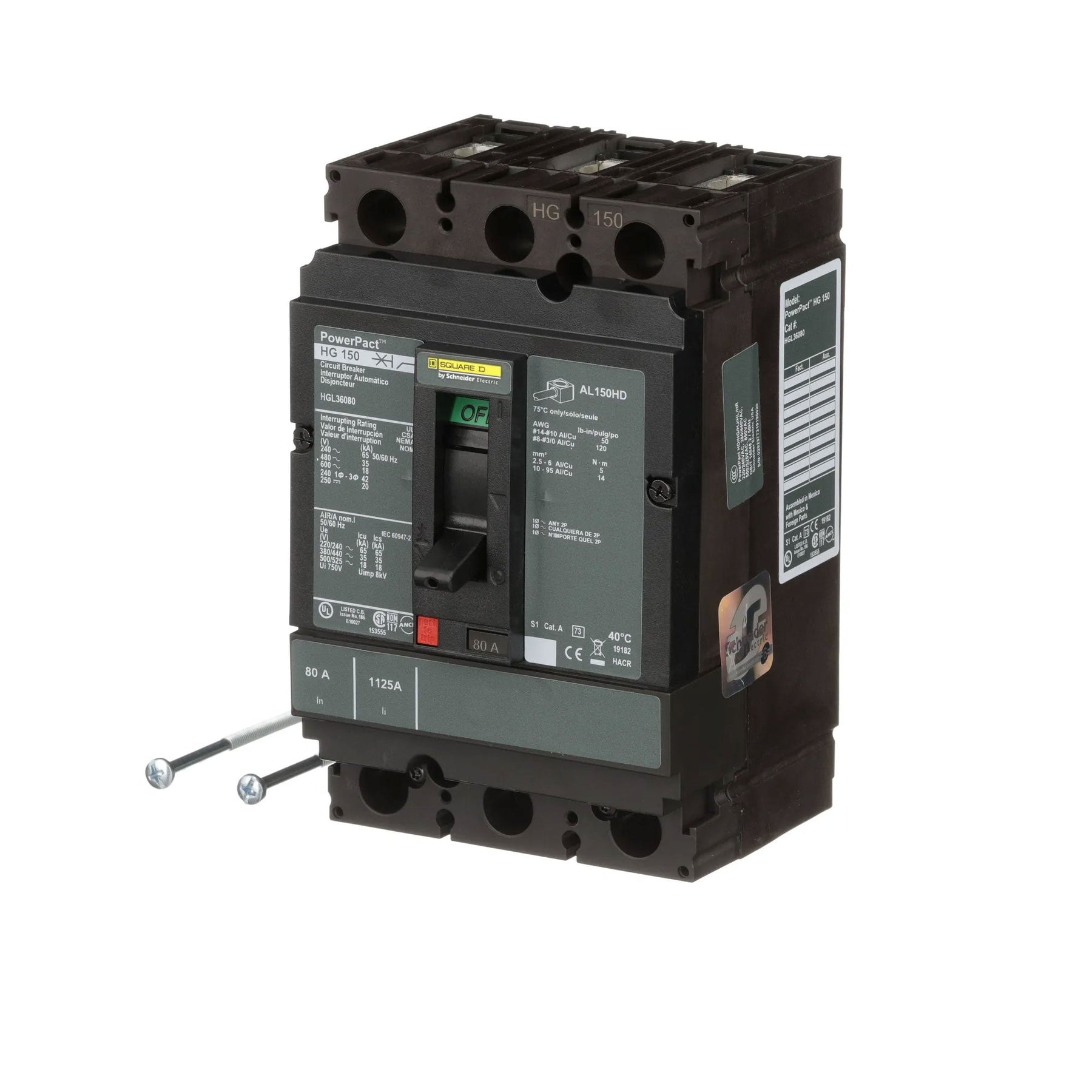

Schneider Electric / Square D, Powerpact, type HGL, 3P, 3PH, 80A, 600V, 35kA@480V, high interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.
