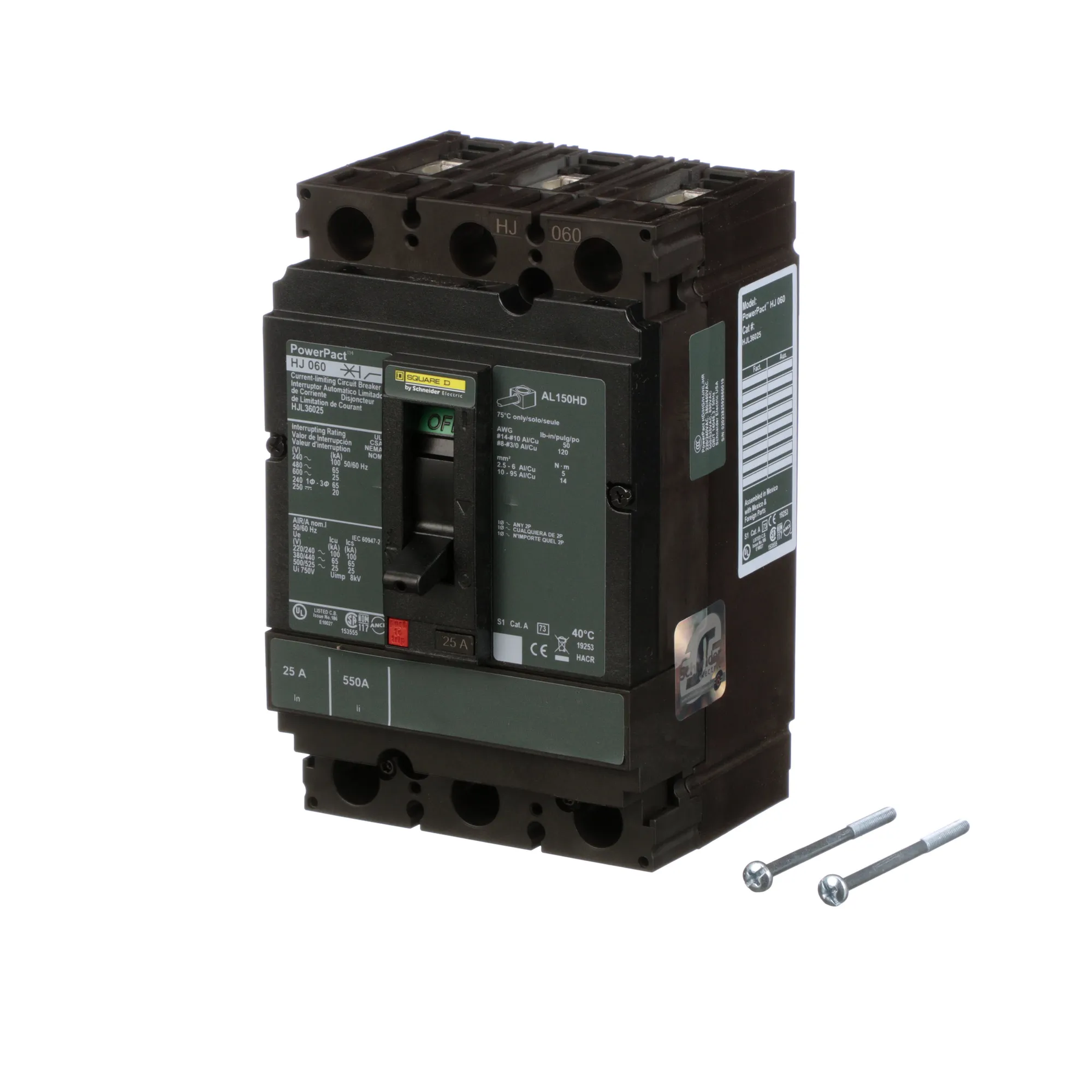

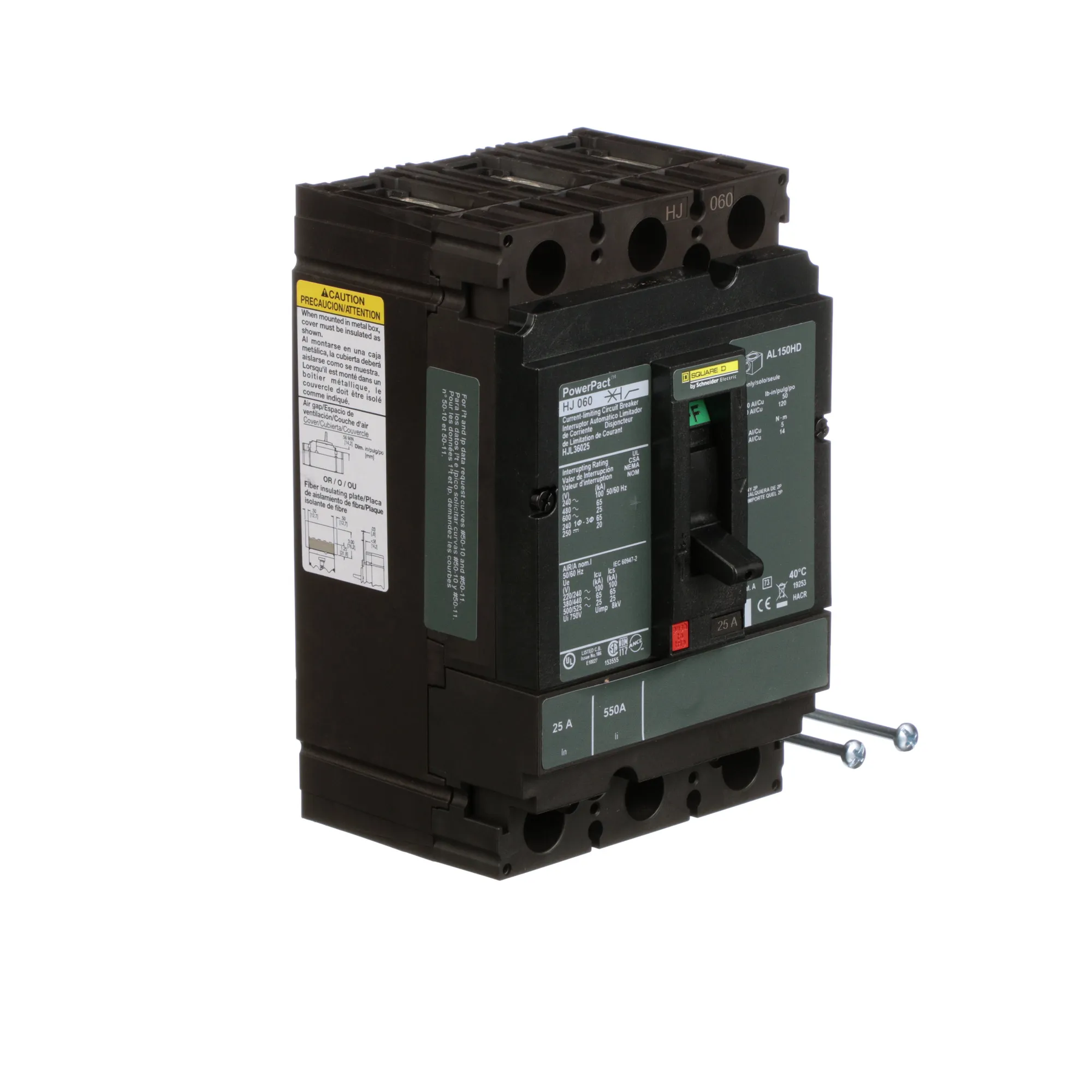

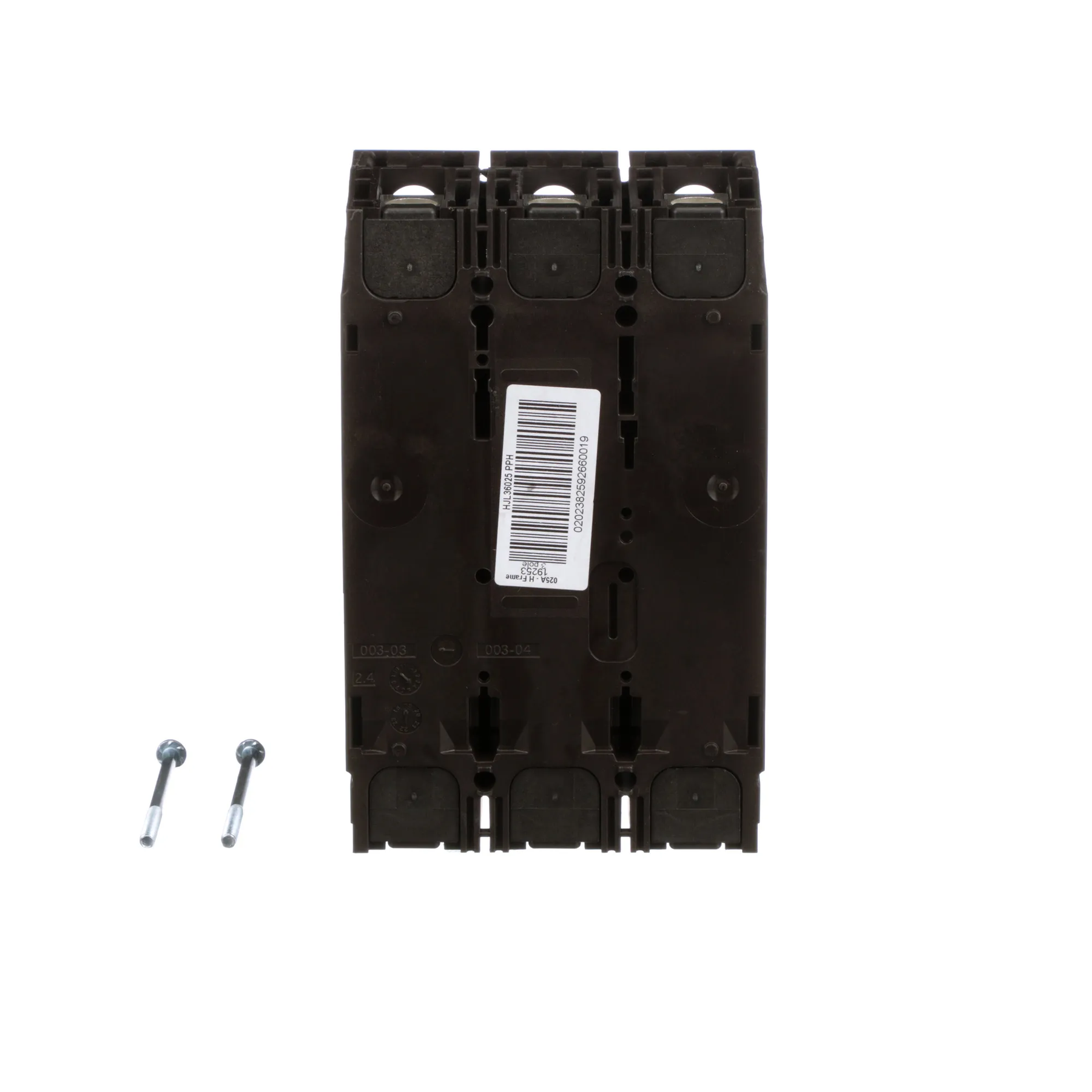

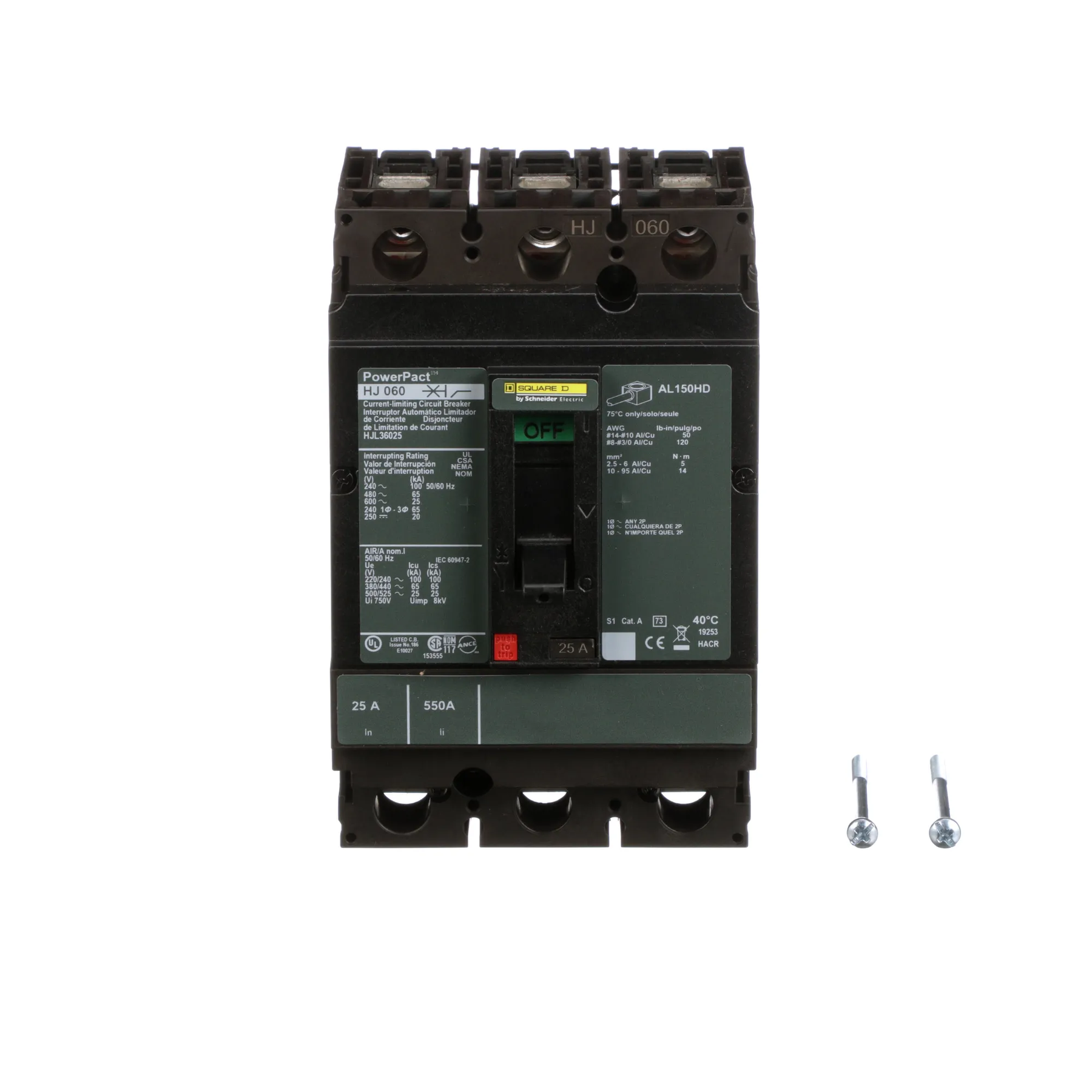

Product Specifications - HJL36025 - Square D Powerpact Circuit Breaker

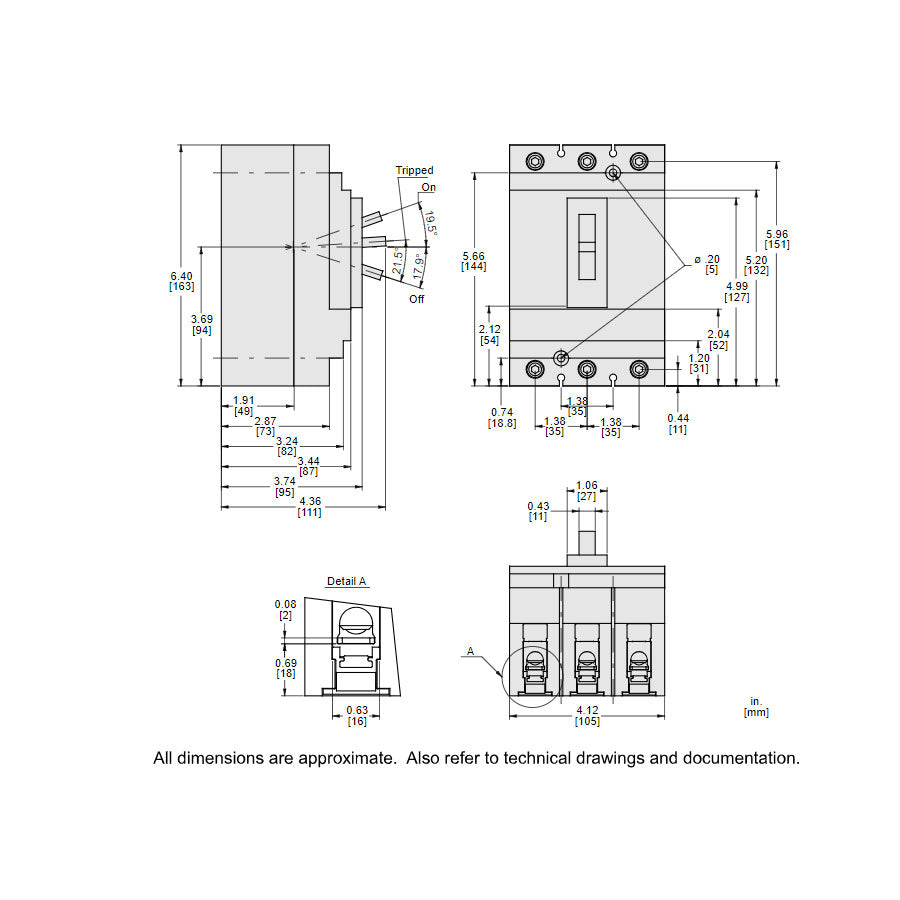

Dimensions (HxWxD):6.4" x 4.12" x 4.36"
Trip Unit Technology:Thermal-magnetic
Line Rated Current:25 A
Mounting Mode:Unit mount lug
Breaking Capacity CodeJ
Electrical Connection:Lugs line / Lugs load
Magnetic Hold Current:350 A
Continuous Current Rating:80%
AWG Gauge:AWG 14...AWG 3/0 aluminium/copper terminal
Product Description - HJL36025 - Square D Powerpact Circuit Breaker
Schneider Electric / Square D, Powerpact, type HJL, 3P, 3PH, 25A, 600V, 65kA@480V, UL listed, current limiting, feed-thru, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.
