JGA36250U33X - Square D - Molded Case Circuit Breakers

I-Line Plug-In - 250 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: JGA36250U33X

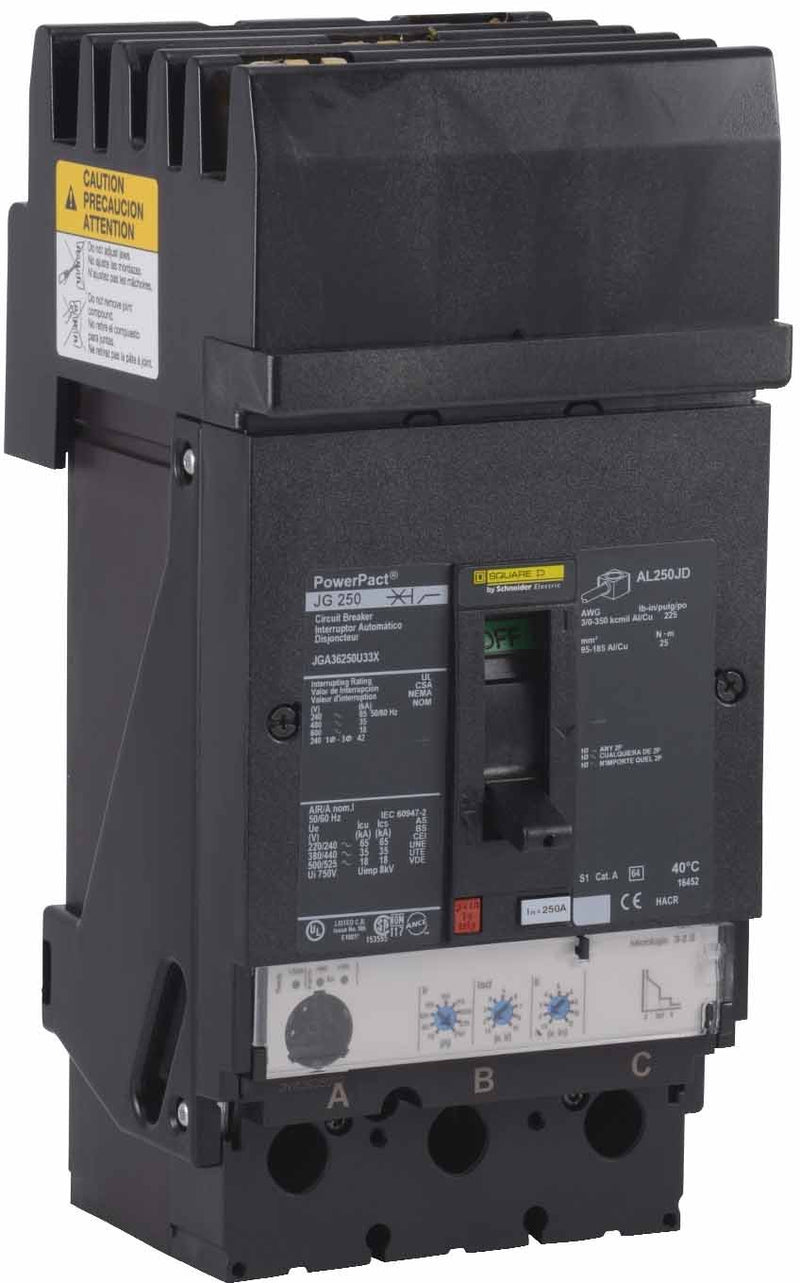

JGA36250U33X - Square D 250 Amp 3 Pole 600 Volt Molded Case Circuit Breaker
JGA36250U33X - Square D - Molded Case Circuit Breakers
JGA36250U33X - Square D 250 Amp 3 Pole 600 Volt Molded Case Circuit Breaker

Images are for reference only

JGA36250U33X - Square D - Molded Case Circuit Breakers

I-Line Plug-In - 250 Amp - 3 Pole - 600 Volt

Schneider Electric SKU: JGA36250U33X
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Overview

Product Specifications - JGA36250U33X - Square D Molded Case Circuit Breakers

  • Category:

    Molded Case / 3-Pole

  • Connection:

    I-Line Style Plug-In

  • Type:

    JGA

  • Functions:

    LSI - Long-Time, Short-Time and Instantaneous

  • Protection:

    Solid State

  • AIC Ratings:

    35kA@480V

Dimensions

  • Dimensions (HxWxD):

    7.52" x 4.09" x 3.39"

  • Weight:

    5.29 lbs

Standards

CSA Approved logo

Additional Details

  • Protection Type:

    Short-Circuit / Overload

  • Trip Unit Technology:

    Electronic, standard, MicroLogic 3.2 S, LSI

  • Line Rated Current:

    250 Amp

  • Mounting Mode:

    I-Line bracket

  • Breaking Capacity Code

    G

  • Electrical Connection:

    I-Line connection line / Lugs load

  • Continuous Current Rating

    80%

  • Control Type:

    Toggle

  • AWG Gauge:

    AWG 3/0...350 kcmil aluminium/copper terminals

Product Description - JGA36250U33X - Square D Molded Case Circuit Breakers

Square D, Powerpact, 3P, 3PH, 250A, 600V, 35kA@480V, high interrupting capacity, i-line style plug-in, suitable for reverse connection, can be used for 2P applications, complete with micrologic standard 3.2S non-interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, solid state electronic, Molded Case Circuit Breaker

Documentation

PDF Icon Catalogue

PDF Icon Installation Instructions

PDF Icon Technical Specifications
