Product Specifications - MJA36700 - Square D Powerpact Circuit Breaker

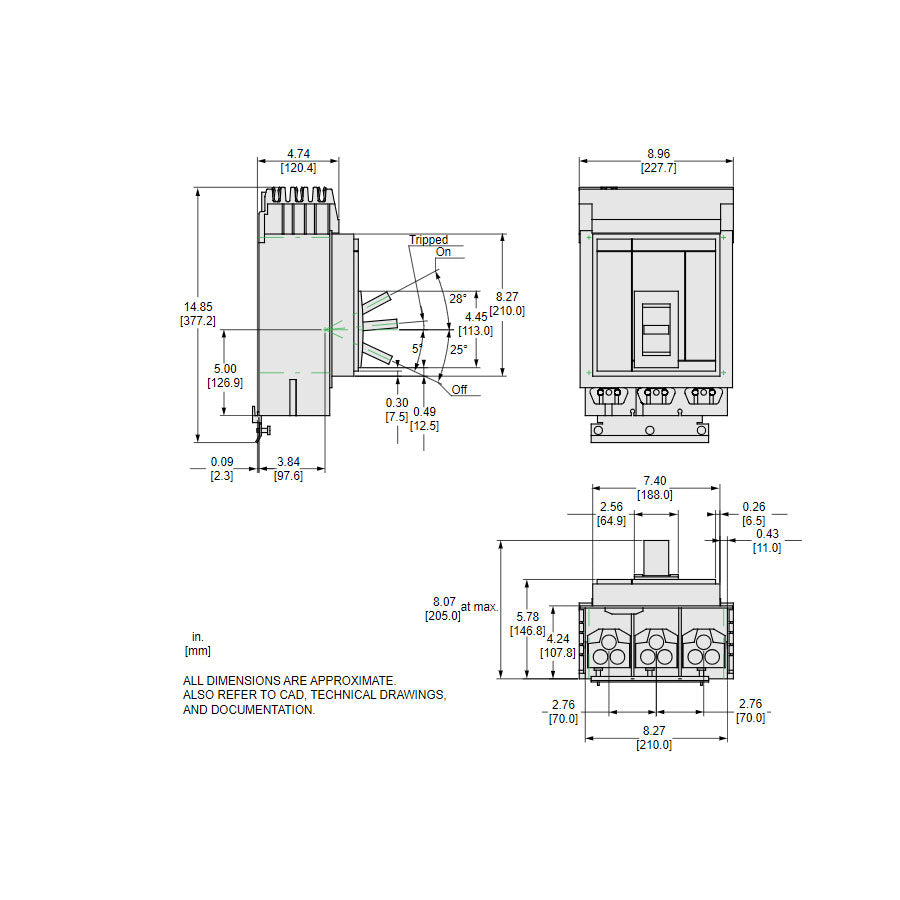

Dimensions (HxWxD):12.86" x 0.32" x 8.27"
Trip Unit Technology:Electronic, basic, ET 1.0
Line Rated Current:700
Mounting Mode:I-Line bracket
Breaking Capacity CodeJ
Electrical Connection:I-Line connection line / Lugs load
Continuous Current Rating:80%
AWG Gauge:AWG 3/0...350 kcmil Aluminum/Copper Terminals

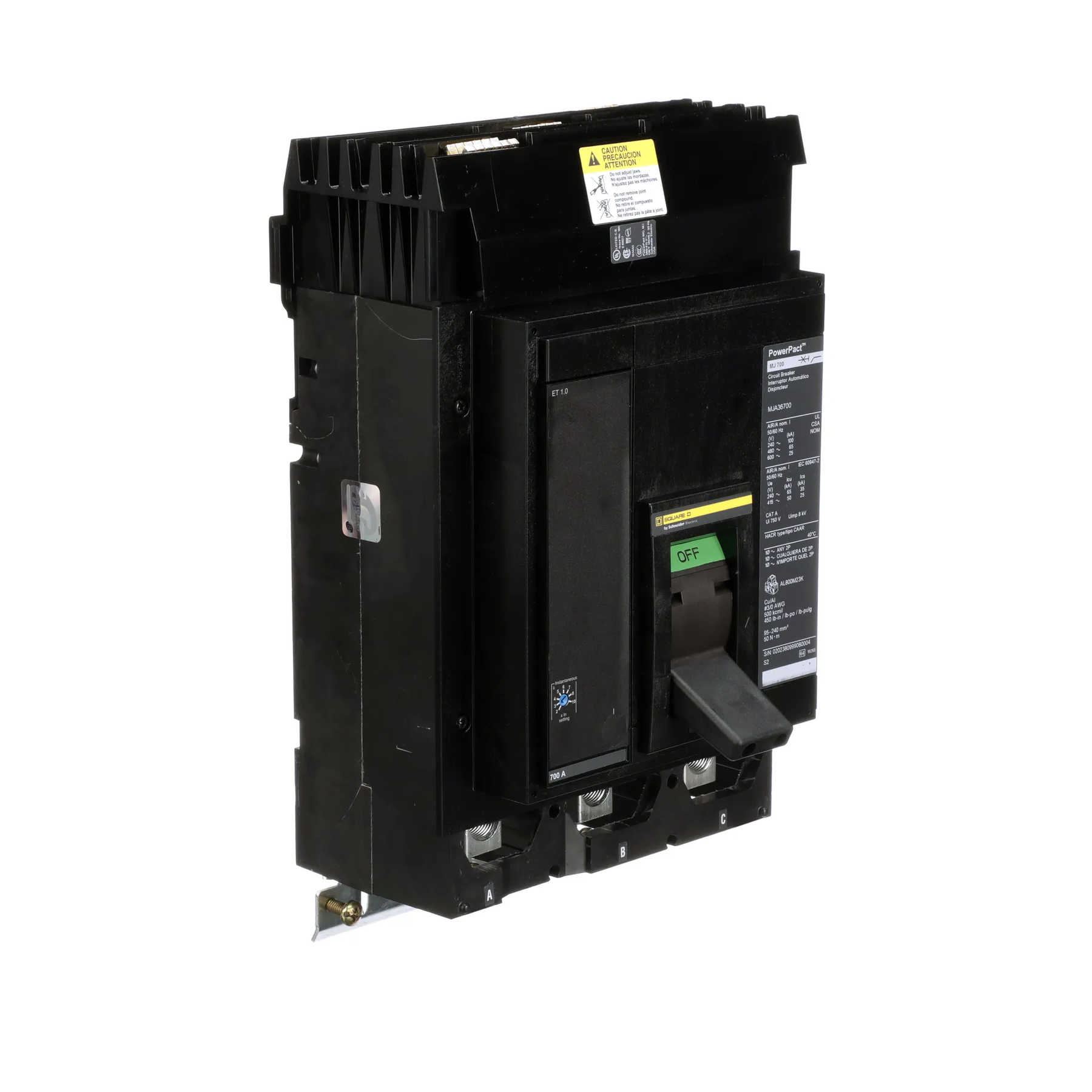

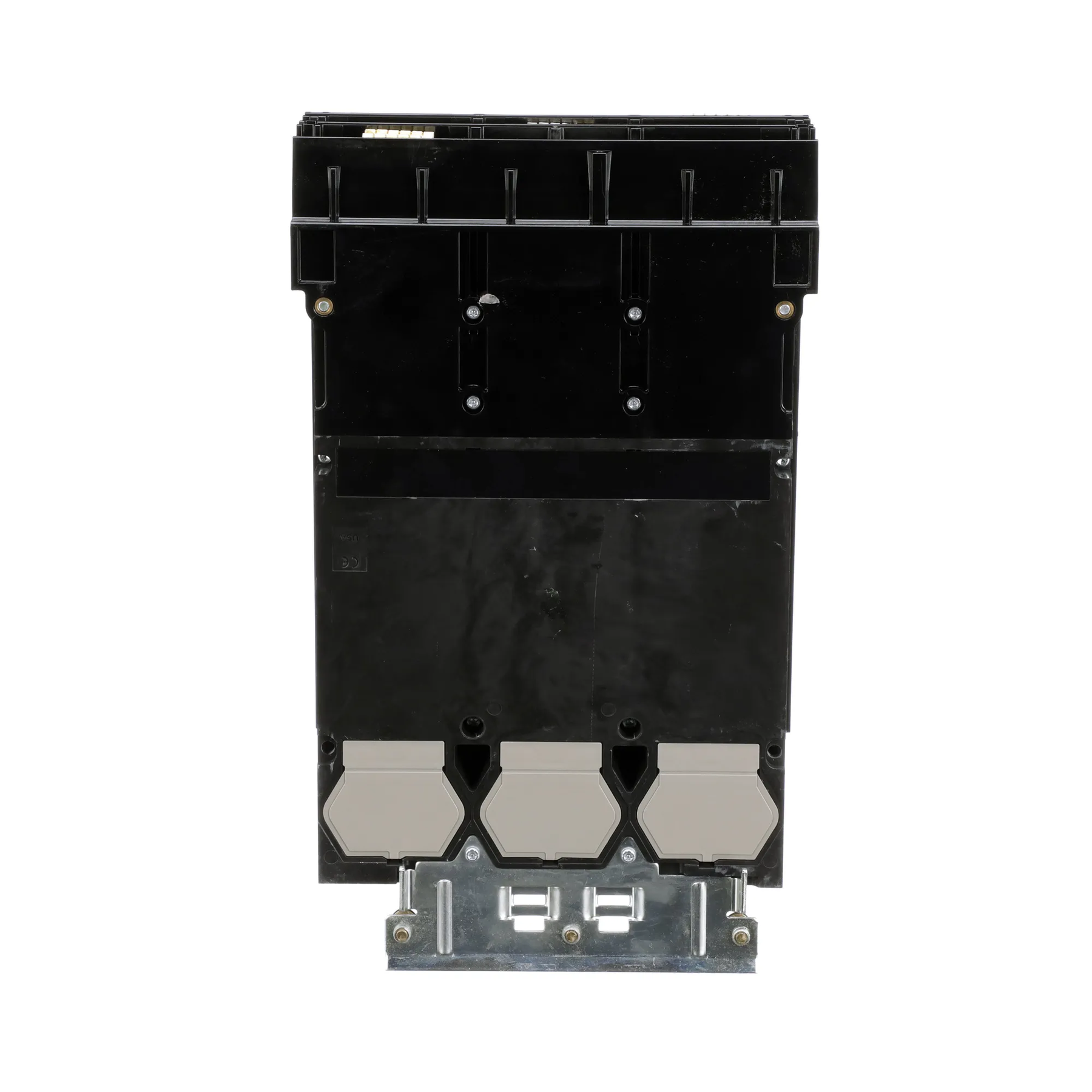

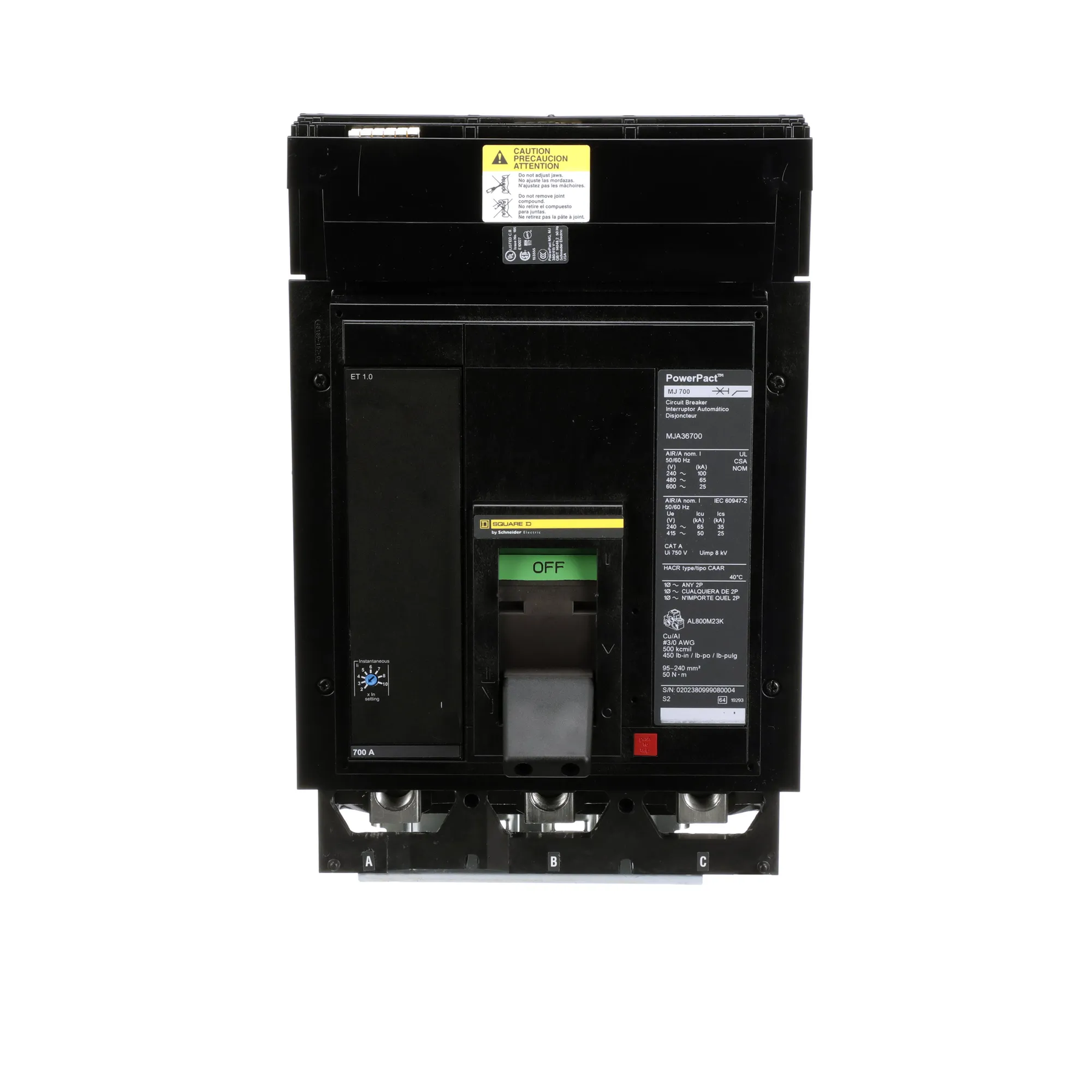

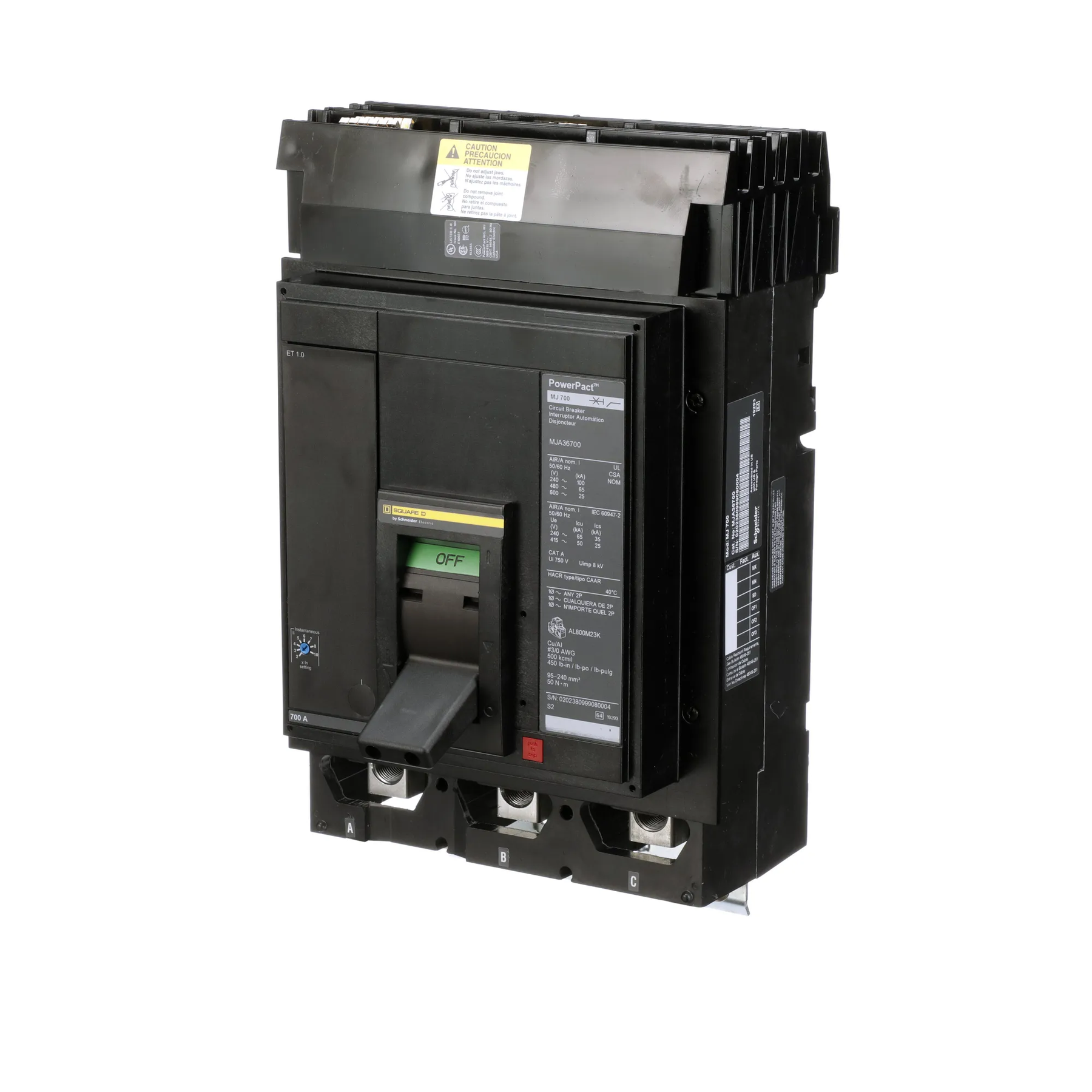

Product Description - MJA36700 - Square D Powerpact Circuit Breaker
Schneider Electric / Square D, Powerpact, type MJA, 3P, ABC phase circuit configuration, 3PH, 700A, 600V, 65kA@480V, UL listed, current limiting, i-line style plug-in, complete with basic non-interchangeable 1.0 trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, solid state electronic, molded case circuit breakers.
Returns are easy
You may return items within 30 days of delivery for a full refund.
FREE Shipping on orders over $49.
Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Product Warranty - MJA36700 - Square D - Molded Case Circuit Breaker
All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.
