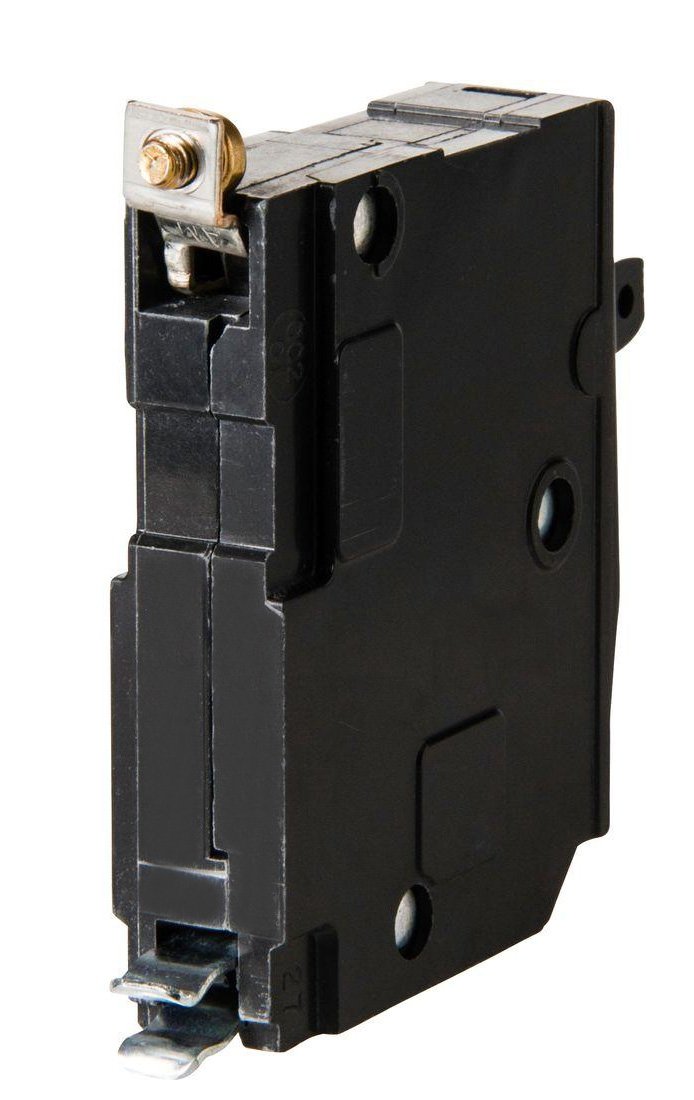

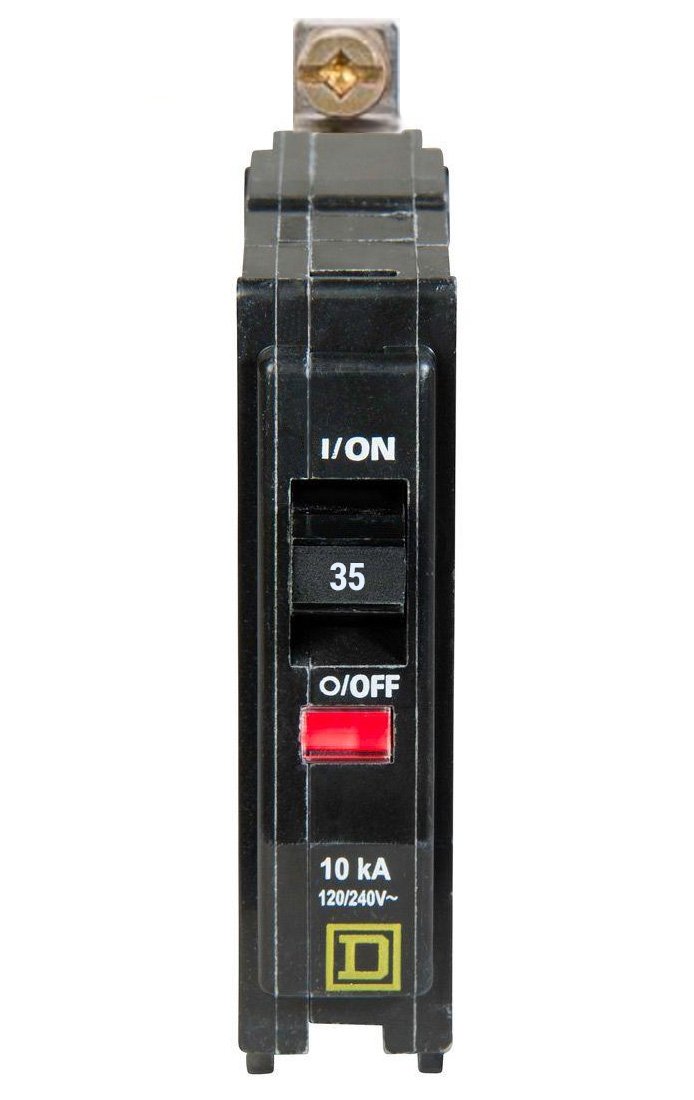

QOB135 - Square D Bolt-On Circuit Breaker
Square D QOB series single pole 35 ampere bolt-on molded case circuit breaker with maximum voltage rating of 120V tripping method thermal magnetic and standard interrupting rating of 10 kiloampere at 120V complete with (LI) long-time and instantaneous trip functions suitable for QOB Series load centers.
- Product: Miniature circuit-breaker
- Range: QO
- Line Rated Current: 35 A
- System Voltage: 120 V AC, 120/240 V AC, 48 V DC
- Mounting Type: Bolt-on
- Number of Poles: 1P
- Circuit Breaker Type: Standard
- Ratings: HACR rated
- Electrical Connection: Box lugs
- Number of Panel Spaces: 1
- Wire Size: AWG 8...AWG 2 (copper or aluminium)
- Height: 3.12 in
- Depth: 2.91 in
- Width: 0.75 in
- Ambient Rating: 104 Degree F (40 Degree C)
- Authentic Schneider Electric / Square D Product
- Dimensions (H x W x L): 3.12" x 0.75" x 2.91"
Alt model: q0b135
