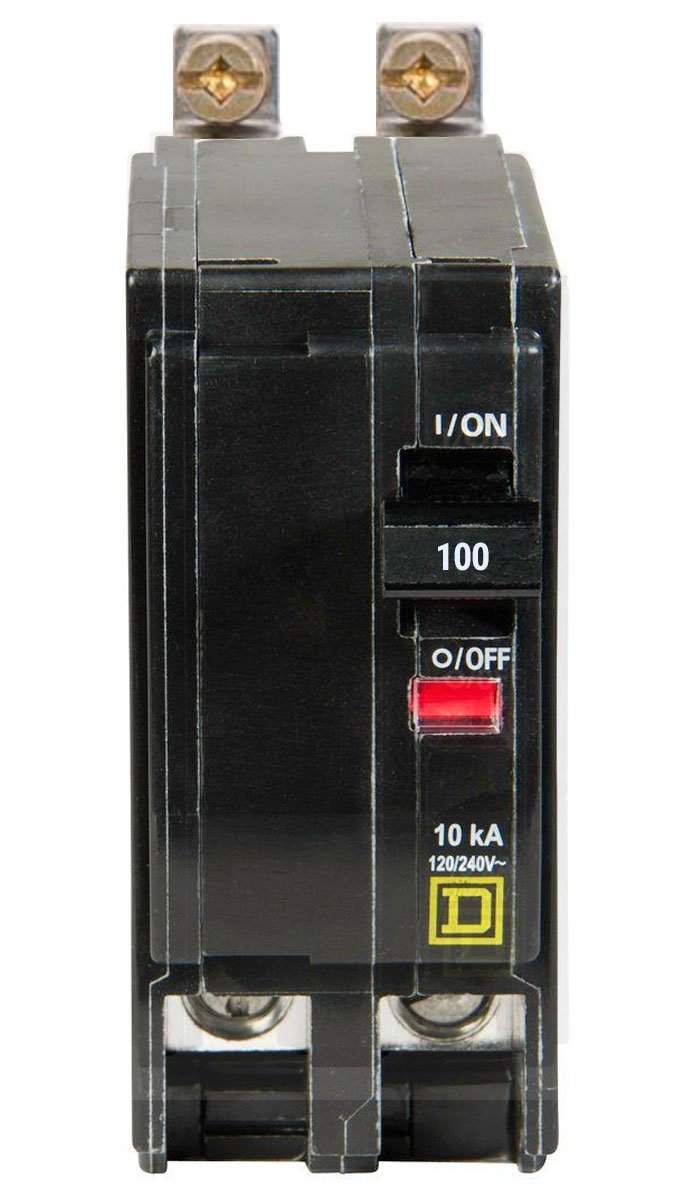

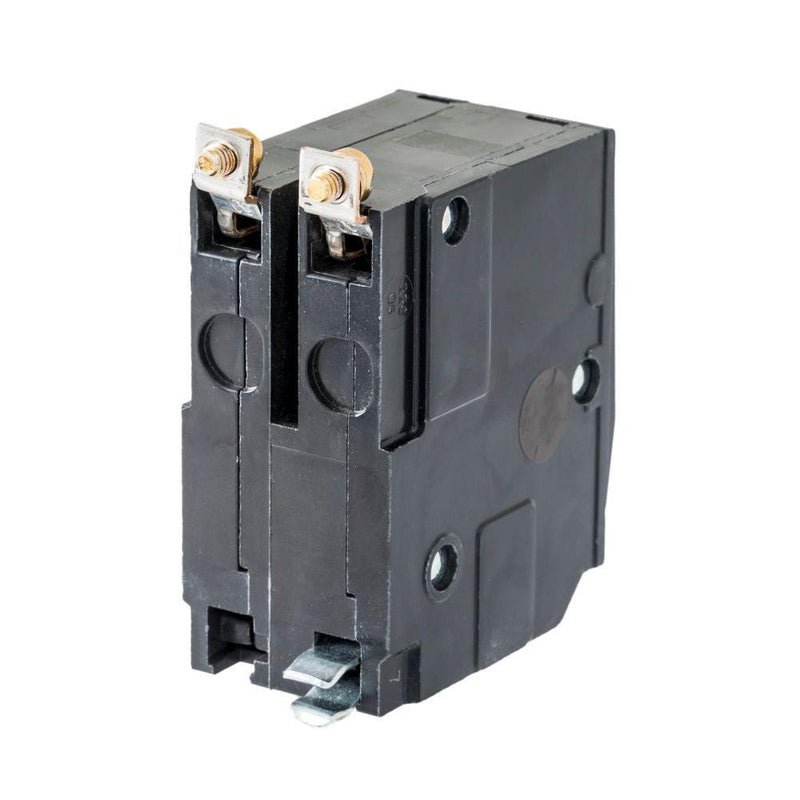

QOB2100 - Square D Bolt-On Circuit Breaker
Square D bolt-on circuit breaker has a voltage rating of 120/240 Volts current rating of 100 Amps and interrupting rating of 10 kilo-Amps. The 2-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 4 - 2 AWG.
- Product: Miniature circuit-breaker
- Range: QO
- Line Rated Current: 100 A
- System Voltage: 120 V AC, 120/240 V AC
- Mounting Type: Bolt-on
- Number of Poles: 2P
- Circuit Breaker Type: Standard
- Ratings: HACR rated
- Electrical Connection: Box lugs
- Number of Panel Spaces: 2
- Wire Size: AWG 4...AWG 2/0 (copper or aluminium)
- Height: 3.5 in
- Depth: 2.91 in
- Width: 1.5 in
- Ambient Rating: 104 Degree F (40 Degree C)
- Authentic Schneider Electric / Square D Product
- Dimensions (H x W x L): 3.5" x 1.5" x 2.91"
Alt model: q0b2100
FREE Shipping on orders over $49.
Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).
Next Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
You may return items within 30 days of delivery for a full refund.
All products carry a 1-year warranty from Canada Breakers. All of our products are authentic, factory new and CSA approved.
