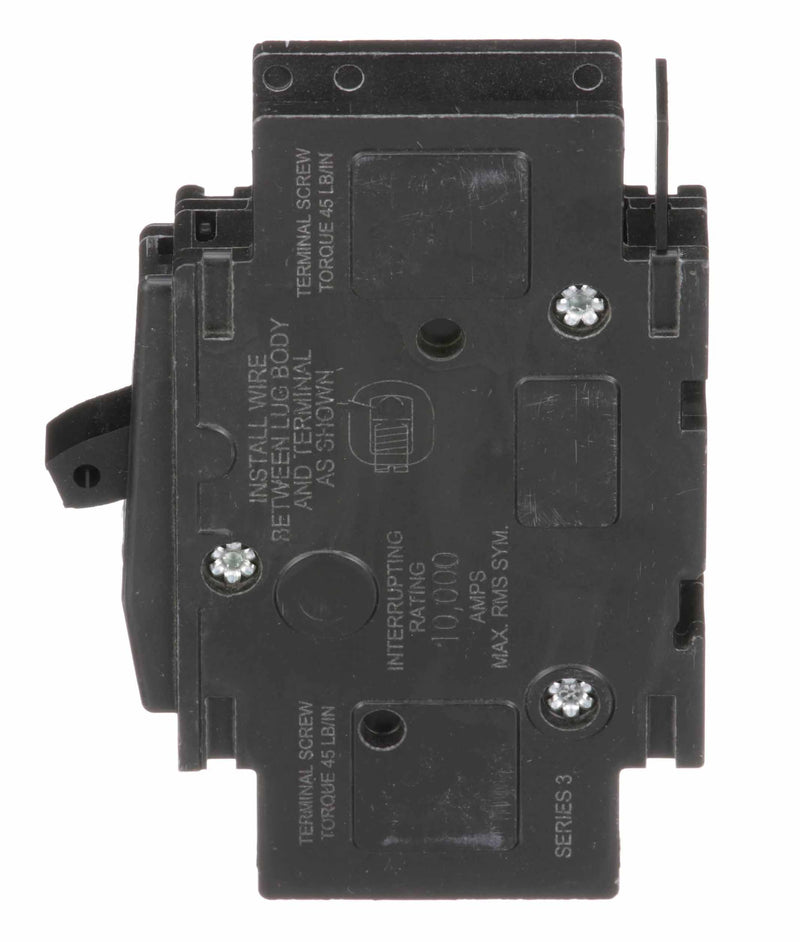

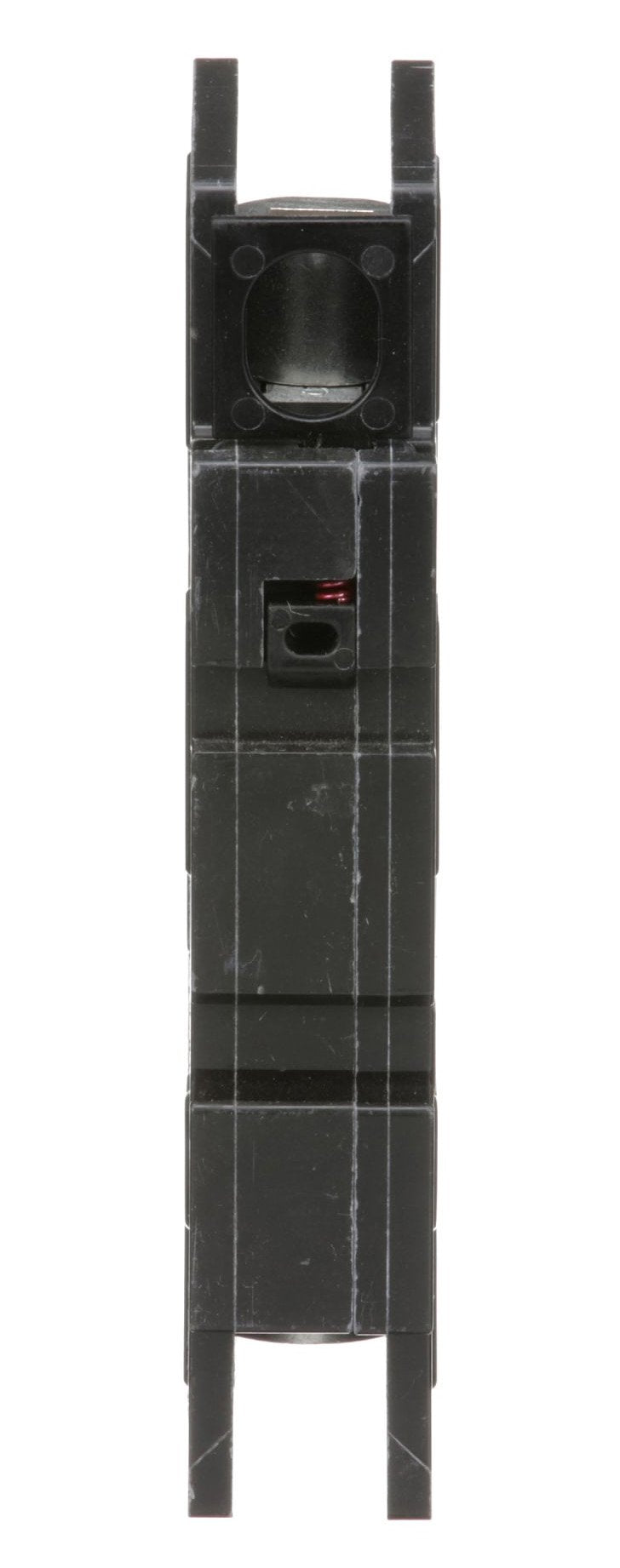

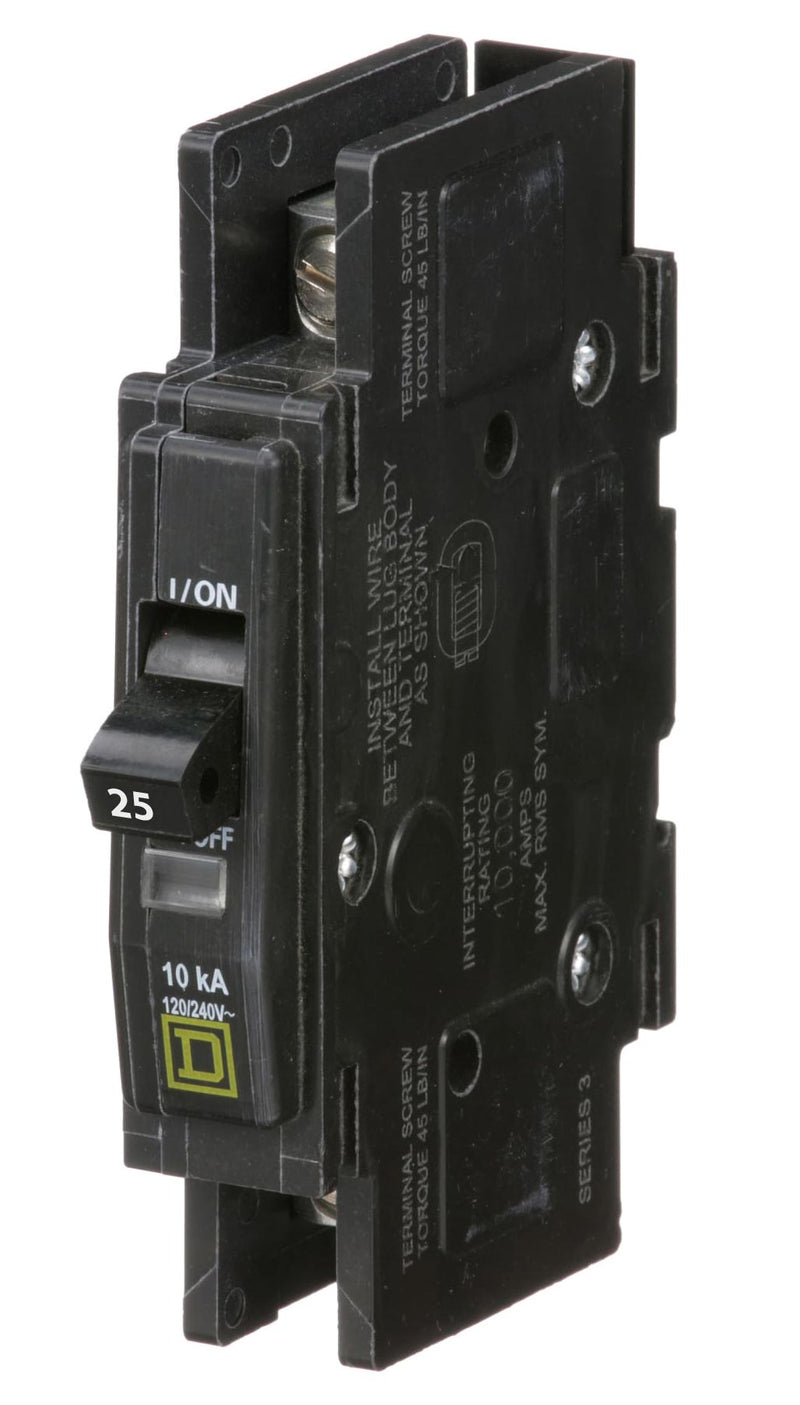

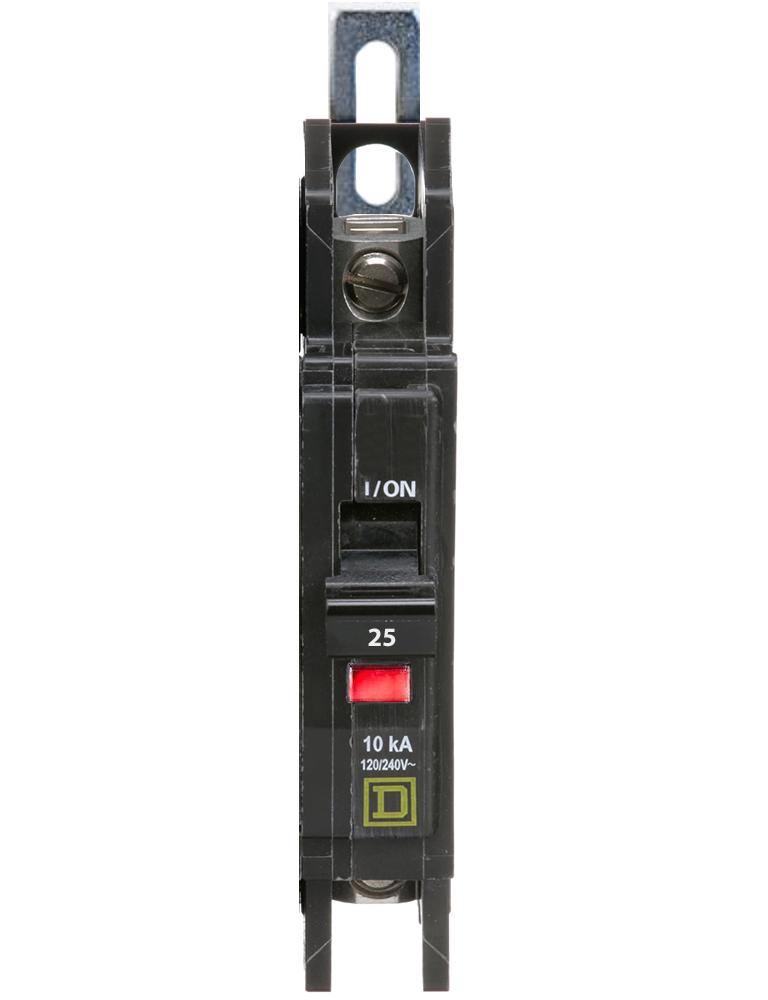

QOU125 - Square D 25 Amp 1 Pole 120 Volt Bolt-On Circuit Breaker
FREE Shipping on orders over $49
QOU125 - Square D Bolt-On Circuit Breaker
Square D QOU series single pole 25 ampere bolt-on molded case circuit breaker with maximum voltage rating of 120V tripping method thermal magnetic and standard interrupting rating of 10 kiloampere at 120V complete with (LI) long-time and instantaneous trip functions.
- Product or component type: Miniature circuit-breaker
- Range of product: QOU
- Circuit breaker type: Standard
- Circuit breaker application: HACR and Switching Duty rated
- Line Rated Current: 25 A
- Number of Poles: 1P
- Interrupt Rating: 10 kA at: 120/240 V AC, 5 kA at: 48 V DC, 10 kA at: 120 V AC
- Electrical connection: Slotted box lugs, line side, Slotted box lugs, load side
- System Voltage: 120 V AC, 120/240 V AC, 48 V DC
- Mounting mode: Unit mount
- AWG gauge: AWG 14...AWG 2 (aluminium/copper)
- Height: 4.05 in
- Depth: 2.95 in
- Width: 0.75 in
- Product certifications: CSA, IEC, UL listed
- Authentic Square D Product
- Dimensions (H x W x L): 4.05" x 0.75" x 2.95"
Alt model: q0u125
