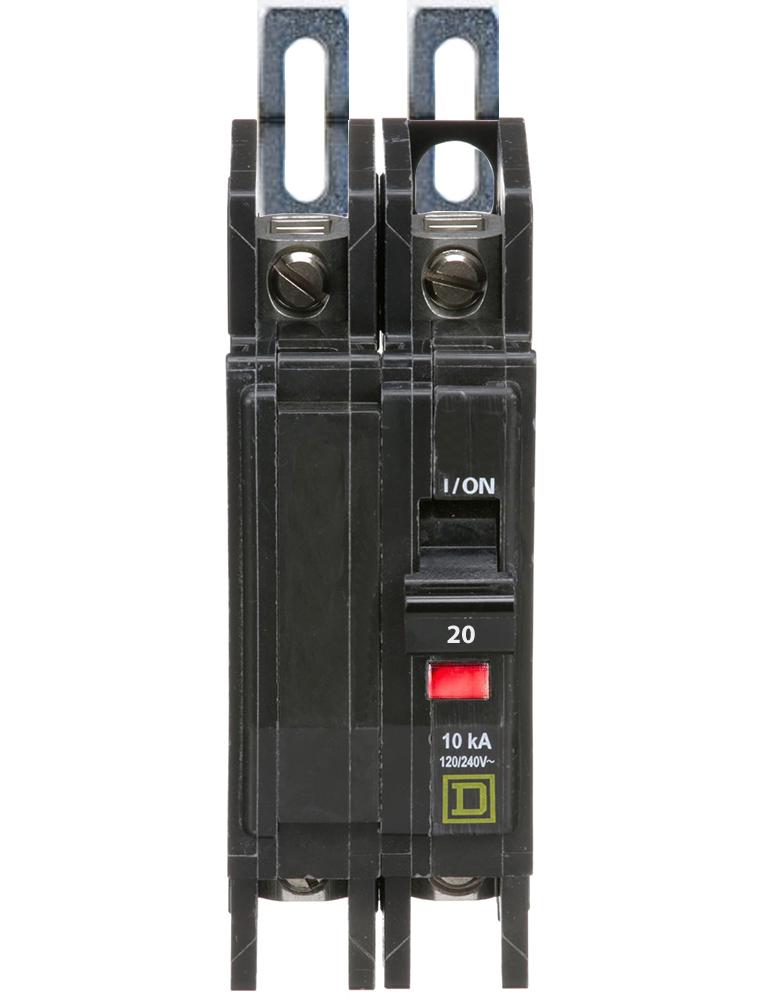

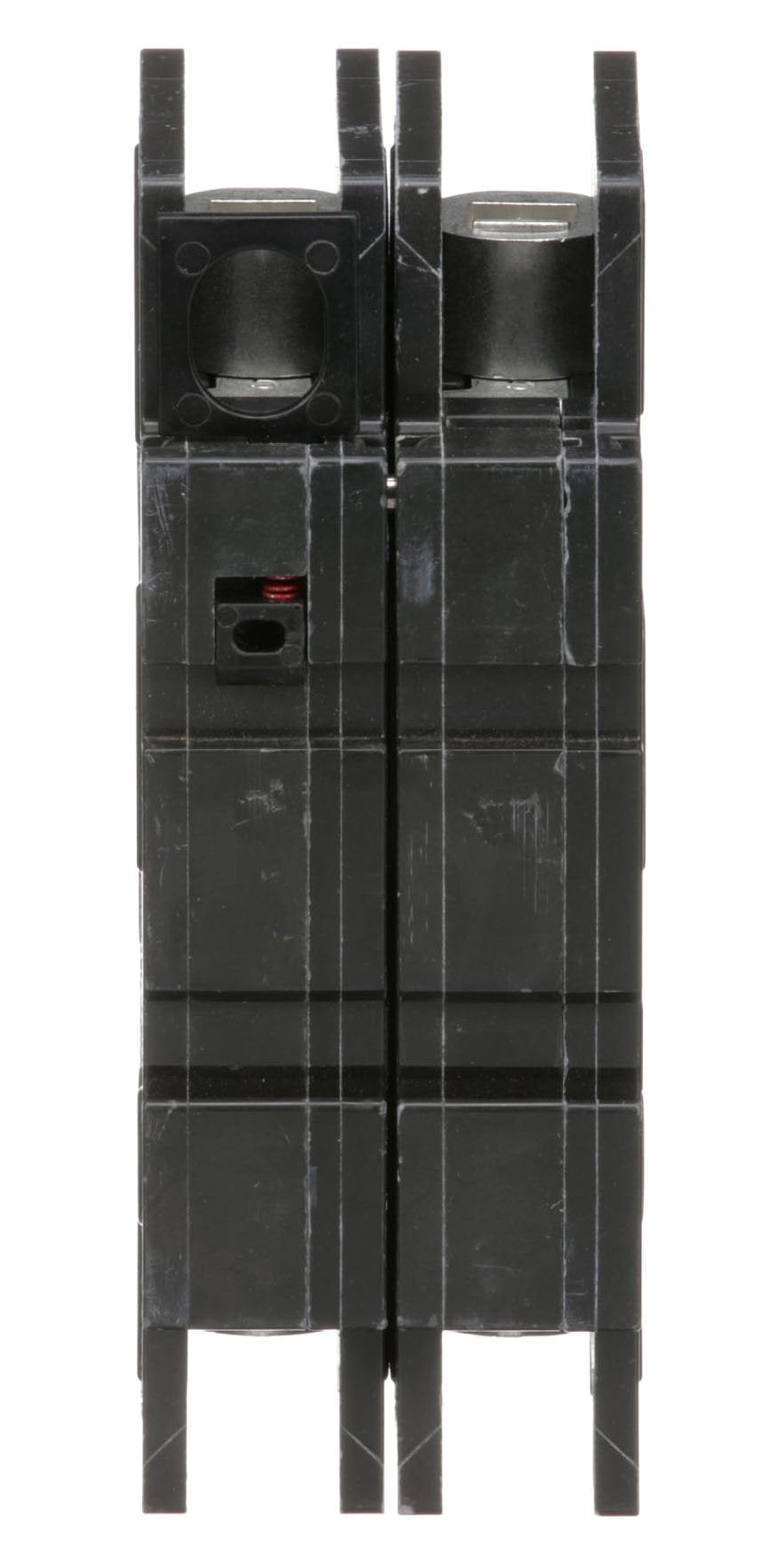

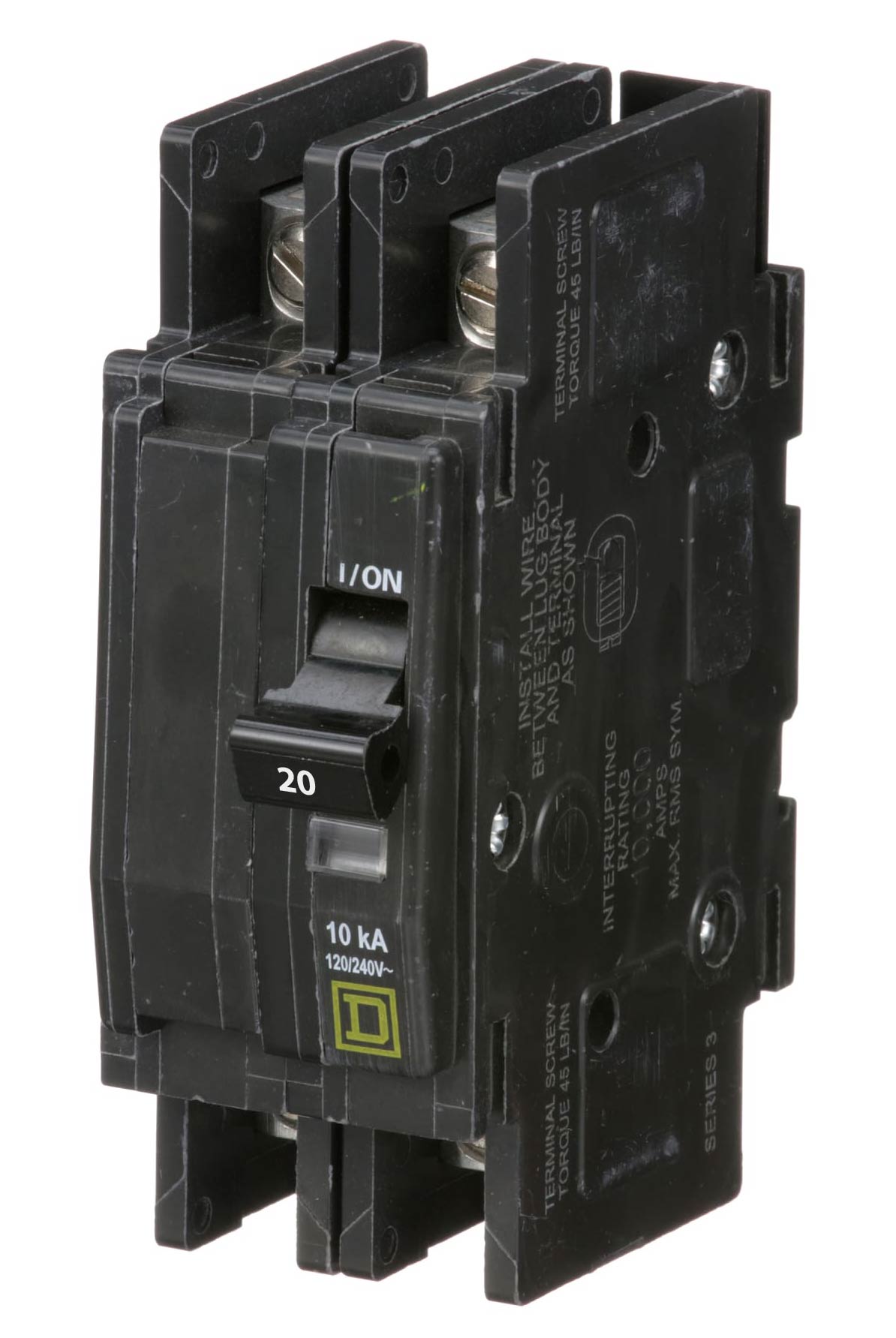

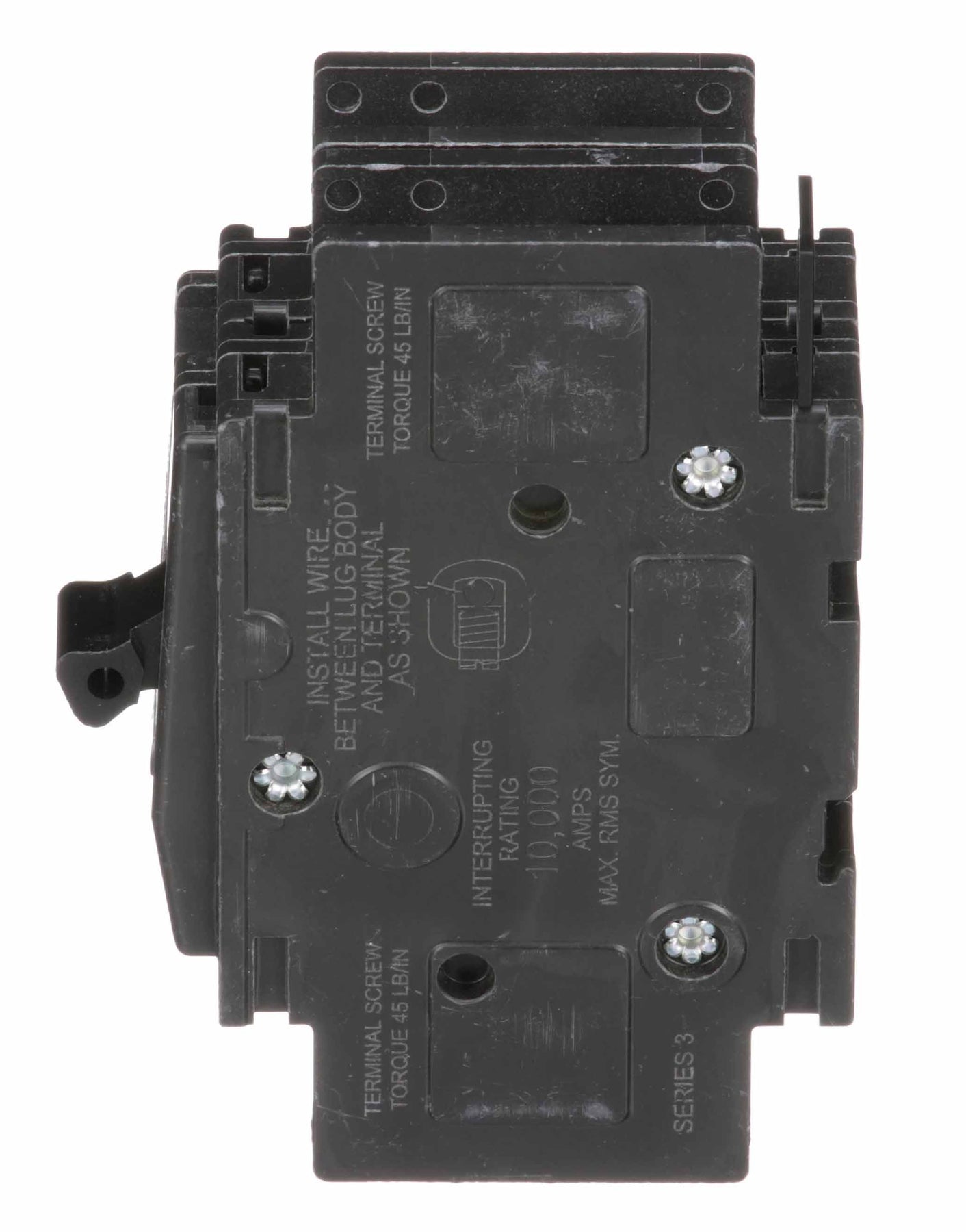

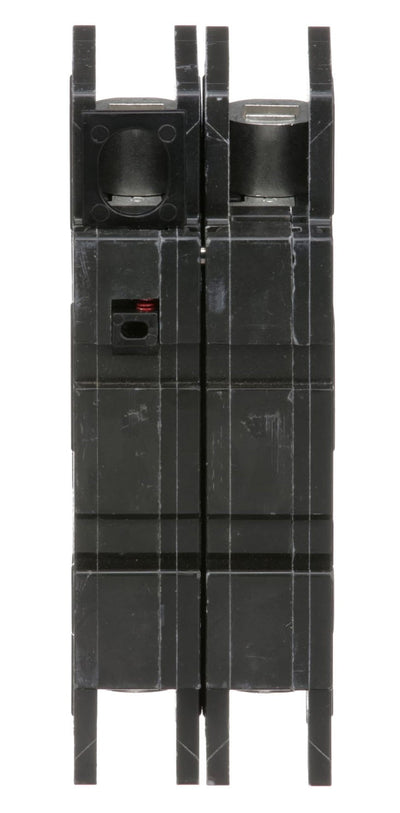

QOU220 - Square D - 20 Amp Circuit Breaker

Bolt-On - 20 Amp - 2 Pole - 240 Volt

QOU220 - Square D 20 Amp 2 Pole 240 Volt Bolt-On Unit Mount Circuit Breaker
QOU220 - Square D - 20 Amp Circuit Breaker
QOU220 - Square D - 20 Amp Circuit Breaker
QOU220 - Square D - 20 Amp Circuit Breaker

Images are for reference only

QOU220 - Square D - 20 Amp Circuit Breaker

Bolt-On - 20 Amp - 2 Pole - 240 Volt

Regular price $110.99 CAD
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - QOU220 - Square D - 20 Amp Circuit Breaker

All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

QOU220 - Square D Bolt-On Unit Mount Circuit Breaker

Square D miniature circuit breaker has a voltage rating of 120/240 Volts current rating of 20 Amps and interrupting rating of 10 kilo-Amps. The 2-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 14 - 2 AWG. It has DIN rail/flush/surface mounting and provides protection against over current.

Specifications:

  • Product or component type: Miniature circuit-breaker
  • Range of product: QOU
  • Circuit breaker type: Standard
  • Circuit breaker application: HACR and Switching Duty rated
  • Line Rated Current: 20 A
  • Number of Poles: 2P
  • Interrupt Rating: 10 kA at: 120/240 V AC, 5 kA at: 48 V DC, 10 kA at: 120 V AC
  • Electrical connection: Slotted box lugs, line side, Slotted box lugs, load side
  • System Voltage: 120 V AC, 120/240 V AC, 48 V DC
  • Mounting mode: Unit mount
  • AWG gauge: AWG 14...AWG 2 (aluminium/copper)
  • Height: 4.05 in
  • Depth: 2.95 in
  • Width: 1.5 in
  • Product certifications: CSA, IEC, UL Listed
  • Authentic Square D Product
  • Dimensions (H x W x L): 4.05" x 1.5" x 2.95"

Alt model: q0u220
