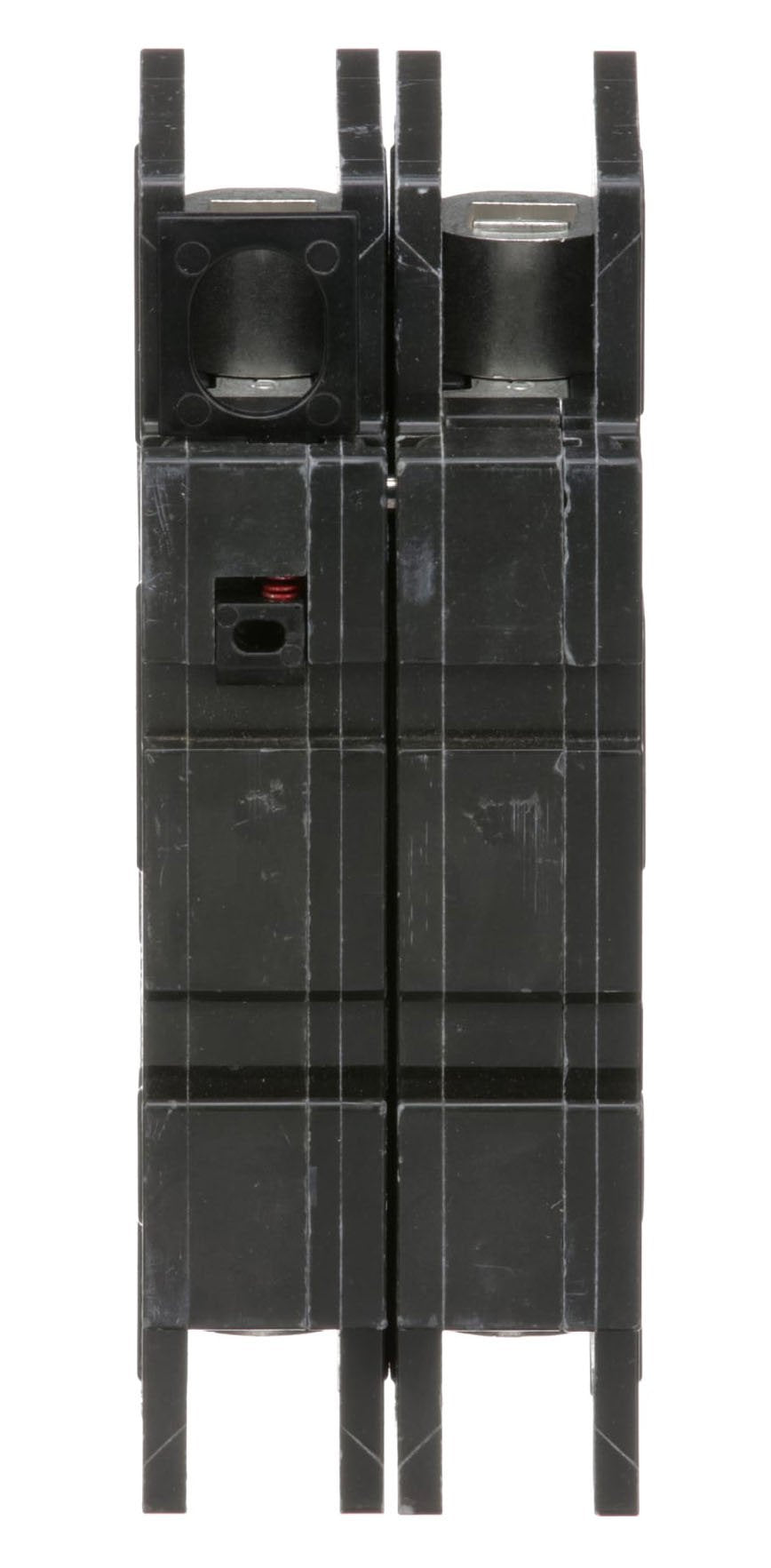

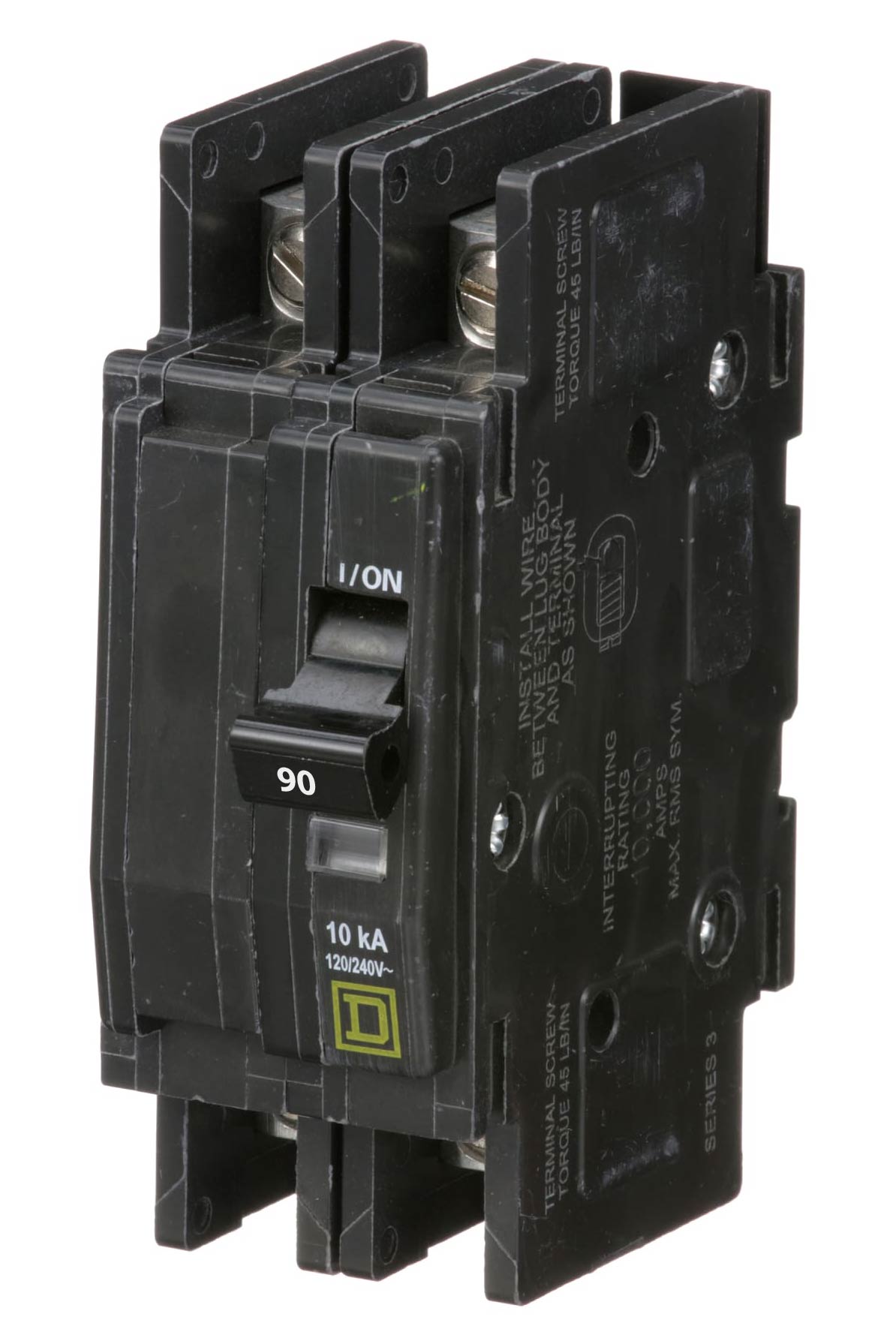

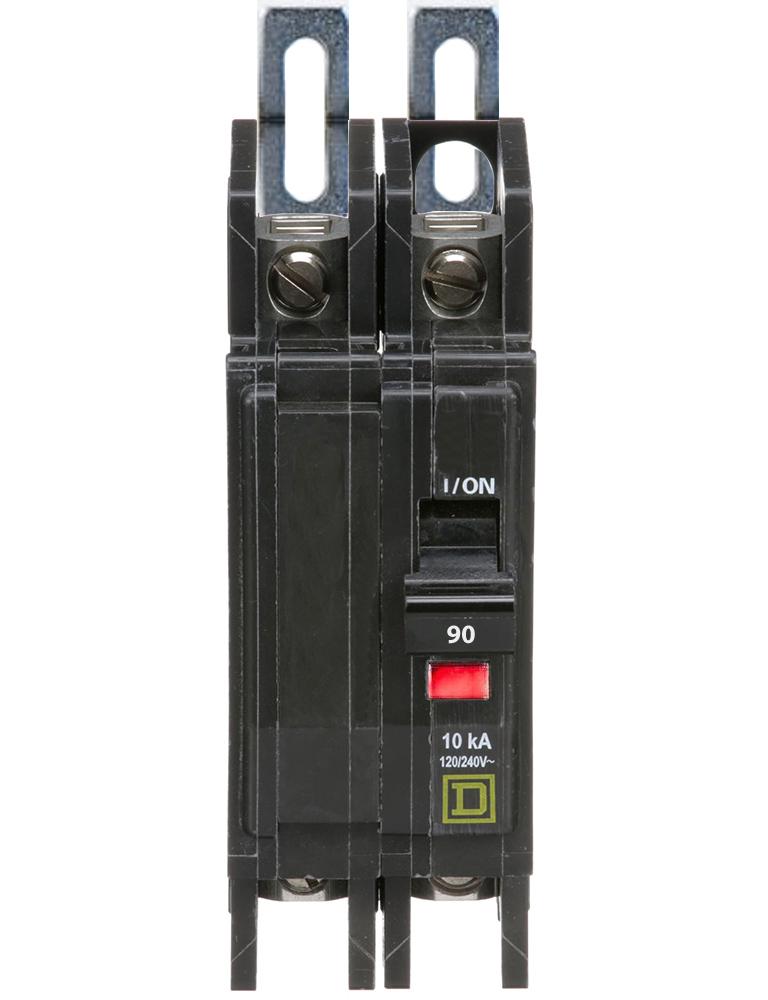

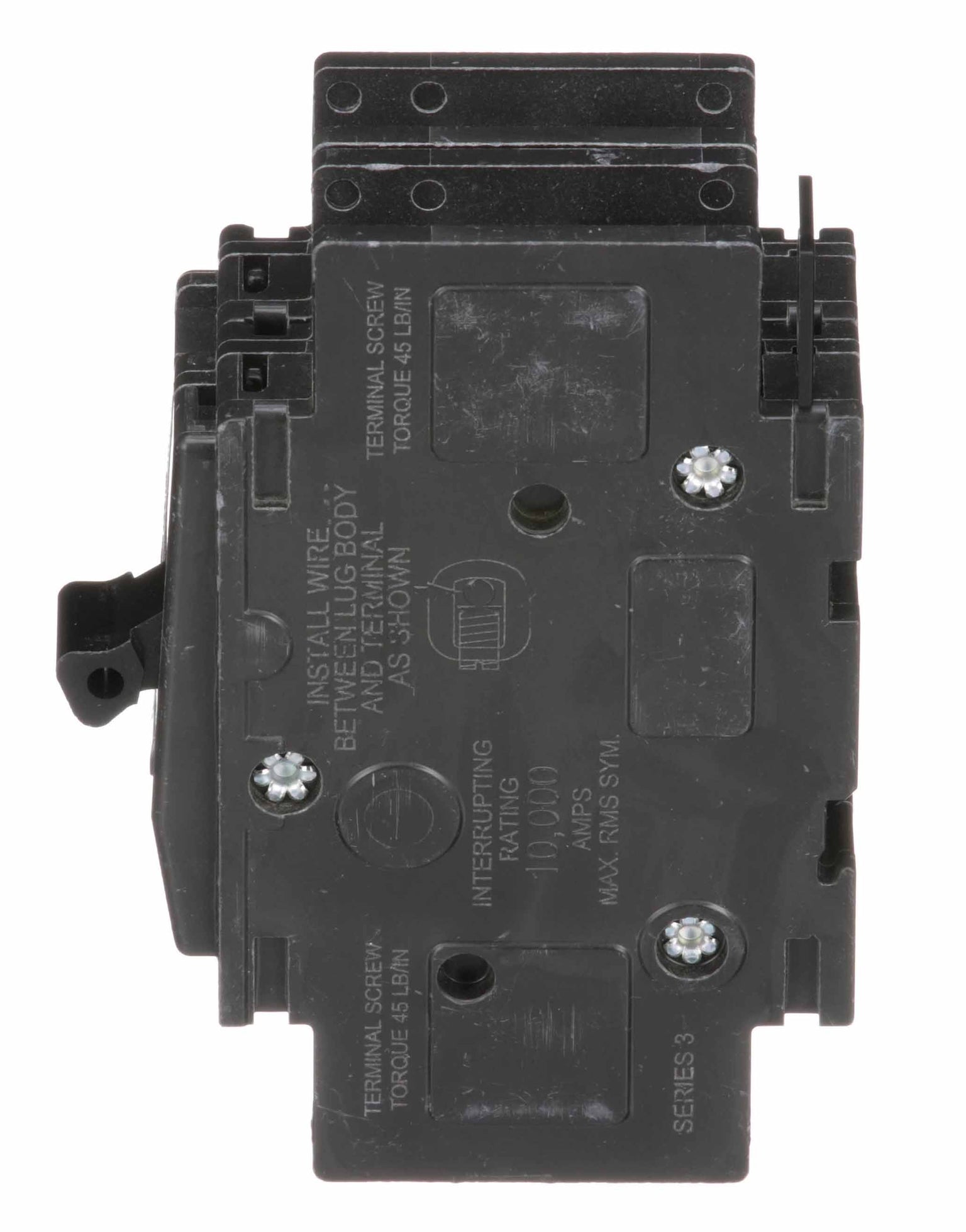

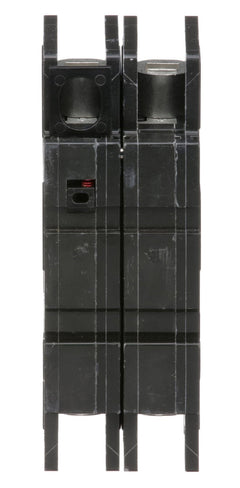

QOU290 - Square D Miniature Circuit Breaker
This product is a Miniature circuit breaker with shunt trip feature common tripping of all poles. The 2-pole unit mount circuit breaker features slotted box lug connection to accommodate aluminum or copper wires of size 12 - 2/0 AWG. It has interrupt current rating of 10 kilo-Amps to protect against overloads and short-circuits. It has a voltage rating of 120/240 VAC and a current rating of 90 Amps.
Specifications:
- Product or component type: Miniature circuit-breaker
- Range of product: QOU
- Circuit breaker type: Standard
- Circuit breaker application: HACR and Switching Duty rated
- Line Rated Current: 90 A
- Number of Poles: 2P
- Interrupt Rating: 10 kA at: 120/240 V AC, 10 kA at: 120 V AC, 5 kA at: 60 V DC
- Electrical connection: Slotted box lugs, line side, Slotted box lugs, load side
- System Voltage: 120 V AC, 120/240 V AC, 60 V DC
- Mounting mode: Unit mount
- AWG gauge: AWG 12...AWG 2/0 (aluminium/copper)
- Height: 4.45 in
- Depth: 2.95 in
- Width: 1.5 in
- Product certifications: CSA, IEC, UL listed
- Authentic Square D Product
- Dimensions (H x W x L): 4.45" x 1.5" x 2.95"
Alt model: q0u290
