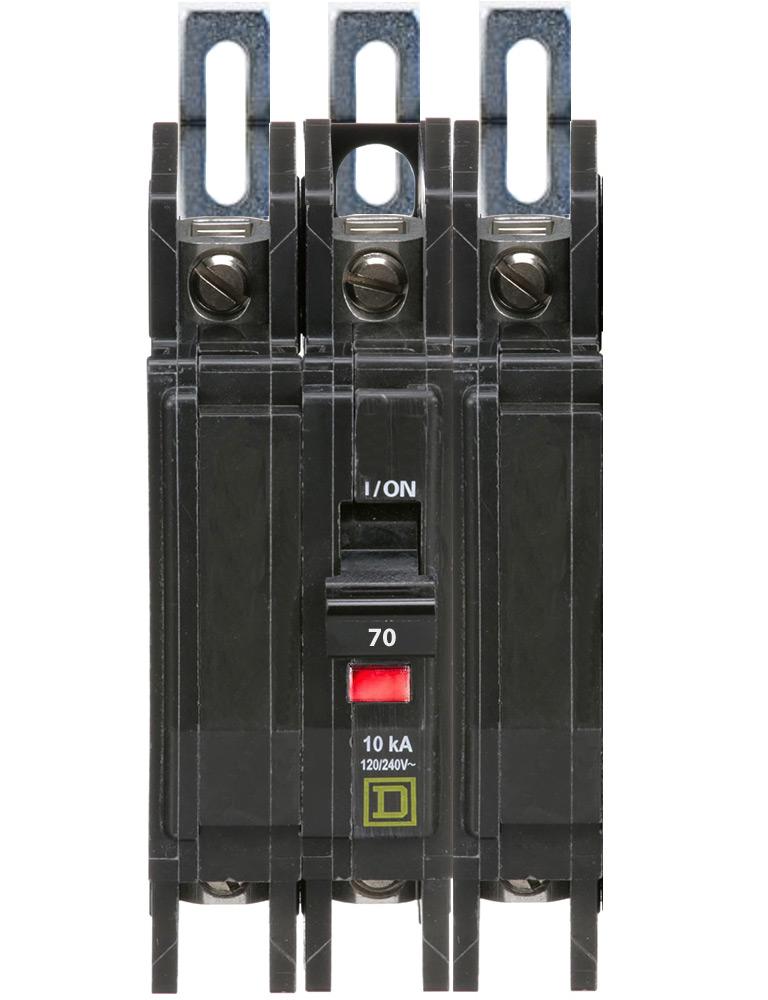

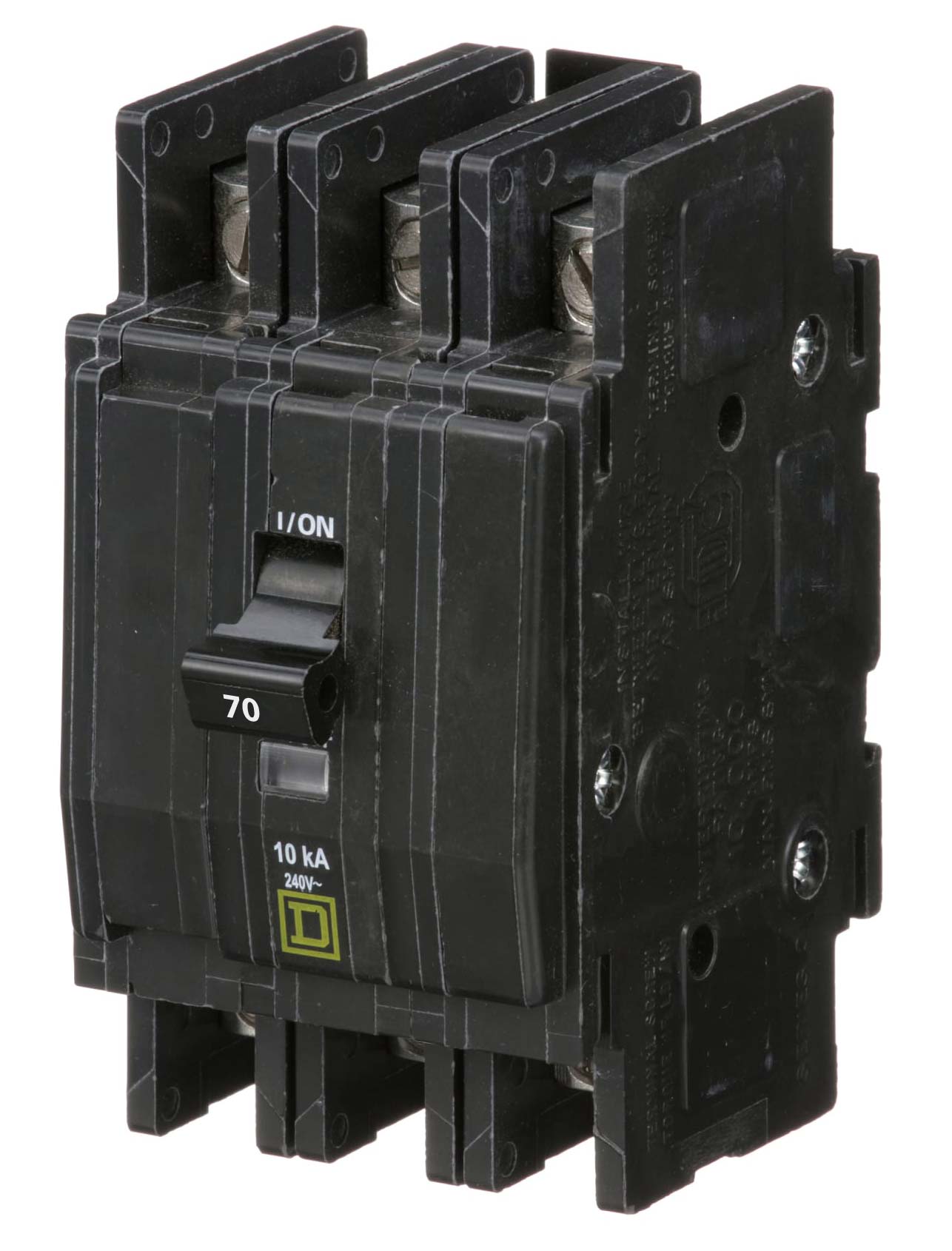

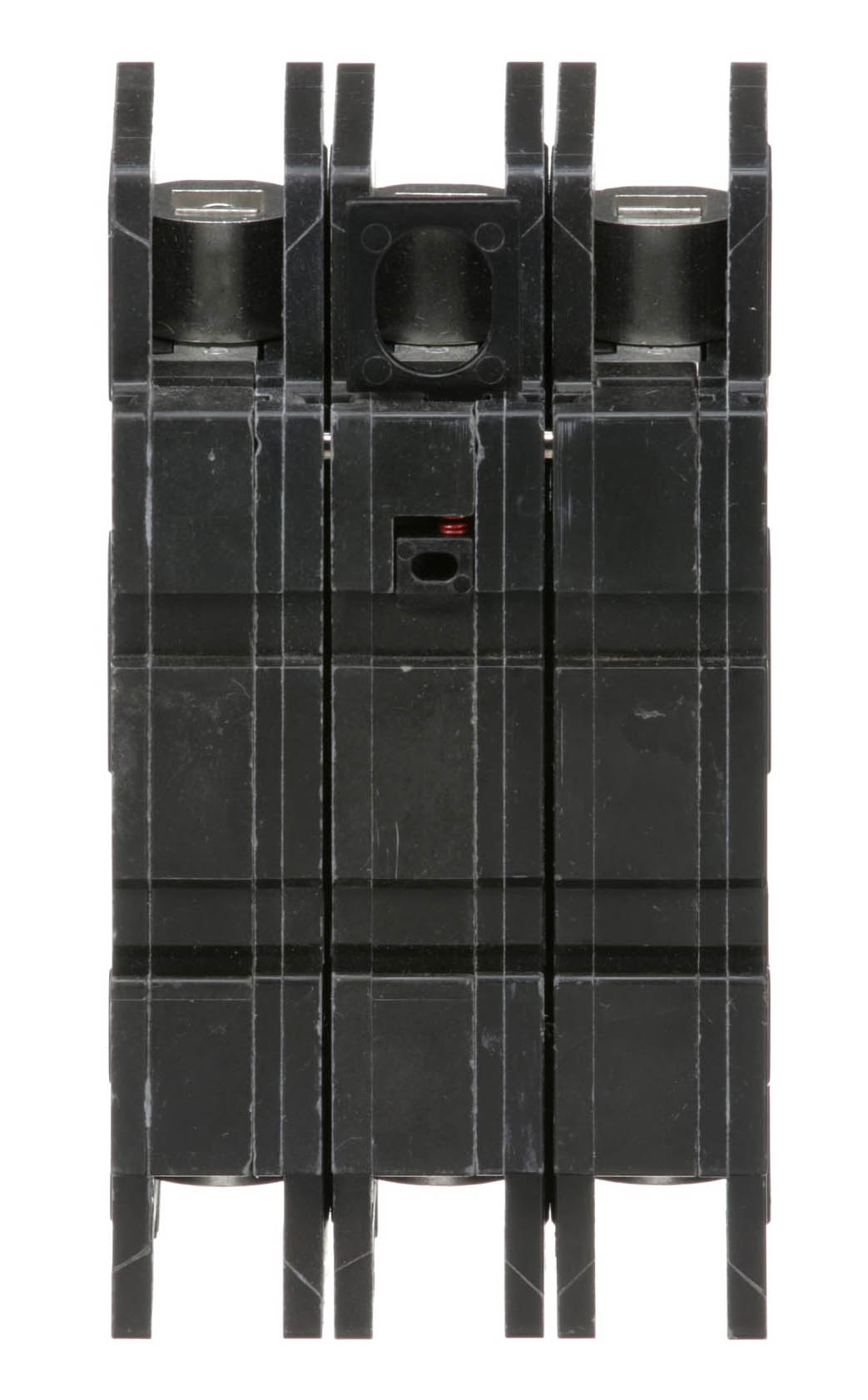

QOU370 - Square D Unit Mount Miniature Circuit Breaker
- Product or component type: Miniature circuit-breaker
- Range of product: QOU
- Circuit breaker type: Standard
- Circuit breaker application: HACR and Switching Duty rated
- Line Rated Current: 70 A
- Number of Poles: 3P
- Interrupt Rating: 10 kA at: 120/240 V AC, 5 kA at: 48 V DC, 10 kA at: 120 V AC, 10 kA at: 240 V AC
- Electrical connection: Slotted box lugs, line side, load side
- System Voltage: 120 V AC, 120/240 V AC, 240 V AC, 60 V DC
- Mounting mode: Unit mount
- AWG gauge: AWG 12...AWG 2/0 (aluminium/copper)
- Height: 4.05 in
- Depth: 2.95 in
- Width: 2.25 in
- Product certifications: CSA, IEC, UL listed
- Authentic Square D Product
- Dimensions (H x W x L): 4.05" x 2.25" x 2.95"
- 3 phase
Alt model: q0u370
Returns are easy
You may return items within 30 days of delivery for a full refund.
FREE Shipping on orders over $49.
Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).
Same Day Shipping
We strive to ship out your items within one business day.
In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.
Product Warranty - QOU370 - Square D - 70 Amp Circuit Breaker
All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.
