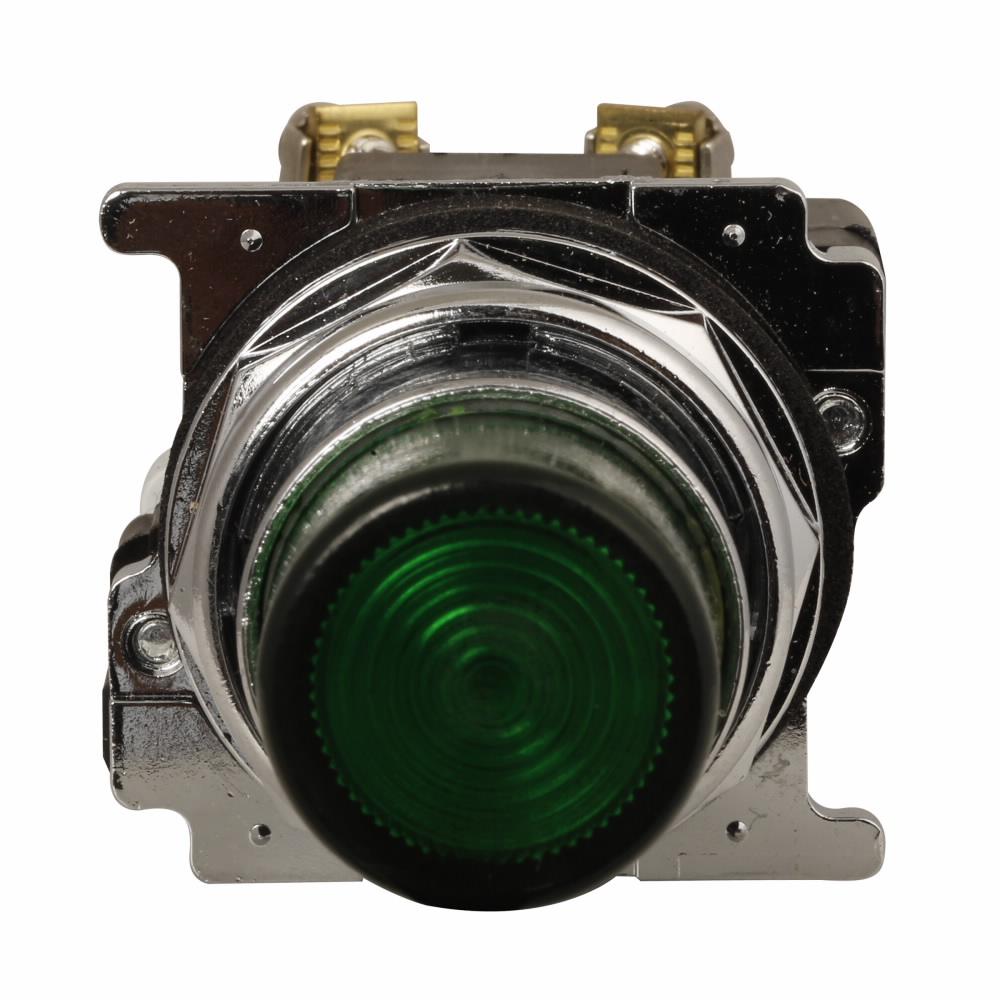

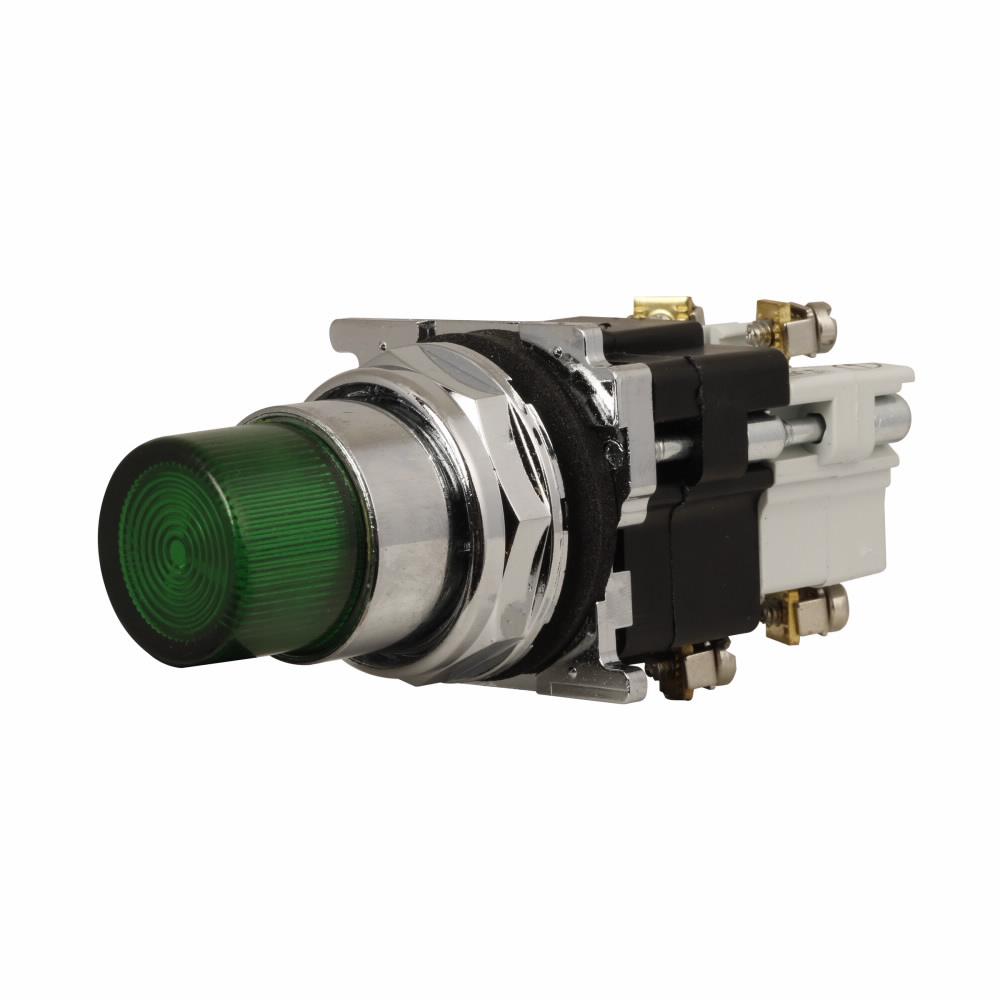

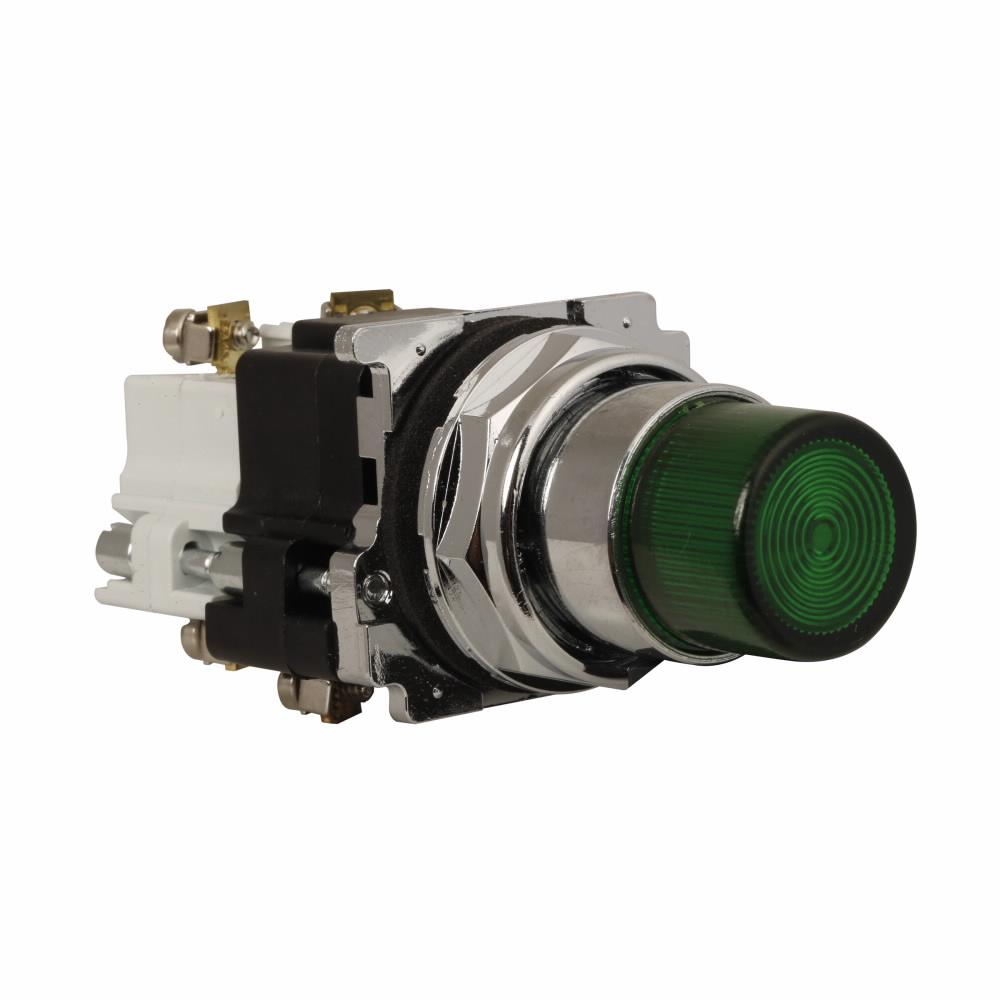

10250T76G - Eaton Cutler-Hammer Push Button Operator
Eaton / Cutler Hammer Push Button Compact 30.5 mm easy to install Lamp type Incandescent Lamp Cap/lens color green Heavy-Duty chrome plated die cast zinc metal body construction for extra durability With maximum voltage rating of 600 Vac at 50/60 Hz 10Ampere 250 Vdc 5Ampere Application automation and logic control equipments.
- Product Name: Eaton 10250T pushbutton
- UPC: 782113685083
- Product Length/Depth: 2.5 IN
- Product Height: 4.5 IN
- Product Width: 2.2 IN
- Product Weight: .3 LB
- Compliances: CE Marked
- Certifications: CSA Certified, UL Listed
- Contact Configuration: 1NO-1NC
- Special Features: 10250T series
- Actuator Color: Green
- Actuator Material: Plastic
- Light Unit Voltage: 120 V
- Color: Green
- Rating: NEMA 3, 3R, 4, 4X, 12, 13
- Bezel: Chrome
- Led Lamp Number: #755
- Light Unit Type: Incandescent, transformer
- Series: 10250T
- Type: 30.5 mm Heavy-Duty Watertight/Oiltight
- Operating Mode: Momentary
- Illumination: Illuminated
- Application: Pushbutton
- Actuator: Extended
- Authentic Eaton / Cutler Hammer Product
- Voltage Rating: 600 Volt
- Dimensions (H x W x L): 4.5" x 2.2" x 2.5"
