10250T76G - Eaton - 10 Amp Push Button Operator

10250T76G - Eaton Cutler-Hammer 10 Amp 600 Volt Push Button Operator
10250T76G - Eaton - 10 Amp Push Button Operator
10250T76G - Eaton - 10 Amp Push Button Operator

Images are for reference only

10250T76G - Eaton - 10 Amp Push Button Operator

Regular price $368.99 CAD
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - 10250T76G - Eaton - 10 Amp Push Button Operator

All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

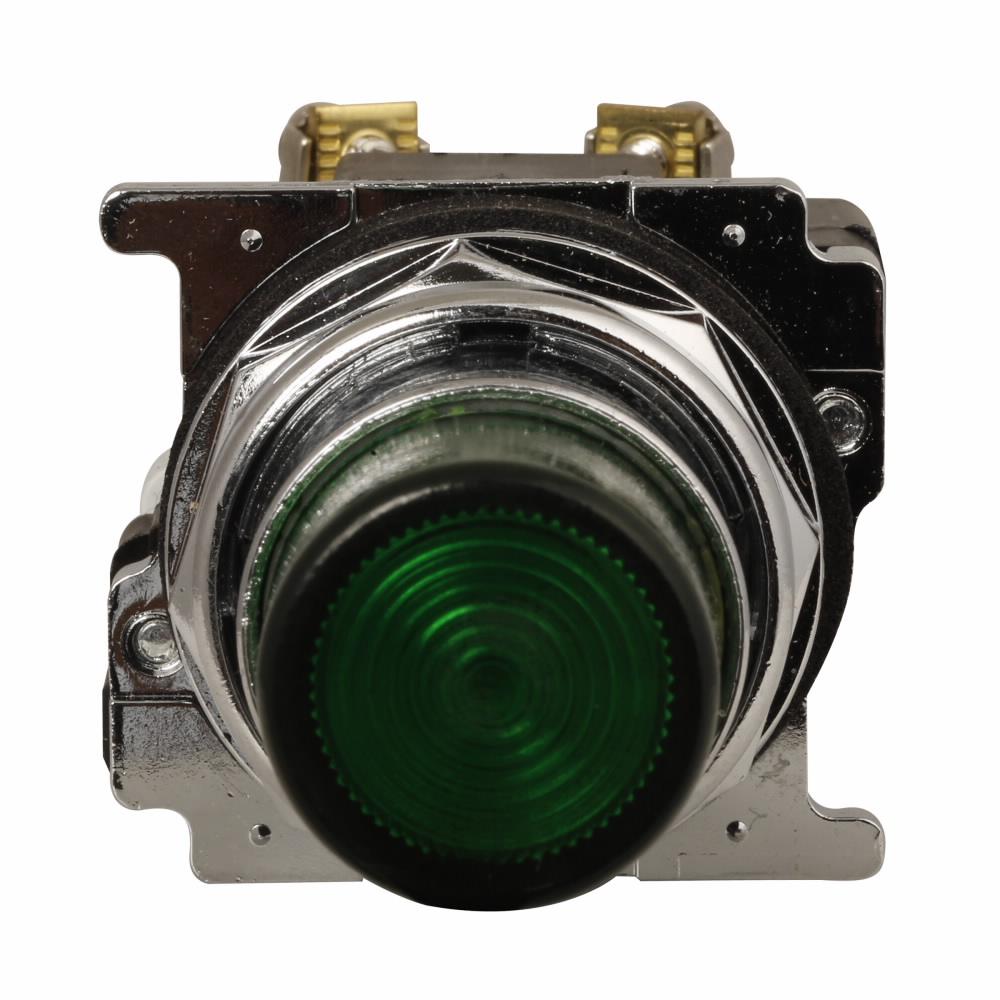

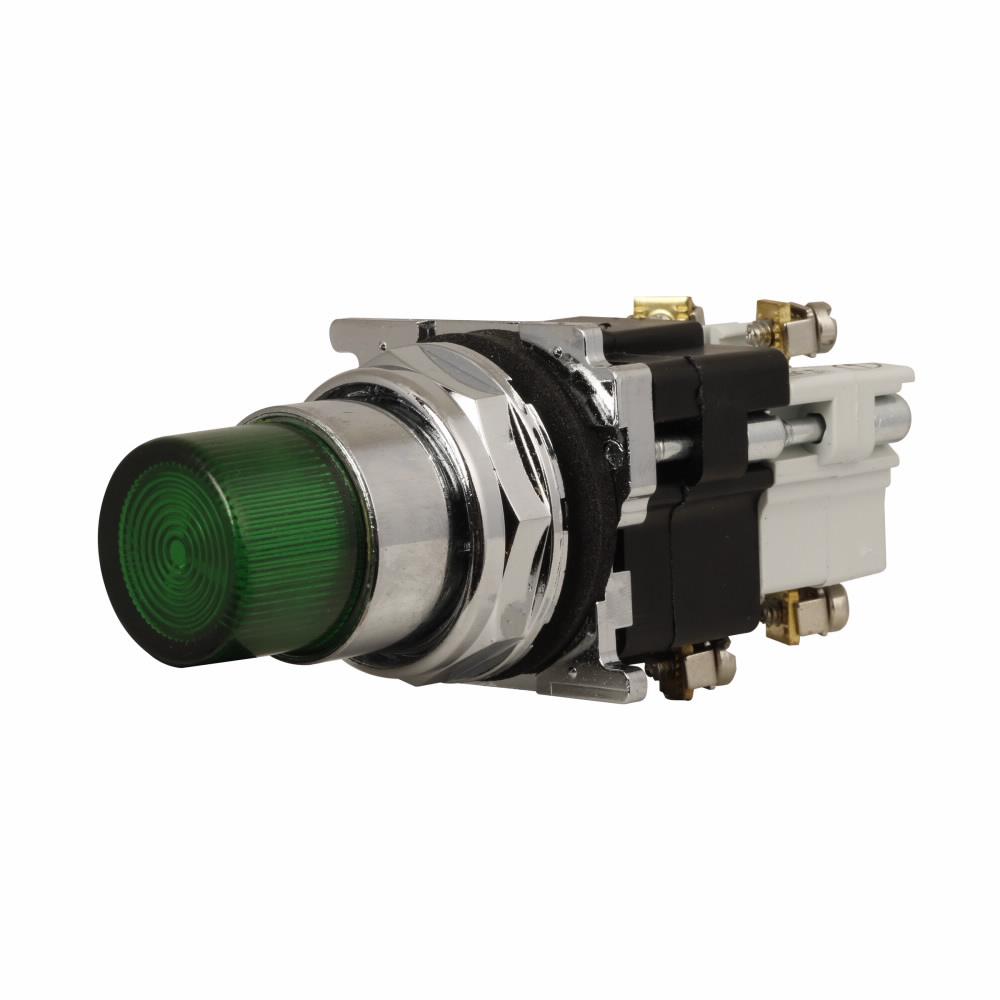

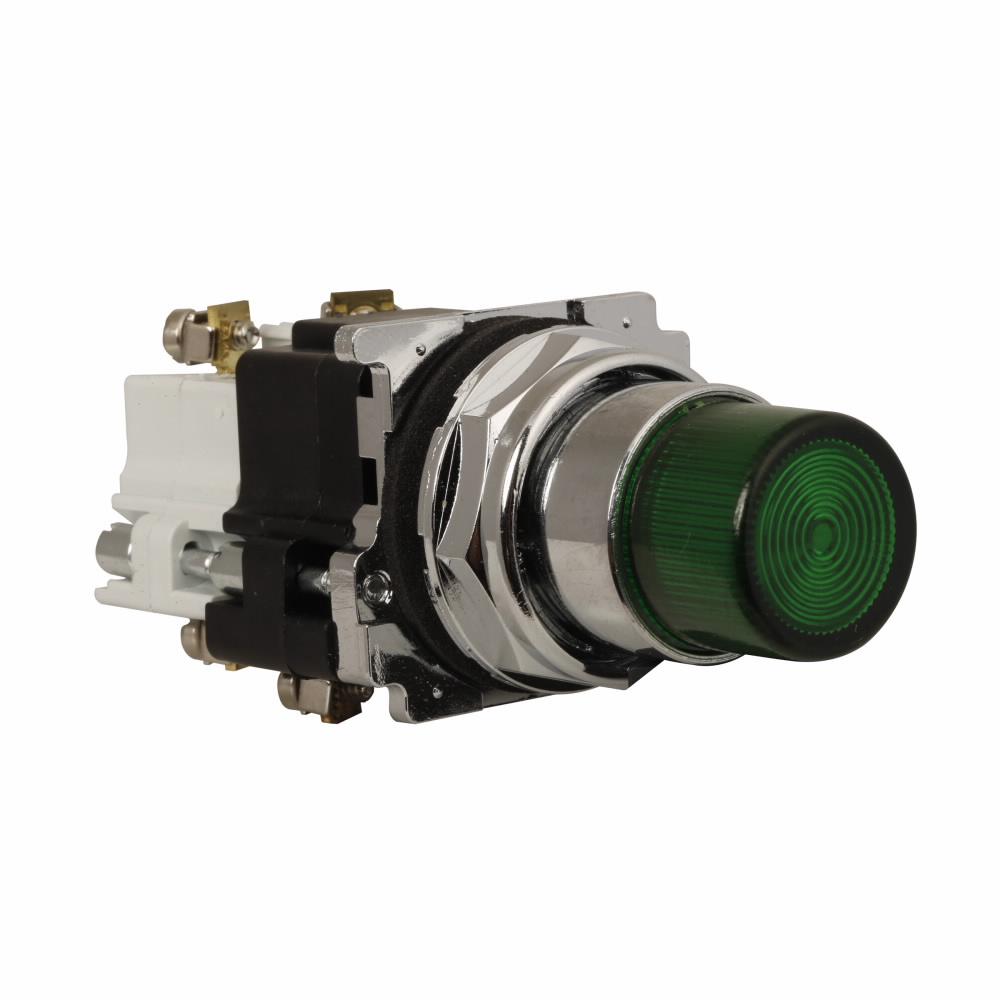

10250T76G - Eaton Cutler-Hammer Push Button Operator

Eaton / Cutler Hammer Push Button Compact 30.5 mm easy to install Lamp type Incandescent Lamp Cap/lens color green Heavy-Duty chrome plated die cast zinc metal body construction for extra durability With maximum voltage rating of 600 Vac at 50/60 Hz 10Ampere 250 Vdc 5Ampere Application automation and logic control equipments.

Specifications:

  • Product Name: Eaton 10250T pushbutton
  • UPC: 782113685083
  • Product Length/Depth: 2.5 IN
  • Product Height: 4.5 IN
  • Product Width: 2.2 IN
  • Product Weight: .3 LB
  • Compliances: CE Marked
  • Certifications: CSA Certified, UL Listed
  • Contact Configuration: 1NO-1NC
  • Special Features: 10250T series
  • Actuator Color: Green
  • Actuator Material: Plastic
  • Light Unit Voltage: 120 V
  • Color: Green
  • Rating: NEMA 3, 3R, 4, 4X, 12, 13
  • Bezel: Chrome
  • Led Lamp Number: #755
  • Light Unit Type: Incandescent, transformer
  • Series: 10250T
  • Type: 30.5 mm Heavy-Duty Watertight/Oiltight
  • Operating Mode: Momentary
  • Illumination: Illuminated
  • Application: Pushbutton
  • Actuator: Extended
  • Authentic Eaton / Cutler Hammer Product
  • Voltage Rating: 600 Volt
  • Dimensions (H x W x L): 4.5" x 2.2" x 2.5"
