800T-J91A - Allen-Bradley - Selector Switch

Allen-Bradley SKU: 800T-J91A
800T-J91A - Allen-Bradley Selector Switch

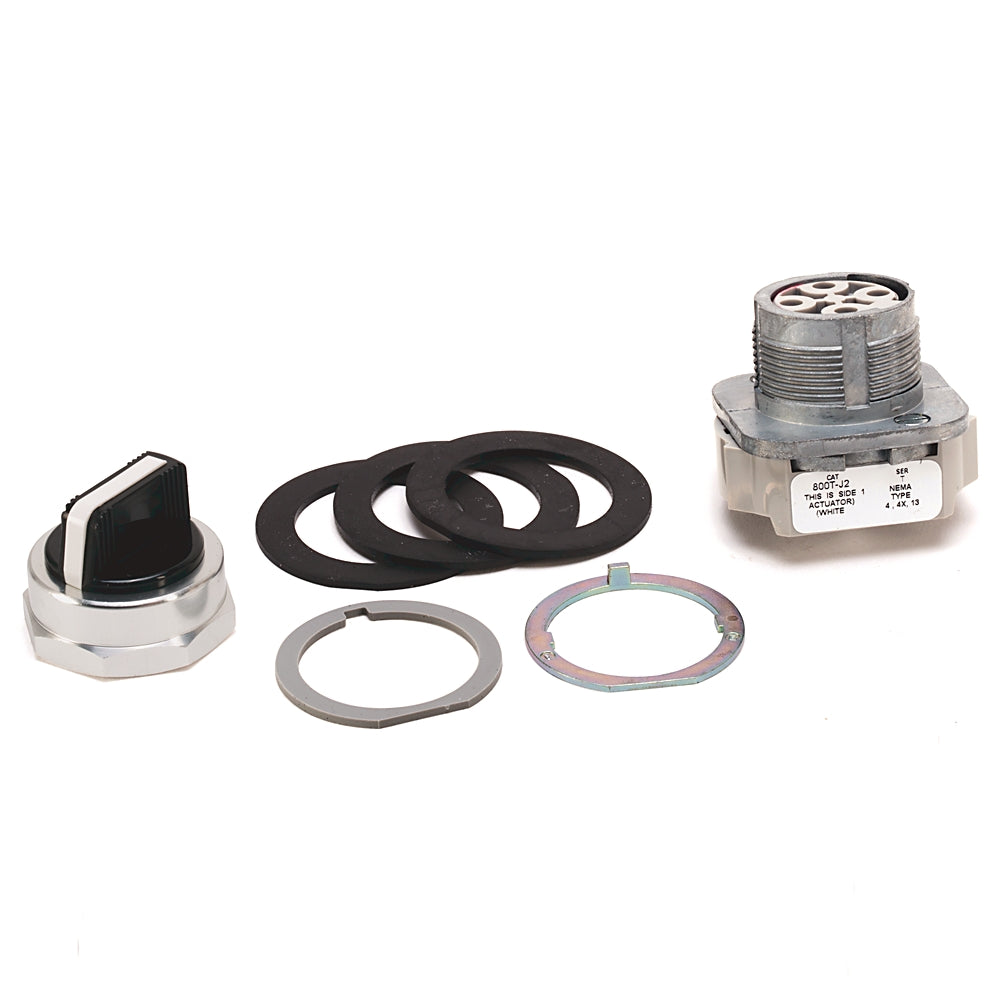

Images are for reference only

800T-J91A - Allen-Bradley - Selector Switch

Allen-Bradley SKU: 800T-J91A
Regular price $147.99 CAD
  • In stock and ready to ship
  • Inventory on the way
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - 800T-J91A - Allen-Bradley - Selector Switch

All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

800T-J91A - Allen-Bradley Selector Switch

Selector Switch, 3 Position, 30mm, Knob, Black with White Insert, Spring Return from Both, KB7 Cam, 1 Normally Open, 1 Normally Closed, Contact Block, NEMA 4/13
Ruggedly attractive and boldly functional, the Allen-Bradley Bulletin 800T line of push buttons are designed and built to perform in demanding industrial environments. Catalog item 800T-J91A from Rockwell Automation is a three-position, 30 mm selector switch with a white insert. It is standard knob spring return. For full product details, please see the sections below. Allen-Bradley is a trademark of Rockwell Automation, Inc.

  • Manufacturer: Allen-Bradley


  • Number of switch positions: 3
  • Hole diameter: 30.5 mm
  • Operator mechanical design life (cycles, min.): 1000000
  • Contact block electrical design life (cycles, at max. load): 1000000
  • Enclosure compatibility (NEMA type): 1, 4, 12, 13
  • Operator type: Selector switch
  • Contact block termination tightening torque: 6 - 8 lb - in / 0.7 - 0.9 N-m
  • Operator function: Spring return from left and right
  • Shock: 25 G (contact fragility)/100 G (no damage)
  • Vibration: 10 G maximum
  • Contact block termination wire range: 14 - 18 AWG (x2)
  • Suitable for illumination: No
  • Contact block configuration: 1-NO 1-NC standard contacts
  • Contact block thermal current rating: 10 A
  • Contact block utilization category (AC): A600, AC-15
  • Contact block utilization category (DC): Q600, DC-13
  • Contact block operational voltage, max: 600V AC, 600V DC
  • Terminations with finger safe covers: No
  • Operator cap/button material: Plastic
  • Operator construction/material: Metal
  • Operator cap type: Standard knob
  • Operator cam code: Standard cam
  • Operator cap color: Black with white insert
  • Operating temperature: -25 °C
  • Hazardous location rating: No
  • Humidity: 50 %
  • Storage temperature: -40 °C
  • Certifications: ABS, CCC, CE, CSA, EAC, GOST, UL
