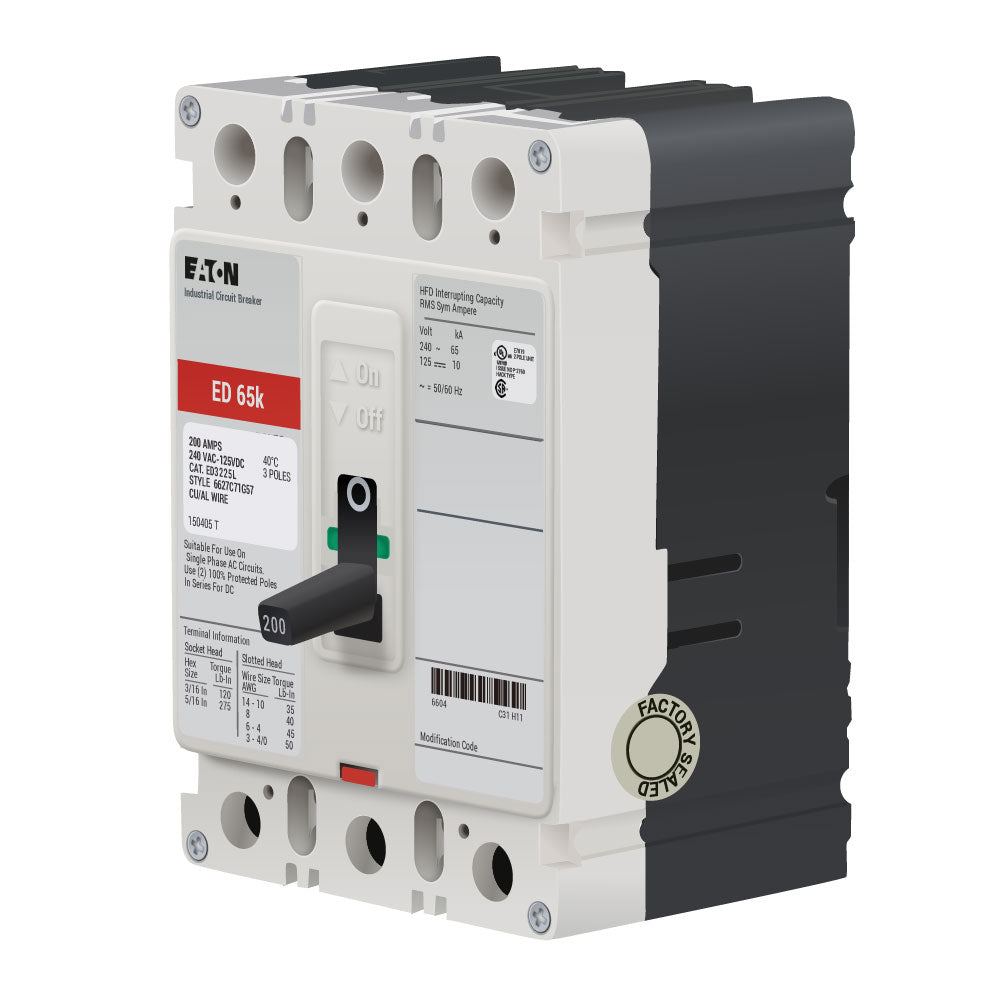

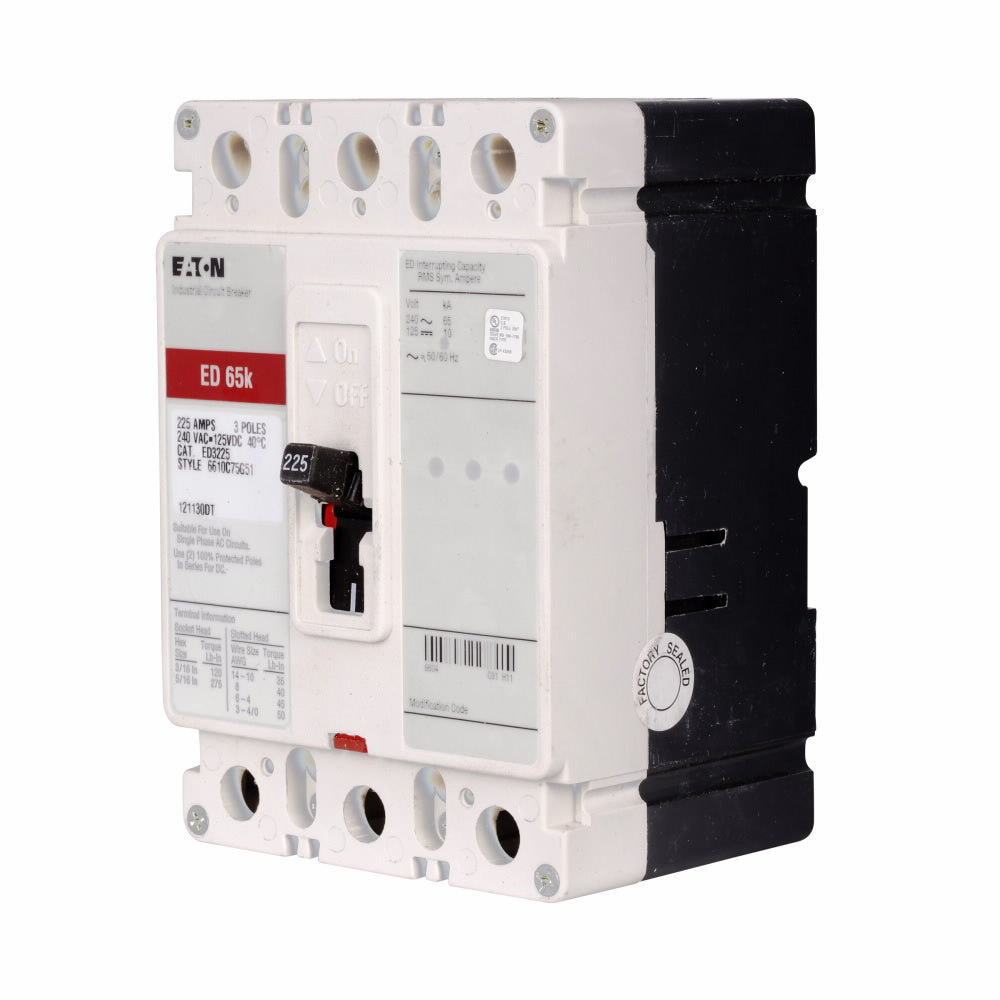

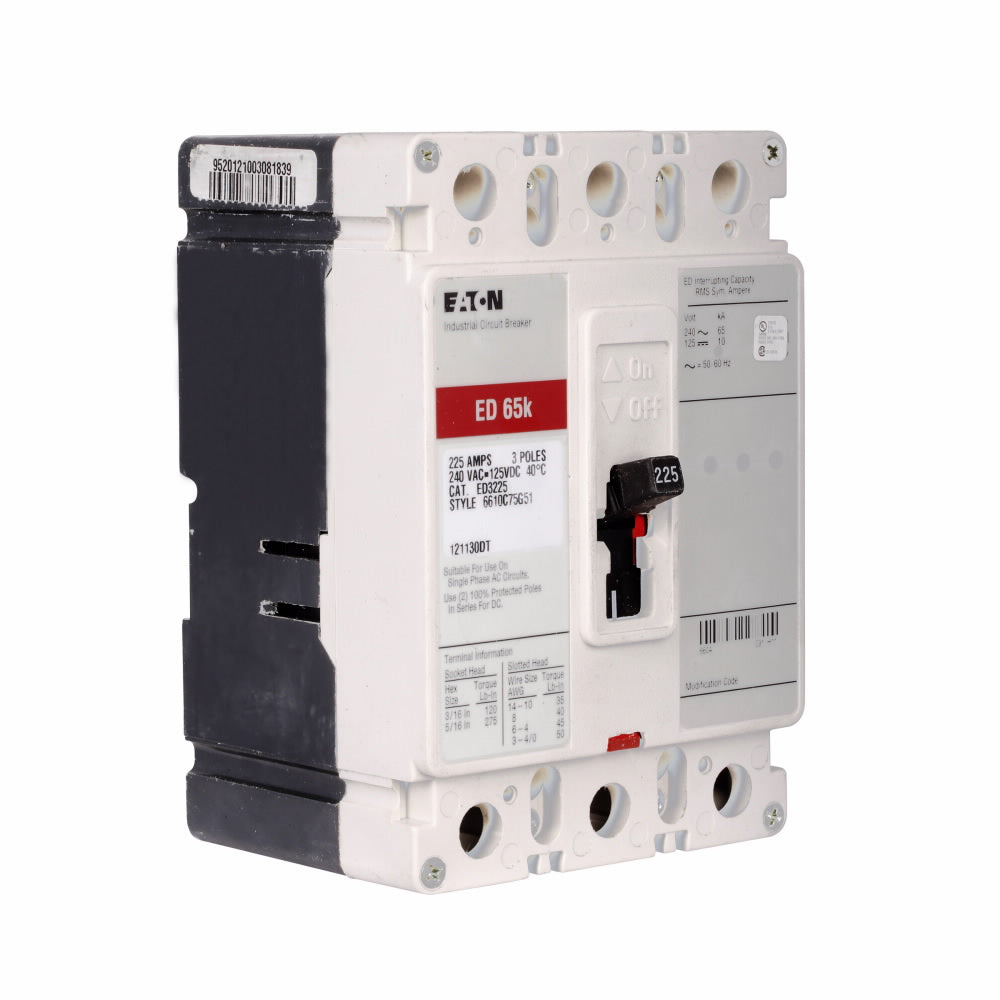

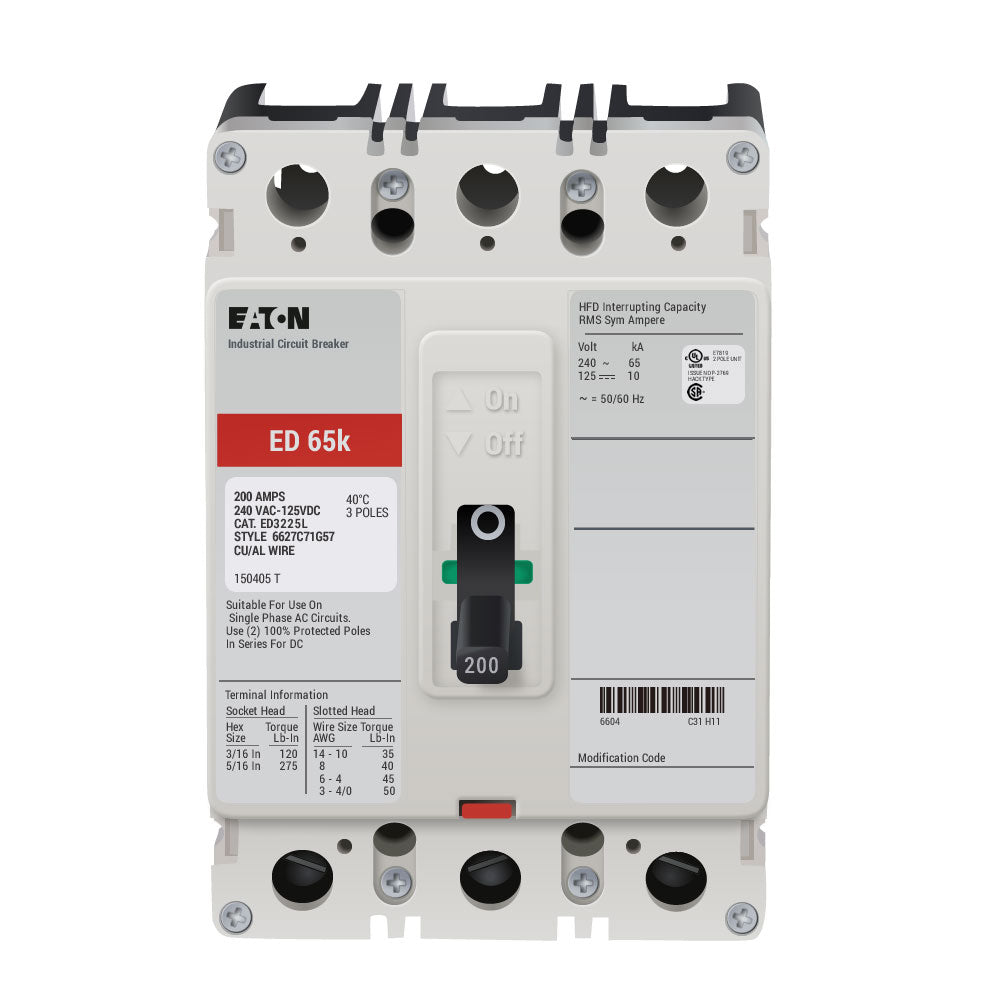

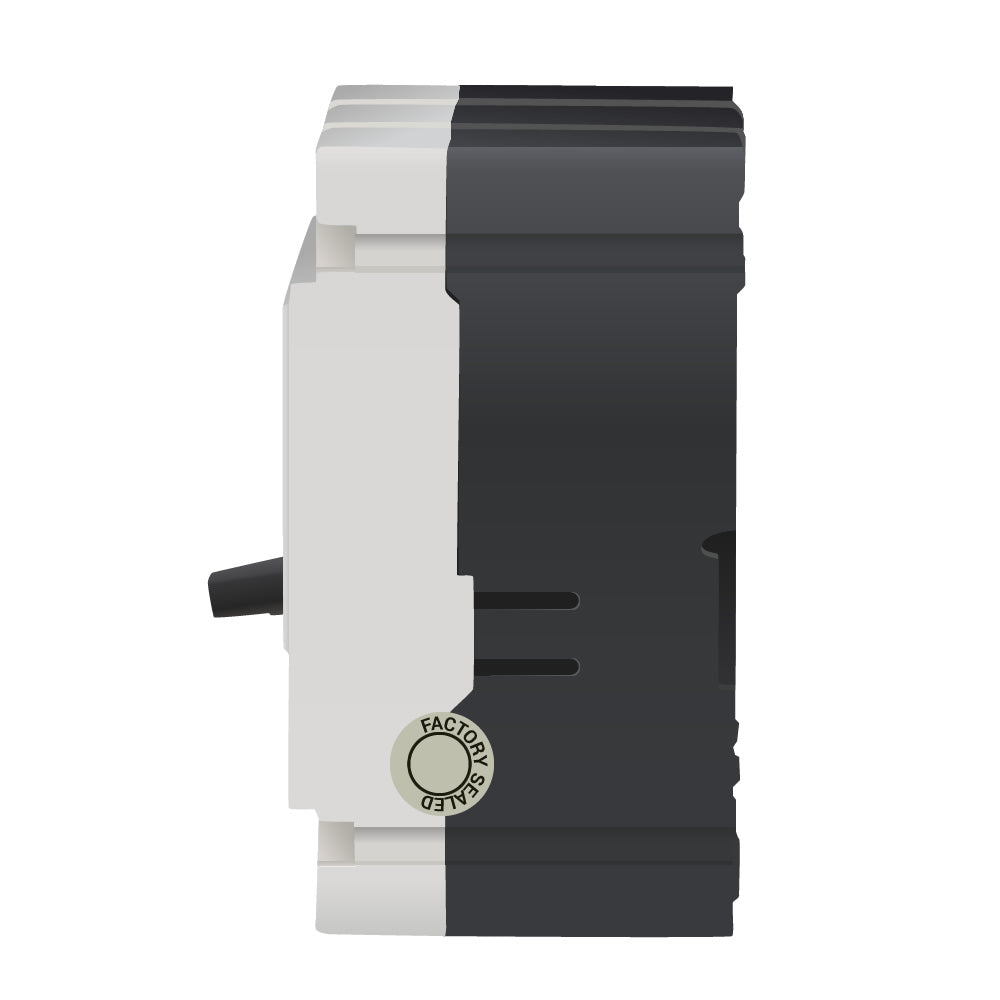

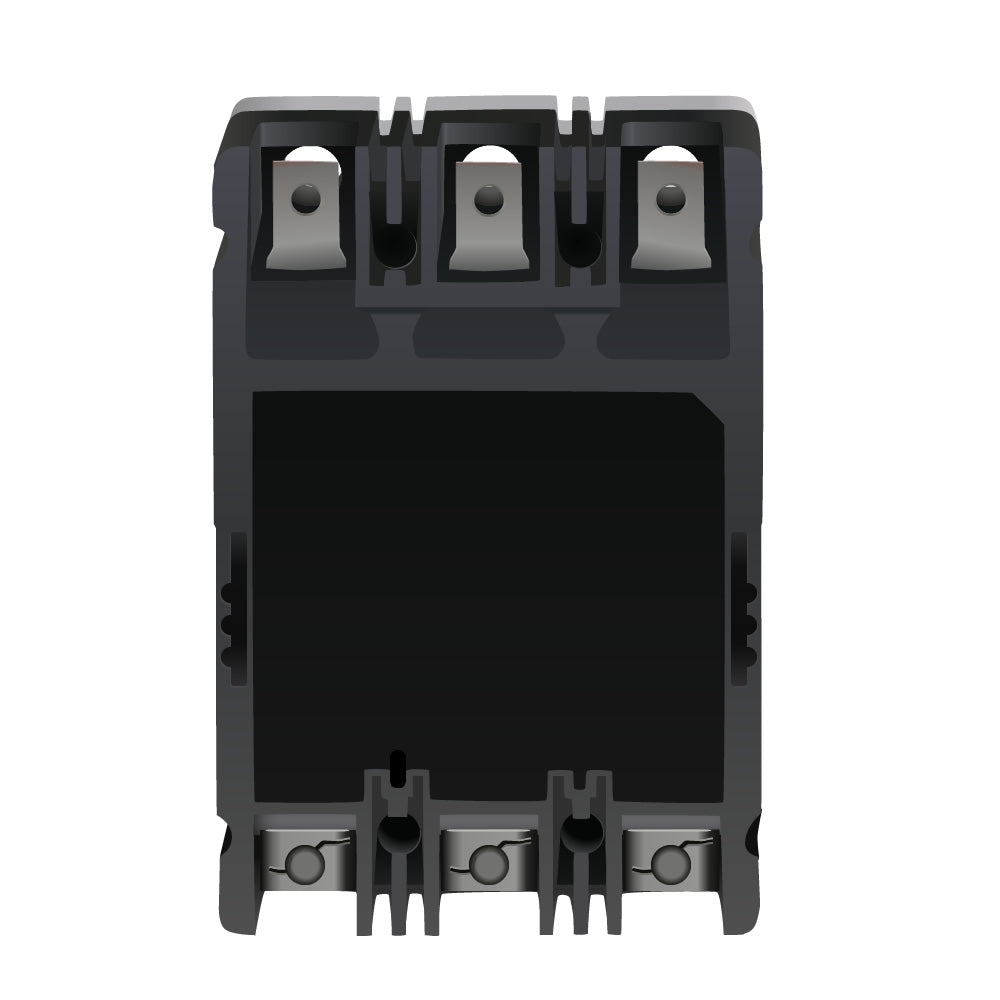

ED3225L - Eaton - Molded Case Circuit Breaker

Feed-Thru - 224 Amp - 3 Pole - 240 Volt

ED3225L - Eaton - Molded Case Circuit Breaker
ED3225L - Eaton - Molded Case Circuit Breaker
ED3225L - Eaton - Molded Case Circuit Breaker

Images are for reference only

ED3225L - Eaton - Molded Case Circuit Breaker

Feed-Thru - 224 Amp - 3 Pole - 240 Volt

Regular price $999.99 CAD
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - ED3225L - Eaton - Molded Case Circuit Breaker

All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

Overview

Product Specifications - ED3225L - Eaton Molded Case Circuit Breaker

  • Part Number:

    ED3225L
  • Manufacturer:

  • Family:

    Series C
  • Pole:

    3
  • Amp

    224
  • Volt:

    240
  • Phase:

    3
  • Category:

  • Connection:

    Feed-Thru
  • Type:

    ED
  • Functions:

    LI - Long-Time and Instantaneous
  • Protection:

    Thermal Magnetic
  • AIC Ratings:

    65kA@240V
  • Frame Type:

    F Frame

Dimensions

  • Dimensions (HxWxD):

    6" x 4.13" x 3.38"
  • Weight:

    4.5 lbs

Standards

CSA Approved logo

Product Description - ED3225L - Eaton Molded Case Circuit Breaker

Cutler Hammer / Eaton / Westinghouse, Series C, type ED, 3P, 3PH, 225A, 240V, 35kA@480V, standard interrupting capacity, 40 degree C, feed-thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers


Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications

PDF Icon Installation Instructions

PDF Icon Data Sheet
