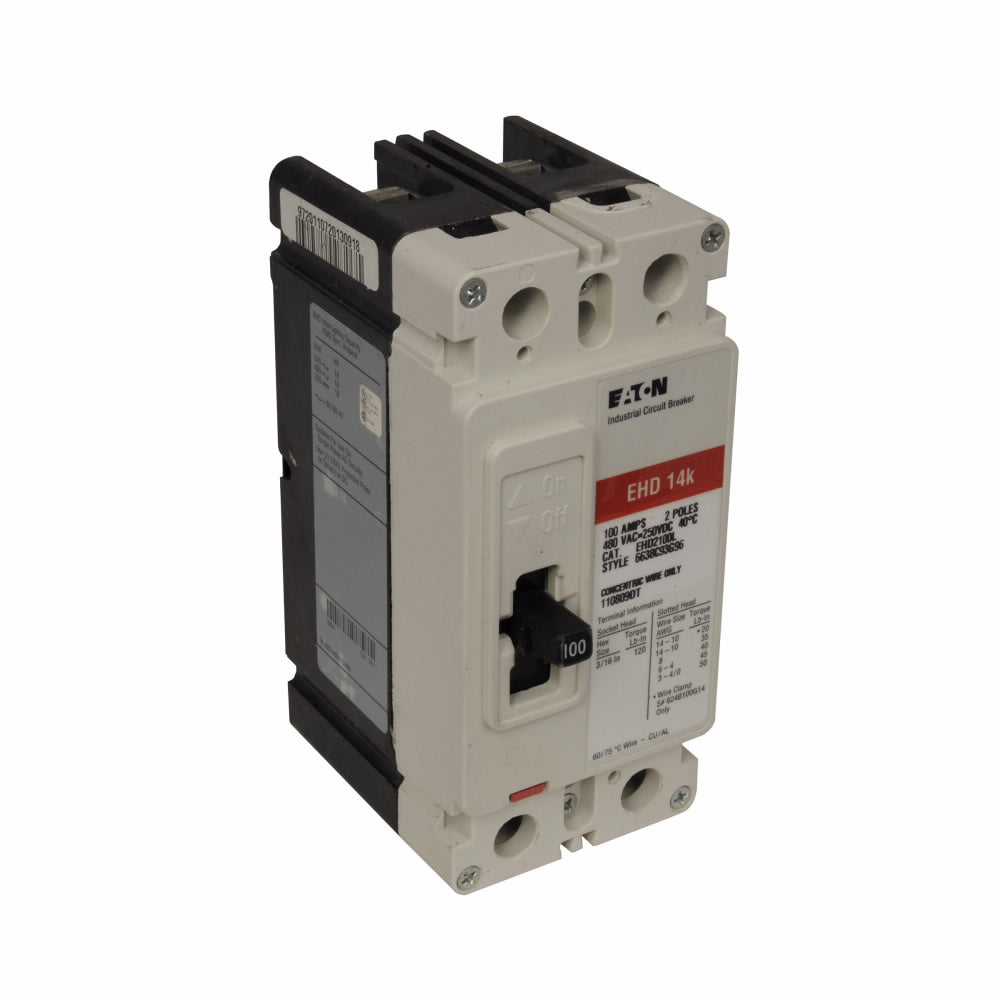

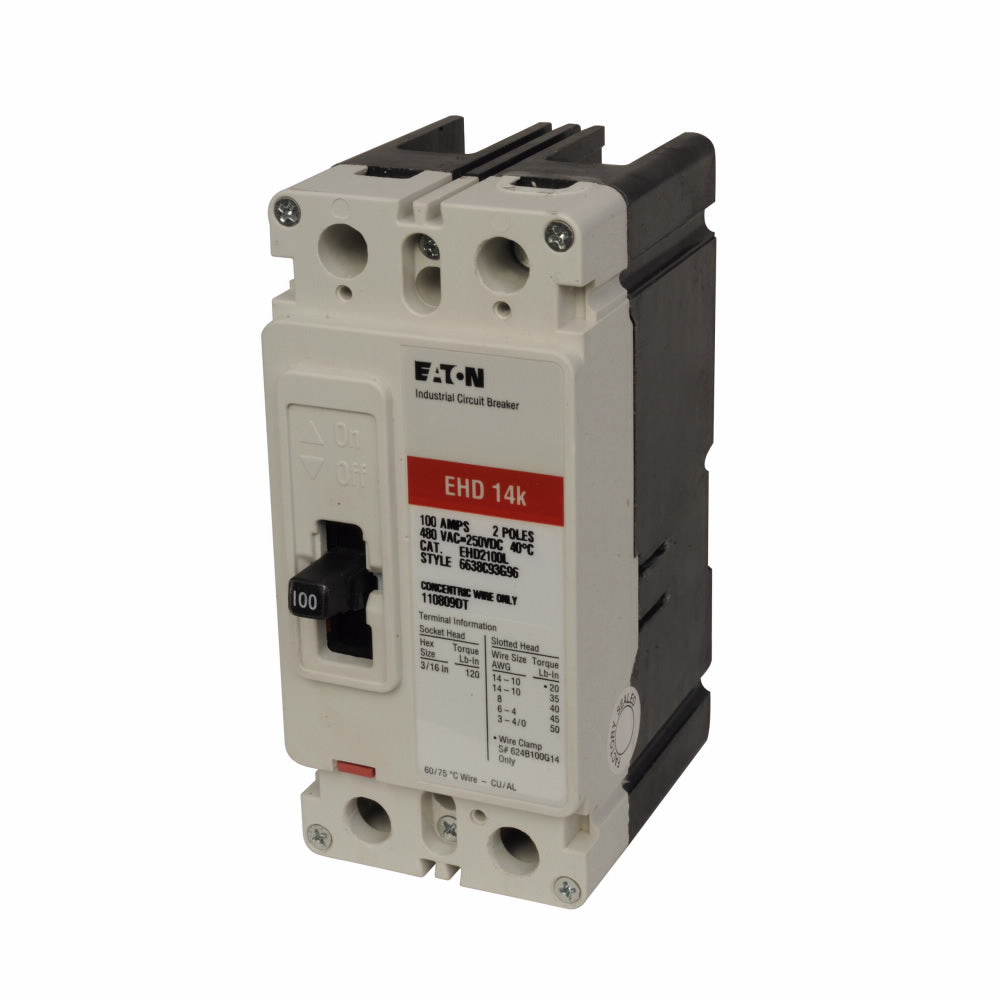

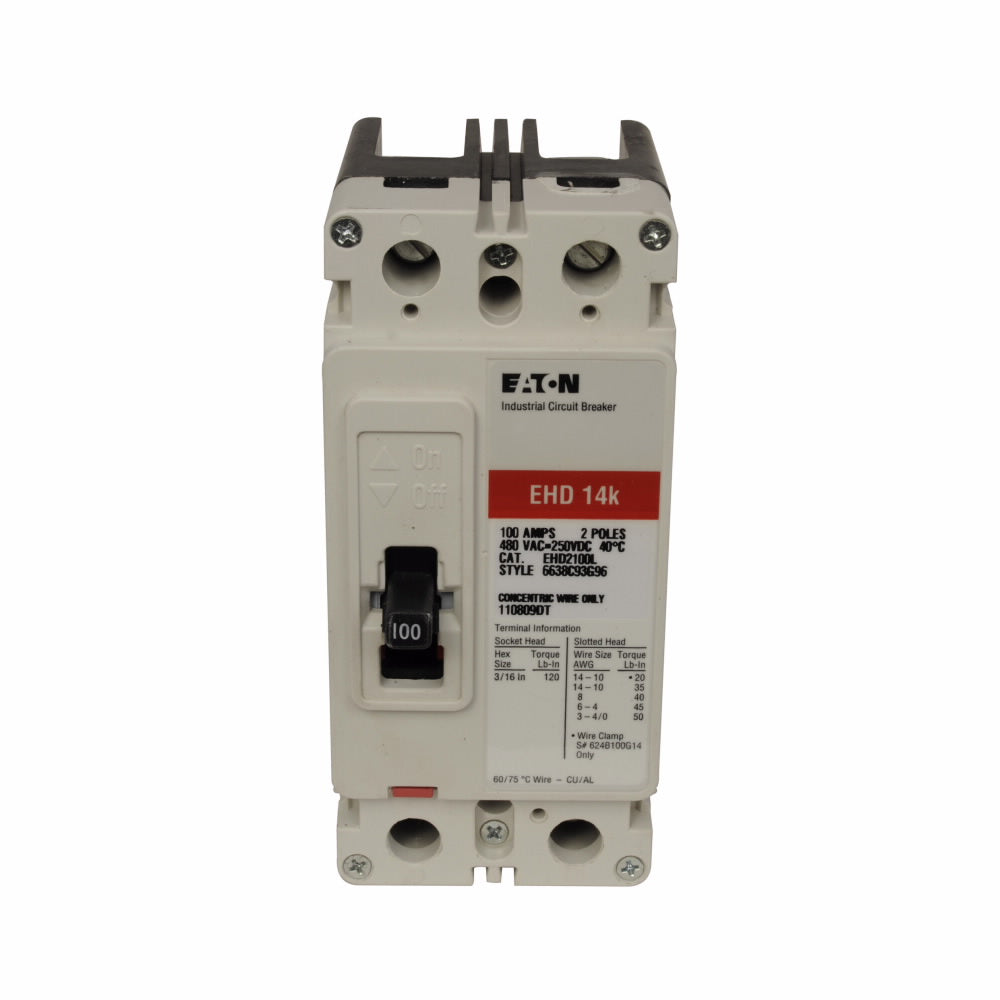

Name: EHD2045L - Eaton - Molded Case Circuit Breaker
Brand: Eaton Cutler-Hammer
SKU: EHD2045L_recon
Price: 511.0 USD
Availability: OutOfStock

EHD2045L - Eaton - Molded Case Circuit Breaker

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Earn 358 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40513772683373,"title":"New","option1":"New","option2":null,"option3":null,"sku":"EHD2045L","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"EHD2045L - Eaton - Molded Case Circuit Breaker - New","public_title":"New","options":["New"],"price":51100,"weight":1361,"compare_at_price":null,"inventory_management":"shopify","barcode":"786679077894","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42572997820525,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"EHD2045L_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"EHD2045L - Eaton - Molded Case Circuit Breaker - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":35800,"weight":1361,"compare_at_price":null,"inventory_management":"shopify","barcode":"786679077894","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - EHD2045L - Eaton - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - EHD2045L - Eaton Molded Case Circuit Breaker

Part Number:

EHD2045L
Manufacturer:

Eaton Cutler-Hammer
Family:

Series C
Pole:

2
Amp

45
Volt:

480
Phase:

1

Category:

Molded Case / 2-Pole
Connection:

Feed-Thru
Type:

EHD
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

14kA@480V
Frame Type:

F Frame

Dimensions

Dimensions (HxWxD):

6" x 2.75" x 3.38"

Weight:

3 lbs

Standards

Product Description - EHD2045L - Eaton Molded Case Circuit Breaker

Cutler Hammer / Eaton / Westinghouse, Series C, type EHD, 2P, 1PH, 45A, 480V, 14kA@480V, standard interrupting capacity, 40 degree C, feed-thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.

Documentation

Catalogue

Technical Specifications

Installation Instructions

Very good price!

Very good price and outstanding service/communication, I will recommend and shop there again!

Highly Recommended!

I ordered a breaker from Canada Breakers and was shocked when it arrived the next day. Instant shipping. Not long after, I made a mistake with another order and they immediately helped out and fixed my problem. Highly recommended!

Great purchase experience, shipping and support!

Needed a pretty rare breaker and found it here. Ordered on line and got the item in two days. Follow up - the breaker failed after 6 months, so I bought a second one. Then I reported the problem so the manufacturer; they said call the seller. Now note that at this point, I have purchased two breakers as I needed the replacement and didn't want to screw around with warranty claims, etc. Breaker showed up at my house, and I reported the failure to Canada Breakers. I HAD A REFUND WITHIN AN HOUR for the second breaker I had purchased. Recognize that they were within their rights to just replace the breaker (so I would have had 2 of them). You never know who you will be dealing with in an online purchase, but these guys rock!

A fraction of the price vs. a local electrical ...

A fraction of the price vs. a local electrical supplier. Installed and it worked without issue.

Five stars

fit as expected.

Good studf

Great deal. It did what I needed it to do. I am a elecrician and I am always looking to save my customers money.

Five Stars

Breakers work great so far.

Good studf

Great deal. It did what I needed it to do. I am a elecrician and I am always looking to save my customers money.

1 2

EHD2045L - Eaton - Molded Case Circuit Breaker

Feed-Thru - 45 Amp - 2 Pole - 480 Volt

EHD2045L - Eaton - Molded Case Circuit Breaker
