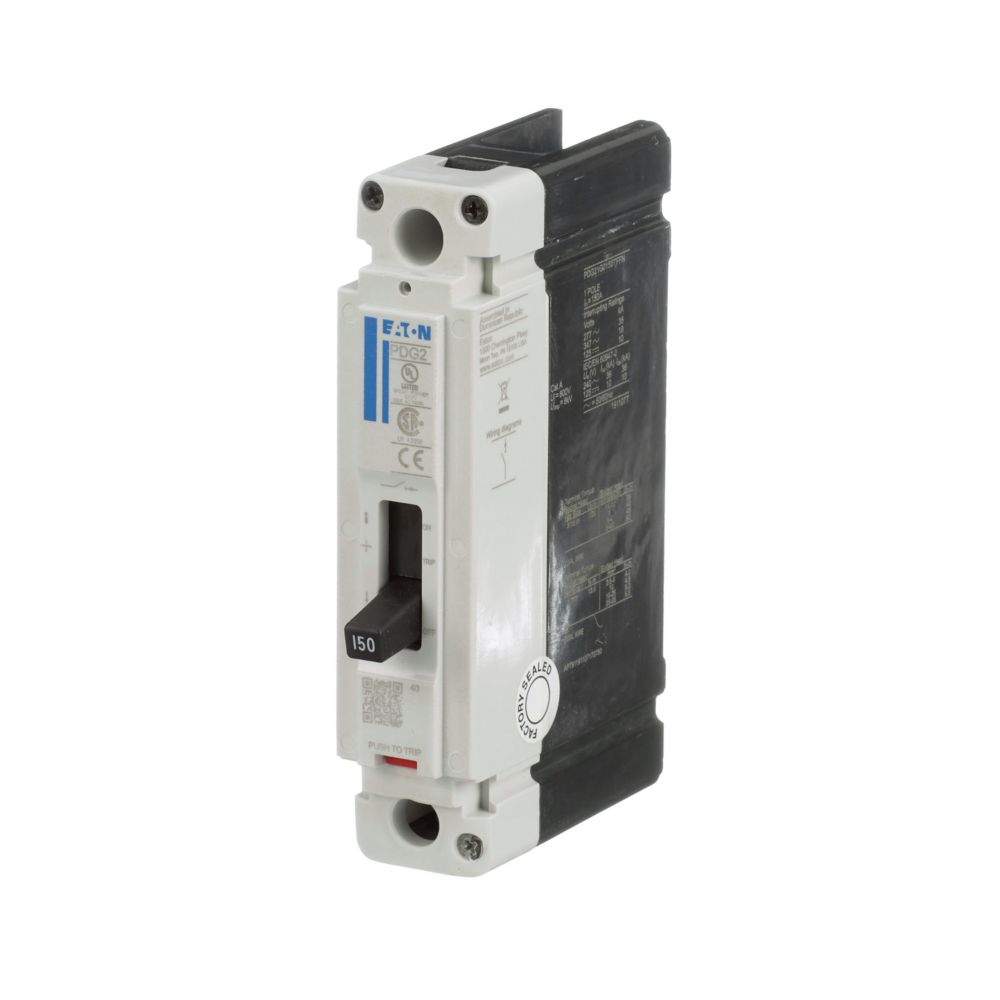

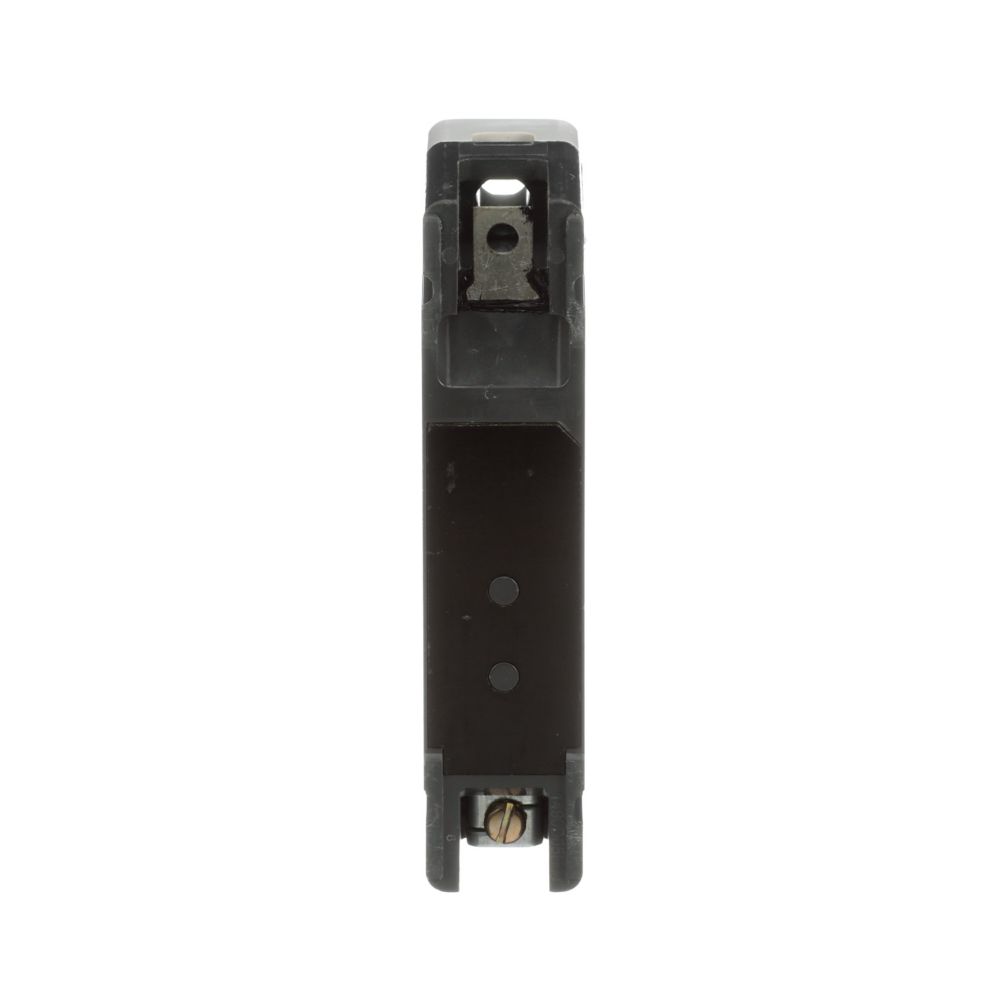

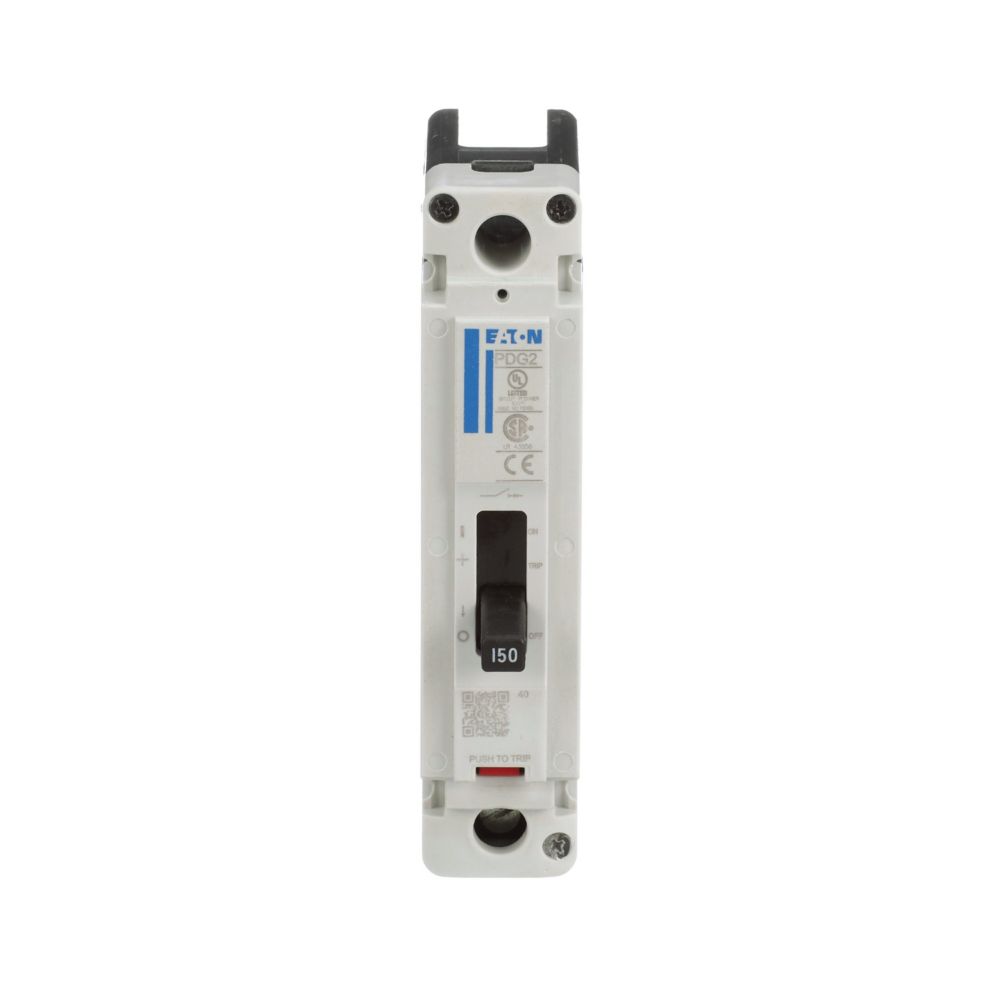

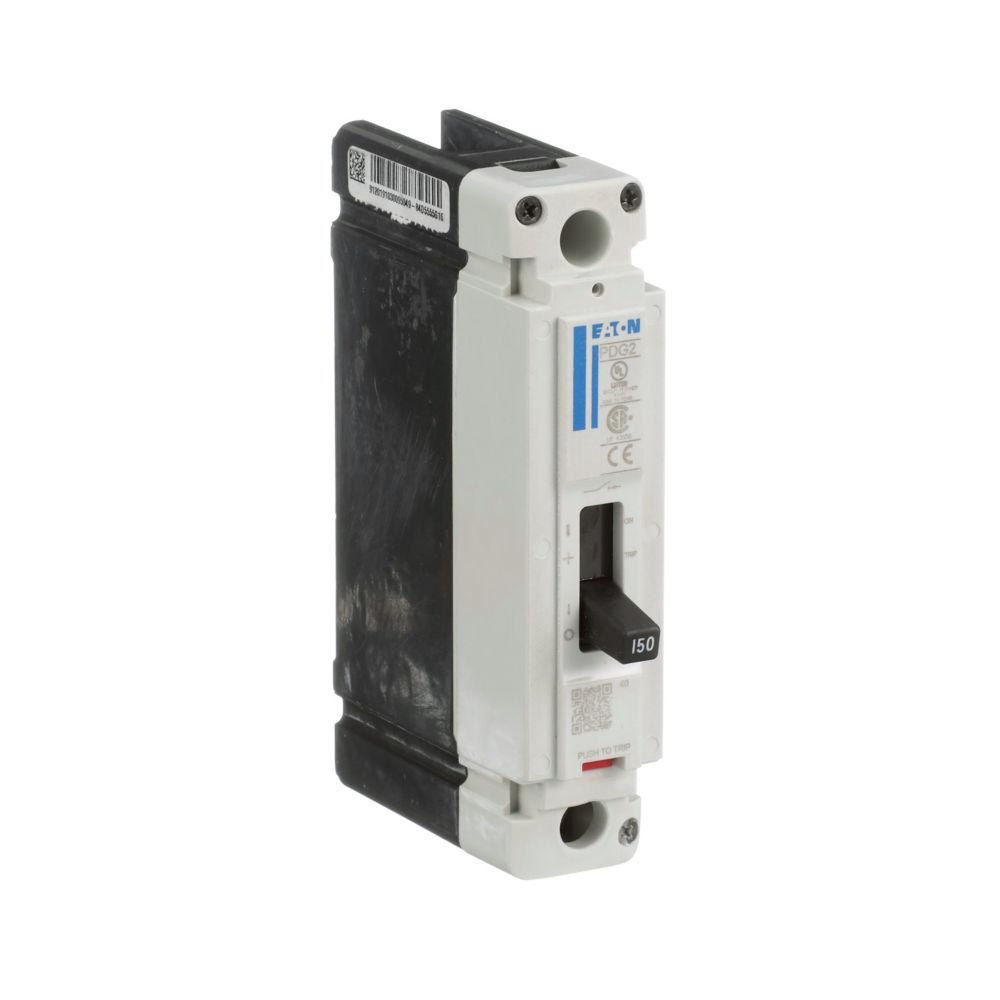

Name: PDG21G0030TFFJ - Eaton - Molded Case Circuit Breaker
Brand: Eaton Cutler-Hammer
SKU: PDG21G0030TFFJ_recon
Price: 459.99 CAD
Availability: OutOfStock

PDG21G0030TFFJ - Eaton - Molded Case Circuit Breaker

Images are for reference only

Low stock
Inventory on the way

Condition

New

Reconditioned (pre-owned with warranty)

Quantity

Earn 301 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":45031913259117,"title":"New","option1":"New","option2":null,"option3":null,"sku":"PDG21G0030TFFJ","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"PDG21G0030TFFJ - Eaton - Molded Case Circuit Breaker - New","public_title":"New","options":["New"],"price":45999,"weight":2268,"compare_at_price":25548,"inventory_management":"shopify","barcode":"786679210055","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":45032825782381,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"PDG21G0030TFFJ_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PDG21G0030TFFJ - Eaton - Molded Case Circuit Breaker - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":30099,"weight":2268,"compare_at_price":null,"inventory_management":"shopify","barcode":"786679210055","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - PDG21G0030TFFJ - Eaton - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - PDG21G0030TFFJ - Eaton Molded Case Circuit Breaker

Part Number:

PDG21G0030TFFJ
Manufacturer:

Eaton Cutler-Hammer
Family:

Power Defense
Pole:

1
Amp

30
Volt:

600
Phase:

1

Category:

Molded Case / 1-Pole
Connection:

Feed-Thru
Type:

PDG
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

35kA@480V
Frame Type:

Frame 2

Dimensions

Dimensions (HxWxD):

5.75" x 4.12" x 3.5"

Weight:

4 lbs

Standards

Product Description - PDG21G0030TFFJ - Eaton Molded Case Circuit Breaker

Eaton Power Defense Molded Case Circuit Breaker, Globally Rated, Frame 2, Single Pole, 30A, 35Ka/480V, T-M (Fxd-Fxd) Tu, Standard Line And Load (Pdg2X1T100)

Frame Size 2 covers a range of 15 A through 225 A with a complete offering of trip units, including PXR electronic trip units and fixed-fixed thermalmagnetic trip units.

Frame Size 2 can be used to meet a wide range of circuit protection and power distribution needs, including ground fault protection and current limiting options. PXR trip units in PD-2 provide all levels of protection, including energy metering with multiple communication schemes, breaker health indication, and zone selective interlocking with visual indication.

Frame Size 2 breakers are available in multiple ratings from 15 A through 225 A. They are configured with a trip unit from the factory. Accessories are modular in design to allow for field installation or factory configuration. PXR trip units are available with advanced features to provide customers unparalleled situational awareness of their electrical system.

Documentation

Catalogue

Installation Instructions

Ã‚Â

PDG21G0030TFFJ - Eaton - Molded Case Circuit Breaker

Feed Thru - 30 Amp - 1 Pole - 600 Volt

PDG21G0030TFFJ - Eaton - Molded Case Circuit Breaker
