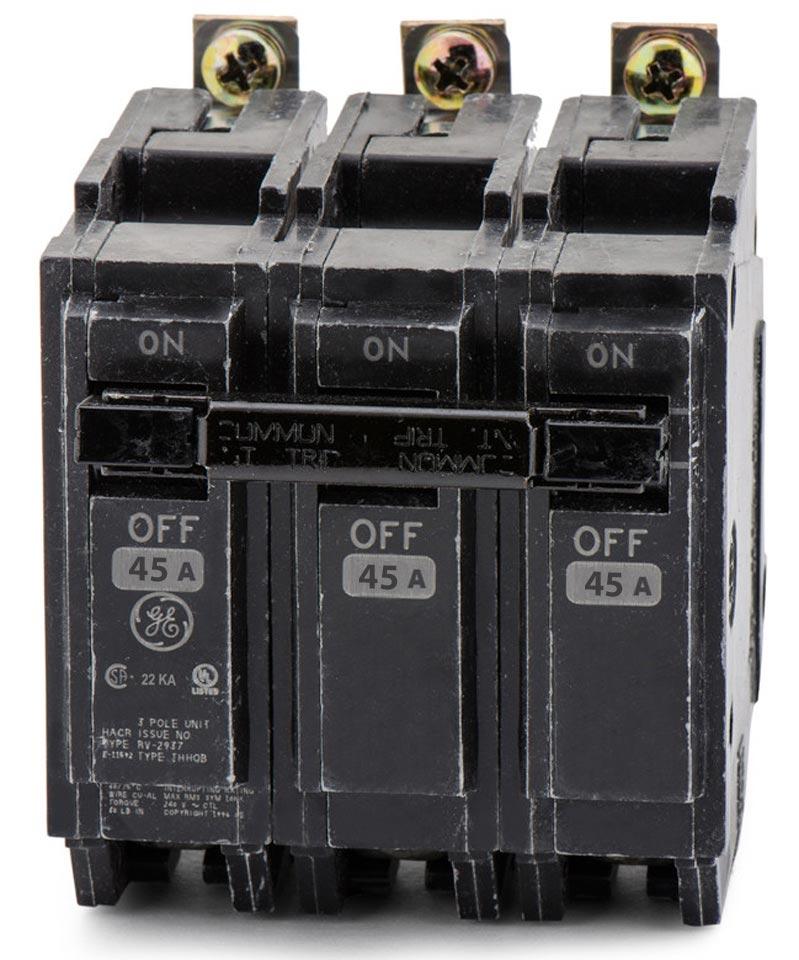

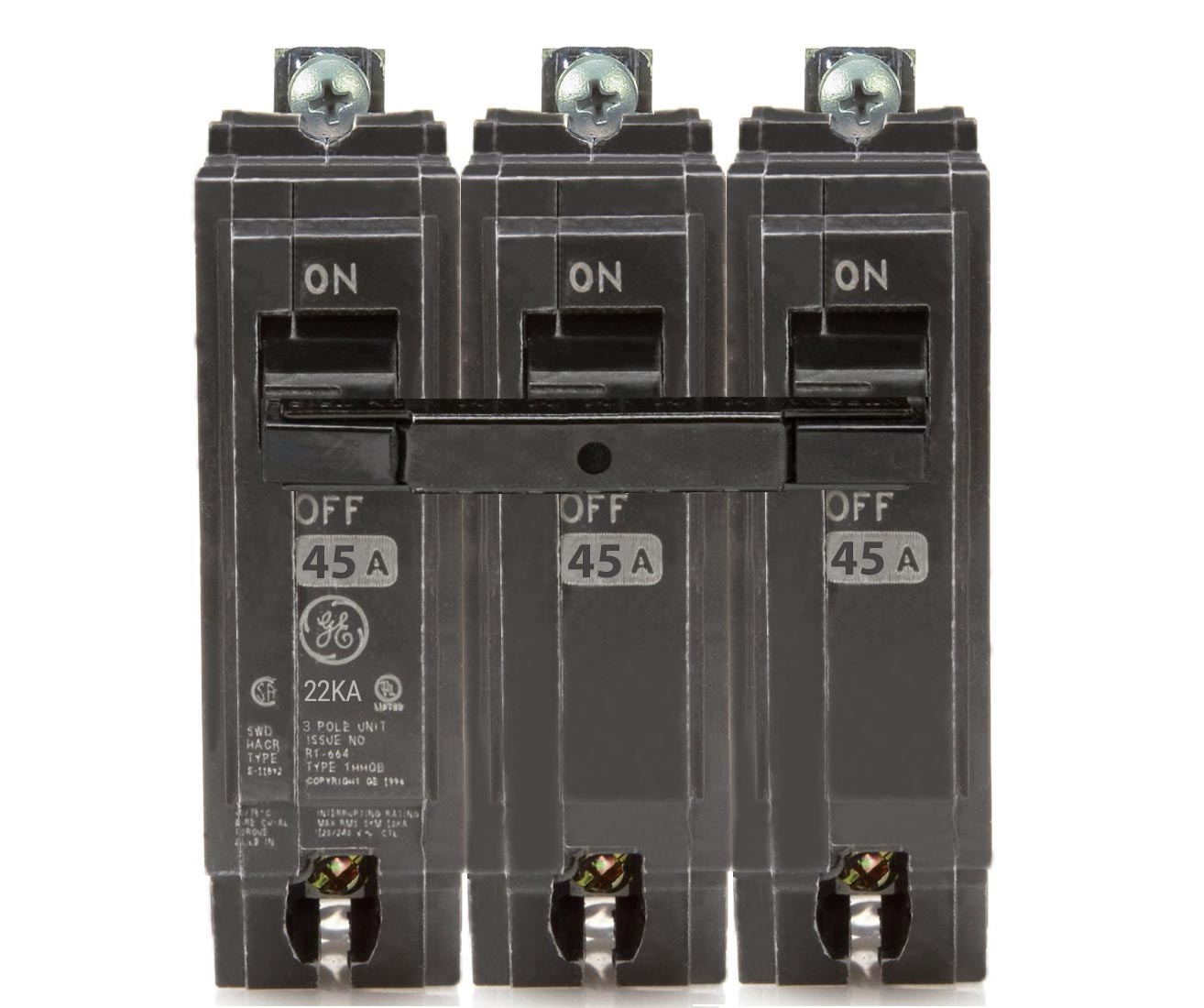

THHQB32045 - GE - 22kA Circuit Breaker

Bolt-On - 45 Amp - 3 Pole - 240 Volt

GE SKU: THHQB32045
THHQB32045 - GE 45 Amp 3 Pole 240 Volt Bolt-On Molded Case Circuit Breaker
THHQB32045 - GE - 22kA Circuit Breaker

Images are for reference only

THHQB32045 - GE - 22kA Circuit Breaker

Bolt-On - 45 Amp - 3 Pole - 240 Volt

GE SKU: THHQB32045
Regular price $299.99 CAD
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - THHQB32045 - GE - 22kA Circuit Breaker

All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

THHQB32045 - GE Bolt-On Molded Case Circuit Breaker

Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q Line used for bolting to the bus connections of load centers and lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2, and 3 pole versions, can be ordered with auxiliary contact and shunt trip accessories, and can be ordered for use in HID applications.

Specifications:

  • Trip Style: Non-Interchangeable
  • Frame Type: Q-Line
  • Amperage: 45 A
  • System Voltage: 120 Vac, 120/240 Vac, 240 Vac
  • Poles: 3
  • Trip Function: LI
  • Continuous Current Rated: Standard
  • 120 Vac Interrupting Rating: 22 KAIC
  • 120/240 Vac Interrupting Rating: 22 KAIC
  • 240 Vac Interrupting Rating: 22 KAIC
  • Suitable for Reverse Feed: Yes
  • Long Time: Fixed
  • Instantaneous: Fixed
  • Protective Relays: No
  • Current Metering: No
  • Special Markings: HACR
  • GSA Compliance: No
  • Authentic General Electric Product
  • 3 phase
