Name: TED134100 - GE - Molded Case Circuit Breaker
Brand: GE
SKU: TED134100
Price: 999.99 CAD
Availability: InStock

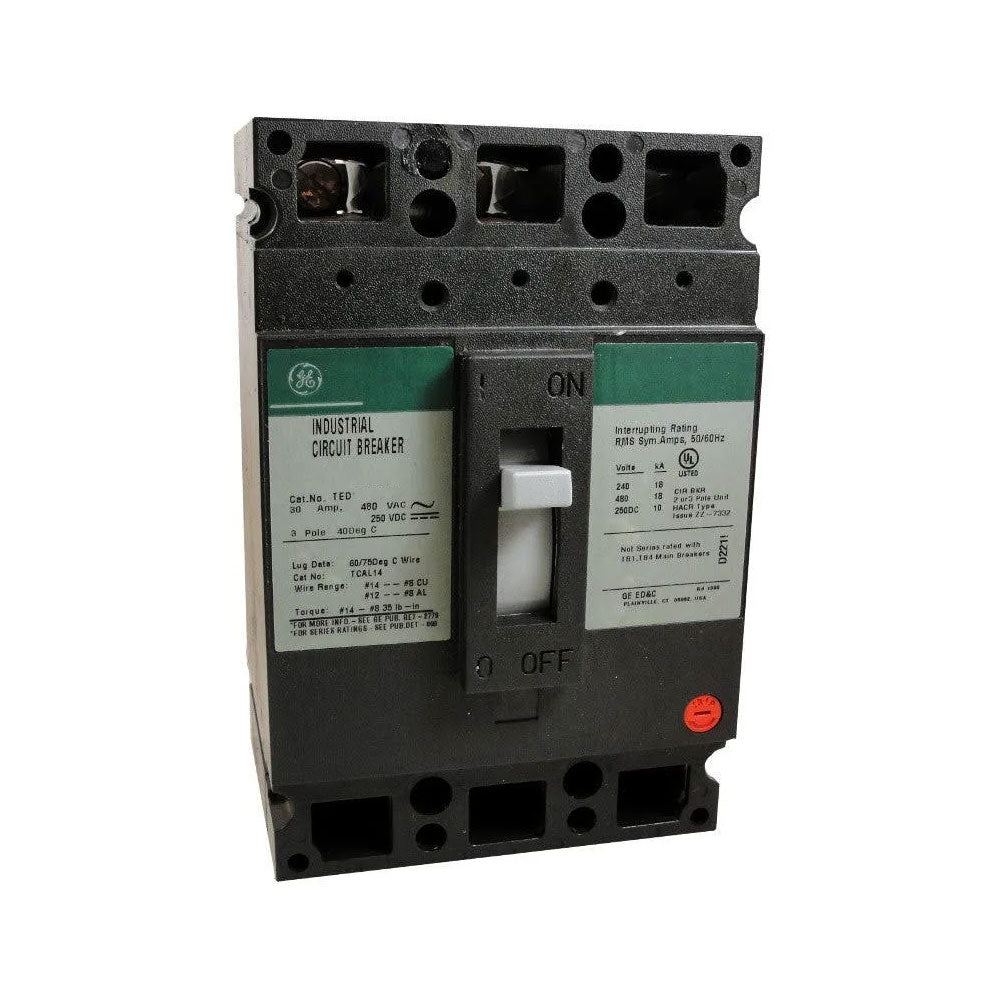

TED134100 - GE 100 Amp 3 Pole 480 Volt Molded Case Thermal Magnetic Circuit Breaker

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Earn 700 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40705235877997,"title":"New","option1":"New","option2":null,"option3":null,"sku":"TED134100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"TED134100 - GE - Molded Case Circuit Breaker - New","public_title":"New","options":["New"],"price":99999,"weight":2268,"compare_at_price":null,"inventory_management":"shopify","barcode":"783164063134","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42456016912493,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"TED134100_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"TED134100 - GE - Molded Case Circuit Breaker - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":69999,"weight":2268,"compare_at_price":null,"inventory_management":"shopify","barcode":"783164063134","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - TED134100 - GE - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - TED134100WL - GE Molded Case Circuit Breaker

Part Number:

TED134100WL
Manufacturer:

General Electric
Family:

E150 Line
Pole:

3
Amp

100
Volt:

480
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Feed-Thru
Type:

TED
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

18kA@480V

Dimensions

Dimensions (HxWxD):

6.31" x 4.13" x 4.09"

Weight:

32.9 lbs

Standards

Product Description - TED134100WL - GE Molded Case Circuit Breaker

General Electric, E150 Line, type TED, 3P, 3PH, 100A, 480V, 18kA@480V, complete with line & load side lug terminals, standard interrupting capacity, 40 degree C, feed-thru, thermal magnetic, molded case circuit breakers.

Documentation

Catalogue

Technical Specifications

Data Sheet

TED134100 - GE - Molded Case Circuit Breaker

Feed-Thru - 100 Amp - 3 Pole - 480 Volt

TED134100 - GE - Molded Case Circuit Breaker
