Product Warranty - TH3363R - General Electrics - Disconnect
All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.
Overview
Product Specifications - TH3363R - General Electrics Disconnect
-
Part Number:
TH3363R -
Manufacturer:
-
Family:
Spec-Setter -
Pole:
3 -
Amp
100 -
Volt:
600 -
Phase:
3
-
Category:
-
Type:
TH -
AIC Ratings:
200kA@600V
Dimensions
-
Dimensions (HxWxD):
4.9 x 9.3 x 22.1 -
Weight:
19 lb
Standards
Product Description - TH3363R - General Electrics Disconnect

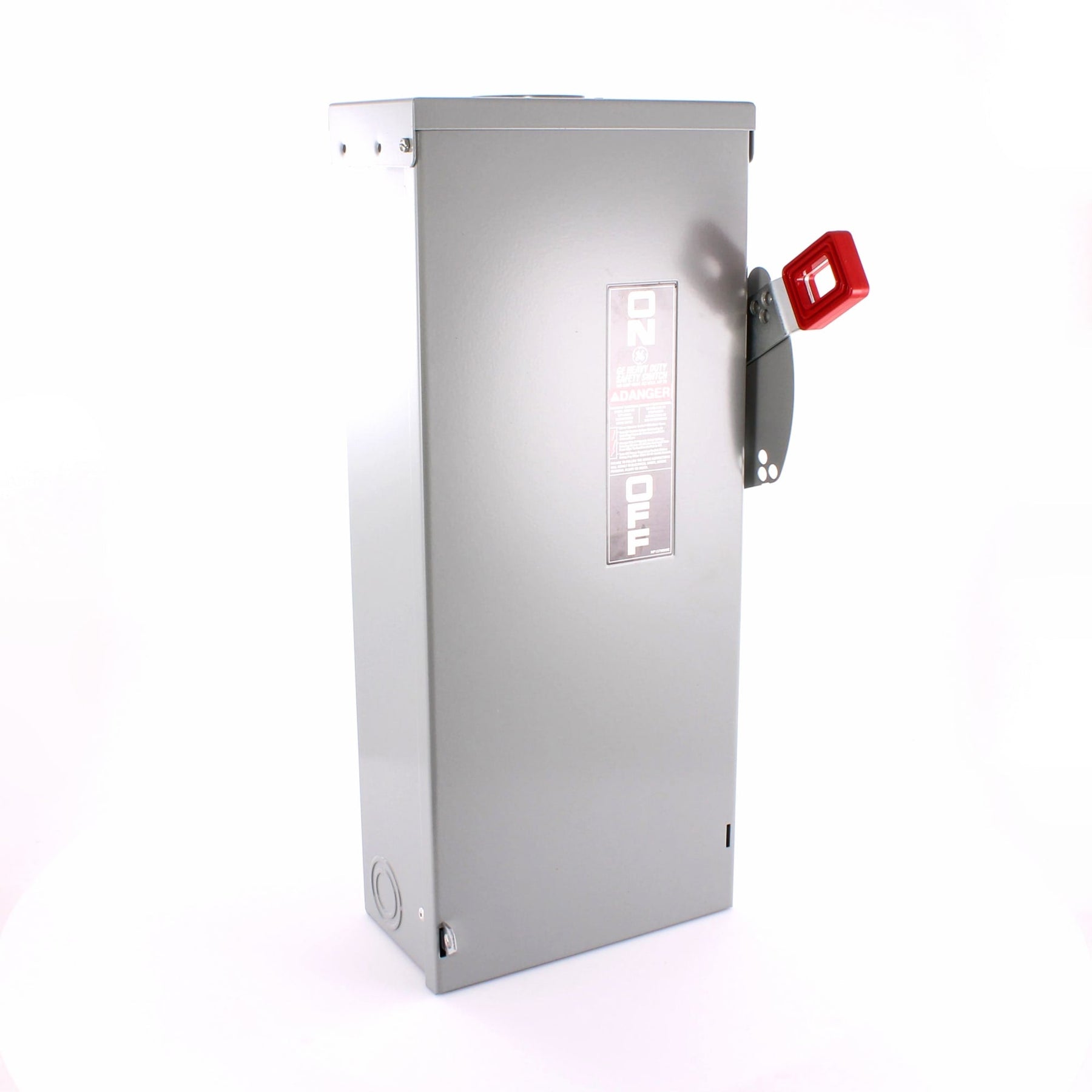

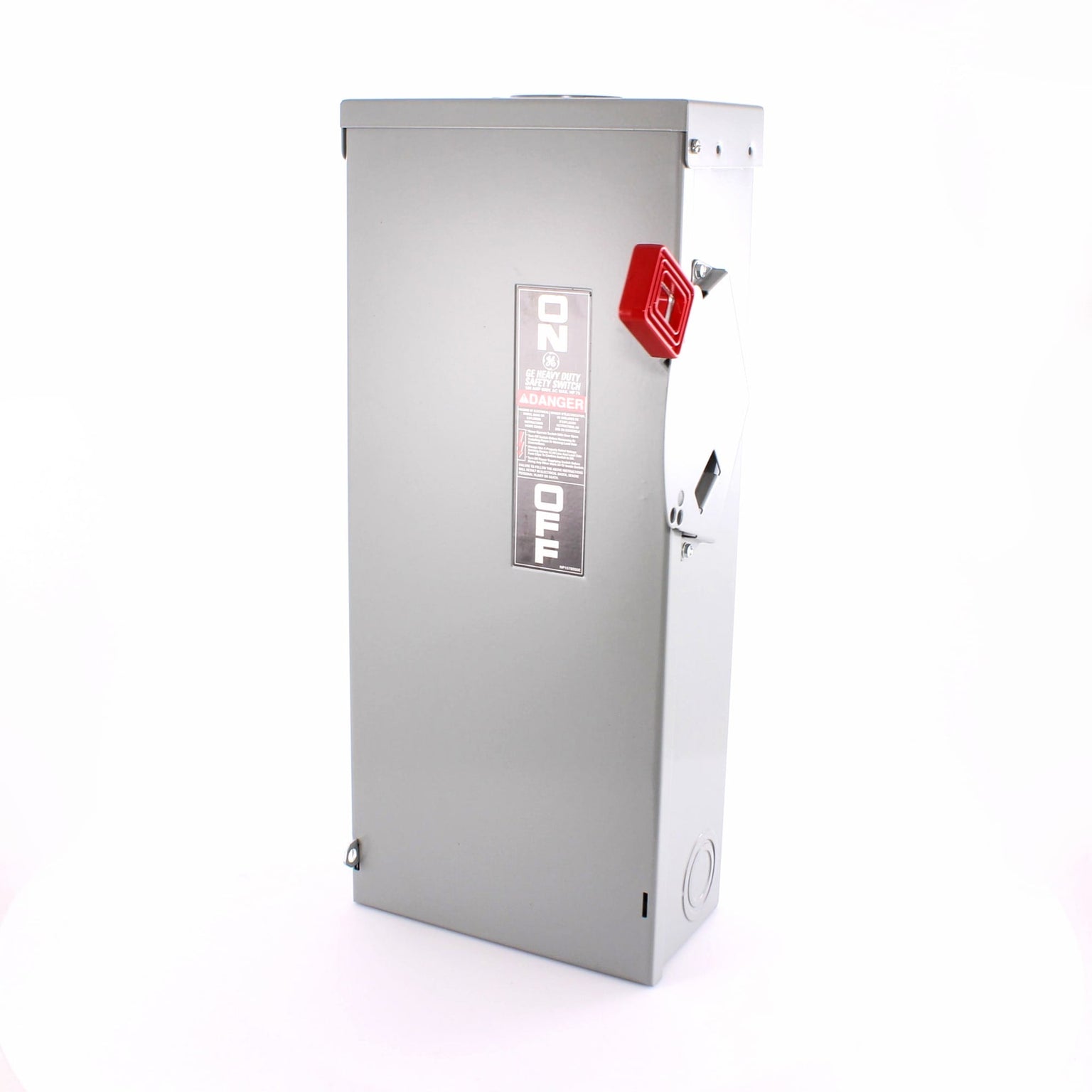

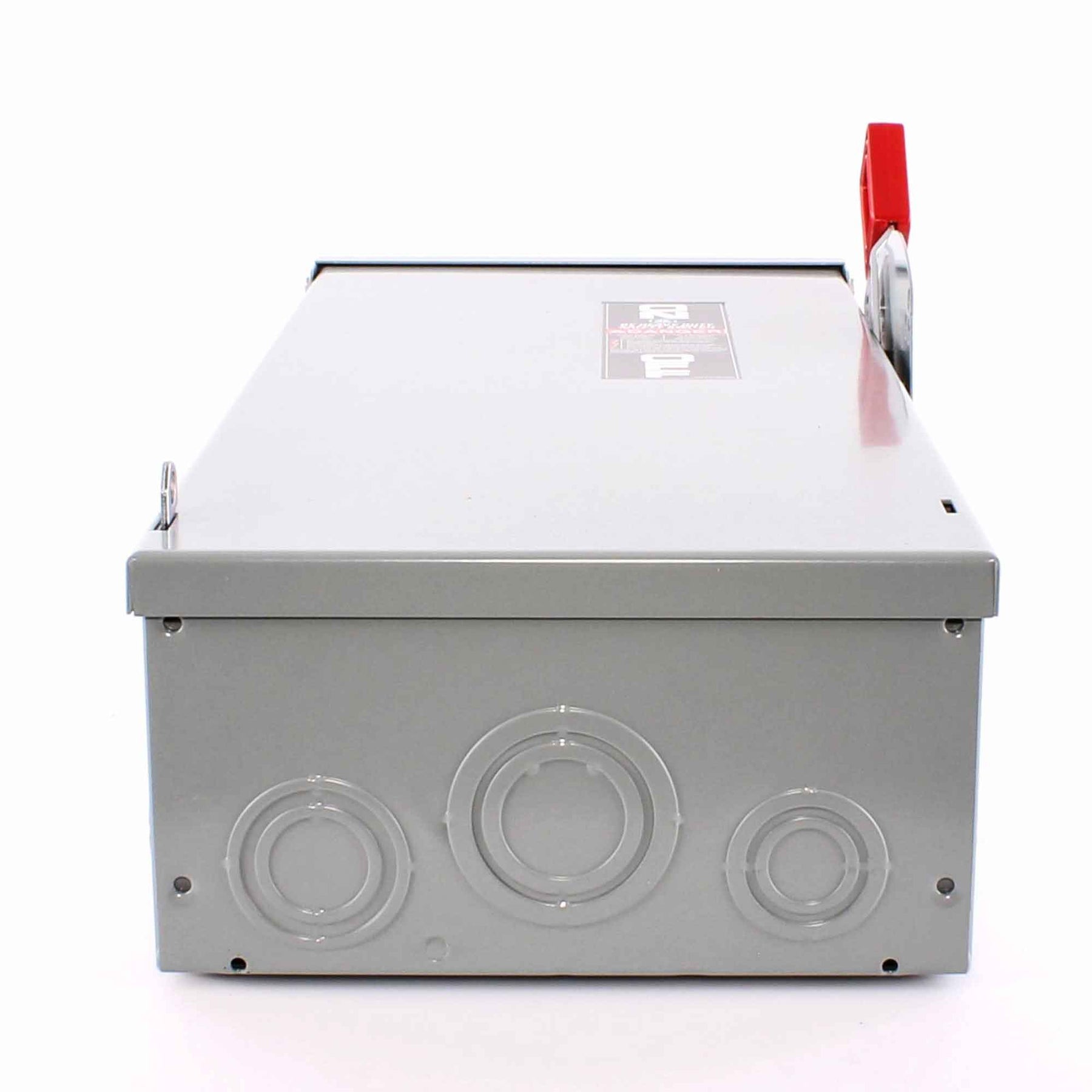

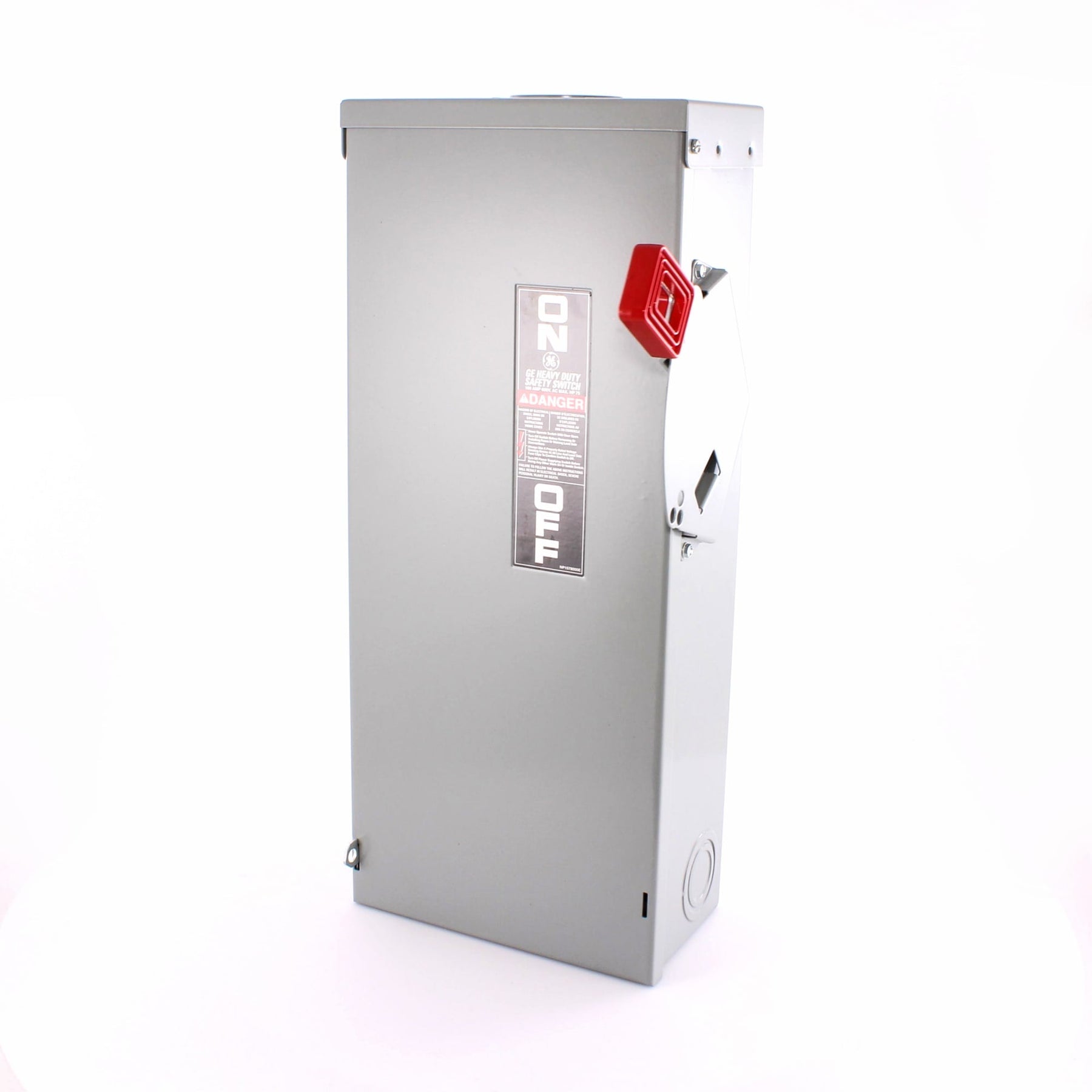

TH3363R by General Electric is a Spec-Setter Type TH disconnect safety switch suitable for outdoor use. This 3PH, 3P, 4-wire switch is UL listed, designed for 600V systems, and has a 100A rating. With a 200kA@600V short-circuit current rating and NEMA 3R classification, it ensures reliable outdoor performance. The fusible type switch accepts class R fuses and features a single style.
