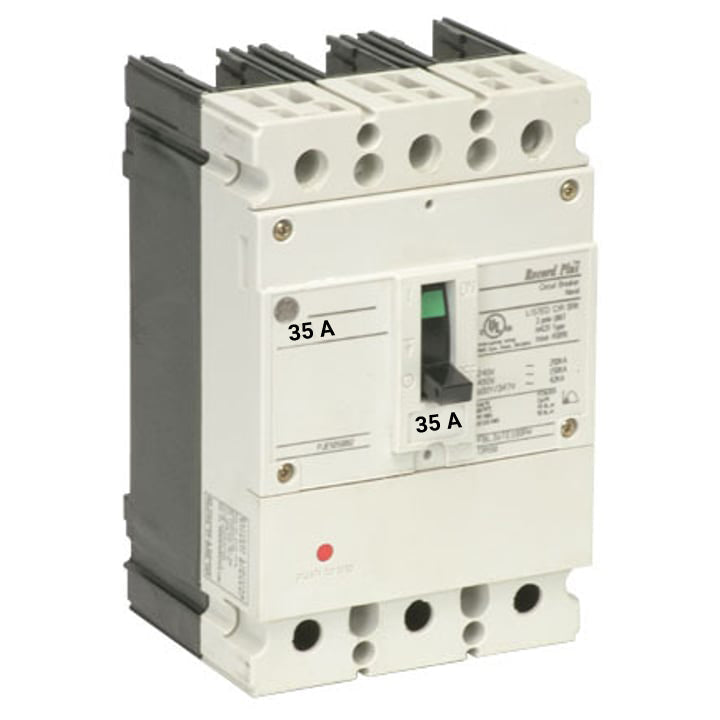

Name: FBV36TE035RV - General Electrics - Molded Case Circuit Breakers
Brand: GE
SKU: FBV36TE035RV
Price: 1494.99 CAD
Availability: InStock

FBV36TE035RV - General Electrics - Molded Case Circuit Breakers

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Earn 1047 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40963431006317,"title":"New","option1":"New","option2":null,"option3":null,"sku":"FBV36TE035RV","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"FBV36TE035RV - General Electrics - Molded Case Circuit Breakers - New","public_title":"New","options":["New"],"price":149499,"weight":1814,"compare_at_price":null,"inventory_management":"shopify","barcode":"783164395037","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42575254716525,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"FBV36TE035RV_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"FBV36TE035RV - General Electrics - Molded Case Circuit Breakers - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":104699,"weight":1814,"compare_at_price":null,"inventory_management":"shopify","barcode":"783164395037","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - FBV36TE035RV - General Electrics - Molded Case Circuit Breakers

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - FBV36TE035RV - General Electrics Molded Case Circuit Breakers

Part Number:

FBV36TE035RV
Manufacturer:

General Electric
Family:

Record Plus
Pole:

3
Amp

35
Volt:

600
Phase:

3

Category:

Molded Case Circuit Breakers / 3-Pole
Connection:

Bolt-On
Type:

FBV
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

150kA@480V

Dimensions

Dimensions (HxWxD):

8.75 x 4.5 x 5
Weight:

7 lb

Standards

Product Description - FBV36TE035RV - General Electrics Molded Case Circuit Breakers

For FBV36TE035RV, a molded case circuit breaker from General Electric's Record Plus series, this product features the FBV type and FB100 frame specifications. Designed for three-phase (3PH) applications, it offers a 35A current capacity and a standard interrupting capacity of 150kA@480V. The Bolt-On installation, combined with Long-Time (LI) and Instantaneous trip functions, load side lug terminals, panel connections, and fixed Thermal Magnetic features, ensures optimal performance in your electrical setup.

FBV36TE035RV - General Electrics - Molded Case Circuit Breakers

Bolt-On - 35 Amp - 3 Pole - 600 V
