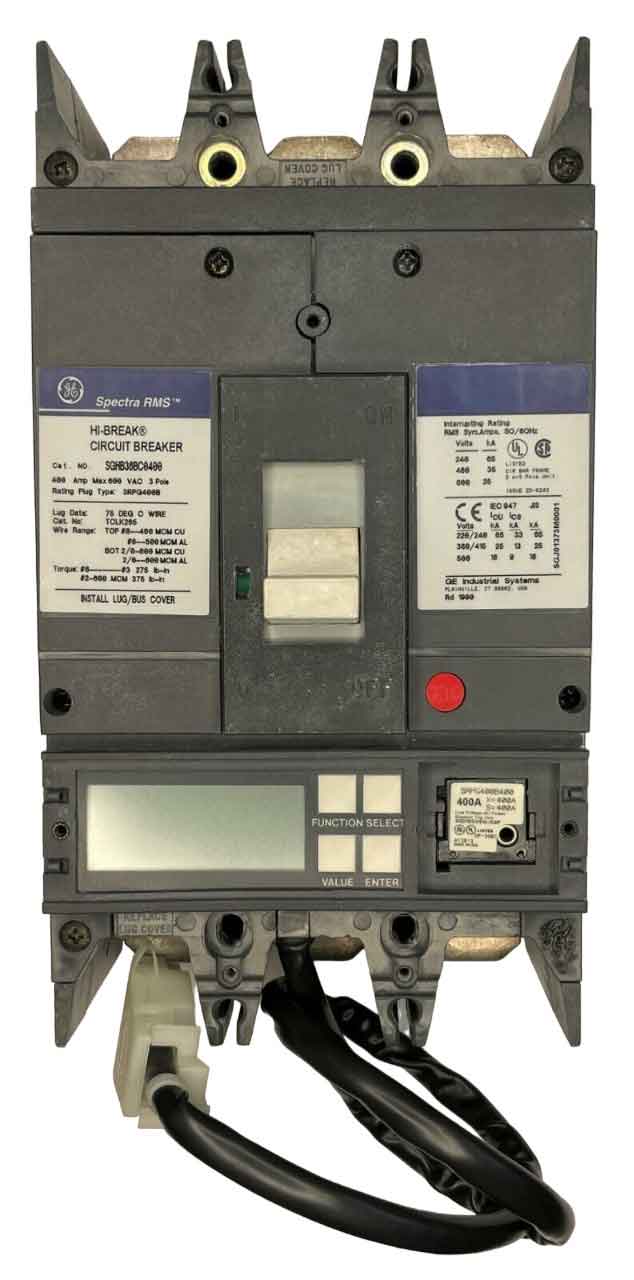

Name: SGHB36BC0400 - General Electrics - Molded Case Circuit Breakers
Brand: GE
SKU: SGHB36BC0400
Price: 6710.99 CAD
Availability: InStock

SGHB36BC0400 - General Electrics - Molded Case Circuit Breakers

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Earn 4698 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40963432054893,"title":"New","option1":"New","option2":null,"option3":null,"sku":"SGHB36BC0400","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SGHB36BC0400 - General Electrics - Molded Case Circuit Breakers - New","public_title":"New","options":["New"],"price":671099,"weight":3629,"compare_at_price":null,"inventory_management":"shopify","barcode":"78316421542","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42575254356077,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"SGHB36BC0400_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SGHB36BC0400 - General Electrics - Molded Case Circuit Breakers - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":469799,"weight":3629,"compare_at_price":null,"inventory_management":"shopify","barcode":"78316421542","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - SGHB36BC0400 - General Electrics - Molded Case Circuit Breakers

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - SGHB36BC0400 - General Electrics Molded Case Circuit Breakers

Part Number:

SGHB36BC0400
Manufacturer:

General Electric
Family:

Spectra Series
Pole:

3
Amp

400
Volt:

600
Phase:

3

Category:

Molded Case Circuit Breakers / 3-Pole
Connection:

Bolt-On
Type:

SGHB
Functions:

LIGT - Long-Time, Instantaneous, Ground Fault and Targets
Protection:

Solid State
AIC Ratings:

35kA@480V

Dimensions

Dimensions (HxWxD):

3.81 x 5.5 x 10.09
Weight:

8 lb

Standards

Product Description - SGHB36BC0400 - General Electrics Molded Case Circuit Breakers

SGHB36BC0400 is another Spectra Series molded case circuit breaker by General Electric. It is part of the type SGHB category, designed for three-phase (3P) applications. With a current rating of 400A and a voltage rating of 600V, this Bolt-On breaker has a standard interrupting capacity of 35kA@480V. It is suitable for reverse fed applications, UL listed, and comes complete with an interchangeable MVT, MicroVersaTrip, Plus trip unit with Long-Time, Instantaneous, Ground Fault, and Targets trip functions. Lugs are not included.

SGHB36BC0400 - General Electrics - Molded Case Circuit Breakers

Bolt-On - 400 Amp - 3 Pole - 600 V
