Name: TECL36007 - General Electrics - Molded Case Circuit Breakers
Brand: GE
SKU: TECL36007
Price: 1531.99 CAD
Availability: InStock

TECL36007 - General Electrics - Molded Case Circuit Breakers

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Earn 1073 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40963434348653,"title":"New","option1":"New","option2":null,"option3":null,"sku":"TECL36007","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"TECL36007 - General Electrics - Molded Case Circuit Breakers - New","public_title":"New","options":["New"],"price":153199,"weight":1814,"compare_at_price":null,"inventory_management":"shopify","barcode":"783164077438","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42575253209197,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"TECL36007_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"TECL36007 - General Electrics - Molded Case Circuit Breakers - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":107299,"weight":1814,"compare_at_price":null,"inventory_management":"shopify","barcode":"783164077438","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - TECL36007 - General Electrics - Molded Case Circuit Breakers

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - TECL36007 - General Electrics Molded Case Circuit Breakers

Part Number:

TECL36007
Manufacturer:

General Electric
Family:

TECL Series
Pole:

3
Amp

7
Volt:

600
Phase:

3

Category:

Molded Case Circuit Breakers / 3-Pole
Connection:

Feed-Thru
Type:

TECL
Functions:

I - Instantaneous
Protection:

Magnetic Only
AIC Ratings:

100kA@480V

Dimensions

Dimensions (HxWxD):

3.37 x 3.9 x 8.18
Weight:

4 lb

Standards

Product Description - TECL36007 - General Electrics Molded Case Circuit Breakers

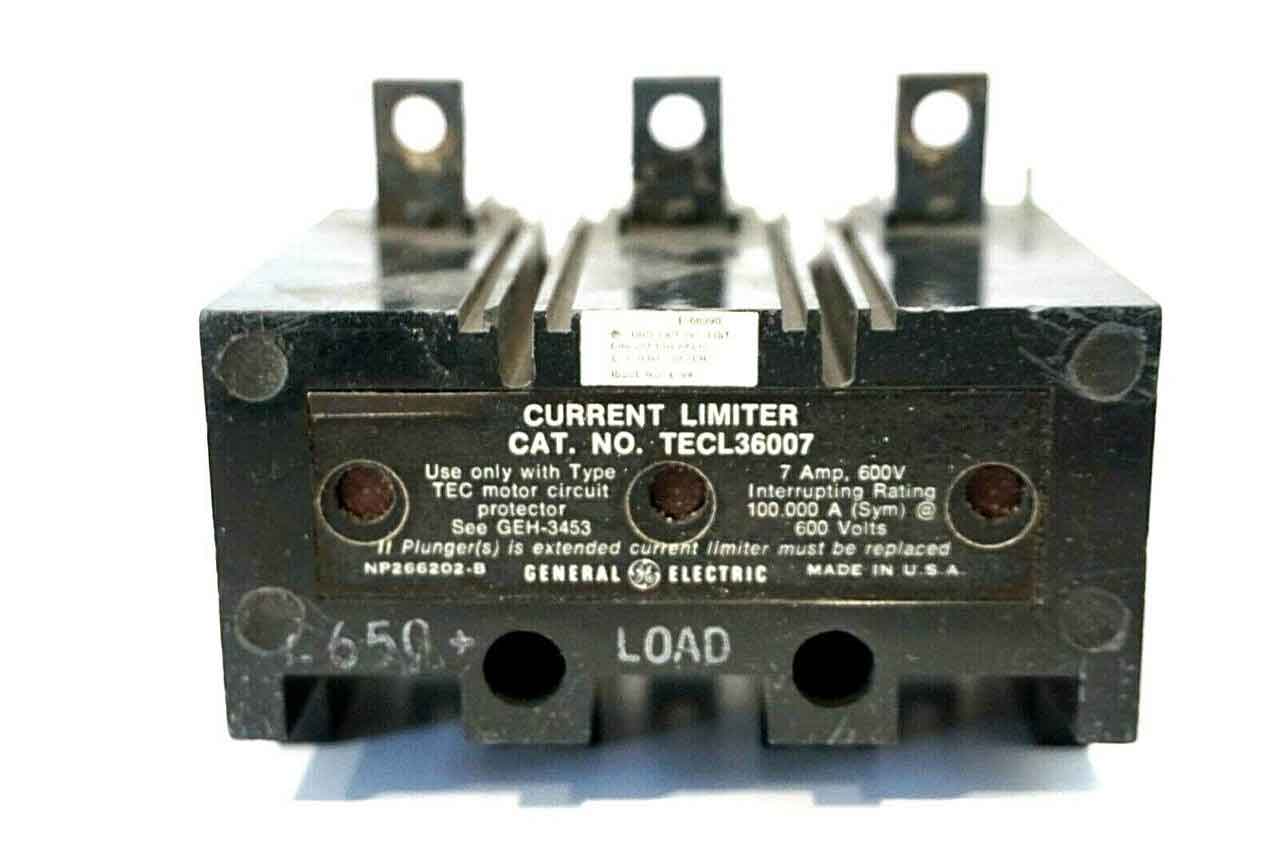

TECL36007 is a TECL Series molded case circuit breaker from General Electric. It belongs to the TECL type, designed for three-phase (3P) applications with a current rating of 7A and a voltage rating of 600V. With an interrupting capacity of 100kA@480V, it is Feed-Thru and UL listed, suitable for reverse fed applications. This breaker comes complete with I - Instantaneous protection only and line and load side lug terminals. It is a current limiter for Mag-Break MCP (Motor Circuit Protector) with a magnetic range of 18-90A.

TECL36007 - General Electrics - Molded Case Circuit Breakers

Feed-Thru - 7 Amp - 3 Pole - 600 V
