Name: TED136YT100 - General Electrics - Molded Case Circuit Breakers
Brand: GE
SKU: TED136YT100
Price: 869.99 CAD
Availability: InStock

TED136YT100 - General Electrics - Molded Case Circuit Breakers

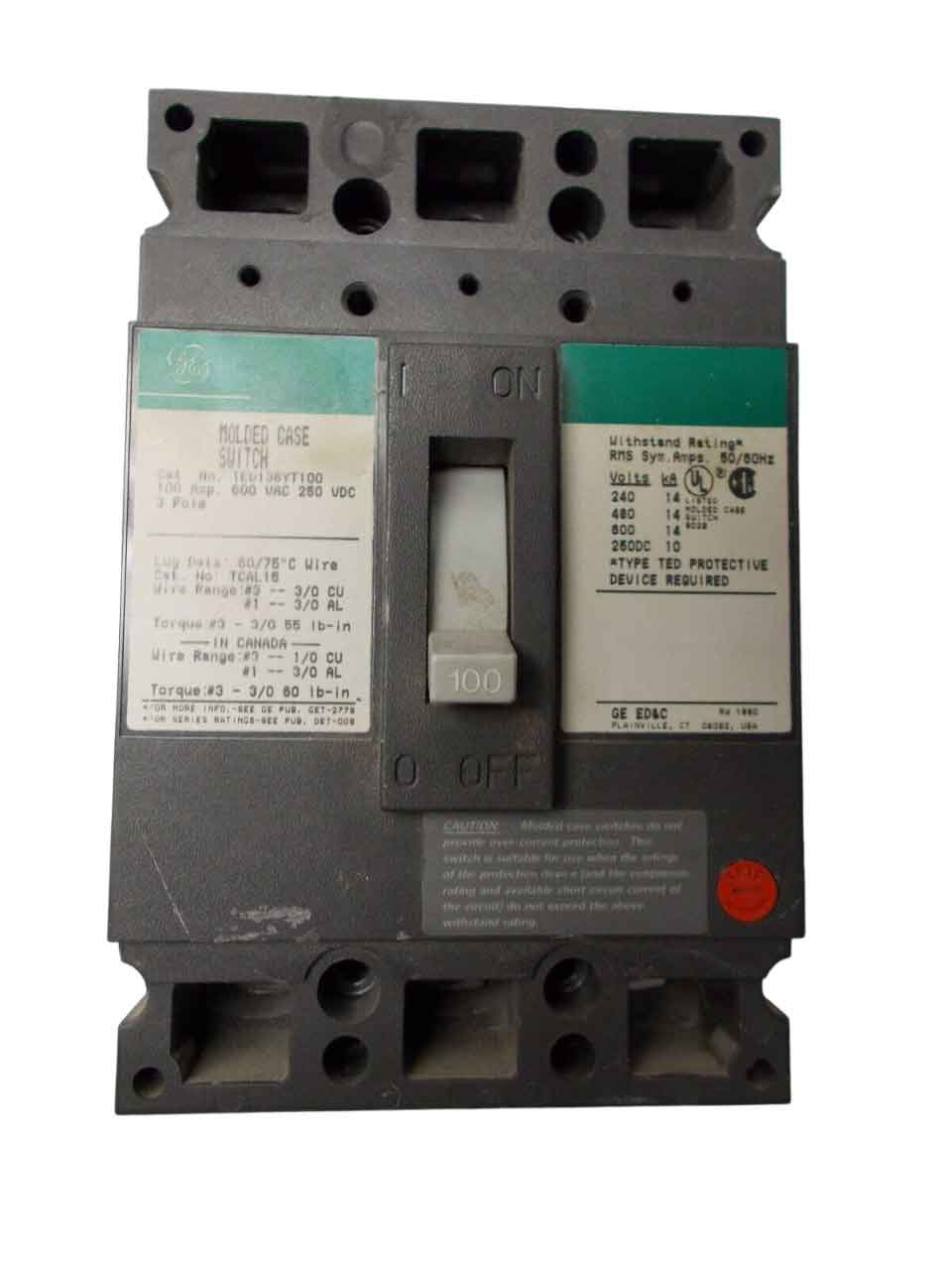

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Earn 609 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40963435495533,"title":"New","option1":"New","option2":null,"option3":null,"sku":"TED136YT100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"TED136YT100 - General Electrics - Molded Case Circuit Breakers - New","public_title":"New","options":["New"],"price":86999,"weight":2268,"compare_at_price":null,"inventory_management":"shopify","barcode":"783164203295","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42575252881517,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"TED136YT100_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"TED136YT100 - General Electrics - Molded Case Circuit Breakers - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":60899,"weight":2268,"compare_at_price":null,"inventory_management":"shopify","barcode":"783164203295","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - TED136YT100 - General Electrics - Molded Case Circuit Breakers

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - TED136YT100 - General Electrics Molded Case Circuit Breakers

Part Number:

TED136YT100
Manufacturer:

General Electric
Family:

E150 Line
Pole:

3
Amp

100
Volt:

600
Phase:

3

Category:

Molded Case Circuit Breakers / 3-Pole
Connection:

Feed-Thru
Type:

TED
Functions:

NA - No Overcurrent Protection
AIC Ratings:

18kA@480V

Dimensions

Dimensions (HxWxD):

6.75 x 4.25 x 4.75
Weight:

5 lb

Standards

Product Description - TED136YT100 - General Electrics Molded Case Circuit Breakers

TED136YT100 is another E150 Line molded case circuit breaker from General Electric. It belongs to the TED type, designed for three-phase (3P) applications with a current rating of 100A. It has a voltage rating of 600V for AC and 250VDC. With an interrupting capacity of 18kA@480V, it is Feed-Thru and includes a factory-installed dummy trip. This breaker is categorized as a Non-Automatic switch and does not have Overcurrent Protection (NA - No Overcurrent Protection).

TED136YT100 - General Electrics - Molded Case Circuit Breakers

Feed-Thru - 100 Amp - 3 Pole - 600 V
