Name: TFC36225A - General Electrics - Molded Case Circuit Breakers
Brand: GE
SKU: TFC36225A
Price: 6232.99 CAD
Availability: InStock

TFC36225A - General Electrics - Molded Case Circuit Breakers

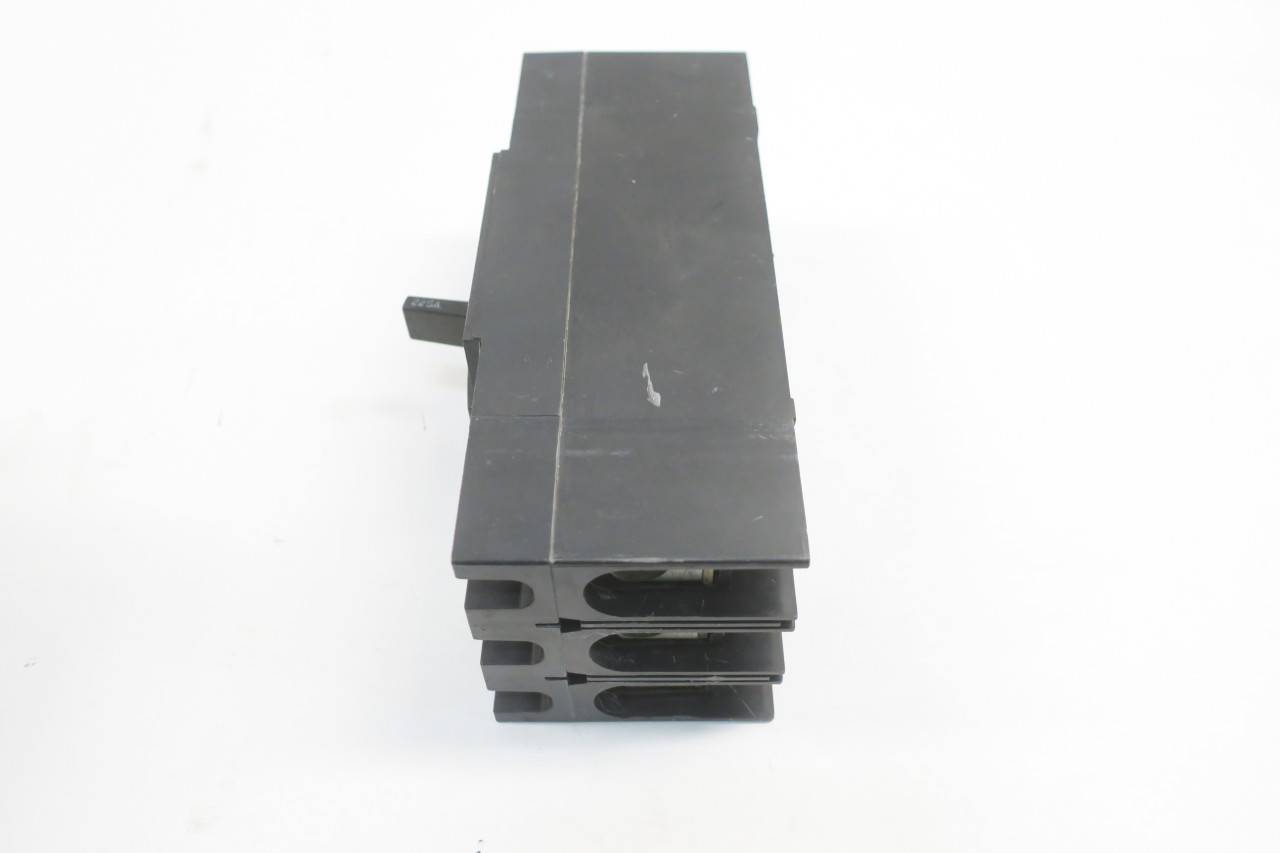

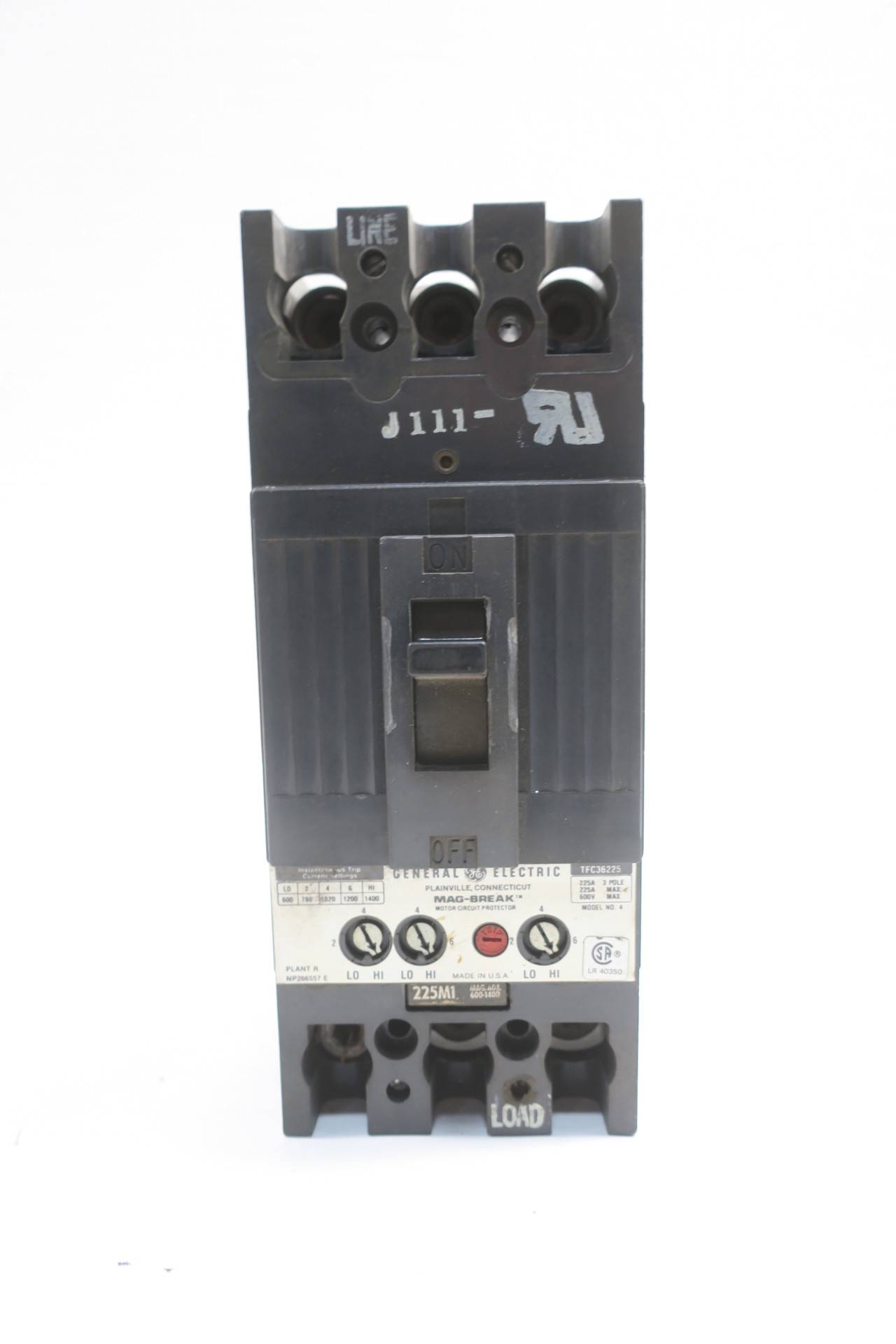

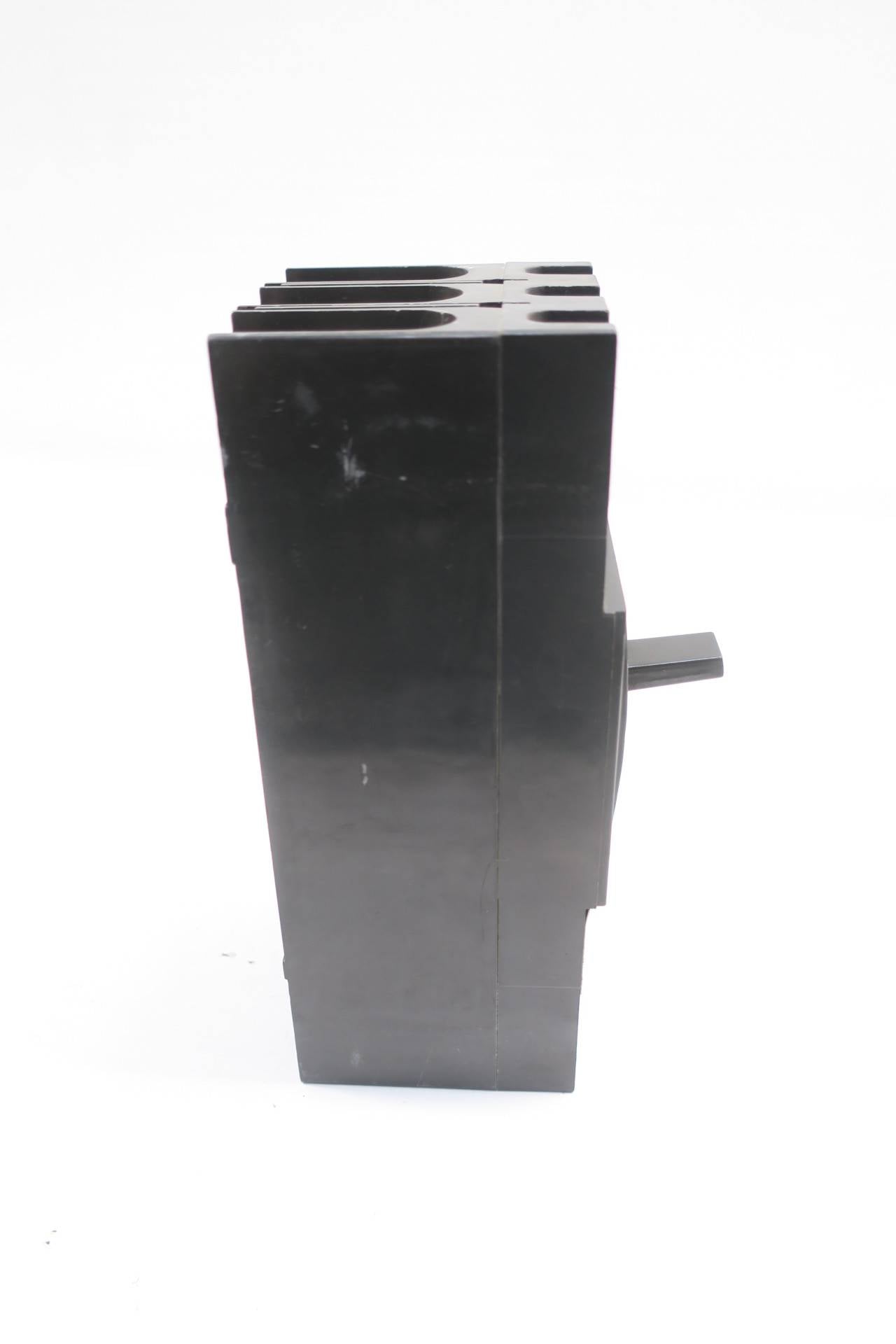

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Earn 4364 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40963437363309,"title":"New","option1":"New","option2":null,"option3":null,"sku":"TFC36225A","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"TFC36225A - General Electrics - Molded Case Circuit Breakers - New","public_title":"New","options":["New"],"price":623299,"weight":4990,"compare_at_price":null,"inventory_management":"shopify","barcode":"783164077926","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42575252029549,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"TFC36225A_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"TFC36225A - General Electrics - Molded Case Circuit Breakers - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":436399,"weight":4990,"compare_at_price":null,"inventory_management":"shopify","barcode":"783164077926","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - TFC36225A - General Electrics - Molded Case Circuit Breakers

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - TFC36225A - General Electrics Molded Case Circuit Breakers

Part Number:

TFC36225A
Manufacturer:

General Electric
Family:

Mag-Break
Pole:

3
Amp

225
Volt:

600
Phase:

3

Category:

Molded Case Circuit Breakers / 3-Pole
Connection:

Feed-Thru
Type:

TFC
Functions:

I - Instantaneous
Protection:

Magnetic Only
AIC Ratings:

22kA@480V

Dimensions

Weight:

11 lb

Standards

Product Description - TFC36225A - General Electrics Molded Case Circuit Breakers

Another variant in the Mag-Break series, the TFC36225A is a 3-pole, 225A molded case circuit breaker with a standard interrupting capacity of 22kA@480V. It features a Feed-Thru design and UL listing, complete with I - Instantaneous protection only and line & load side lug terminals. This Mag-Break MCP motor circuit protector operates in the magnetic range of 100-2250A.

TFC36225A - General Electrics - Molded Case Circuit Breakers

Feed-Thru - 225 Amp - 3 Pole - 600 V

TFC36225A - General Electrics - Molded Case Circuit Breakers
