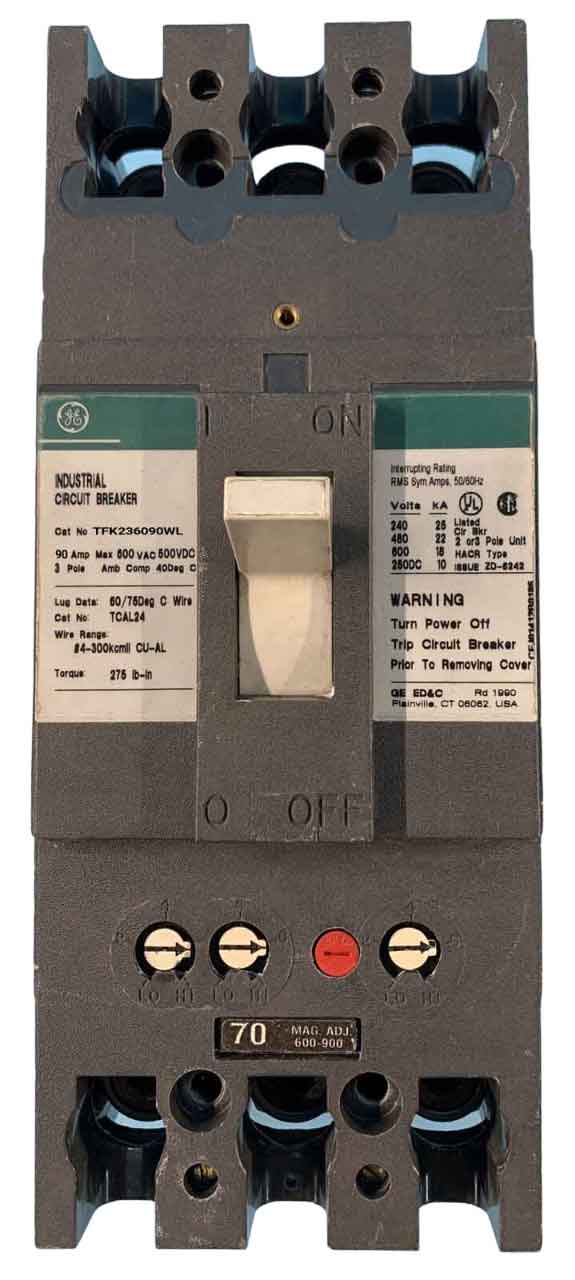

Name: TFK236090WL - General Electrics - Molded Case Circuit Breakers
Brand: GE
SKU: TFK236090WL
Price: 4595.99 CAD
Availability: InStock

TFK236090WL - General Electrics - Molded Case Circuit Breakers

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Earn 3218 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40963438182509,"title":"New","option1":"New","option2":null,"option3":null,"sku":"TFK236090WL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"TFK236090WL - General Electrics - Molded Case Circuit Breakers - New","public_title":"New","options":["New"],"price":459599,"weight":6804,"compare_at_price":null,"inventory_management":"shopify","barcode":"783164237023","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42575251636333,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"TFK236090WL_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"TFK236090WL - General Electrics - Molded Case Circuit Breakers - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":321799,"weight":6804,"compare_at_price":null,"inventory_management":"shopify","barcode":"783164237023","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - TFK236090WL - General Electrics - Molded Case Circuit Breakers

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - TFK236090WL - General Electrics Molded Case Circuit Breakers

Part Number:

TFK236090WL
Manufacturer:

General Electric
Family:

F225 Line
Pole:

3
Amp

90
Volt:

600
Phase:

3

Category:

Molded Case Circuit Breakers / 3-Pole
Connection:

Feed-Thru
Type:

TFK
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

22kA@480V

Dimensions

Weight:

15 lb

Standards

Product Description - TFK236090WL - General Electrics Molded Case Circuit Breakers

The TFK236090WL is part of General Electric's F225 Line, offering a 3P, 90A molded case circuit breaker designed for 600V systems. With a standard interrupting capacity and operating at 40Ã‚ÂºC, this breaker ensures reliable circuit protection. It comes complete with both line and load side lug terminals, providing convenient and secure connections. The TFK236090WL features an interchangeable trip unit, allowing users to customize settings based on specific requirements. Its Feed-Thru design enhances adaptability for various configurations, making it a versatile choice for diverse applications.

TFK236090WL - General Electrics - Molded Case Circuit Breakers

Feed-Thru - 90 Amp - 3 Pole - 600 V

TFK236090WL - General Electrics - Molded Case Circuit Breakers
