Name: THJK636400 - General Electrics - Molded Case Circuit Breakers
Brand: GE
SKU: THJK636400
Price: 5774.99 CAD
Availability: InStock

THJK636400 - General Electrics - Molded Case Circuit Breakers

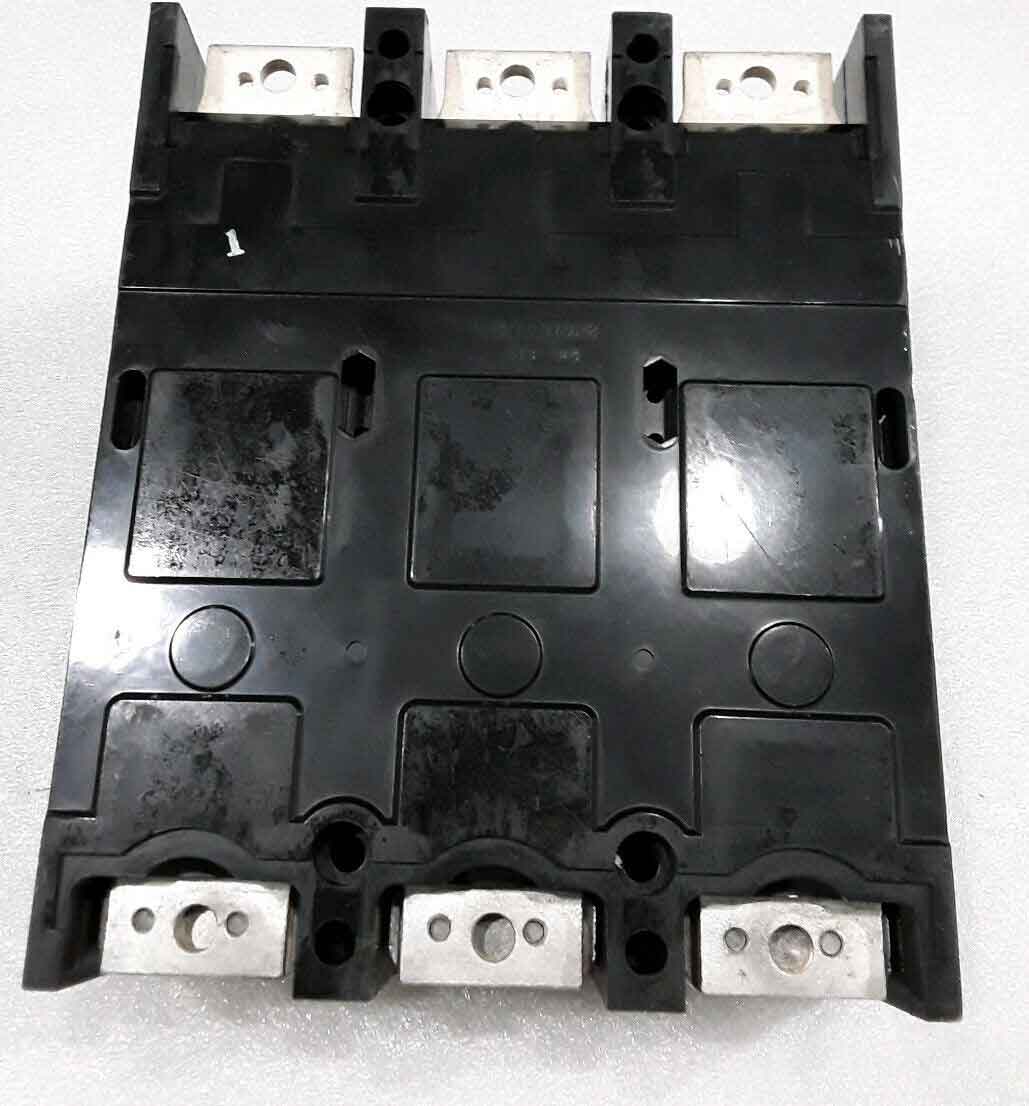

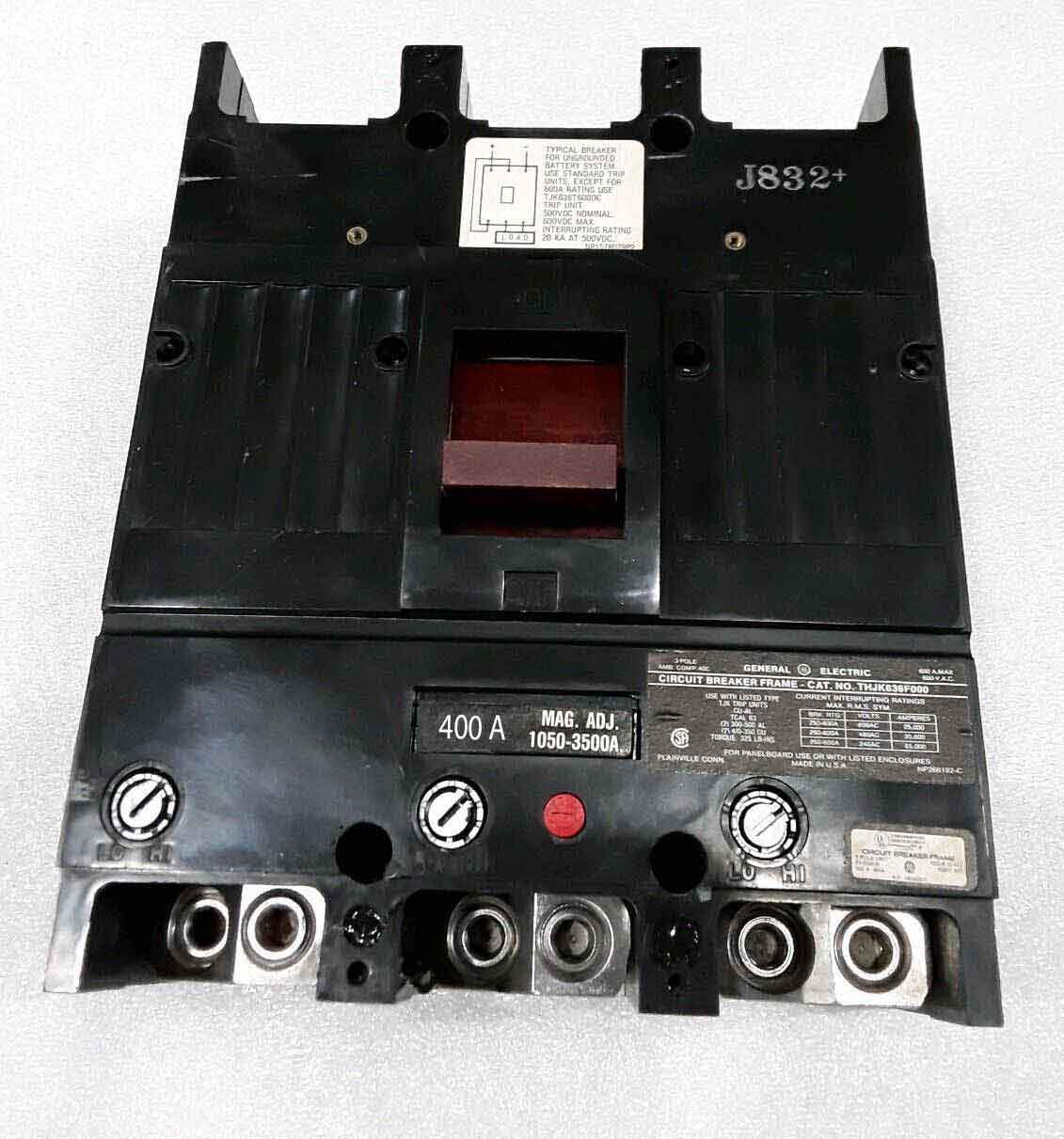

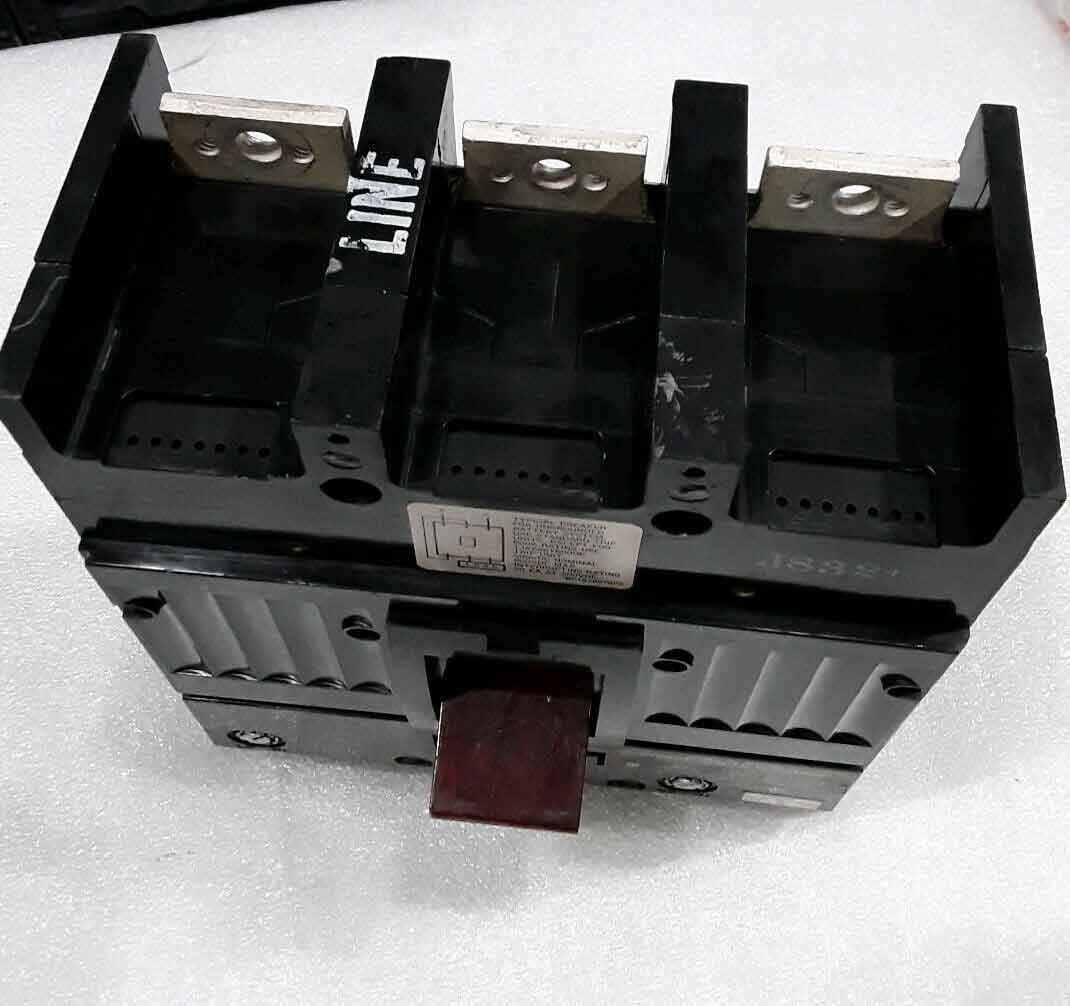

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Quantity

Earn 5775 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - THJK636400 - General Electrics - Molded Case Circuit Breakers

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - THJK636400 - General Electrics Molded Case Circuit Breakers

Part Number:

THJK636400
Manufacturer:

General Electric
Family:

J600 Line
Pole:

3
Amp

400
Volt:

600
Phase:

3

Category:

Molded Case Circuit Breakers / 3-Pole
Connection:

Bolt-On
Type:

THJK
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

35kA@480V

Dimensions

Dimensions (HxWxD):

3.81 x 8.25 x 10.12
Weight:

17.54 lb

Standards

Product Description - THJK636400 - General Electrics Molded Case Circuit Breakers

The THJK636400 is another member of General Electric's J600 Line, featuring a Bolt-On molded case circuit breaker with a Type THJK classification. This breaker is configured with 3 poles (3P), 3 phases (3PH), and offers a robust 400A current rating at 600V. With a high interrupting capacity of 35kA@480V, it is well-suited for demanding electrical systems. The inclusion of load side lug terminals and an interchangeable trip unit enhances its ease of installation and flexibility in circuit protection. Operating efficiently at 40ºC, its Bolt-On design and Thermal Magnetic technology contribute to its reliability in various applications.

THJK636400 - General Electrics - Molded Case Circuit Breakers

Bolt-On - 400 Amp - 3 Pole - 600 V
