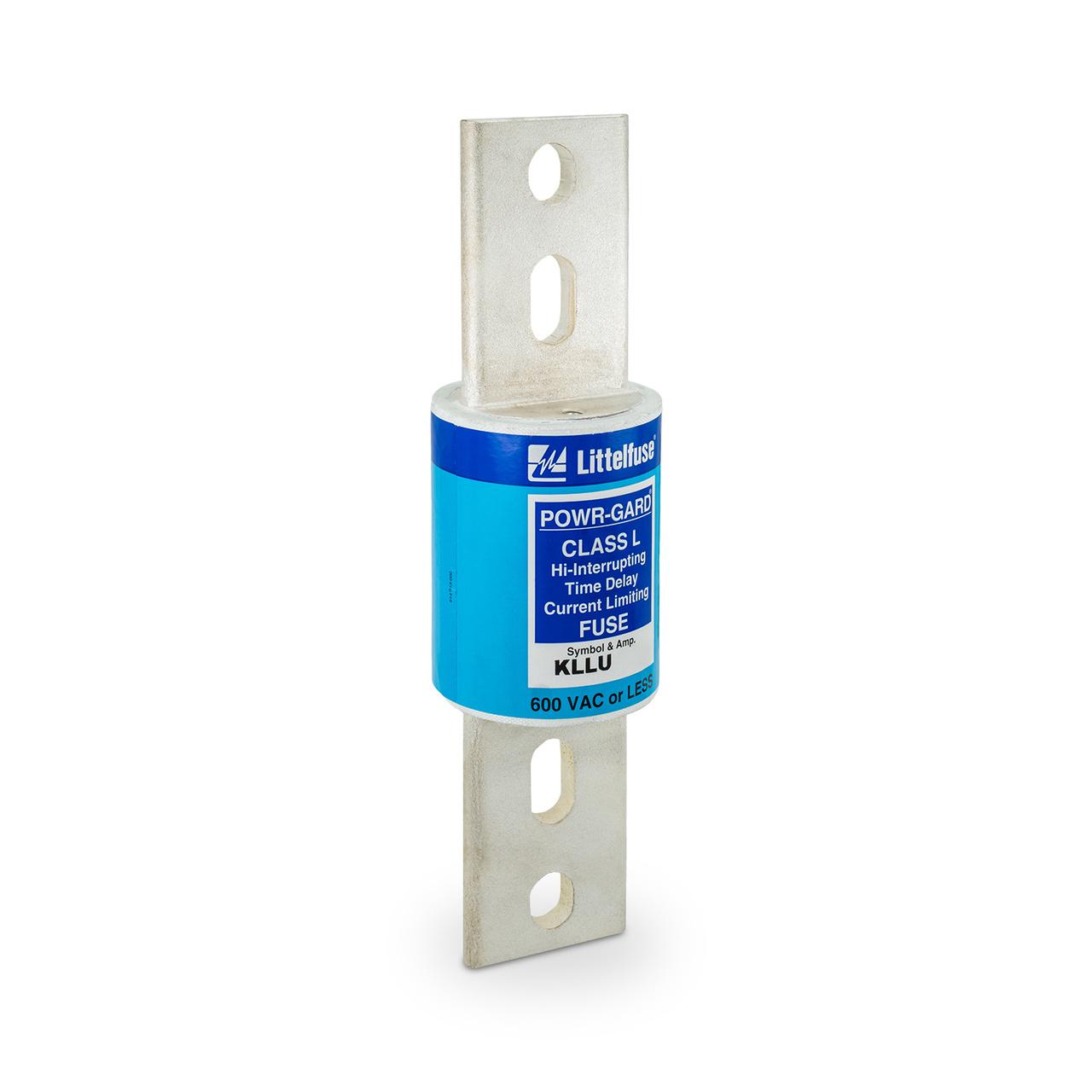

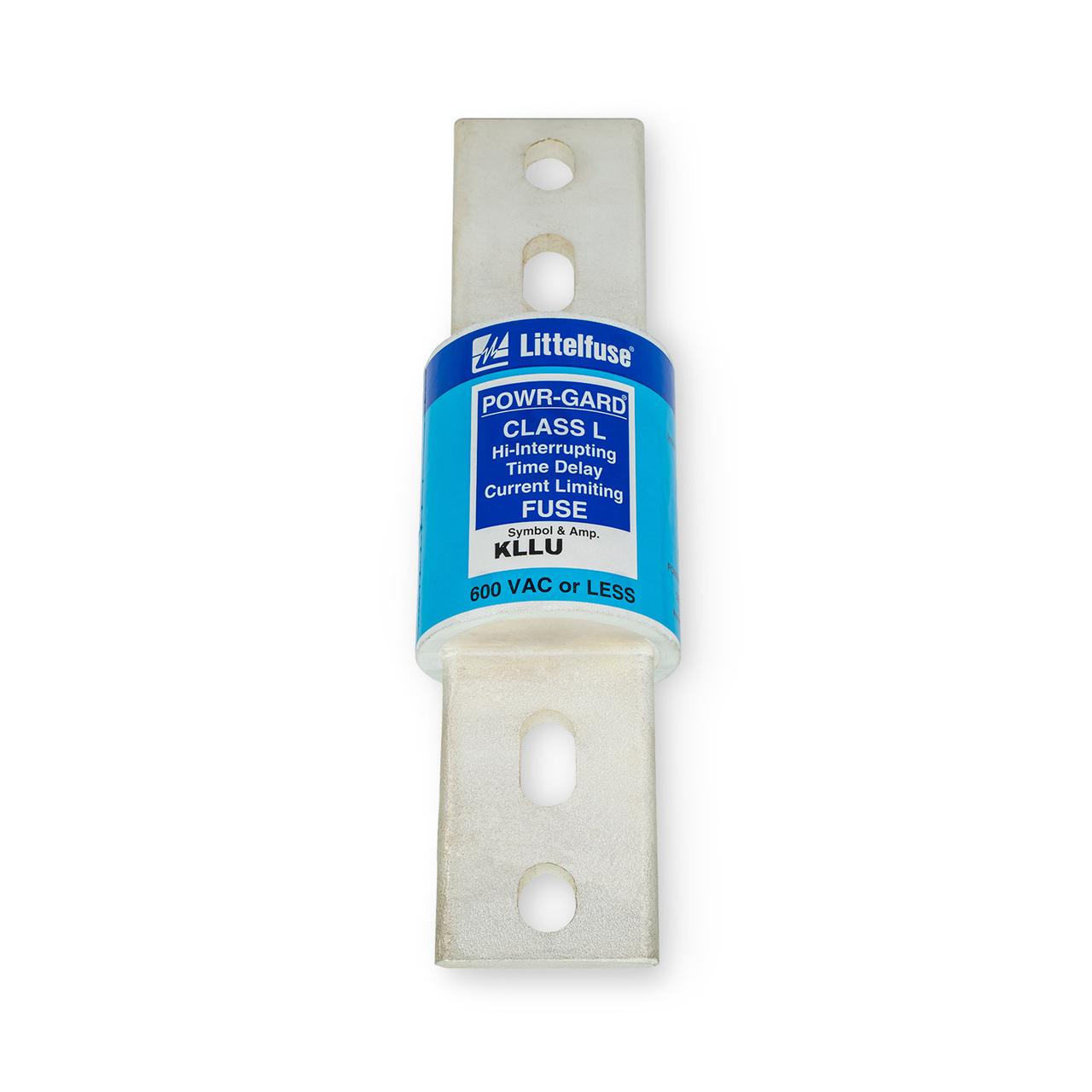

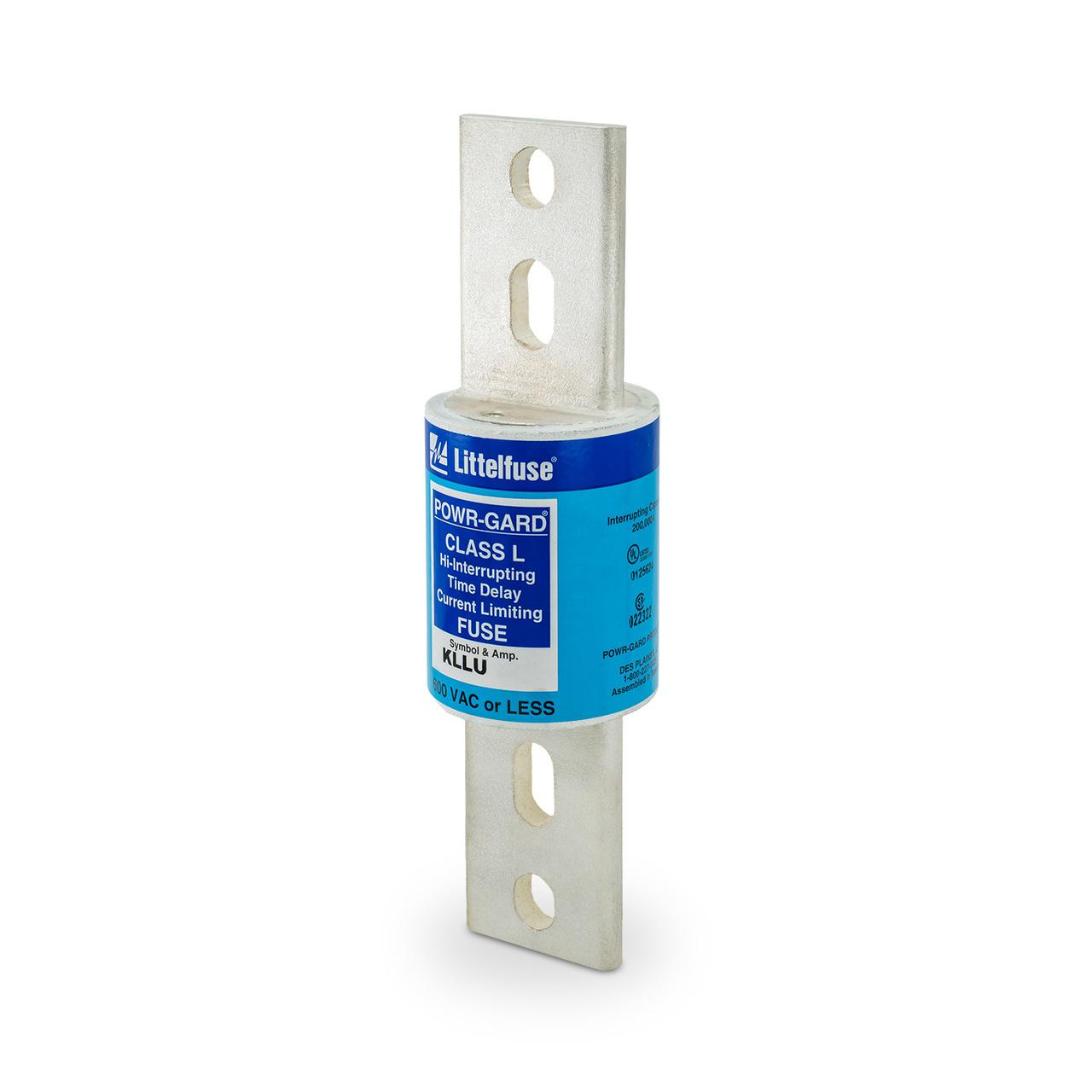

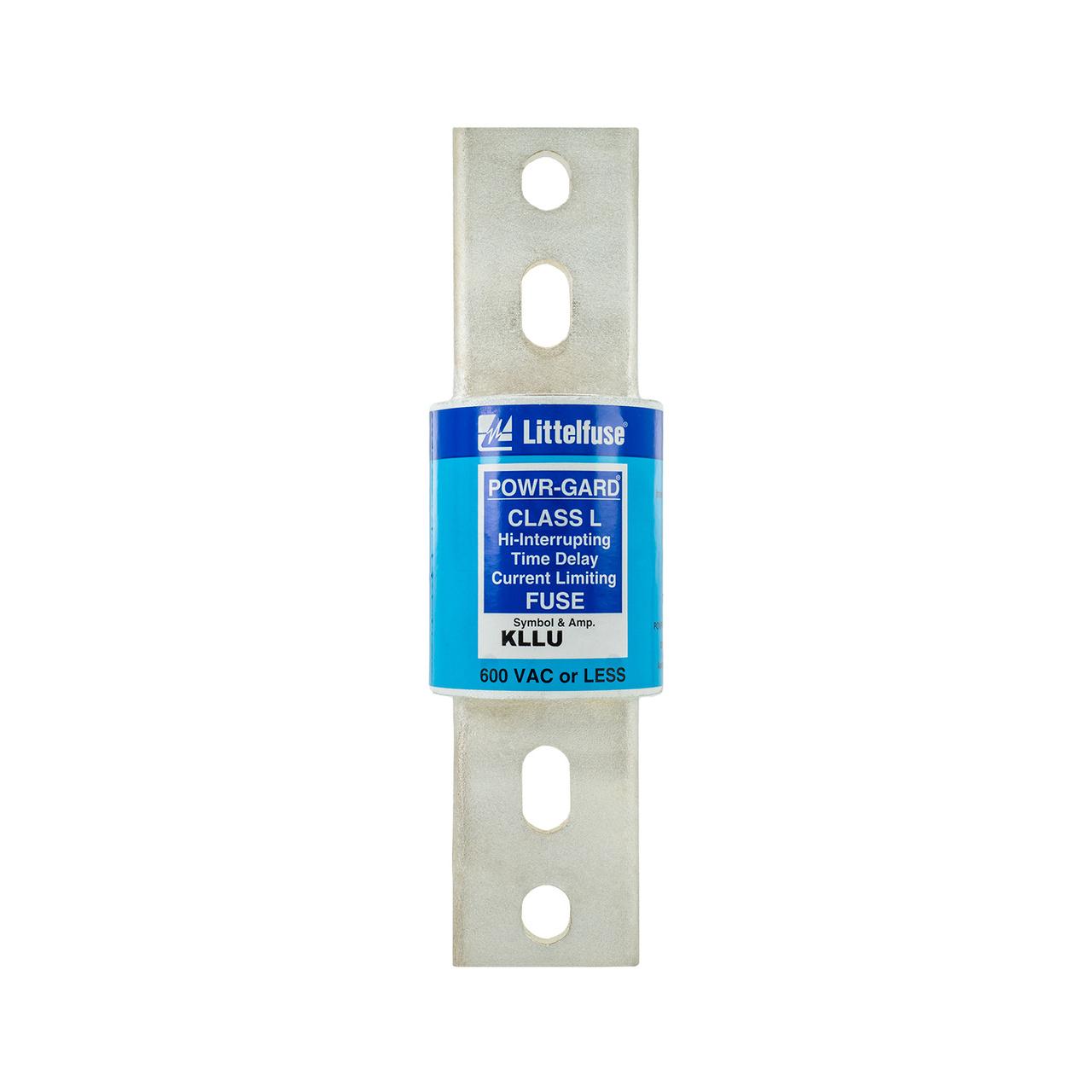

KLLU1200 - Littelfuse 1200 Amp Bolt-In Low Voltage Fuse

Bolt-On - - 600 Volt

Littelfuse SKU: KLLU1200
KLLU1200 - Littelfuse 1200 Amp Bolt-In Low Voltage Fuse
KLLU1200 - Littelfuse 1200 Amp Bolt-In Low Voltage Fuse
KLLU1200 - Littelfuse 1200 Amp Bolt-In Low Voltage Fuse
KLLU1200 - Littelfuse 1200 Amp Bolt-In Low Voltage Fuse

Images are for reference only

KLLU1200 - Littelfuse 1200 Amp Bolt-In Low Voltage Fuse

Bolt-On - - 600 Volt

Littelfuse SKU: KLLU1200
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.

Earn 966 reward points

  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - KLLU1200 - Littelfuse 1200 Amp Bolt-In Low Voltage Fuse

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - KLLU1200 - Littelfuse Low Voltage

  • Part Number:

    KLLU1200

  • Manufacturer:

    Littelfuse

  • Family:

    Powr-Gard

  • Amp:

    1200

  • Volt:

    600

  • Category:

    Fuses

  • Connection:

    Bolt-In

  • Type:

    KLLU

  • AIC Ratings:

    200kA@600V

Dimensions

  • Dimensions (HxWxD):

    2.25 x 3.75

  • Weight:

    2 lbs

Standards

CSA Approved logo

Product Description - KLLU1200 - Littelfuse Low Voltage

KLLU1200: Littelfuse Powr-Gard Class L fuse with time delay and current-limiting characteristics, rated for 1200A at 600Vac/300Vdc. It has a 200kA interrupting capacity at 600V and is 2" in diameter. UL and CSA certified, suitable for switchboard mains, motor control centers, and large motor branch circuits.
