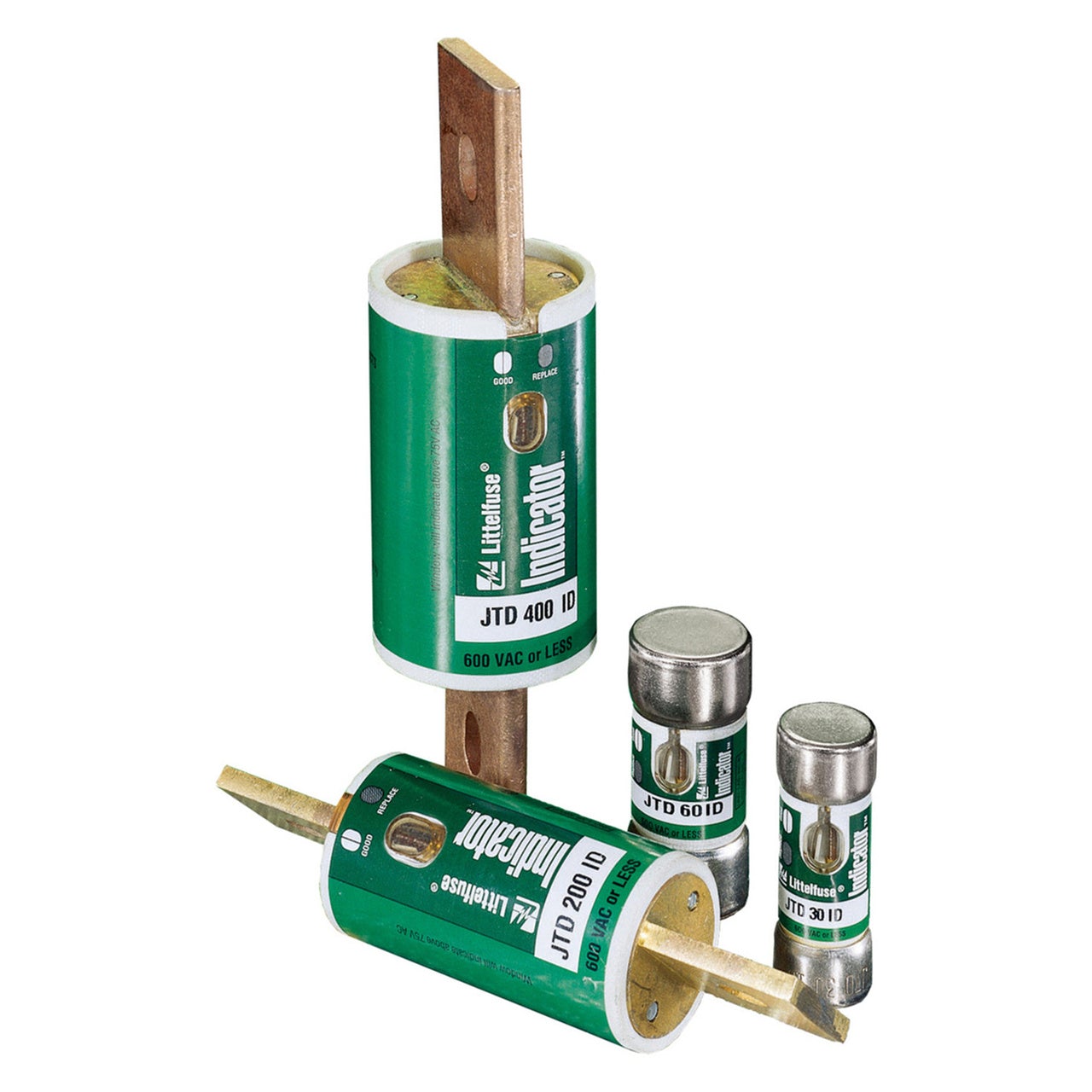

Name: JTD150ID - Littelfuse 150 Amp Bolt-In Low Voltage Fuse
Brand: Littelfuse
SKU: JTD150ID
Price: 149.99 CAD
Availability: OutOfStock

JTD150ID - Littelfuse 150 Amp 600 Volt Bolt-In Low Voltage Fuse

Images are for reference only

Save $179.51 CAD

Condition

New

Quantity

Earn 150 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - JTD150ID - Littelfuse 150 Amp Bolt-In Low Voltage Fuse

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - JTD150ID - Littelfuse Low Voltage

Part Number:

JTD150ID
Manufacturer:

Littelfuse
Family:

Powr-Pro
Amp:

150
Volt:

600

Category:

Fuses
Connection:

Bolt-In
Type:

JTD
AIC Ratings:

200kA@600V

Dimensions

Dimensions (HxWxD):

1 1/2 x 5 3/4
Weight:

2 lbs

Standards

Product Description - JTD150ID - Littelfuse Low Voltage

JTD150ID: Littelfuse Powr-Pro Class J fuse with time delay and current-limiting features, rated for 150A at 600Vac/300Vdc. It includes an indicating feature and measures 1.5 inches in diameter. It has a 200kA interrupting capacity at 600V AC and 20kA at 500V DC. Suitable for motor controllers, transformers, and general-purpose circuits, it is UL and CSA certified.

JTD150ID - Littelfuse 150 Amp Bolt-In Low Voltage Fuse

Bolt-In - 150 Amp - 600 Volt

JTD150ID - Littelfuse 150 Amp Bolt-In Low Voltage Fuse
