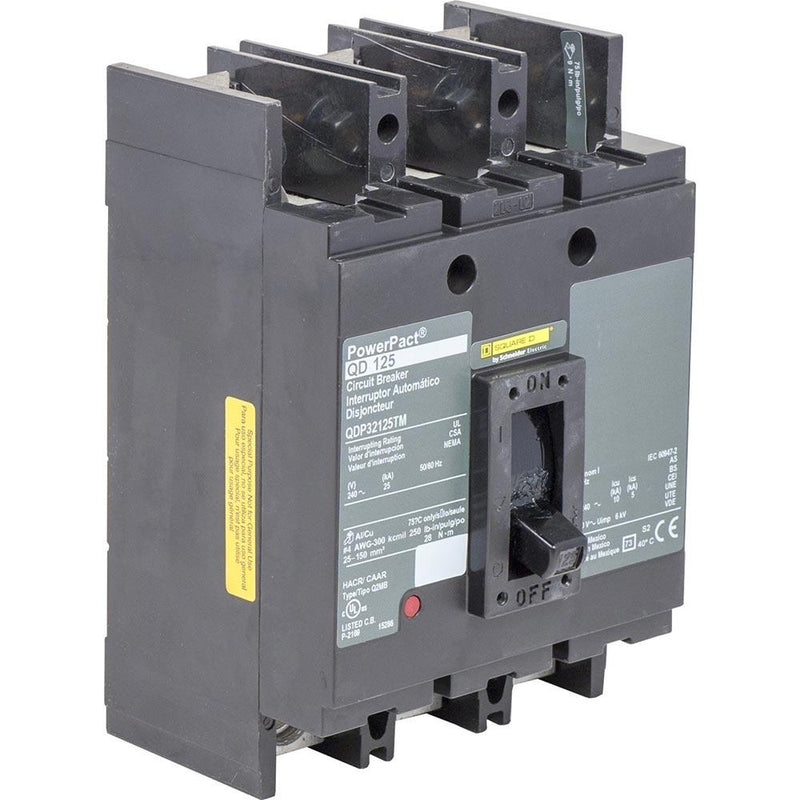

QDP32125TM - Square D 125 Amp 3 Pole 240 Volt Molded Case Circuit Breaker

$1,303.11
  New &  In Stock

FREE Shipping on orders over $49

1 year warranty CSA Approved


QDP32125TM - Square D Molded Case Circuit Breaker

Specifications:

  • Product or component type: Circuit breaker
  • Range of product: PowerPact Q
  • Trip unit technology: Thermal-magnetic
  • Provided equipment: Lug OFF end, Stud with nut and washer ON end
  • Line Rated Current: 125 A
  • [Ue] rated operational voltage: 240 V AC
  • Number of poles: 3
  • Breaking capacity: 25 kA 240 V AC
  • Continuous current rating: 80 %
  • Breaking capacity code: D
  • Mounting mode: Unit mount
  • Electrical connection: Lugs load AWG 4...300 kcmil aluminium/copper, Terminal nut line
  • Magnetic hold current: 1200 A
  • Magnetic tripping current: 2400 A
  • Height: 164.34 mm (6.47 in)
  • Width: 114.30 mm (4.5 in)
  • Depth: 99.82 mm (3.93 in)
  • Tightening torque: 247.82 lbf.in (28 N.m) 0.04...0.23 in2 (25...150 mm2) AWG 4...300 kcmil)
  • Product certifications: UL listed, CSA, IEC
  • Authentic Square D Product
  • Voltage Rating: 240 Volt
  • Dimensions (H x W x L): 6.47" x 4.5" x 3.93"
  • 3 phase
