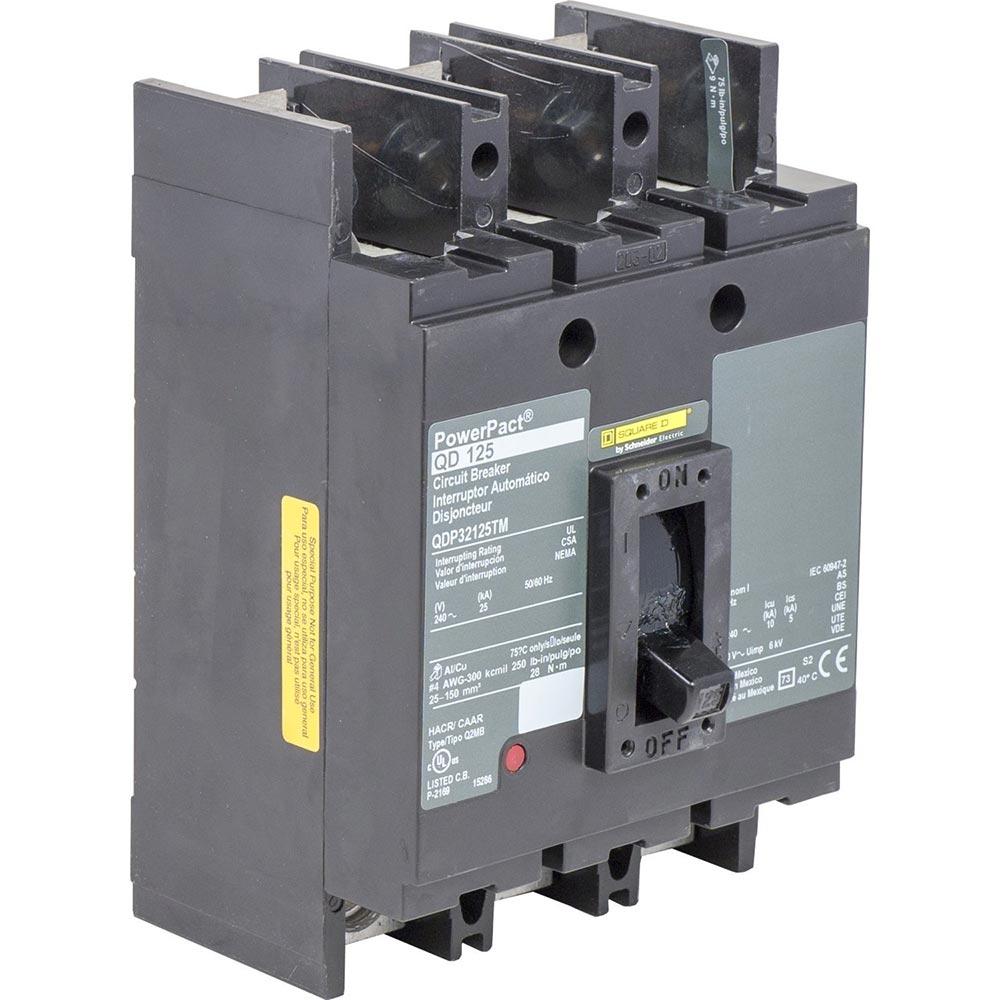

QDP32125TM - Square D - Molded Case Circuit Breaker

Bolt-On - 125 Amp - 3 Pole - 240 Volt

Schneider Electric SKU: QDP32125TM
QDP32125TM - Square D 125 Amp 3 Pole 240 Volt Molded Case Circuit Breaker

Images are for reference only

QDP32125TM - Square D - Molded Case Circuit Breaker

Bolt-On - 125 Amp - 3 Pole - 240 Volt

Schneider Electric SKU: QDP32125TM
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.

Earn 1962 reward points

  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - QDP32125TM - Square D - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - QDP32125TM - Square D Powerpact Circuit Breaker

  • Category:

    Molded Case / 3-Pole

  • Connection:

    Bolt-On

  • Type:

    QDP

  • Functions:

    LI - Long-Time and Instantaneous

  • Protection:

    Thermal Magnetic

  • AIC Ratings:

    25kA@240V

Dimensions

  • Dimensions (HxWxD):

    6.47" x 4.5" x 3.93"

  • Weight:

    4.9 lbs

Standards

CSA Approved logo

Additional Details

  • Frame Type:

    Q-Frame

  • Trip Unit Technology:

    Thermal-magnetic

  • Line Rated Current:

    125 Amp

  • Mounting Mode:

    Unit mount lug

  • Breaking Capacity Code:

    D

  • Electrical Connection:

    Terminal nut line/Lugs load

  • Magnetic Hold Current:

    1200 Amp

  • Continuous Current Rating:

    80%

  • Control Type:

    Operating handle

Product Description - QDP32125TM - Square D Powerpact Circuit Breaker

Schneider Electric / Square D, Powerpact, type QDP, 3P, 3PH, 125A, 240V, 25kA@240V, UL listed, standard interrupting capacity, bolt-on, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line side lug terminals, top feed main, thermal magnetic, molded case circuit breakers.

Documentation

PDF Icon Catalogue

PDF Icon Technical Specifications

PDF Icon Installation Instructions
