Name: LGB3B020B - Siemens - Molded Case Circuit Breaker
Brand: Siemens / ITE
SKU: LGB3B020B
Price: 1008.99 CAD
Availability: InStock

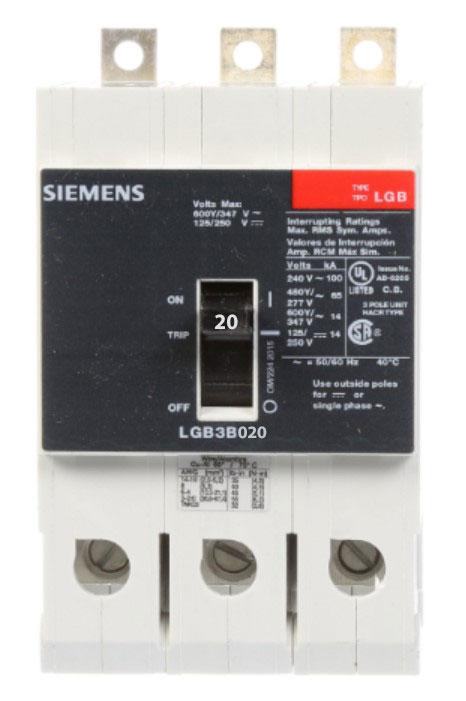

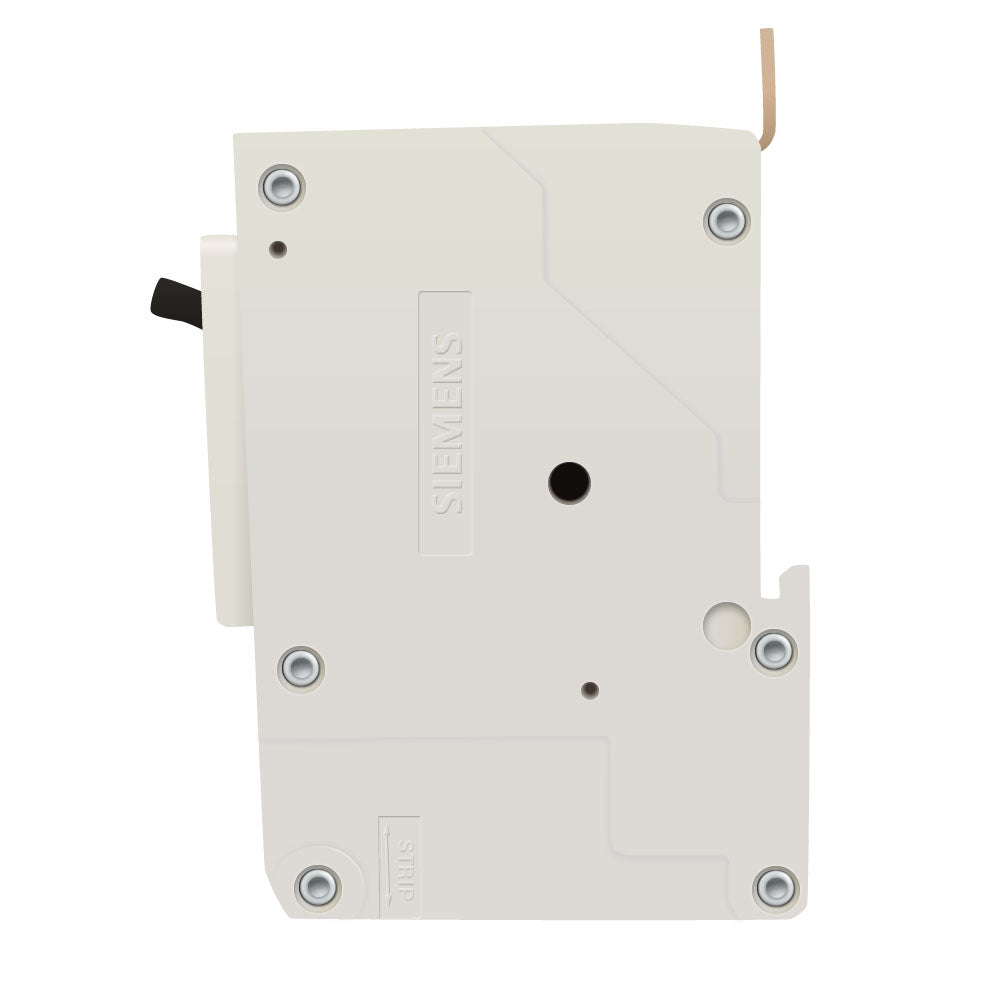

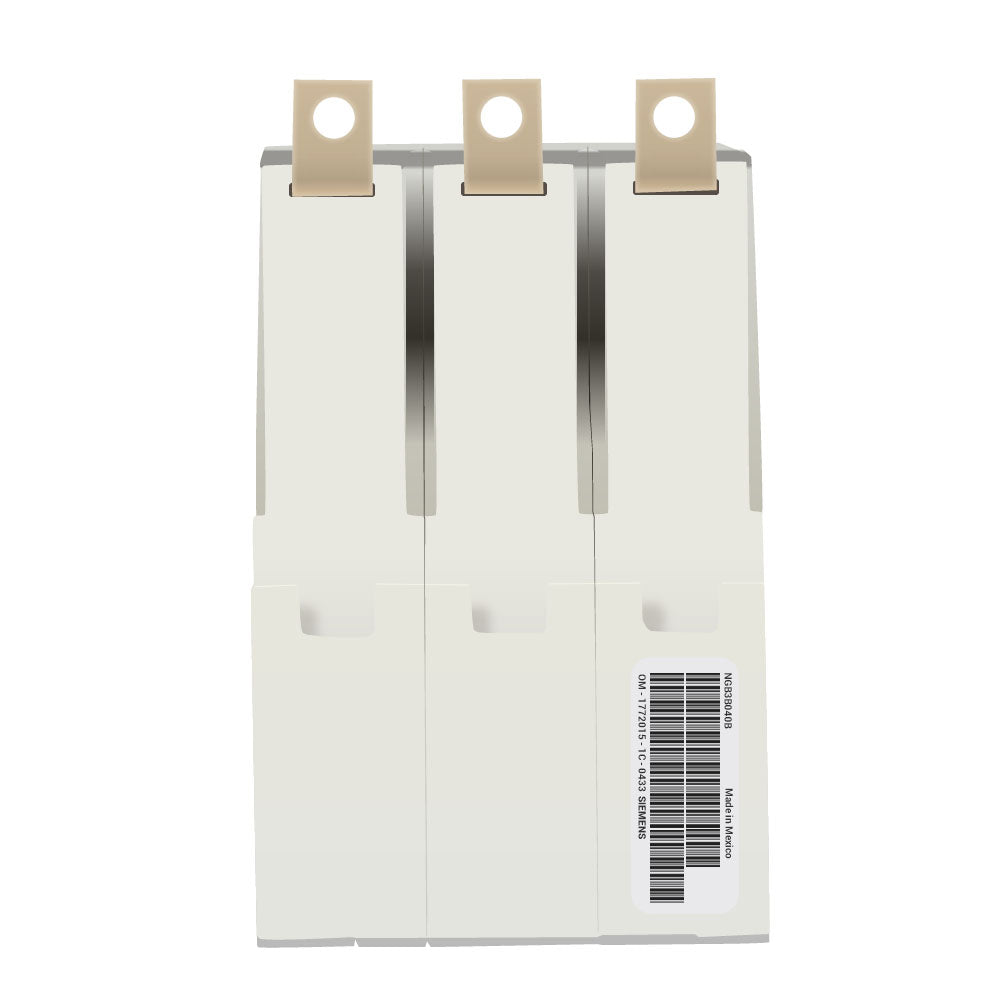

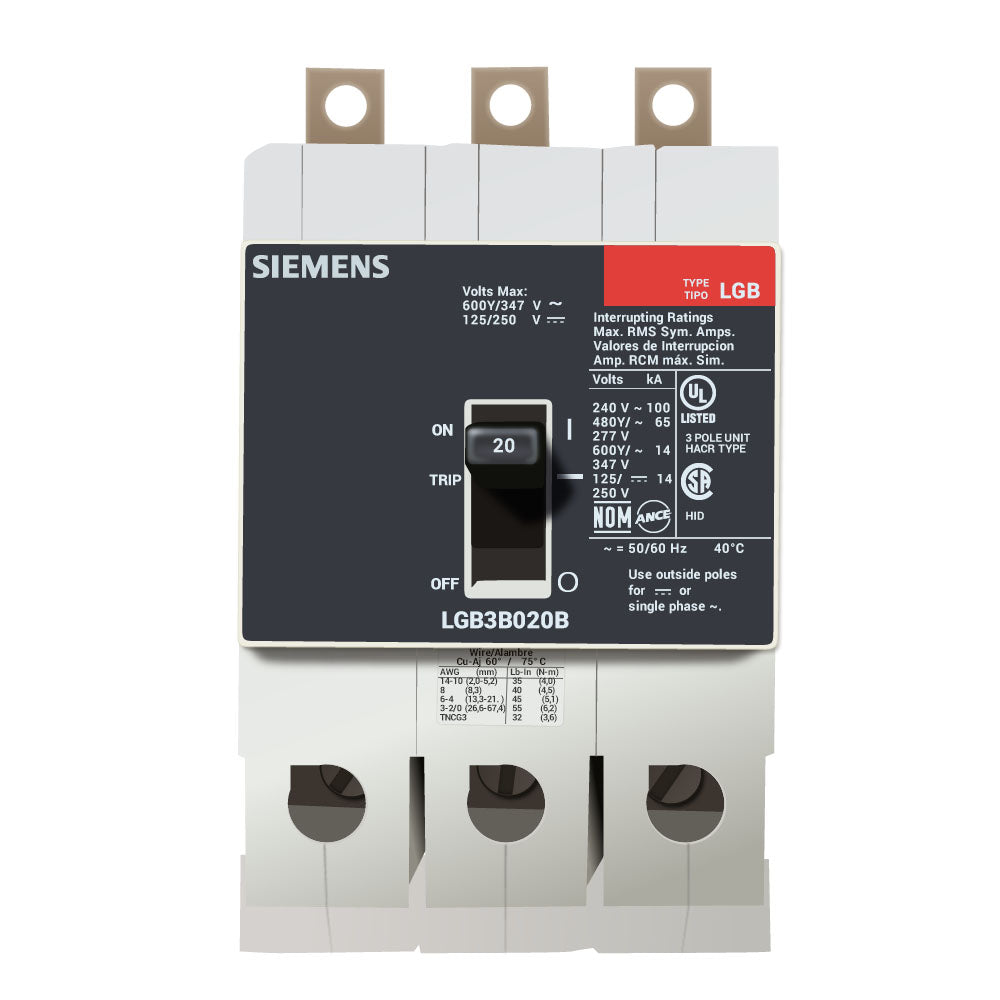

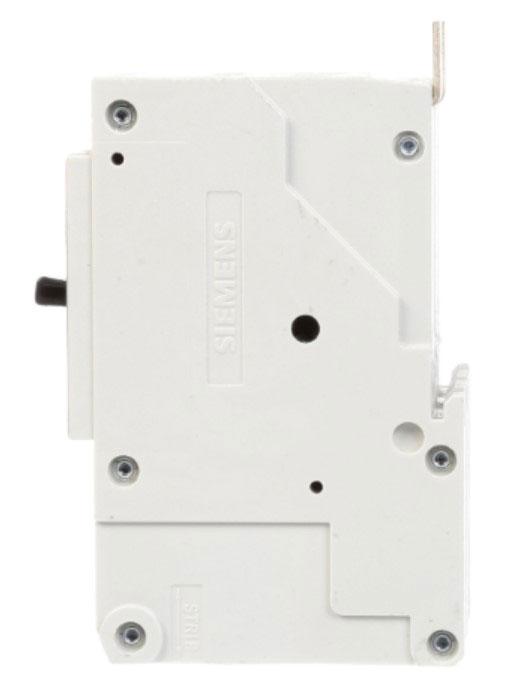

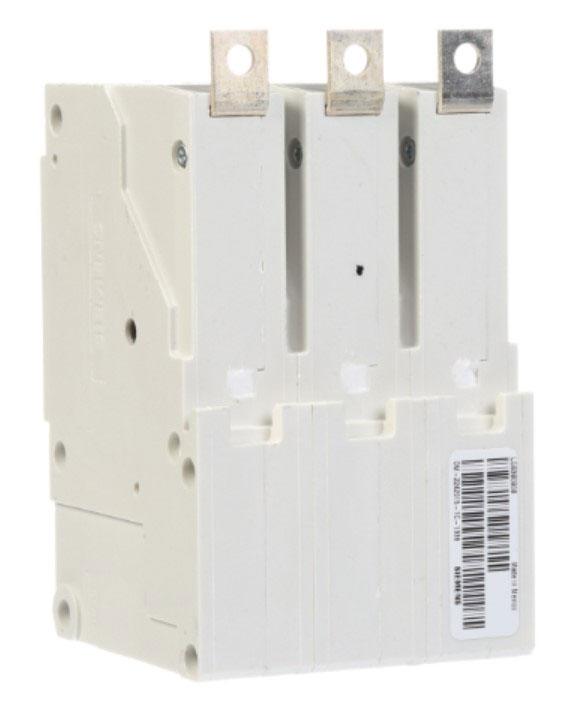

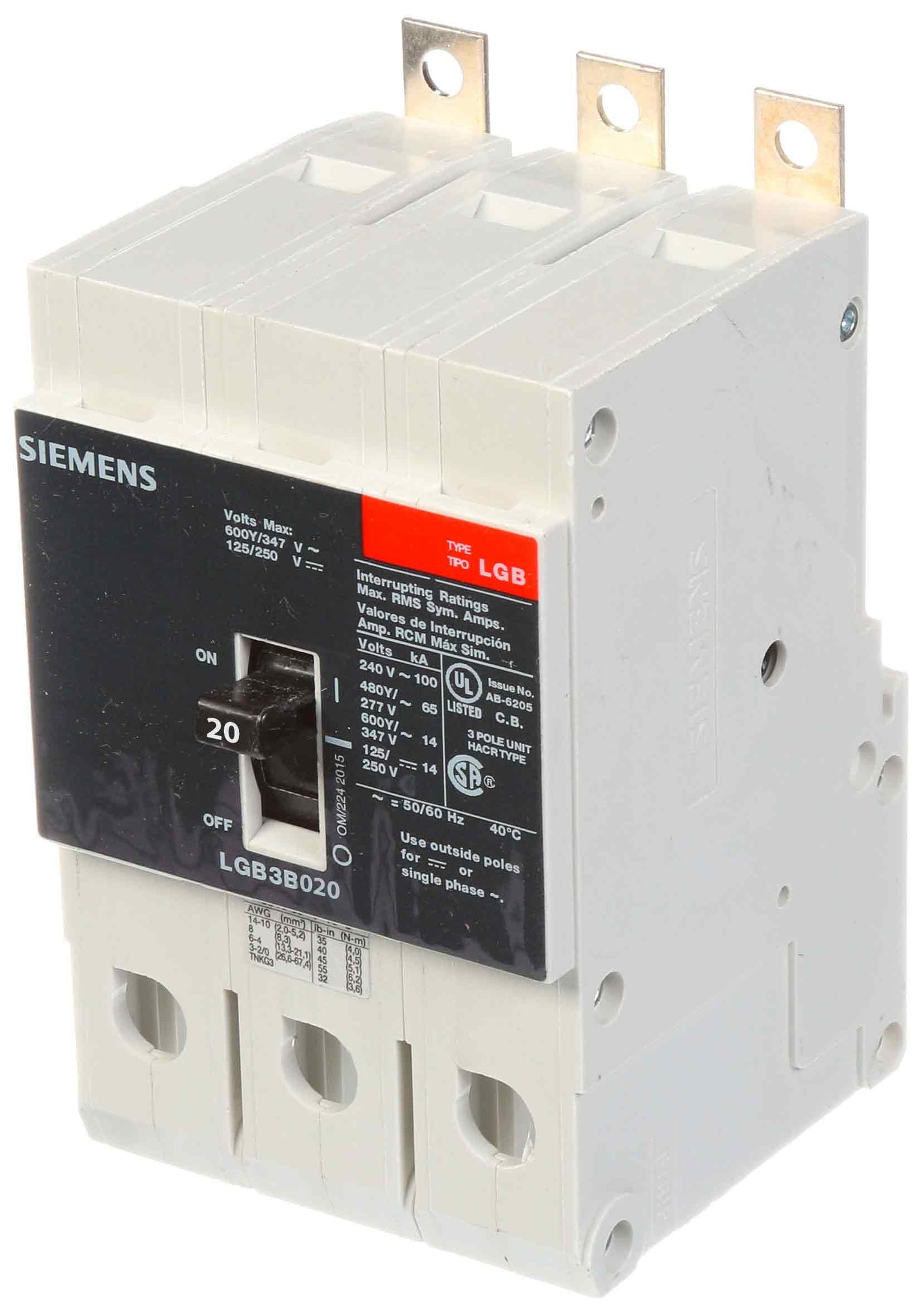

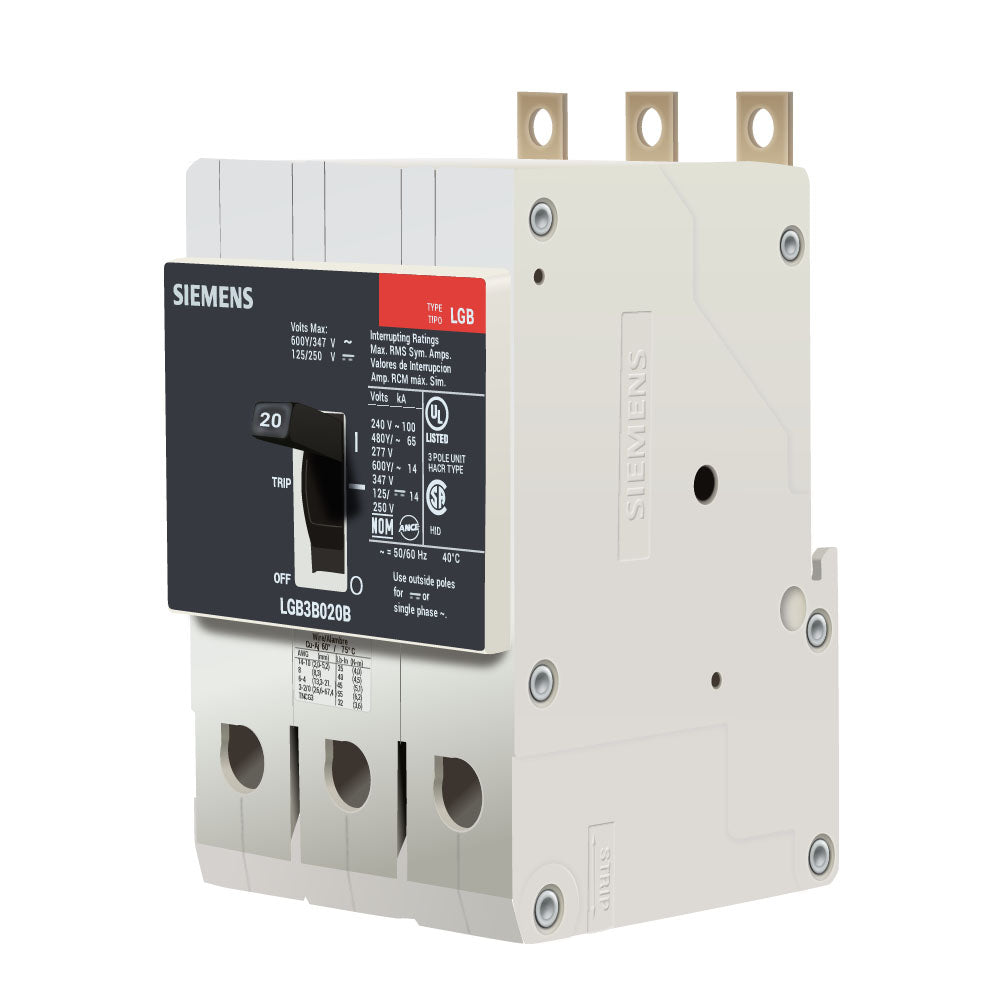

LGB3B020B - Siemens - Molded Case Circuit Breaker

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Earn 490 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40513602093165,"title":"New","option1":"New","option2":null,"option3":null,"sku":"LGB3B020B","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LGB3B020B - Siemens - Molded Case Circuit Breaker - New","public_title":"New","options":["New"],"price":100899,"weight":1361,"compare_at_price":null,"inventory_management":"shopify","barcode":"887621220228","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41869330546797,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"LGB3B020B_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"LGB3B020B - Siemens - Molded Case Circuit Breaker - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":48999,"weight":1361,"compare_at_price":100899,"inventory_management":"shopify","barcode":"887621220228","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - LGB3B020B - Siemens - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - LGB3B020B - Siemens Molded Case Circuit Breaker

Part Number:

LGB3B020B
Manufacturer:

Siemens / ITE
Family:

VL Series
Pole:

3
Amp

20
Volt:

480
Phase:

3

Category:

Molded Case / 3-Pole
Connection:

Bolt-On
Type:

LGB
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

65kA@480V

Dimensions

Dimensions (HxWxD):

4.99" x 2.96" x 2.87"

Weight:

2.75 lbs

Standards

Product Description - LGB3B020B - Siemens Molded Case Circuit Breaker

Siemens Low Voltage Panelboard Mount G Frame Circuit Breaker With Thermal - Magnetic Trip Unit. Ul Listed Lgb Frame With Very High Breaking Capacity. 20A 3-Pole (14Kaic At 600Y/347V) (65Kaic At 480Y/277V).

Documentation

Catalogue

Data Sheet

LGB3B020B - Siemens - Molded Case Circuit Breaker

Bolt-On - 20 Amp - 3 Pole - 480 Volt

LGB3B020B - Siemens - Molded Case Circuit Breaker
