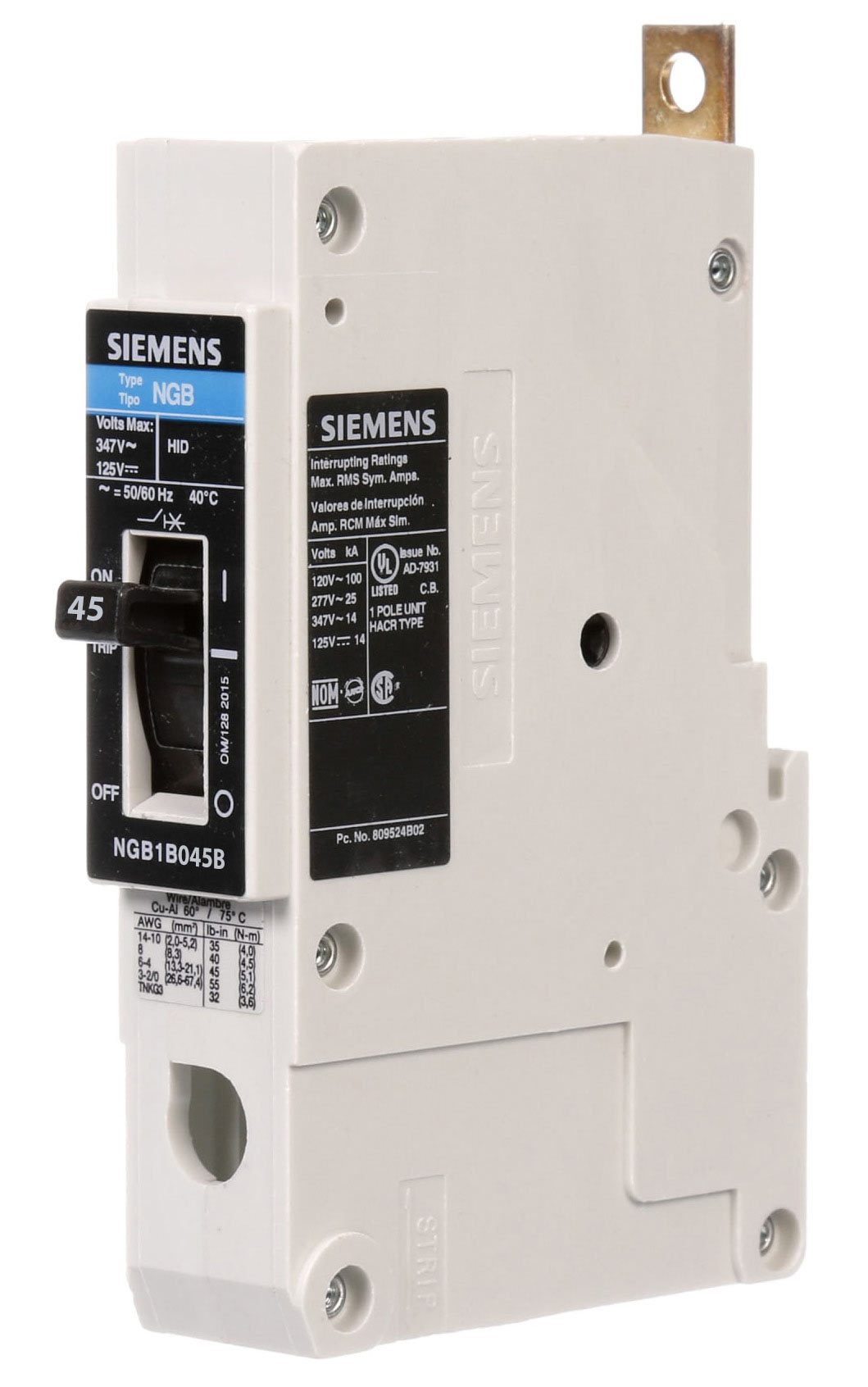

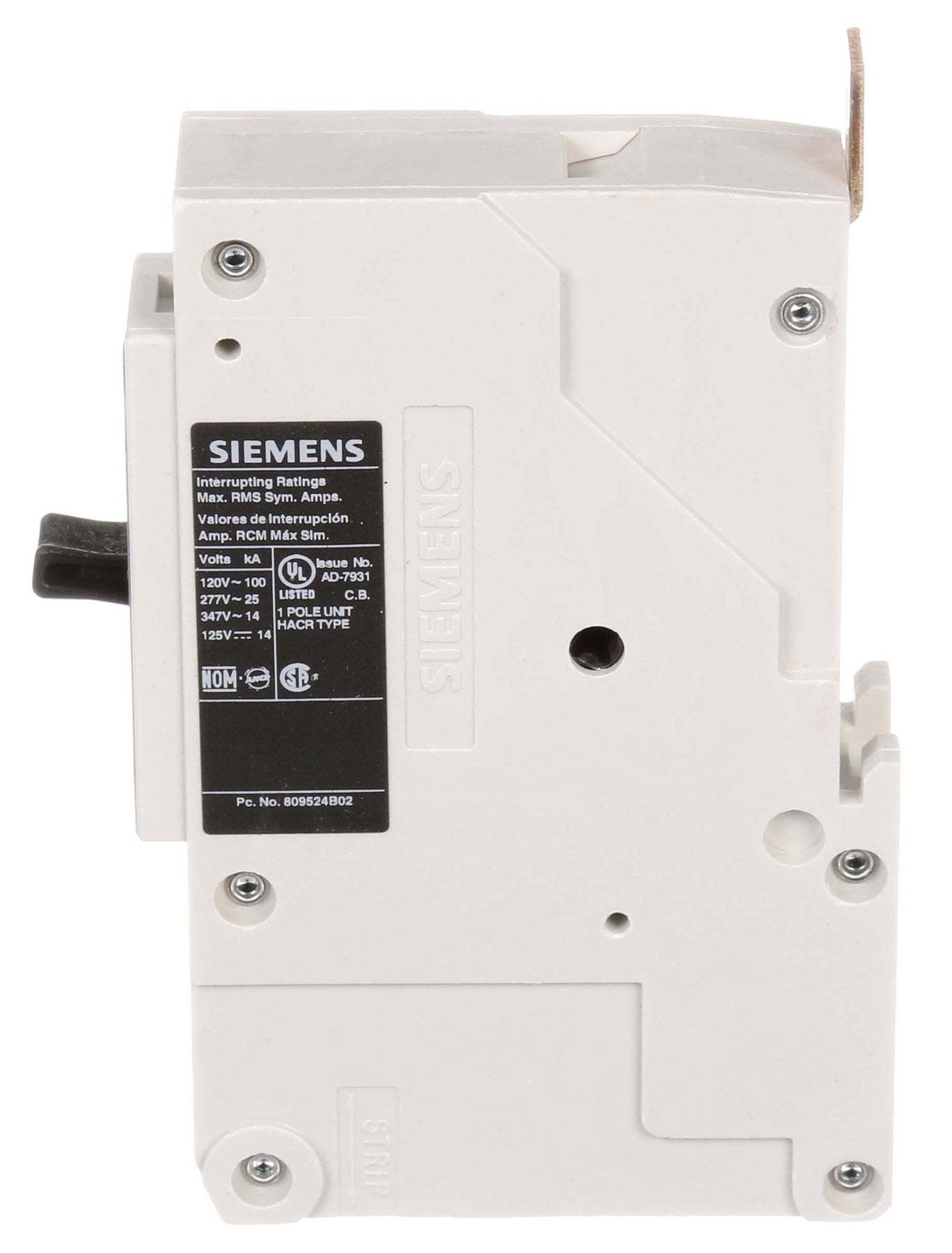

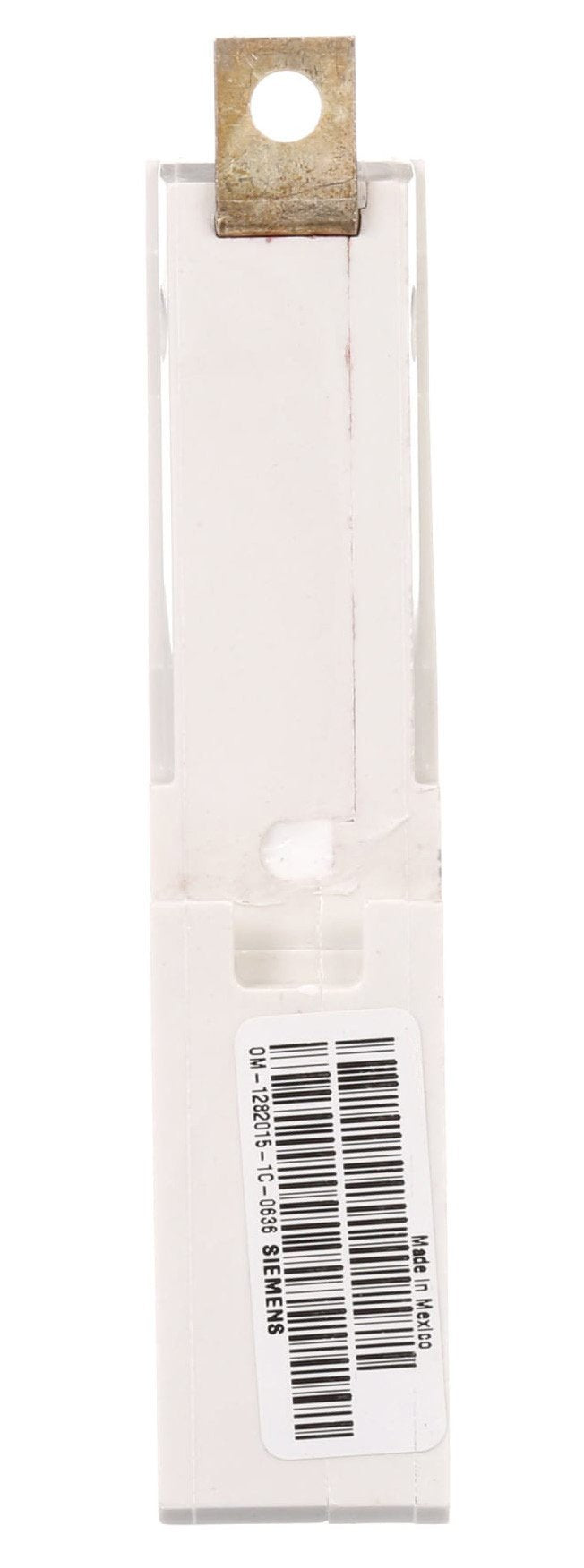

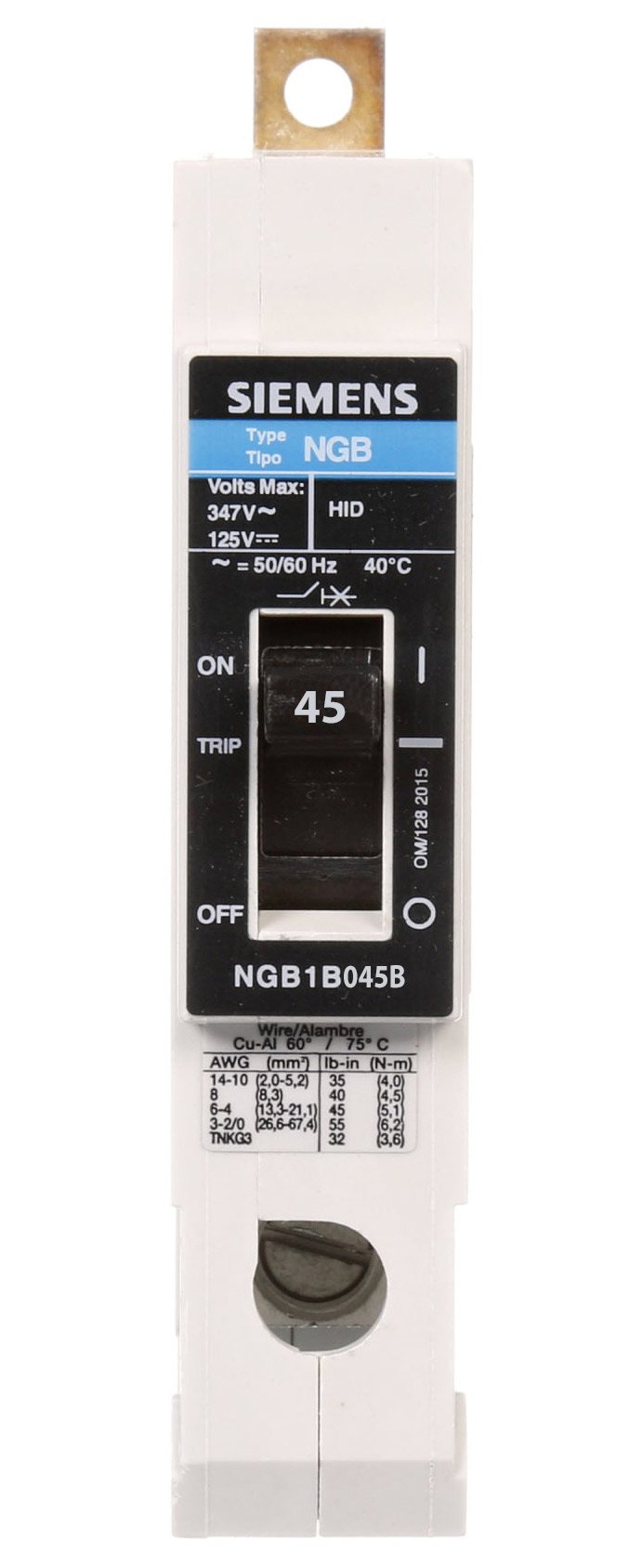

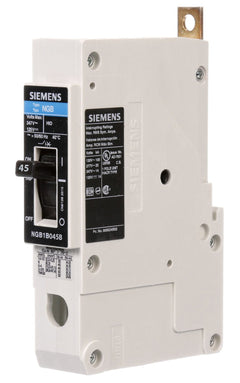

Name: NGB1B045B - Siemens - Molded Case Circuit Breaker
Brand: Siemens / ITE
SKU: NGB1B045B
Price: 231.99 CAD
Availability: InStock

NGB1B045B - Siemens - Molded Case Circuit Breaker

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Earn 163 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":40513685586029,"title":"New","option1":"New","option2":null,"option3":null,"sku":"NGB1B045B","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"NGB1B045B - Siemens - Molded Case Circuit Breaker - New","public_title":"New","options":["New"],"price":23199,"weight":907,"compare_at_price":null,"inventory_management":"shopify","barcode":"783643414013","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42572445515885,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"NGB1B045B_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"NGB1B045B - Siemens - Molded Case Circuit Breaker - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":16299,"weight":907,"compare_at_price":null,"inventory_management":"shopify","barcode":"783643414013","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - NGB1B045B - Siemens - Molded Case Circuit Breaker

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - NGB1B045B - Siemens Molded Case Circuit Breaker

Part Number:

NGB1B045B
Manufacturer:

Siemens / ITE
Family:

VL Series
Pole:

1
Amp

45
Volt:

347
Phase:

1

Category:

Molded Case / 1-Pole
Connection:

Bolt-On
Type:

NGB
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

25kA@277V

Dimensions

Dimensions (HxWxD):

1" x 5.4" x 2.8"

Weight:

0.86 lbs

Standards

Product Description - NGB1B045B - Siemens Molded Case Circuit Breaker

Siemens, VL Series, type NGB, 1P, 1PH, 45A, 347V, 25kA@277V, standard interrupting capacity, panelboard mounting, suitable for reverse feed applications, bolt-on, complete with LI - Long-Time and Instantaneous trip functions and load side lug terminals, thermal magnetic, molded case circuit breakers.

Documentation

Catalogue

Installation Instructions

Technical Specifications
