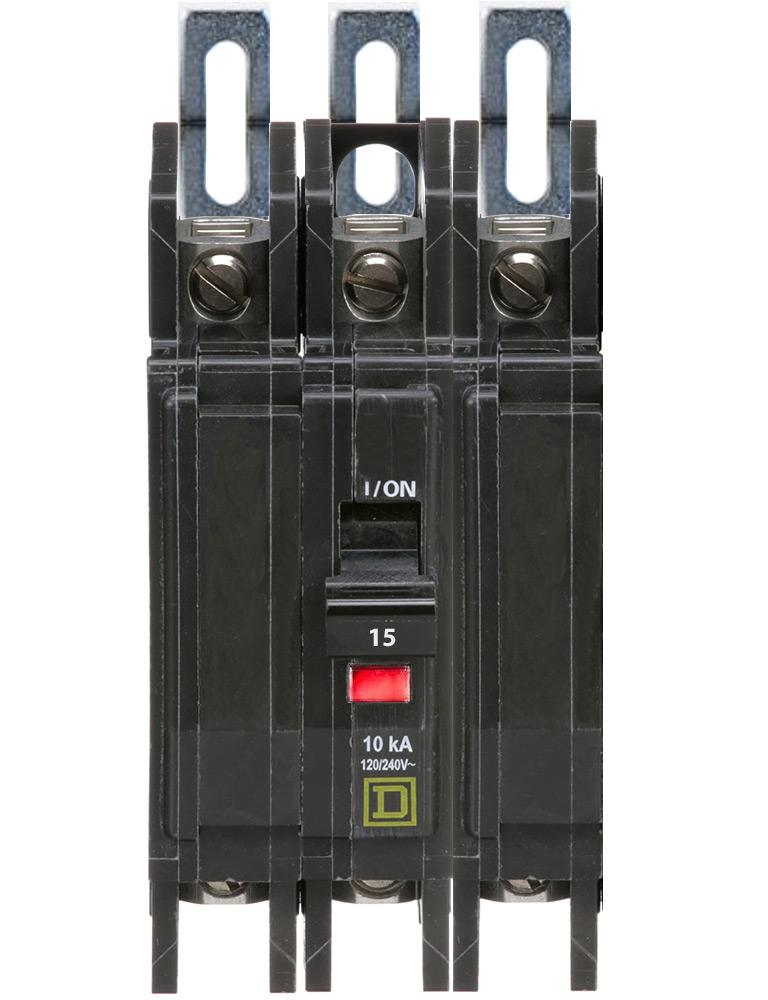

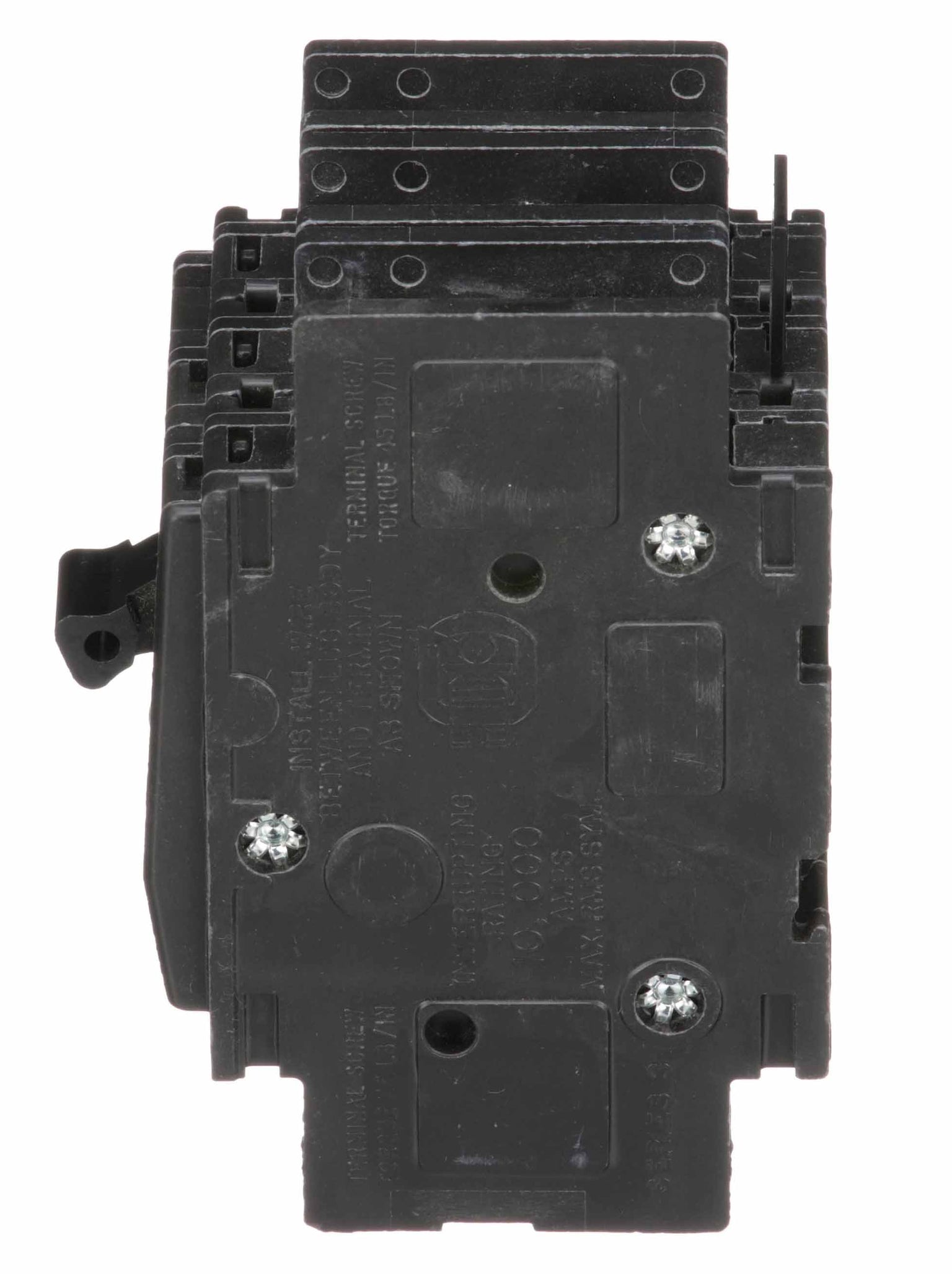

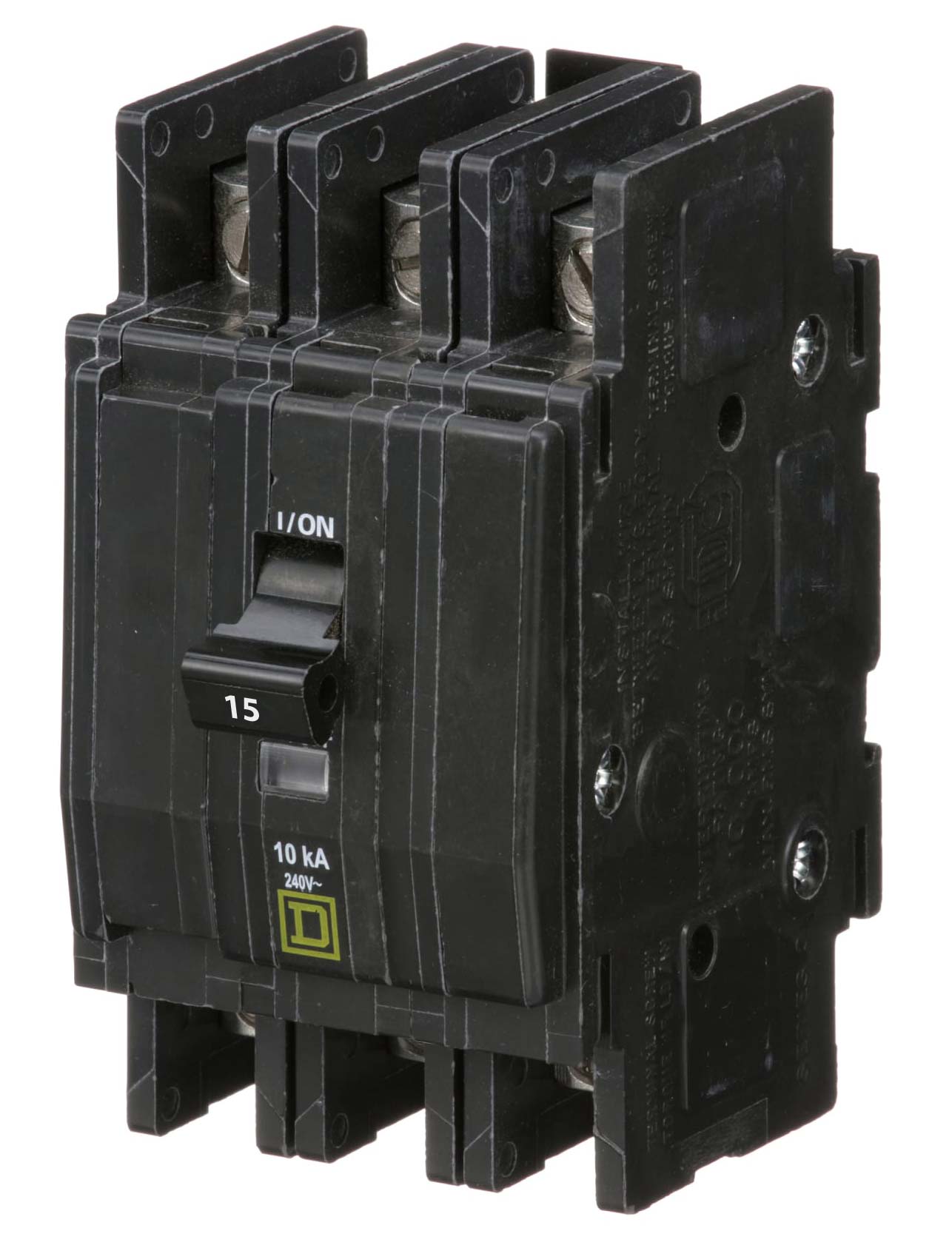

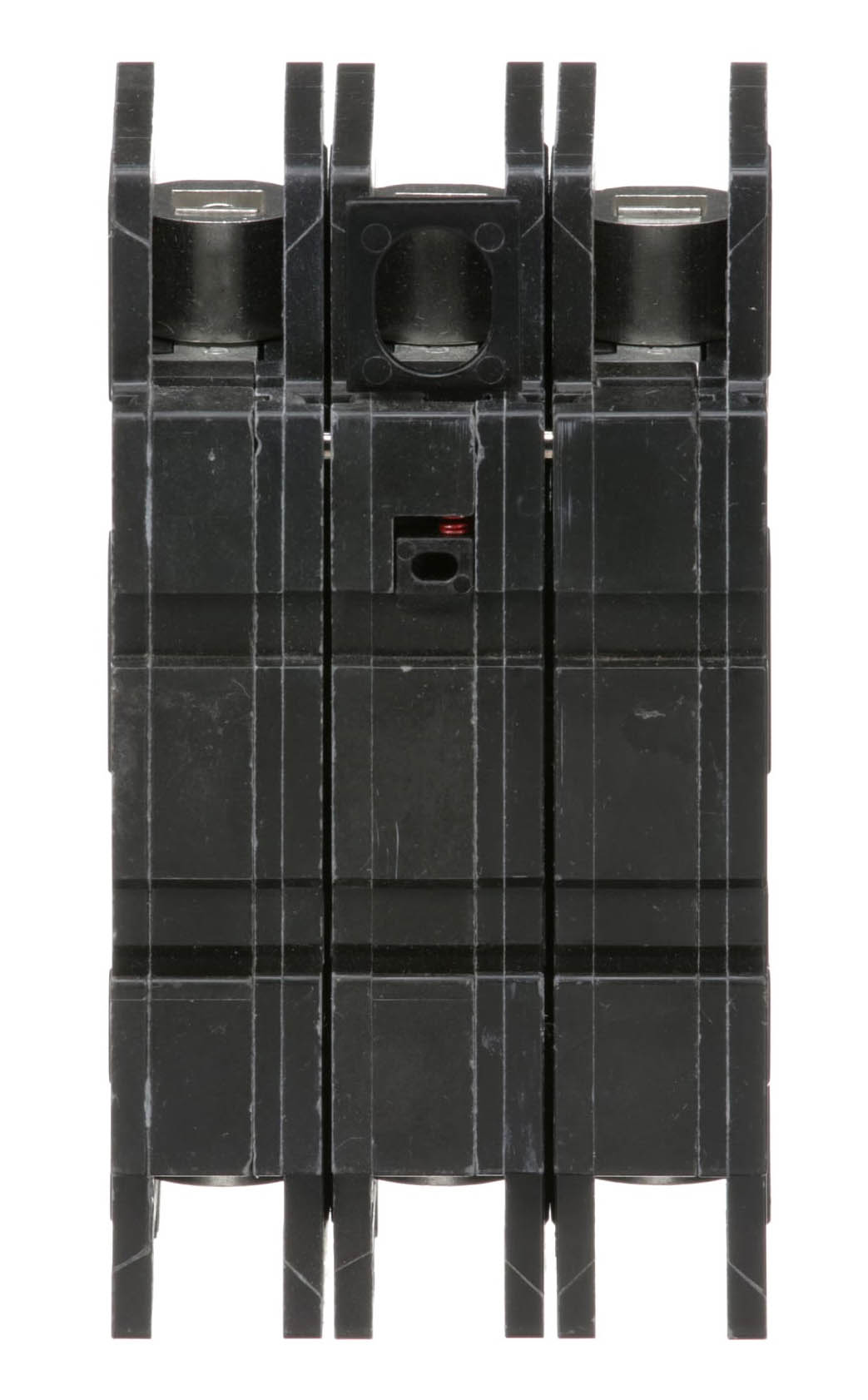

QOU315 - Square D Unit Mount Circuit Breaker

This product is a Miniature circuit breaker has a voltage rating of 120/240 VAC current rating of 15 Amps and interrupting rating of 10 kilo-Amps. The 3-Pole thermal/magnetic circuit breaker features a line/load lug terminal and accommodates aluminum/copper wire size of 14 - 2 AWG. It has 35 mm DIN rail/flush/surface mounting standard flush and provides protection against over current.

Specifications:

• Product or component type: Miniature circuit-breaker
• Range of product: QOU
• Circuit breaker type: Standard
• Circuit breaker application: HACR and Switching Duty rated
• Line Rated Current: 15 A
• Number of Poles: 3P
• Interrupt Rating: 10 kA at: 120/240 V AC, 5 kA at: 48 V DC, 10 kA at: 120 V AC, 10 kA at: 240 V AC
• Electrical connection: Slotted box lugs, line side, Slotted box lugs, load side
• System Voltage: 120 V AC, 120/240 V AC, 240 V AC, 48 V DC
• Mounting mode: Unit mount
• AWG gauge: AWG 14...AWG 2 (aluminium/copper)
• Height: 4.05 in
• Depth: 2.95 in
• Width: 2.25 in
• Product certifications: CSA, IEC, UL listed
• Authentic Square D Product
• Dimensions (H x W x L): 4.05" x 2.25" x 2.95"
• 3 phase

Alt model: q0u315
