Name: EGB14020EPD - Square D - Molded Case Circuit Breakers
Brand: Square D
SKU: EGB14020EPD
Price: 1599.99 CAD
Availability: InStock

EGB14020EPD - Square D - Molded Case Circuit Breakers

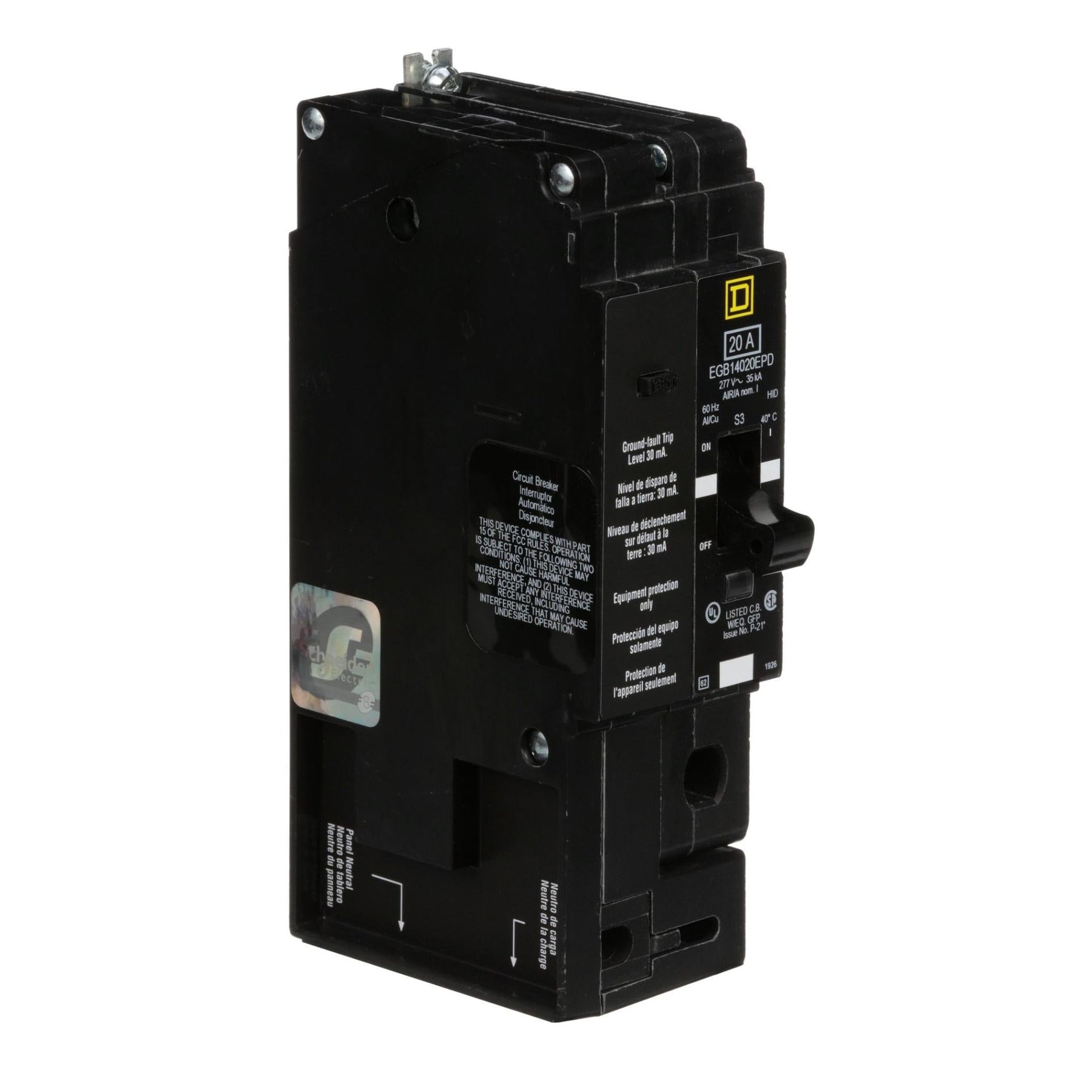

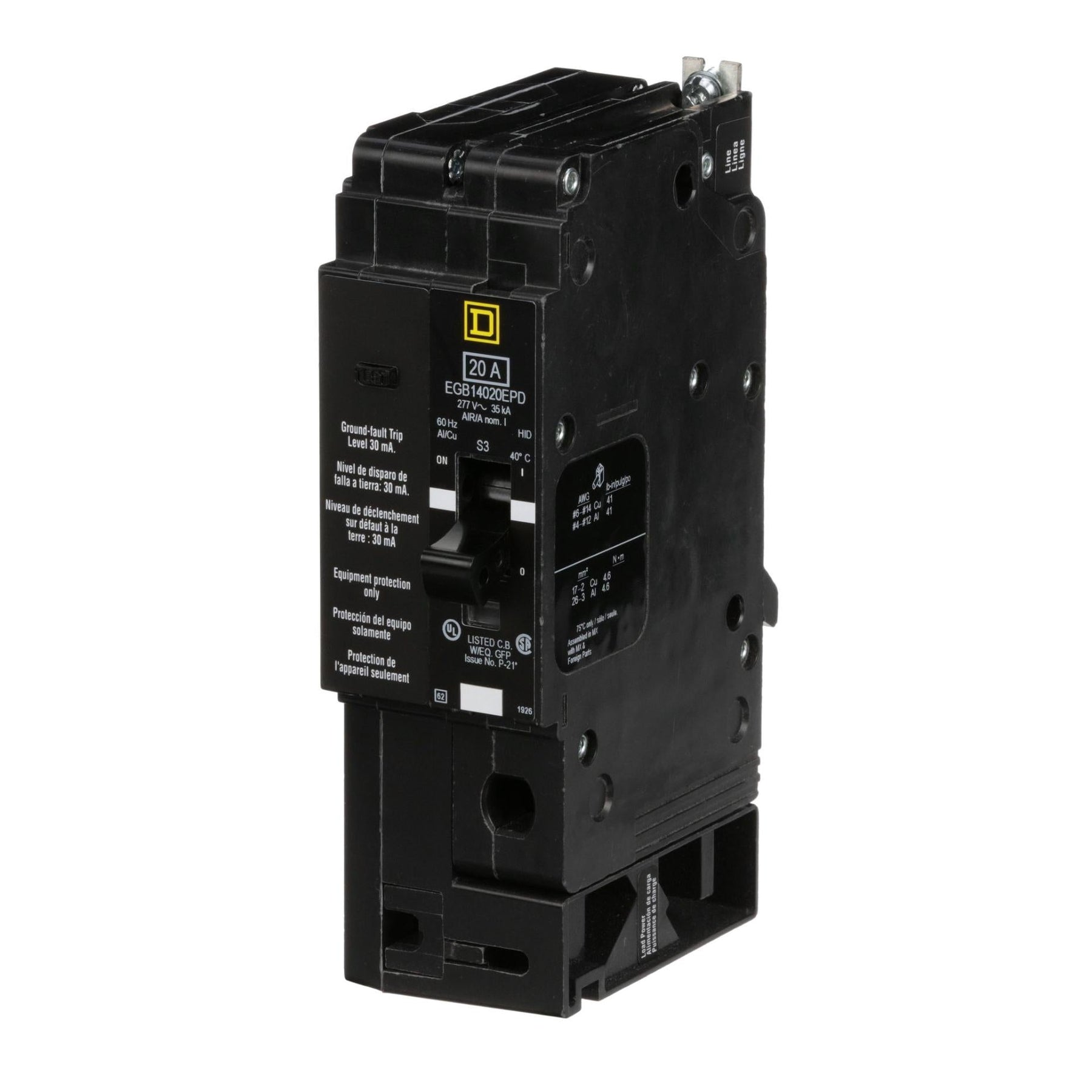

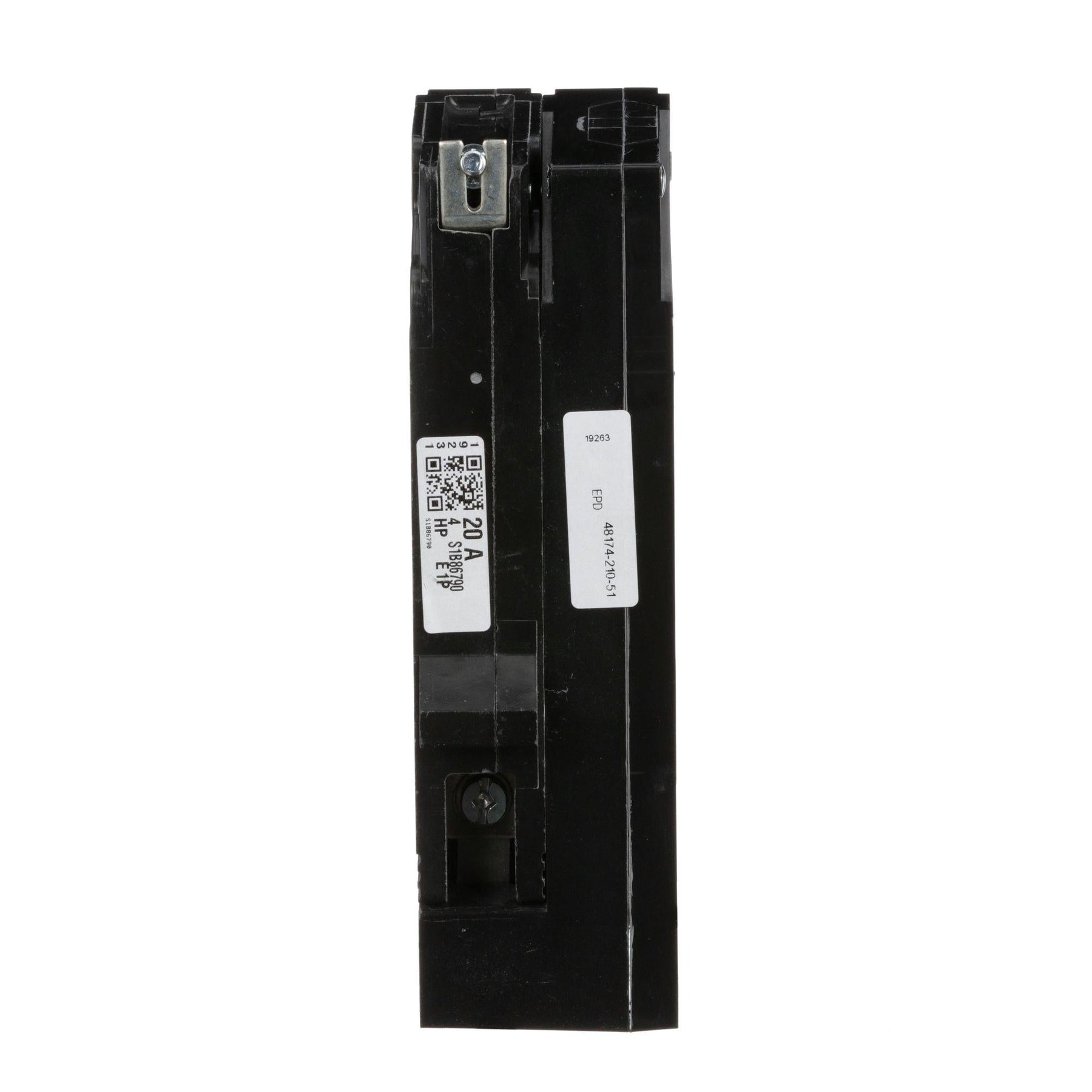

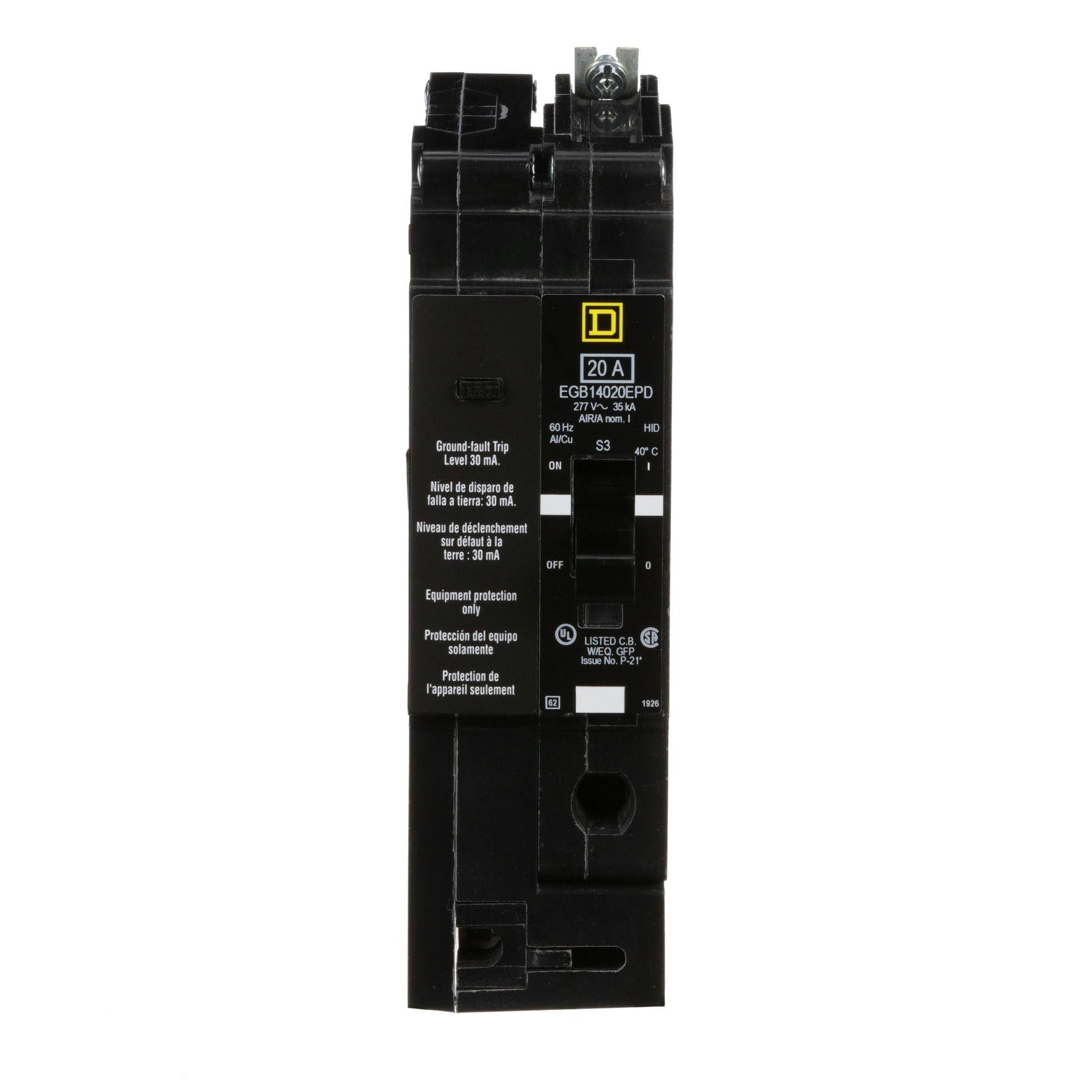

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Quantity

Earn 1600 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - EGB14020EPD - Square D - Molded Case Circuit Breakers

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - EGB14020EPD - Square D Molded Case

Part Number:

EGB14020EPD
Manufacturer:

Schneider Electric / Square D
Family:

EGB Series
Pole:

1
Amp:

20
Volt:

277
Phase:

1

Category:

Molded Case Circuit Breakers / 1-Pole
Connection:

Bolt-On
Type:

EGB
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

35kA@480V

Dimensions

Dimensions (HxWxD):

6.64 x 1.96 x 4.05
Weight:

2 lbs

Standards

Product Description - EGB14020EPD - Square D Molded Case

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 20A, 1 pole, and has an operating voltage of 277 VAC. It also provides a 65 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This one includes 30 mA ground protection. This breaker was calibrated for 40 degrees C. This product is UL Listed as Switching duty and High Intensity Discharge. HACR rated.

EGB14020EPD - Square D - Molded Case Circuit Breakers

Bolt-On - 20 Amp - 1 Pole - 277 Volt
