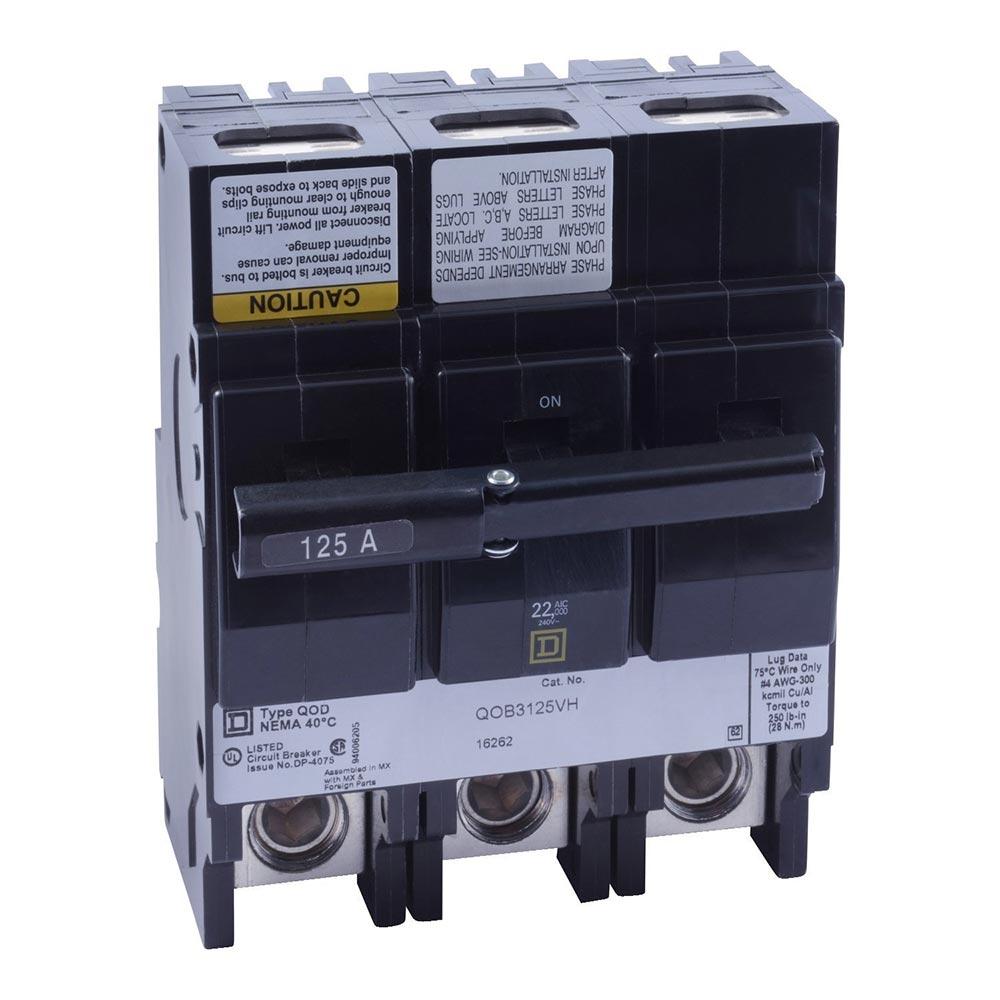

QOB3125VH - Square D - 22 kA Circuit Breaker

Bolt-On - 125 Amp - 3 Pole - 240 Volt

Schneider Electric SKU: QOB3125VH
QOB3125VH - Square D 125 Amp 3 Pole 240 Volt Bolt-On Circuit Breaker
QOB3125VH - Square D - 22 kA Circuit Breaker
QOB3125VH - Square D - 22 kA Circuit Breaker
QOB3125VH - Square D - 22 kA Circuit Breaker
QOB3125VH - Square D - 22 kA Circuit Breaker
QOB3125VH - Square D - 22 kA Circuit Breaker

Images are for reference only

QOB3125VH - Square D - 22 kA Circuit Breaker

Bolt-On - 125 Amp - 3 Pole - 240 Volt

Schneider Electric SKU: QOB3125VH
Sale price $899.99 CAD
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - QOB3125VH - Square D - 22 kA Circuit Breaker

All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

QOB3125VH - Square D Bolt-On 22 kA Breaker

Schneider Electric/Square D Miniature circuit breaker with Visi-Trip indicator has box-type lugs to accommodate 4 AWG - 300 Kcmil copper and aluminum wires. The 3-Pole circuit breaker has voltage rating of 240 VAC current rating of 125 Amps and short-circuit current rating of 22 kilo-Amps.

Specifications:

  • Product: Miniature circuit-breaker
  • Range: QO
  • Line Rated Current: 125 A
  • System Voltage: 120 V AC, 120/240 V AC, 240 V AC
  • Mounting Type: Bolt-on
  • Number of Poles: 3P
  • Circuit Breaker Type: Standard
  • Ratings: Not rated
  • Electrical Connection: Box lugs
  • Interrupt Rating: 22 kA at: 120/240 V AC 50/60 Hz, 22 kA at: 240 V AC 50/60 Hz, 22 kA at: 120 V AC 50/60 Hz
  • Number of Panel Spaces: 6
  • Wire Size: AWG 4...300 kcmil (copper or aluminium)
  • Certifications: CSA, UL listed
  • Ambient Rating: 104 Degree F (40 Degree C)
  • Authentic Square D Product
  • Dimensions (H x W x L): 5.72" x 4.5" x 4.9"
  • 3 phase

Alt model: q0b3125vh
