8536SDO1V02H30S - Square D - 45 Amp Motor Starter

120 Volt

Schneider Electric SKU: 8536SDO1V02H30S
8536SDO1V02H30S - Square D 45 Amp 3 Pole 120 Volt Motor Starter

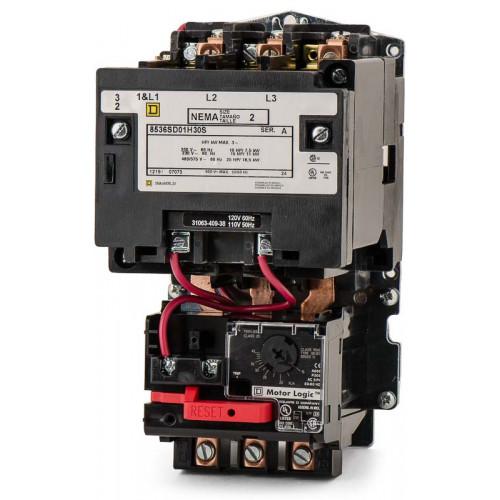

Images are for reference only

8536SDO1V02H30S - Square D - 45 Amp Motor Starter

120 Volt

Schneider Electric SKU: 8536SDO1V02H30S
Regular price $2,118.99 CAD
/
  • In stock and ready to ship
  • Inventory on the way
Condition
Rush shipping options calculated at checkout.
  • Secure transaction
  • FREE & fast shipping on orders over $49
  • CSA approved with 1 year warranty
  • 30 day returns

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - 8536SDO1V02H30S - Square D - 45 Amp Motor Starter

All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

8536SDO1V02H30S - Square D Motor Starter

Schneider Electric / Square D Nema Starter features a three pole three phase 45 ampere Nema full voltage non reversing starter screw clamp connection and nema magnetic motor starters with standard overload relays full-voltage starters start and stop AC squirrel cage motors with separate control unit.

Specifications:

  • Product or component type: Starter
  • Type: S
  • Control Circuit Voltage: 110 V AC 50 Hz, 120 V AC 60 Hz
  • Motor starter type: Non reversing
  • Line Rated Current: 45 A
  • Number of Poles: 3P
  • Phase: 3 phases
  • Horsepower Rating: 10 HP 200 V AC, 15 HP 230 V AC, 25 HP 460 V AC, 25 HP 575 V AC
  • System Voltage: 600 V AC
  • Control Units: No control units
  • Thermal overload type: Solid state Motor Logic class 10/20
  • Electrical connection: Screw clamp terminals
  • NEMA size: 2
  • Height: 7.8 in (198 mm)
  • Depth: 4.92 in (125 mm)
  • Width: 4.29 in (109 mm)
  • Enclosure Type: Not rated (open device)
  • Product certifications: UL listed, NEMA, CSA
  • Authentic Square D Product
  • Dimensions (H x W x L): 7.8" x 4.29" x 4.92"
