Product Warranty - QO250EPD - Square D - 50 Amp GFEP Circuit Breaker
All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

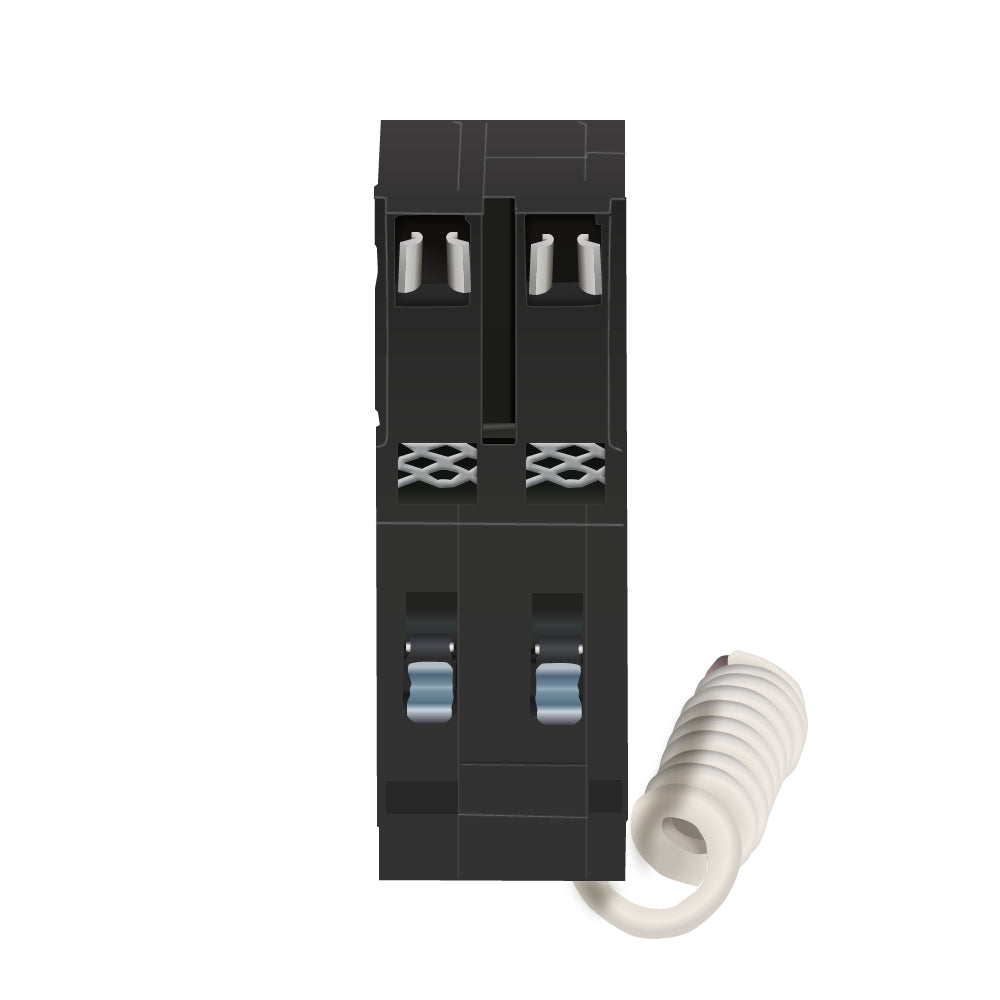

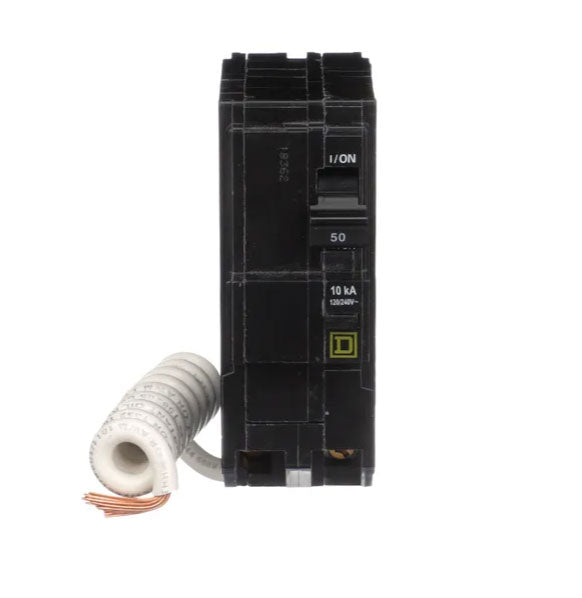

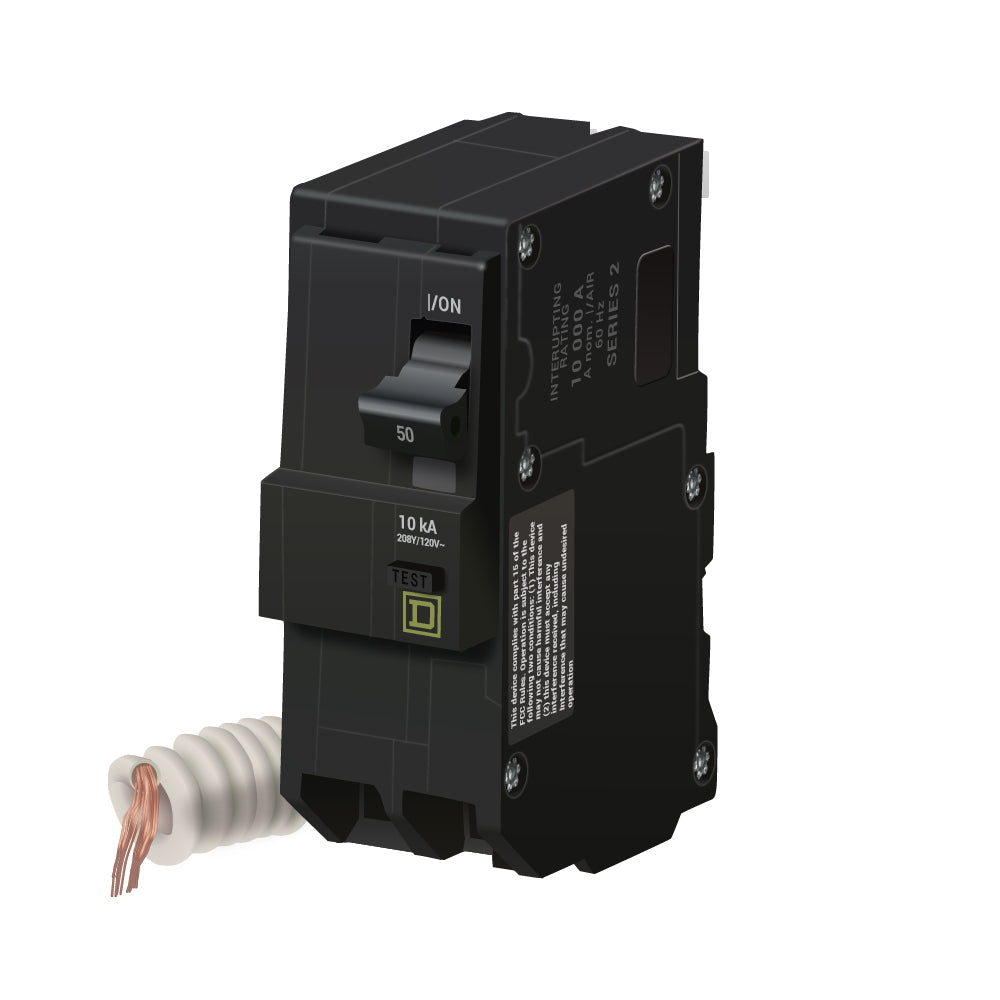

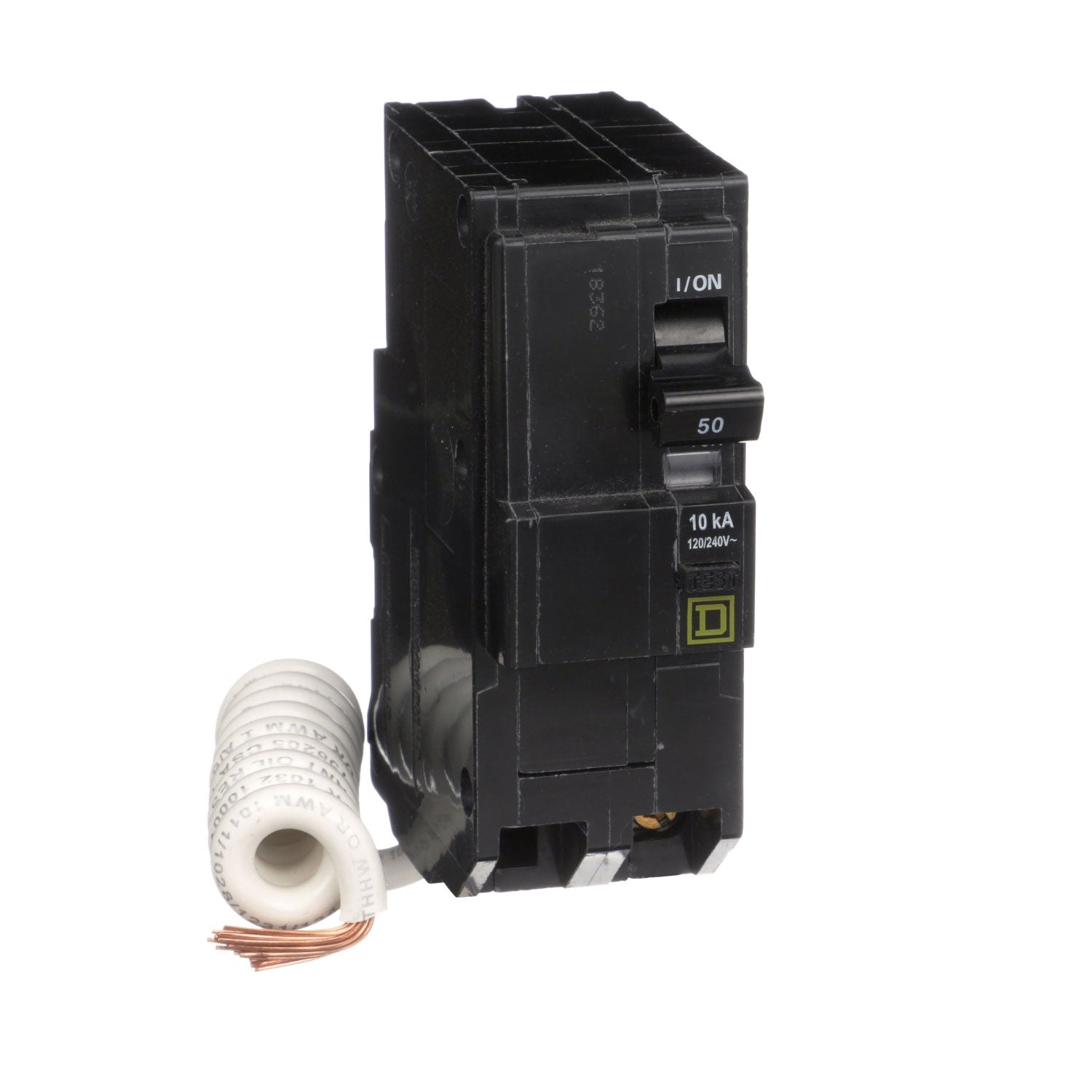

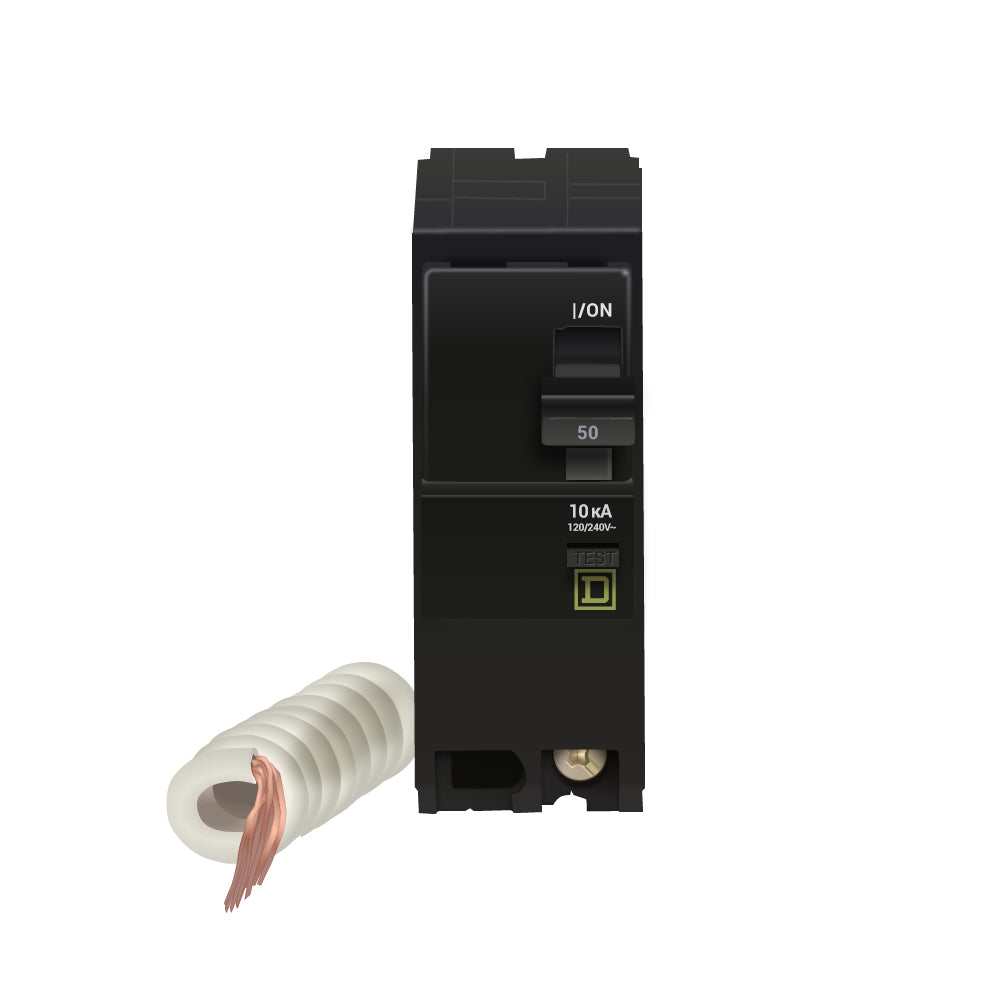

QO250EPD - Square D Ground Fault Equipment Protection Breaker
Square D double pole single phase 50 ampere plug-on molded case circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 10 kiloampere at 240V class B ground fault protection for equipment suitable for QO Series load centers.
Specifications:
- Product: Miniature circuit-breaker
- Range: QO
- Line Rated Current: 50 A
- System Voltage: 120 V AC, 120/240 V AC
- Mounting Type: Plug-in
- Number of Poles: 2P
- Circuit Breaker Type: Ground fault protecting class B 30 mA
- Ratings: Not rated
- Electrical Connection: Box lugs
- Inturrupt Rating: 10 kA at: 120/240 V AC 50/60 Hz, 10 kA at: 120 V AC 50/60 Hz
- Number of Panel Spaces: 2
- Wire Size: AWG 12...AWG 4 (aluminium), AWG 14...AWG 6 (copper)
- Height: 4.12 in
- Depth: 2.91 in
- Width: 1.5 in
- Certifications: CSA, UL listed
- Ambient Rating: 104 Degree F (40 Degree C)
- Authentic Square D Product
- Dimensions (H x W x L): 4.12" x 1.5" x 2.91"
Alt model: q0250epd
