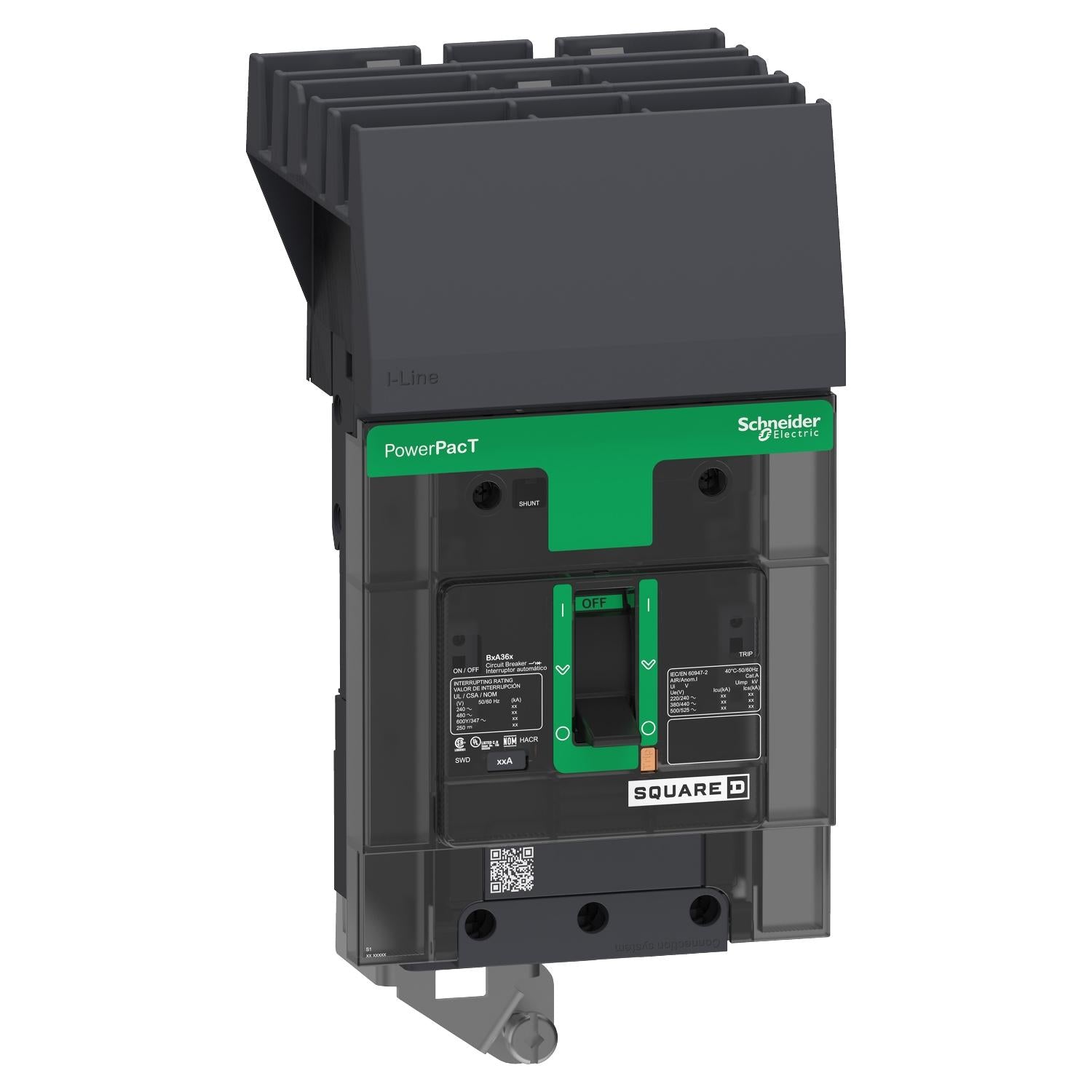

Name: BDA34060Y - Square D - Molded Case Circuit Breakers
Brand: Square D
SKU: BDA34060Y
Price: 963.99 CAD
Availability: InStock

BDA34060Y - Square D - Molded Case Circuit Breakers

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned (pre-owned with warranty)

Quantity

Earn 675 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":45031771471981,"title":"New","option1":"New","option2":null,"option3":null,"sku":"BDA34060Y","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BDA34060Y - Square D - Molded Case Circuit Breakers - New","public_title":"New","options":["New"],"price":96399,"weight":2268,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":45037369688173,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"BDA34060Y_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BDA34060Y - Square D - Molded Case Circuit Breakers - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":67499,"weight":2268,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - BDA34060Y - Square D - Molded Case Circuit Breakers

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - BDA34060Y -Square D Molded Case Circuit Breakers

Part Number:

BDA34060Y
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp:

60
Volt:

480
Phase:

3

Category:

Molded Case Circuit Breakers / 3-Pole
Connection:

I-Line Style Plug-In
Type:

B Frame
Functions:

LI - Long-Time and Instantaneous
Protection:

Thermal Magnetic
AIC Ratings:

18kA@480V

Dimensions

Dimensions (HxWxD):

5.39 x 3.19 x 3.50
Weight:

2.9 lbs

Standards

Product Description - BDA34060Y -Square D Molded Case Circuit Breakers

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 480Y/277VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 60A, 3 pole, circuit breaker has a breaking capacity of 18kA at 480Y/277VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

BDA34060Y - Square D - Molded Case Circuit Breakers

I-Line Style Plug-In - 60 Amp - 3 Pole - 480 Volt

BDA34060Y - Square D - Molded Case Circuit Breakers
