Product Warranty - QOB280VH - Square D - 80 Amp 22kA Circuit Breaker
All products carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic, factory new and CSA approved.

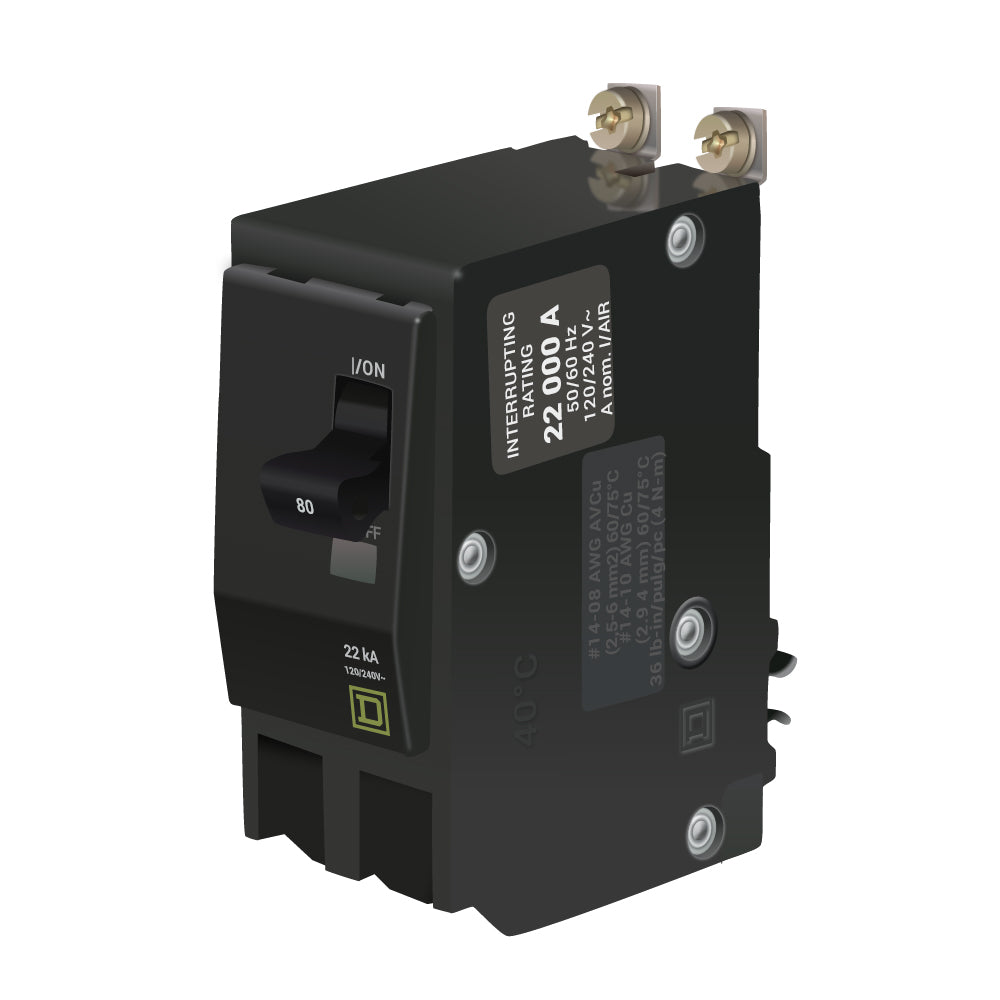

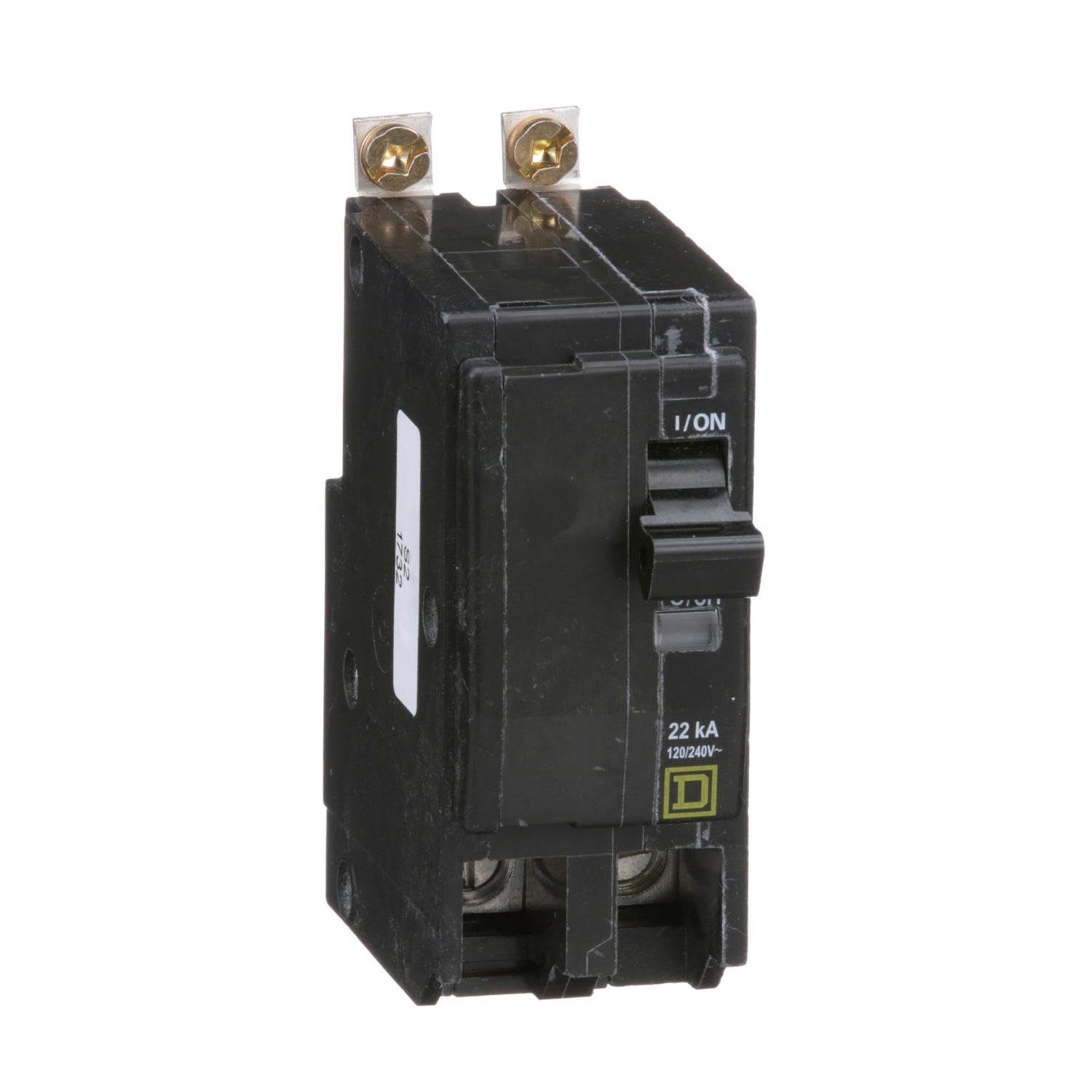

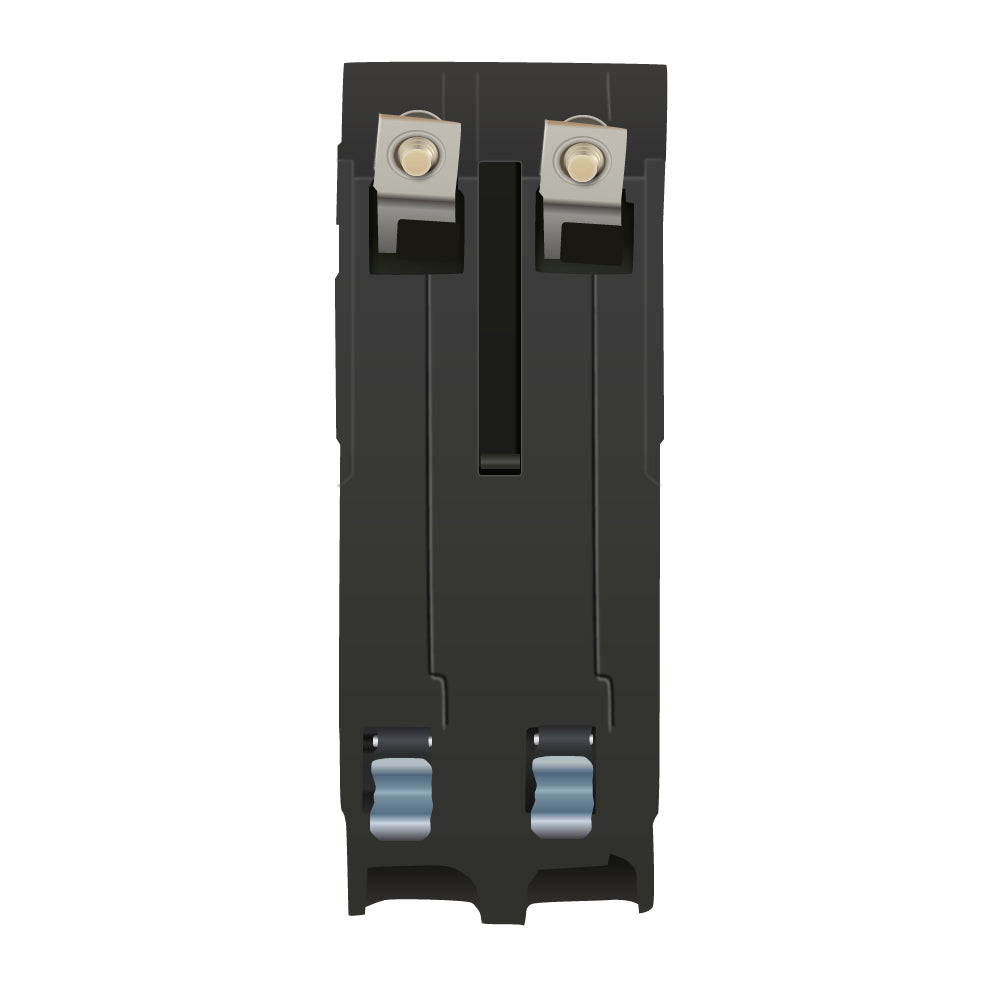

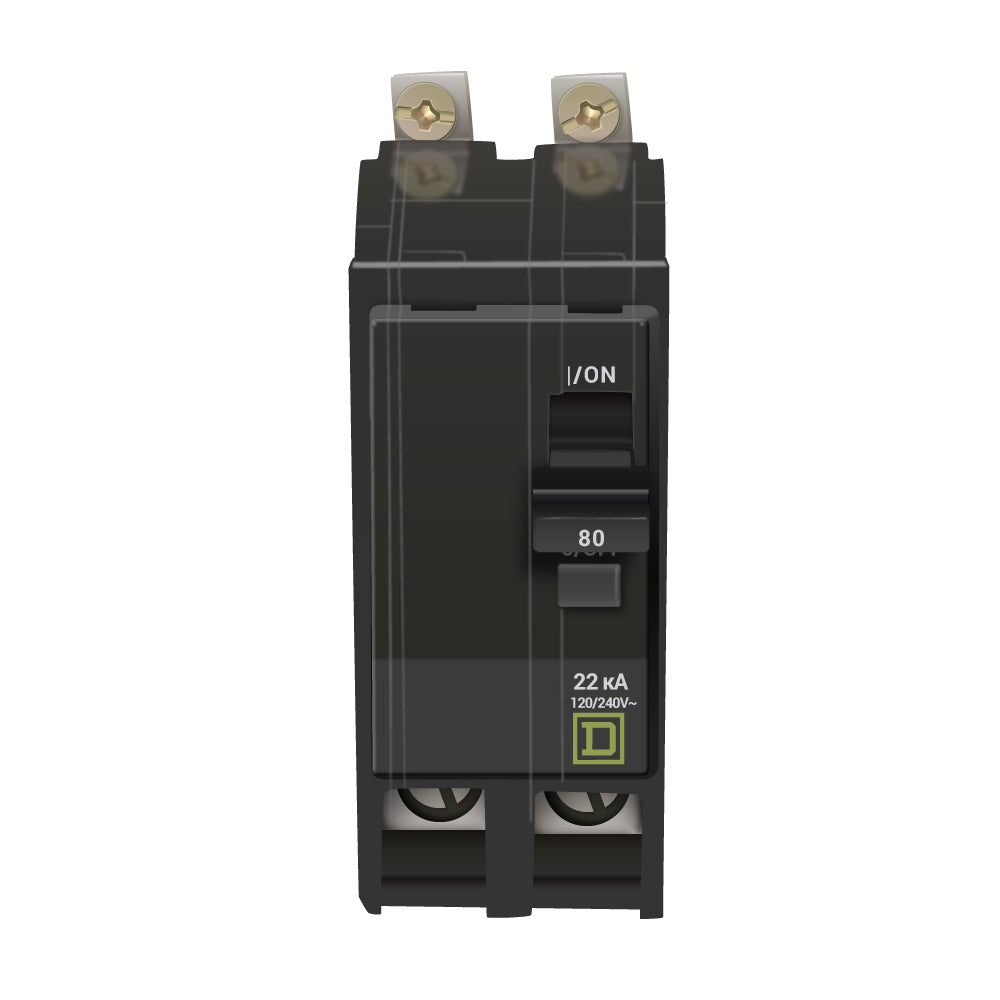

QOB280VH - Square D Bolt-On 80 amp Breaker
Square D QOB series double pole 80 ampere bolt-on molded case circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 22 kiloampere at 240V complete with (LI) long-time and instantaneous trip functions suitable for QOB series load centers.
Specifications:
- Product: Miniature circuit-breaker
- Range: QO
- Line Rated Current: 80 A
- System Voltage: 120 V AC, 120/240 V AC, 240 V AC
- Mounting Type: Bolt-on
- Number of Poles: 2P
- Circuit Breaker Type: Standard
- Ratings: HACR rated
- Electrical Connection: Box lugs
- Inturrupt Rating: 22 kA at: 120/240 V AC 50/60 Hz, 22 kA at: 240 V AC 50/60 Hz, 22 kA at: 120 V AC 50/60 Hz
- Number of Panel Spaces: 2
- Wire Size: AWG 4...AWG 2/0 (copper or aluminium)
- Height: 3.5 in
- Depth: 2.91 in
- Width: 1.5 in
- Certifications: CSA, UL listed
- Ambient Rating: 104 Degree F (40 Degree C)
- Authentic Square D Product
- Dimensions (H x W x L): 3.5" x 1.5" x 2.91"
Alt model: q0b280vh
