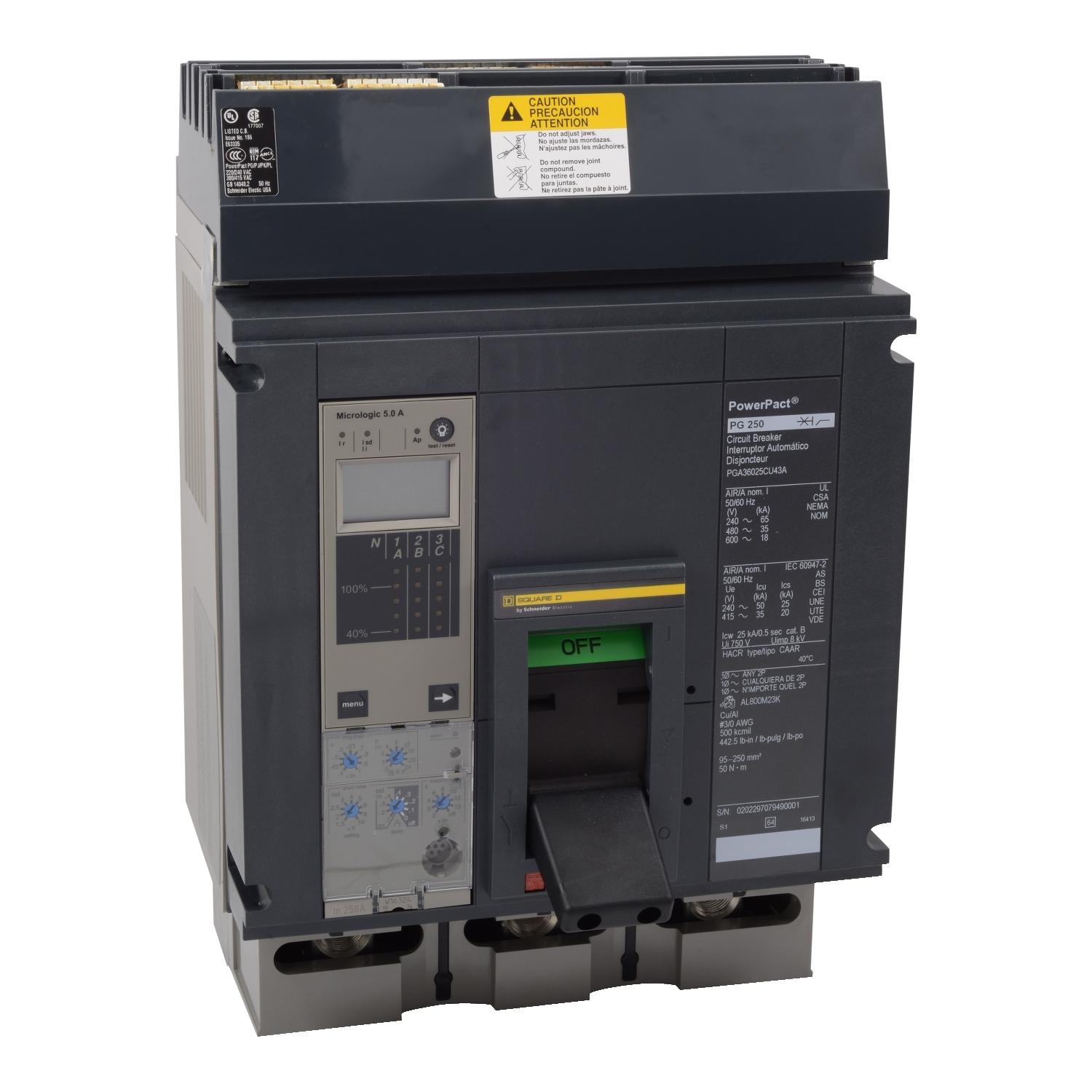

PGA36080U44A - Square D - Molded Case Circuit Breakers

Images are for reference only

In stock and ready to ship
Inventory on the way

Condition

New

Reconditioned

Quantity

Earn 4536 reward points

Secure transaction

FREE & fast shipping on orders over $49

CSA approved with 1 year warranty

30 day returns

[{"id":41265348935789,"title":"New","option1":"New","option2":null,"option3":null,"sku":"PGA36080U44A","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"PGA36080U44A - Square D - Molded Case Circuit Breakers - New","public_title":"New","options":["New"],"price":647999,"weight":14515,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42575297314925,"title":"Reconditioned","option1":"Reconditioned","option2":null,"option3":null,"sku":"PGA36080U44A_recon","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"PGA36080U44A - Square D - Molded Case Circuit Breakers - Reconditioned","public_title":"Reconditioned","options":["Reconditioned"],"price":453599,"weight":14515,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Returns are easy

You may return items within 30 days of delivery for a full refund.

View our return policy

FREE Shipping on orders over $49.

Canada Breakers offers one to five day delivery in Canada & United States. The variation depends on the warehouse location for the product(s).

Same Day Shipping

We strive to ship out your items within one business day.

In rare circumstances, Canada Breakers may reserve up to 5 business days to complete shipment. Feel free to contact us if your order is time sensitive.

Product Warranty - PGA36080U44A - Square D - Molded Case Circuit Breakers

All products, new and used, carry a 1-year warranty from Canada Breakers. All products sold by Canada Breakers are authentic and CSA approved.

Overview

Product Specifications - PGA36080U44A - Square D Molded Case Circuit Breakers

Part Number:

PGA36080U44A
Manufacturer:

Schneider Electric / Square D
Family:

Powerpact
Pole:

3
Amp:

800
Volt:

600
Phase:

3

Category:

Molded Case Breakers / 3-Pole
Connection:

I-Line Style Plug-In
Type:

P Frame
Functions:

NGC
Protection:

Solid State
AIC Ratings:

35kA@480V

Dimensions

Dimensions (HxWxD):

12.86 x 8.27 x 8.05
Weight:

32 lbs

Standards

Product Description - PGA36080U44A - Square D Molded Case Circuit Breakers

PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 6.0A trip unit and an LSIG function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 800A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

PGA36080U44A - Square D - Molded Case Circuit Breakers

I-Line Style Plug-In - 800 Amp - 3 Pole - 600 Volt
